Drive Belt Vibration Diagnosis

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

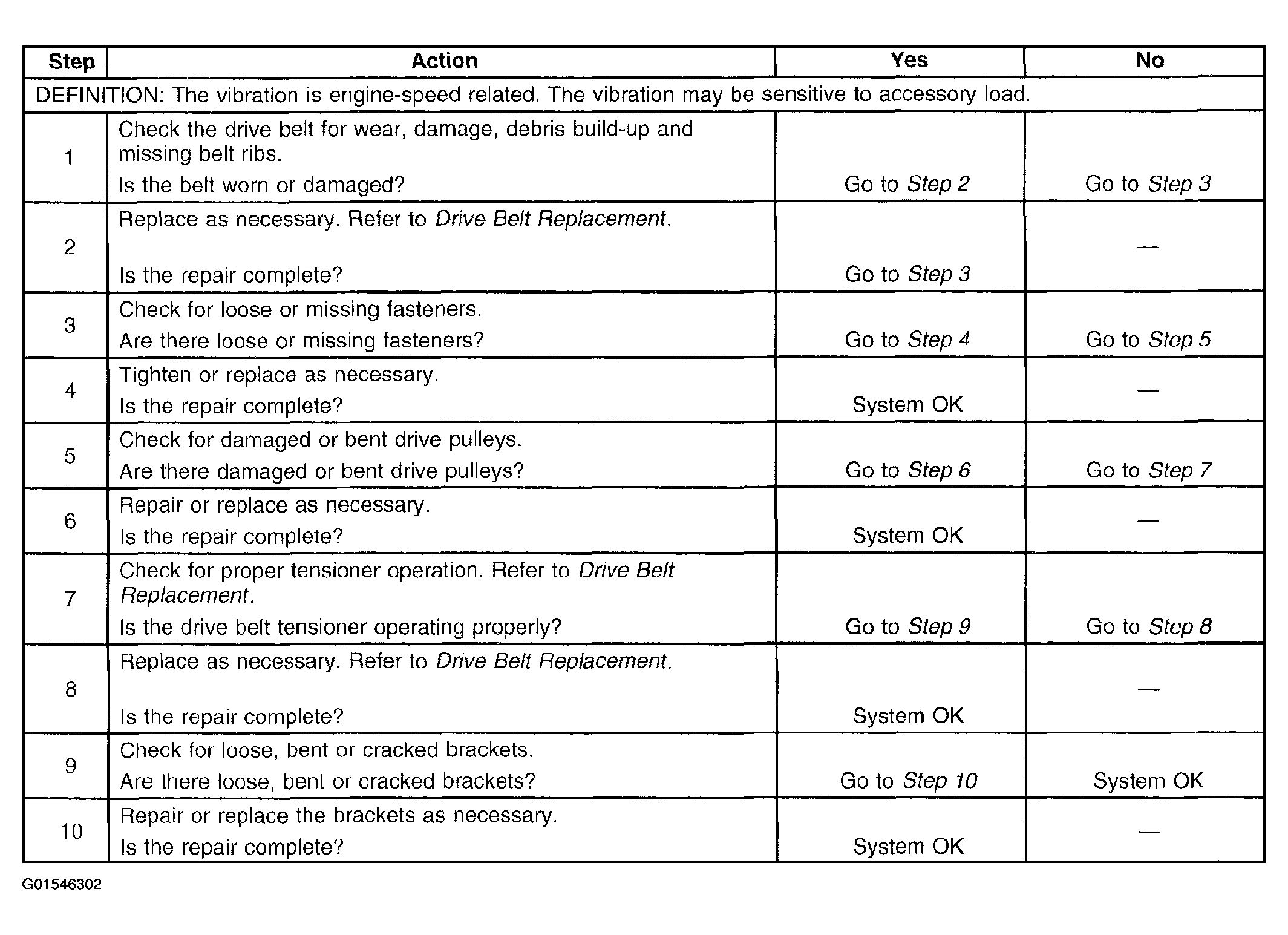

Fig 1: Drive Belt Vibration Diagnosis
G01546302Courtesy of GENERAL MOTORS CORP.
