Disassembled Views

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

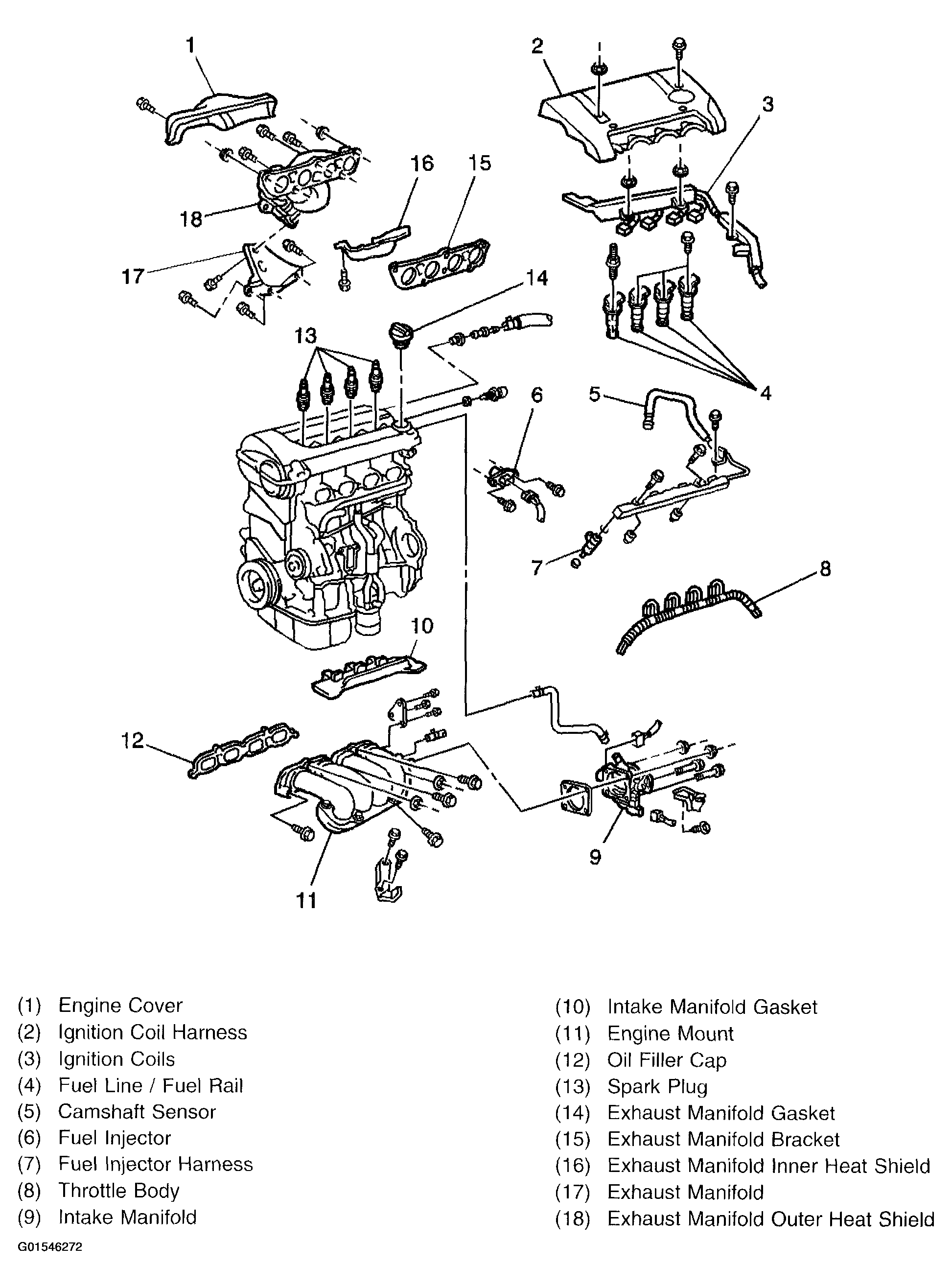

Fig 1: Intake and Exhaust Manifold Components

Courtesy of GENERAL MOTORS CORP.

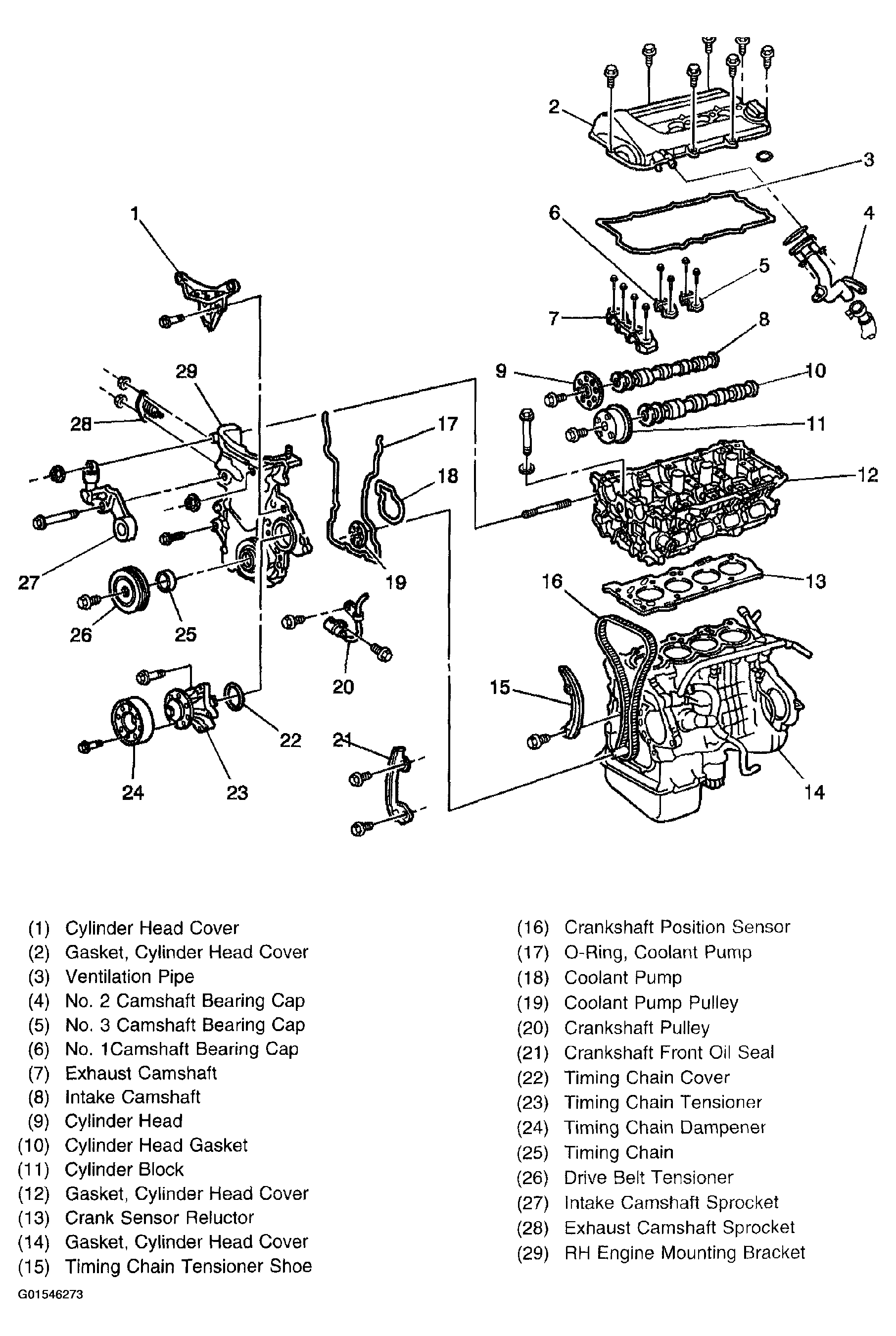

Fig 2: Cylinder Head and Components

Courtesy of GENERAL MOTORS CORP.

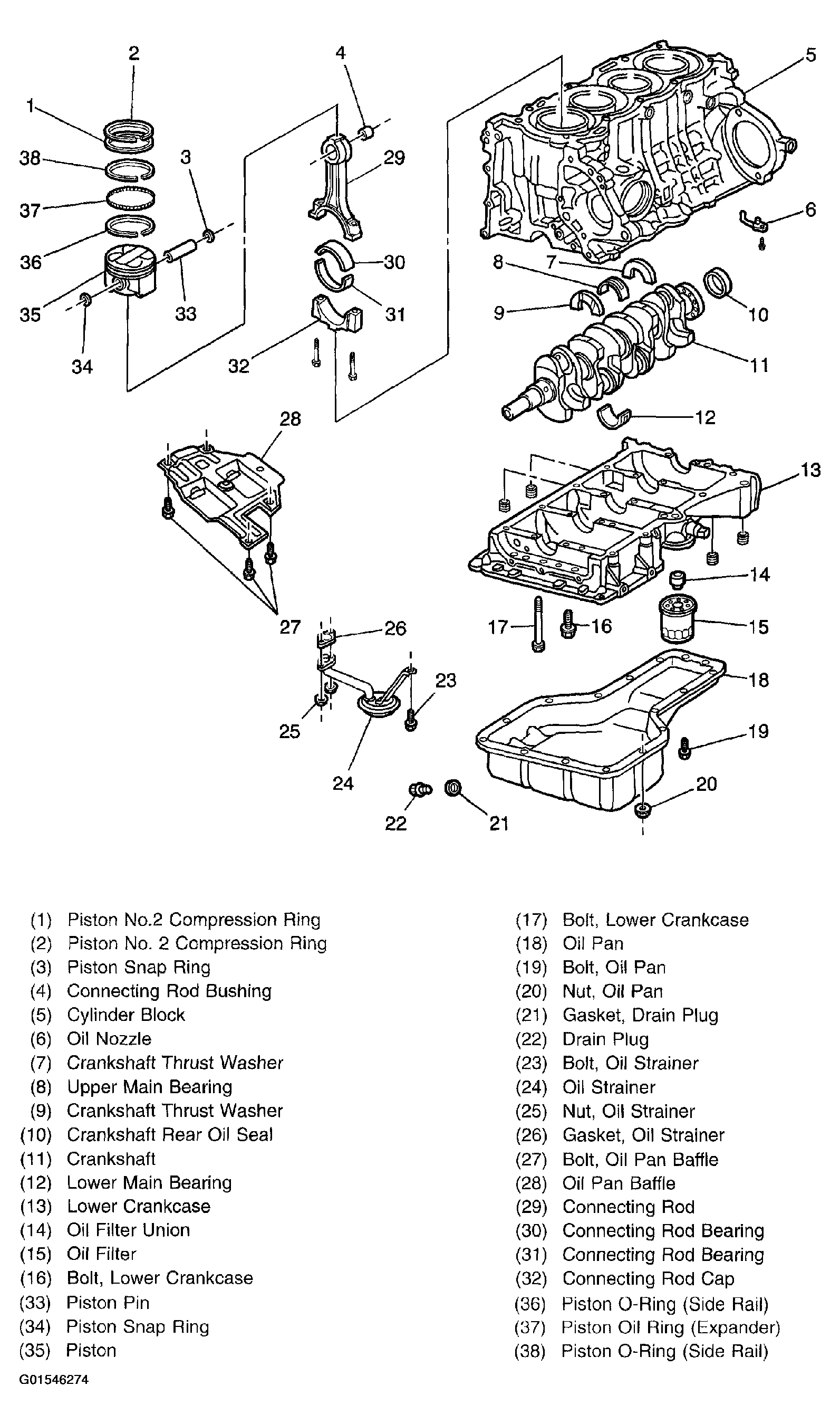

Fig 3: Cylinder Block, Connecting Rod and Piston Components

Courtesy of GENERAL MOTORS CORP.

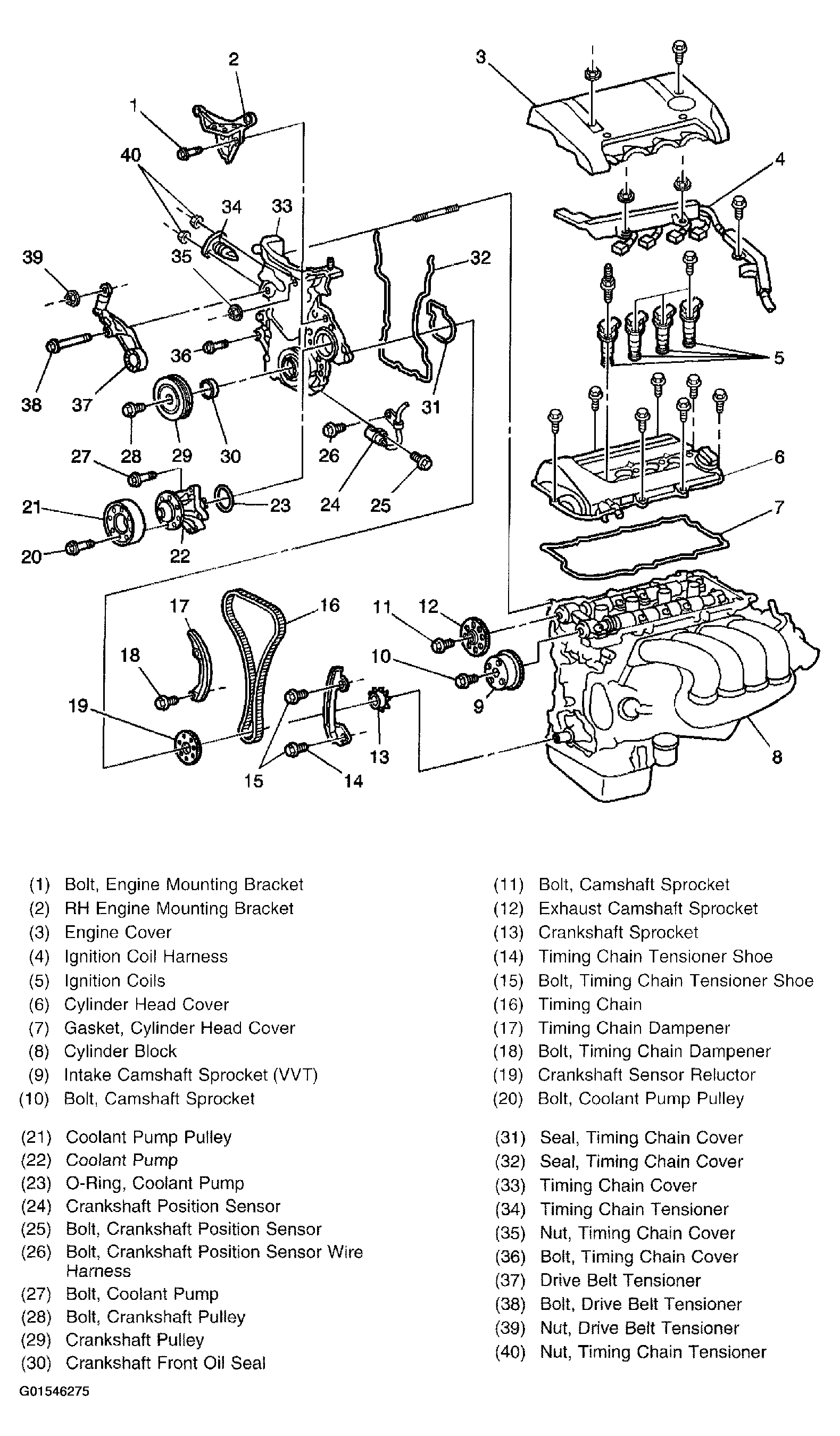

Fig 4: Timing Chain and Housing Components

Courtesy of GENERAL MOTORS CORP.

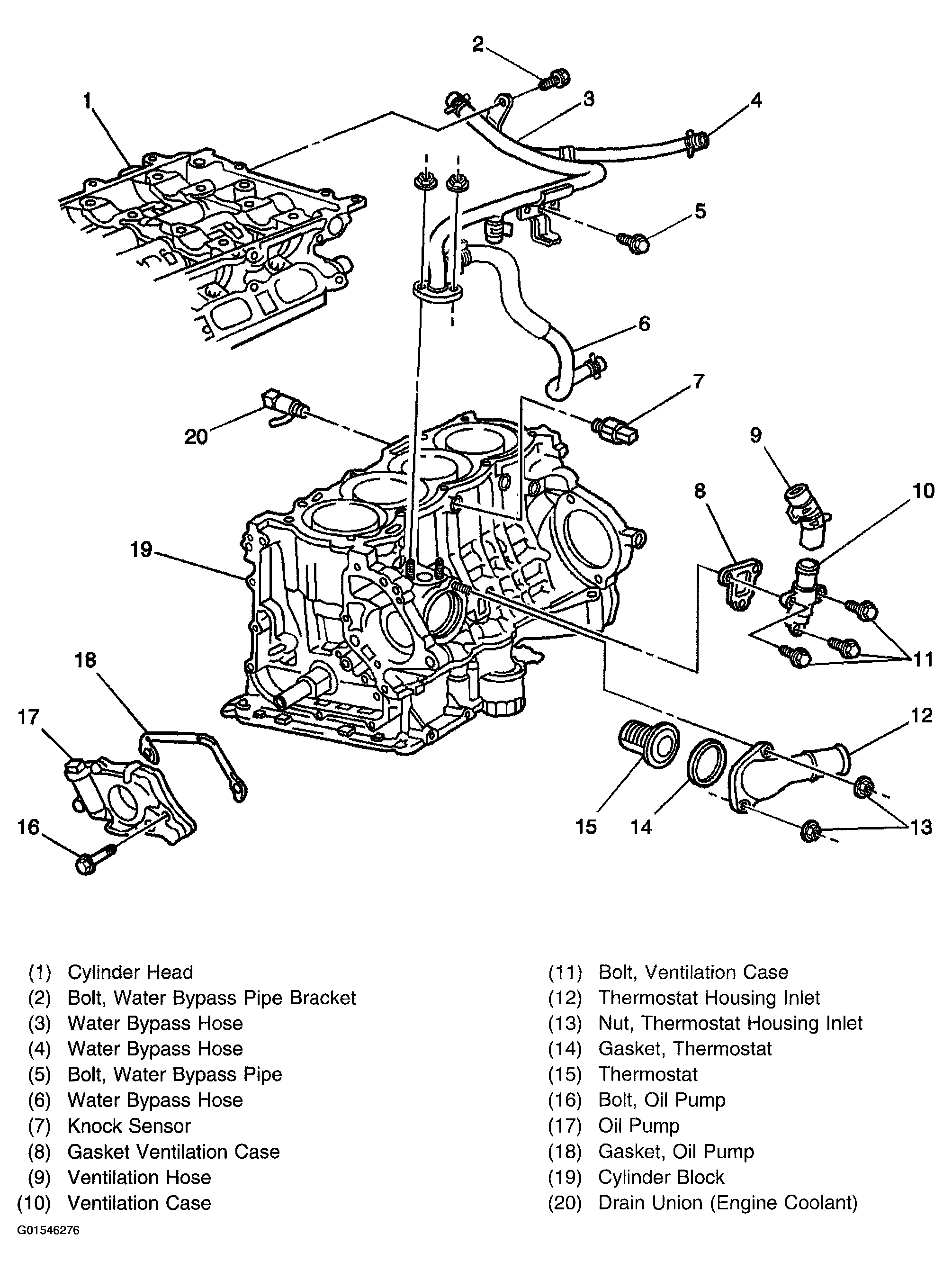

Fig 5: Oil and Cooling System Components

Courtesy of GENERAL MOTORS CORP.

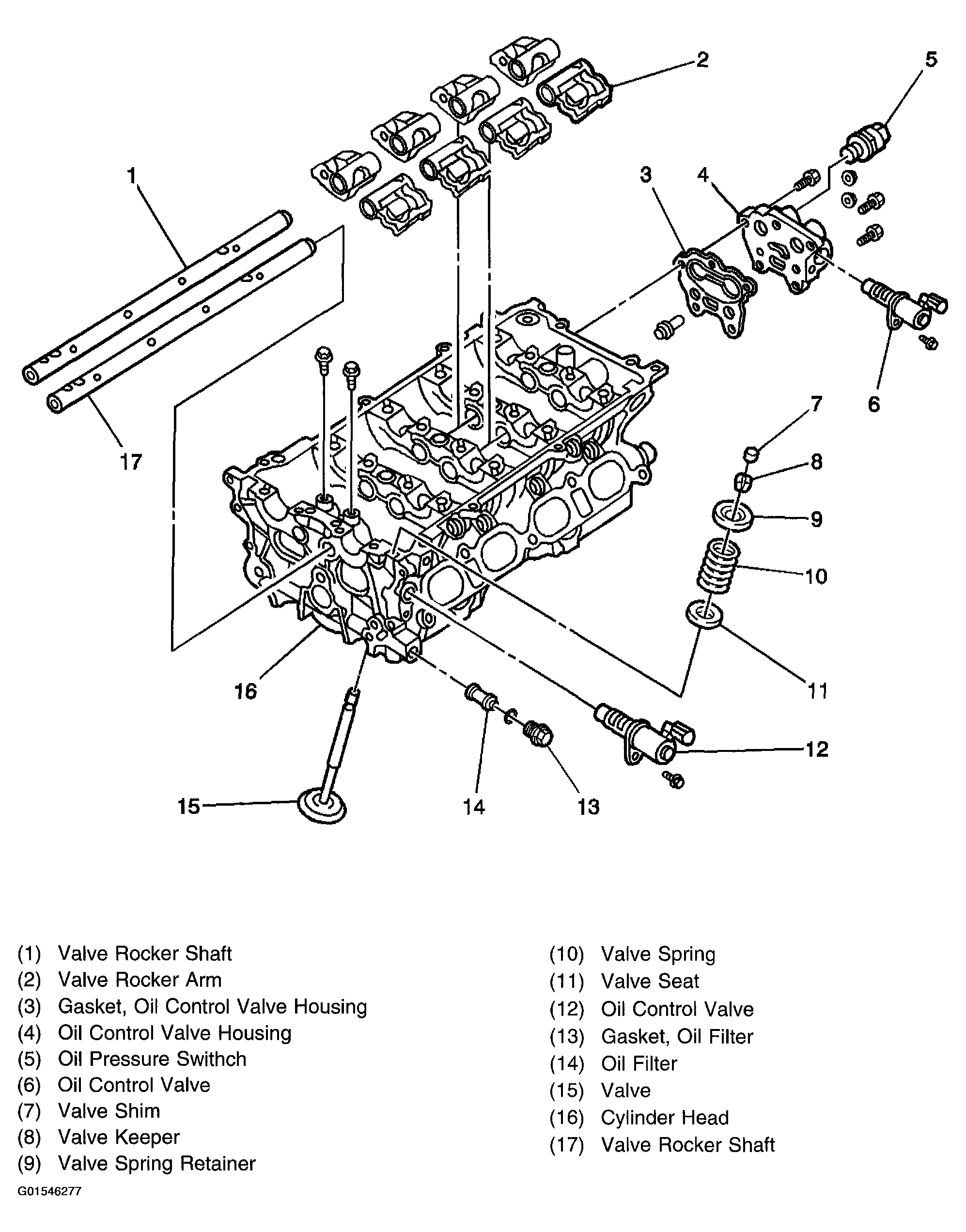

Fig 6: Valve Assembly Components

Courtesy of GENERAL MOTORS CORP.
