Oil Pan: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Suburban, and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. On 4WD models, remove front differential. See appropriate DIFFERENTIALS article in DRIVE AXLES.
  2. On all models, remove starter motor.
  3. Remove oil pan skid plate bolts then the oil pan skid plate.
  4. Remove crossbar.
  5. Drain engine oil and remove oil level indicator.

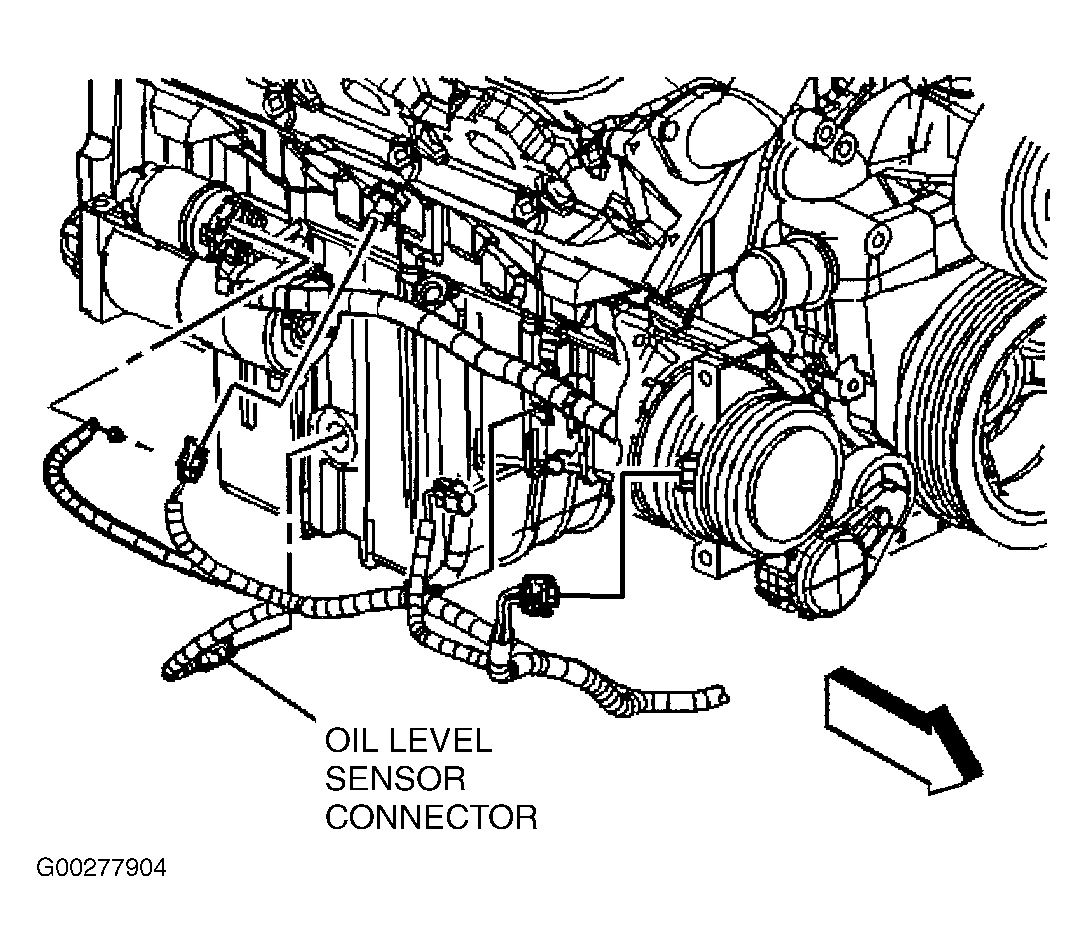

  6. Disconnect oil level sensor electrical connector. See Figure.
  7. Remove engine harness clip from oil pan.
  8. Remove oil level sensor from oil pan.
  9. Remove battery cable channel bolt.
  10. Remove and reposition battery cable channel.
  11. Remove oil pan bolts, oil pan and gasket.
