Crankshaft Balancer: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Suburban, and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the balancer onto the end of the crankshaft.
  2. Install the Crankshaft Balancer Installer (J-42845) to the crankshaft balancer.
  3. Using the crankshaft balancer installer, install the balancer. See Fig 1.
  4. Tighten crankshaft balancer installer until crankshaft balancer is completely seated against the crankshaft sprocket.
  5. Remove crankshaft balancer installer from crankshaft. See Fig 1.
  6. Install crankshaft bolt and washer to crankshaft. Tighten crankshaft balancer bolt to specification. See TORQUE SPECIFICATIONS .
  7. Remove flywheel holding tool.
  8. Install starter motor.
  9. Install cooling fan.
  10. Install A/C belt.

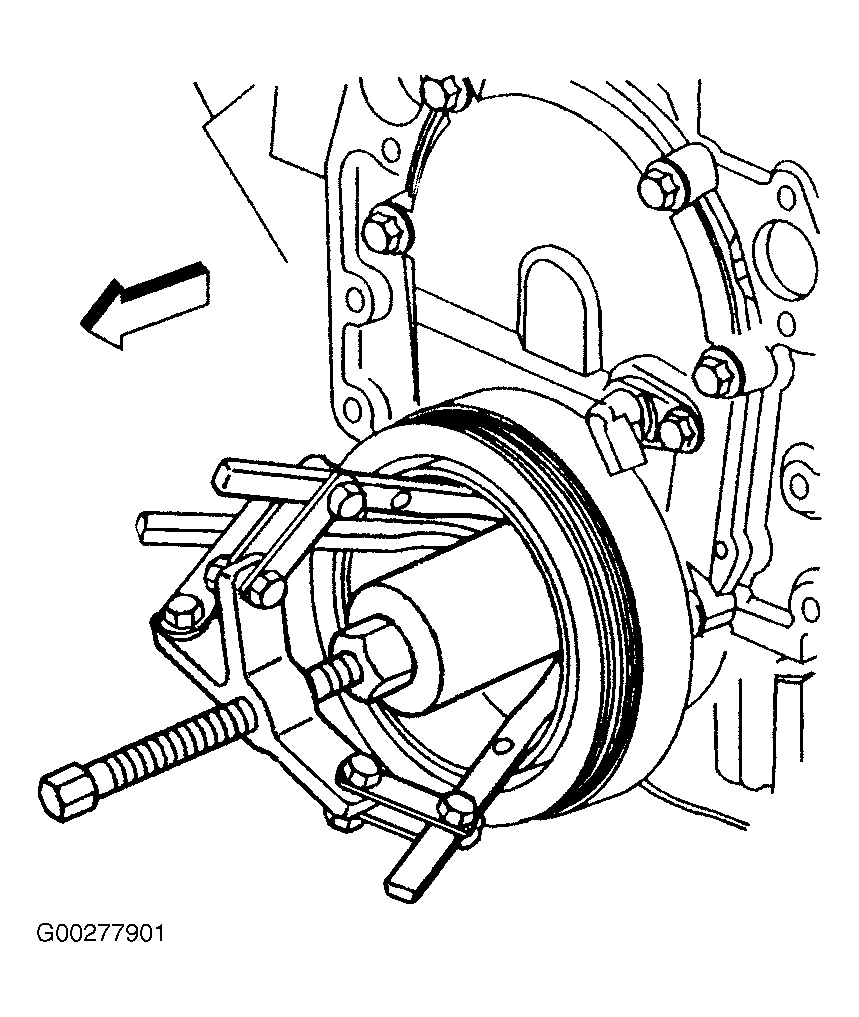

Fig 1: Crankshaft Balancer Replacement
G00277901Courtesy of GENERAL MOTORS CORP.
