Engine Block-Top View

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

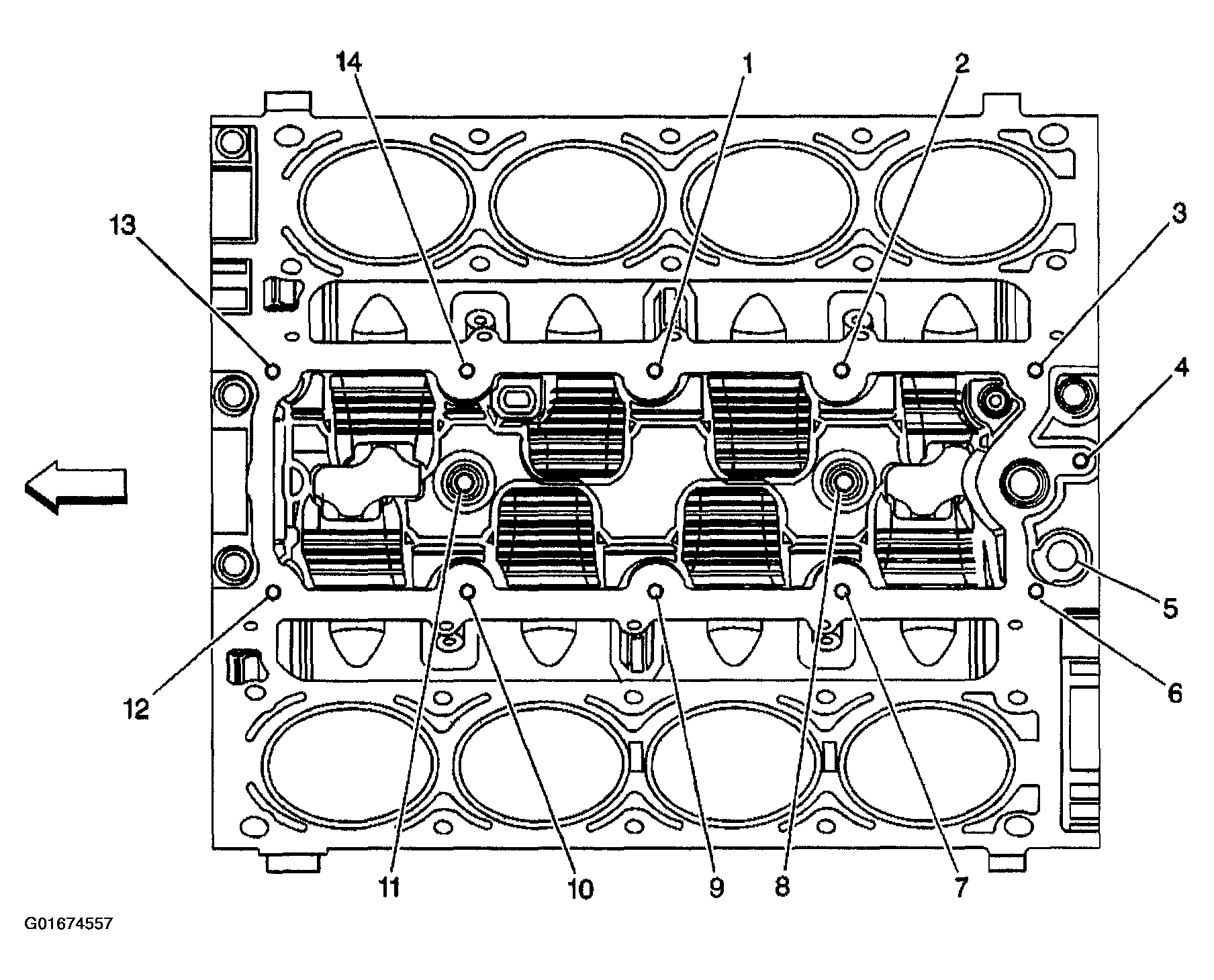

Fig 1: Engine Block - Top View
G01674557Courtesy of GENERAL MOTORS CORP.

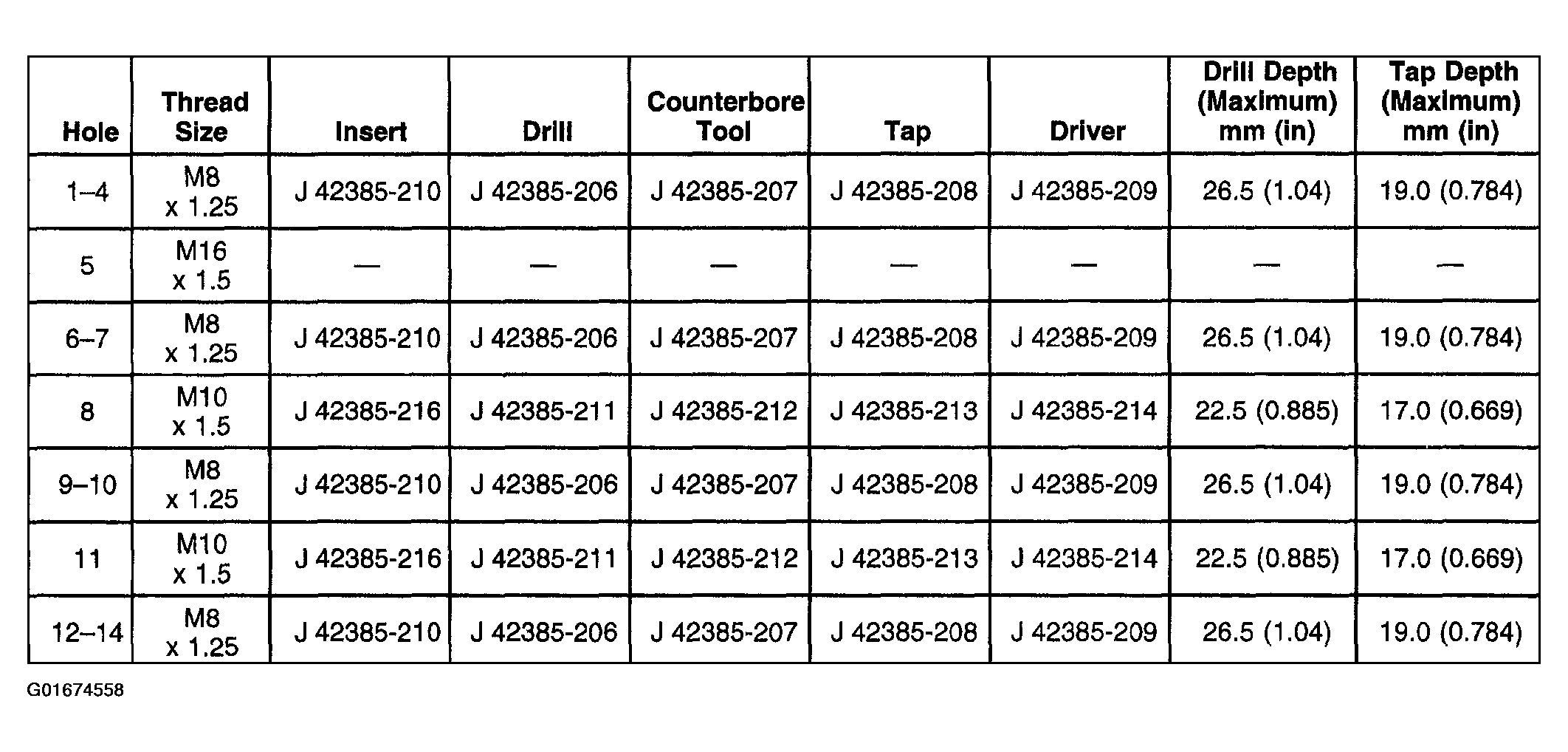

Fig 2: Engine Block - Top View Hole Thread Sizes
G01674558Courtesy of GENERAL MOTORS CORP.
