Engine Block-Right Side View

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

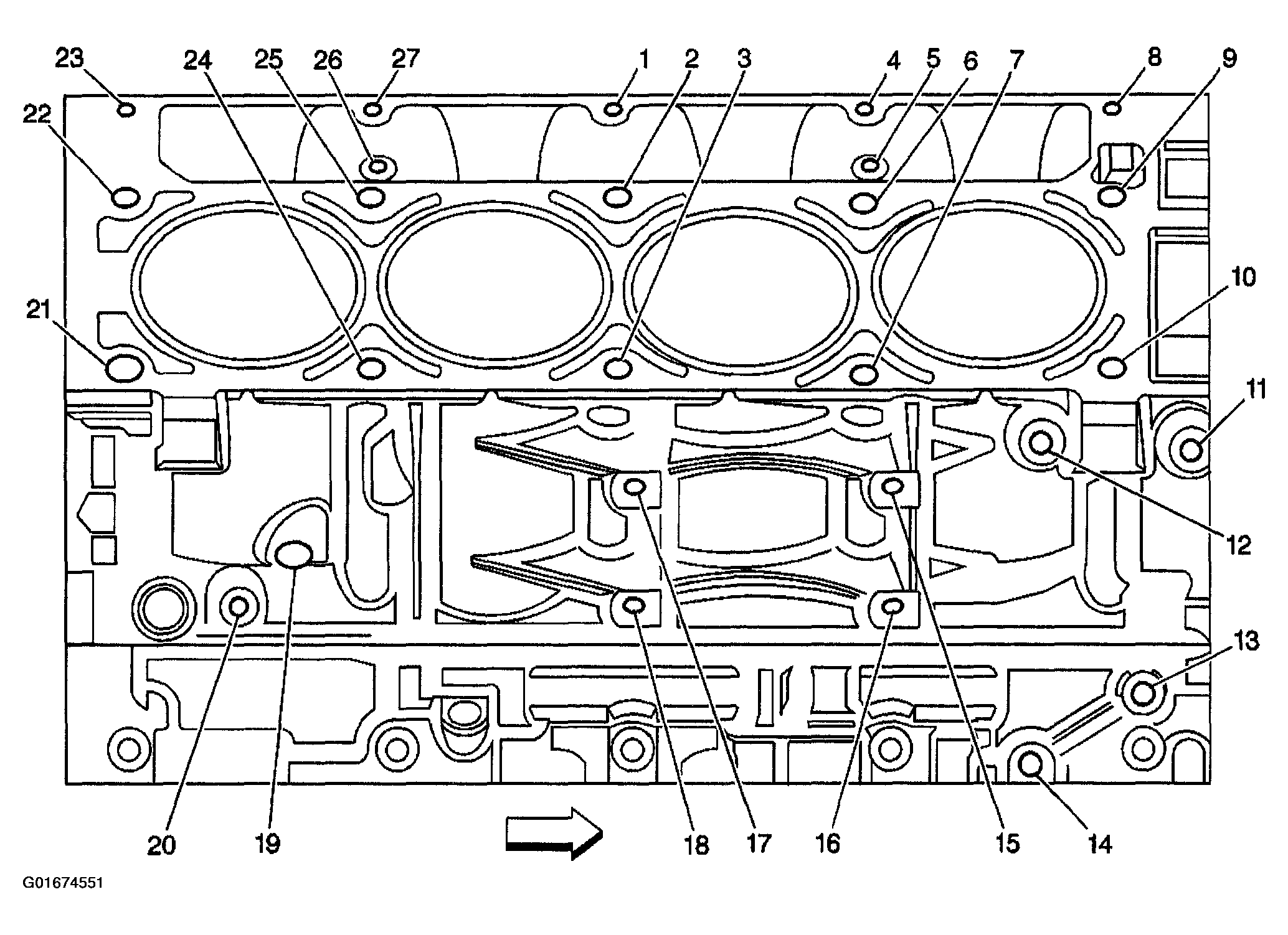

Fig 1: Engine Block - Right Side View
G01674551Courtesy of GENERAL MOTORS CORP.

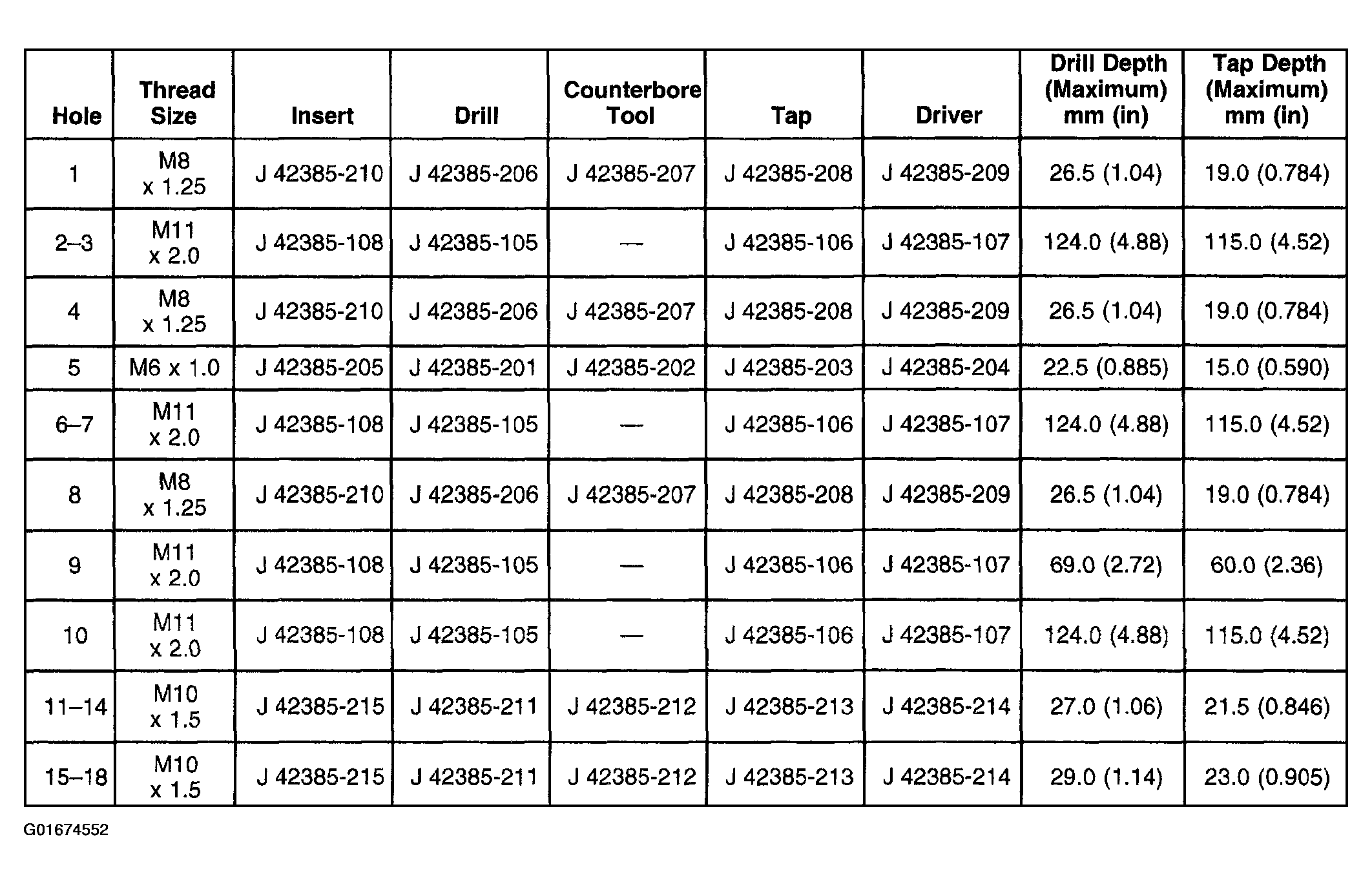

Fig 2: Engine Block - Right Side View Hole Thread Sizes (1 Of 2)
G01674552Courtesy of GENERAL MOTORS CORP.

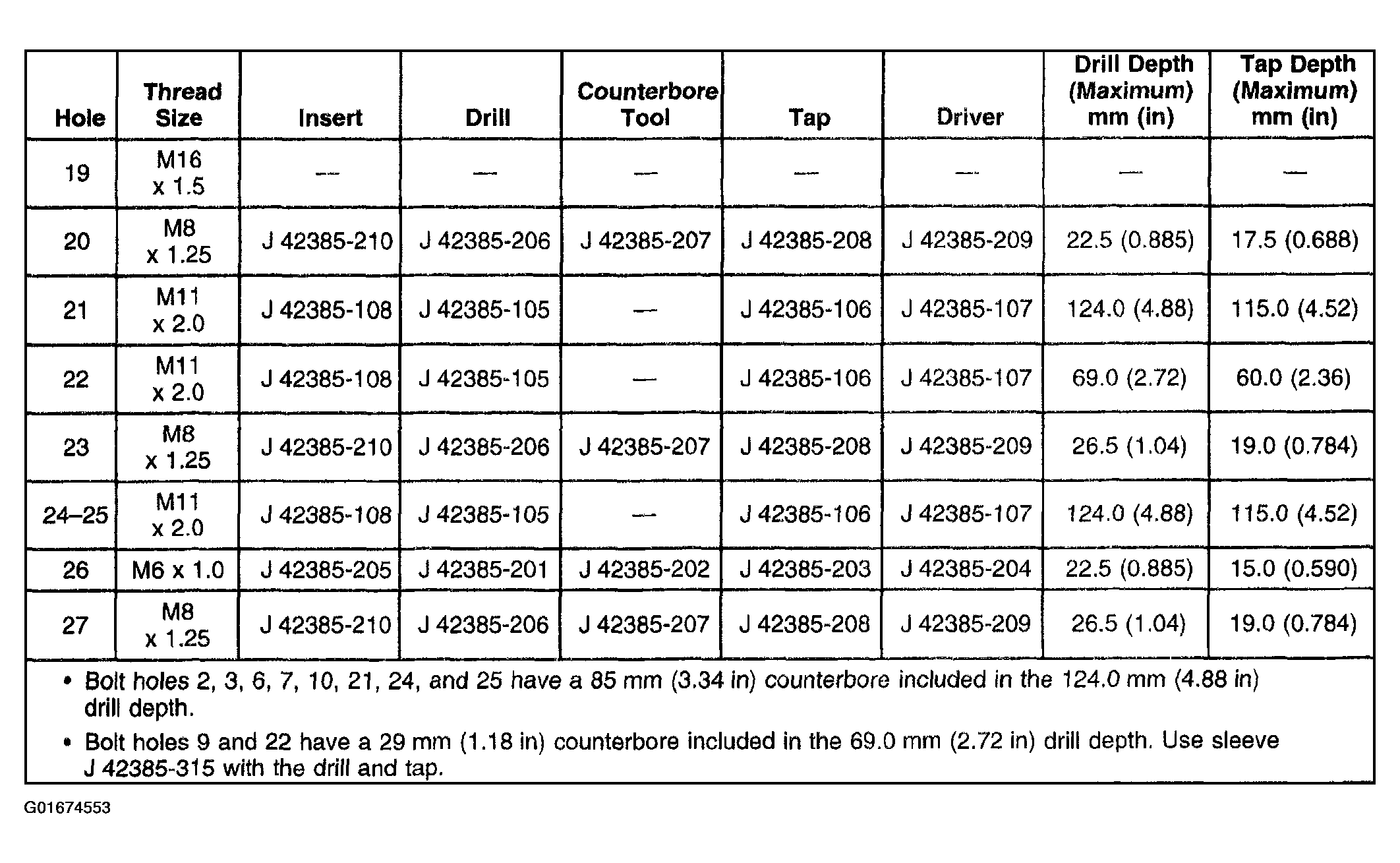

Fig 3: Engine Block - Right Side View Hole Thread Sizes (2 Of 2)
G01674553Courtesy of GENERAL MOTORS CORP.
