Cylinder Head-End View

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Cylinder Head - End View (1 Of 2)
G01674561Courtesy of GENERAL MOTORS CORP.

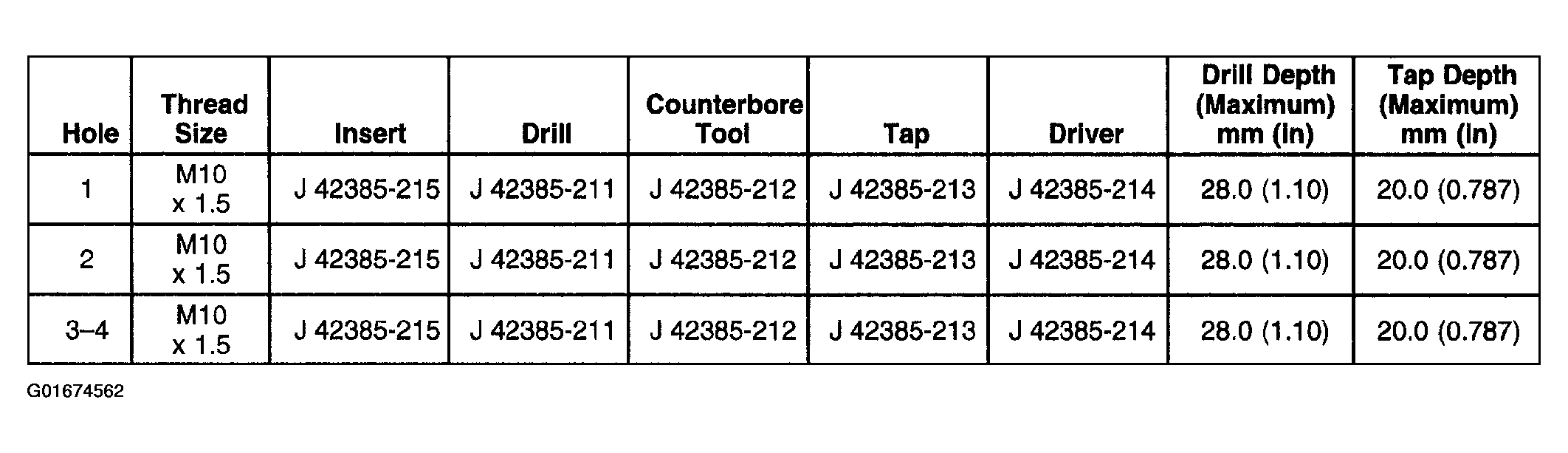

Fig 2: Cylinder Head - End View Hole Thread Sizes
G01674562Courtesy of GENERAL MOTORS CORP.
