Valve Rocker Arm and Push Rod Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: When reusing the valve train components, always install the components to the original location and position.

Valve lash is net build, no valve adjustment is required.

  1. Lubricate the valve rocker arms and pushrods with clean engine oil.
  2. Lubricate the flange of the valve rocker arm bolts with clean engine oil.

    Lubricate the flange or washer surface of the bolt that will contact the valve rocker arm.

  3. Install the valve rocker arm pivot support.

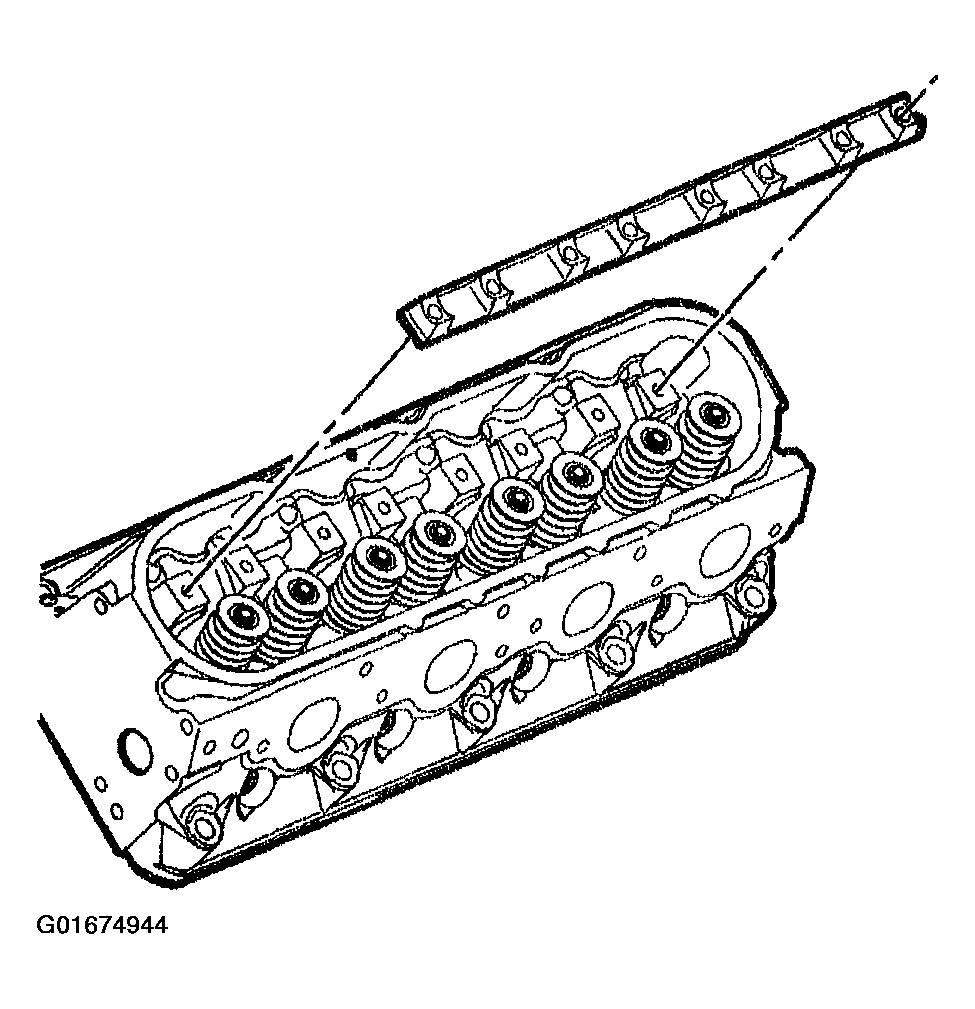

    Fig 1: Valve Rocker Arm Pivot Support
    G01674944Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Make sure that the pushrods seat properly to the valve lifter sockets.
  4. Install the pushrods.

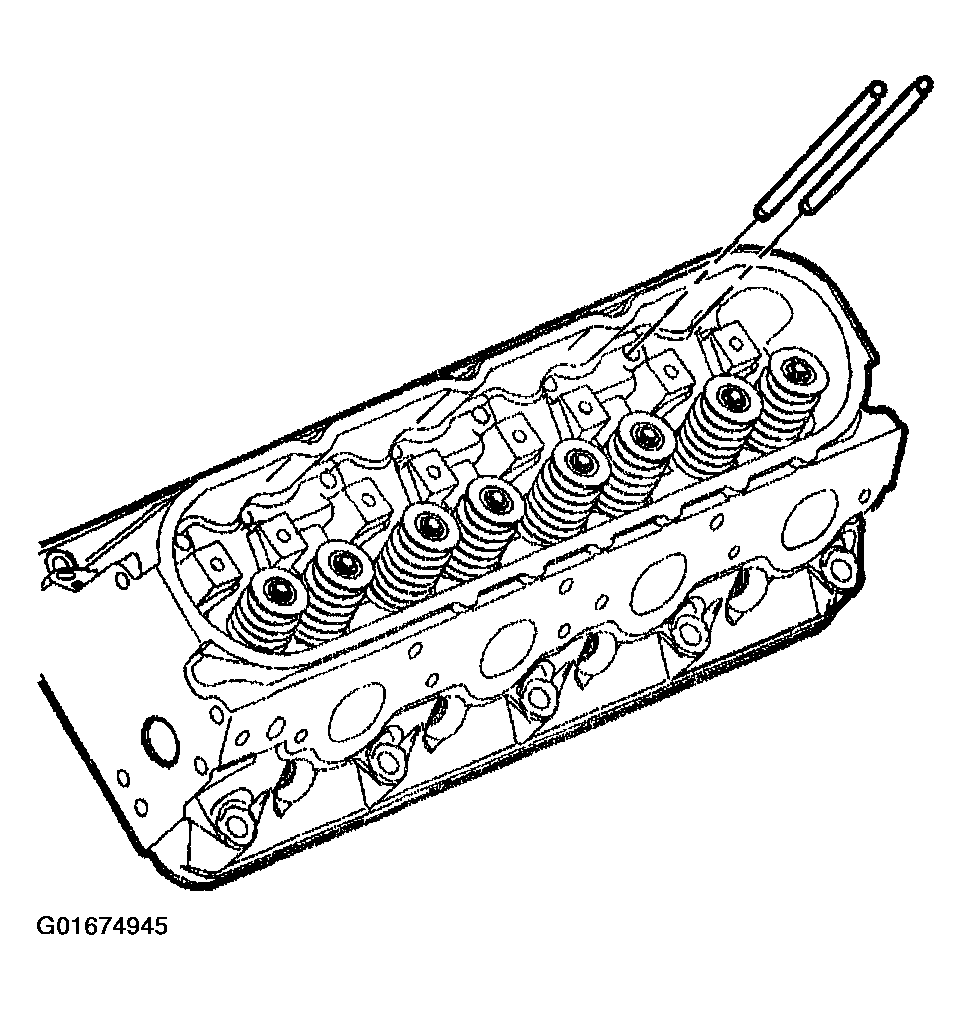

    Fig 2: Pushrods
    G01674945Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Make sure that the pushrods seat properly to the ends of the rocker arms.

    DO NOT tighten the rocker arm bolts at this time.

  5. Install the rocker arms and bolts.

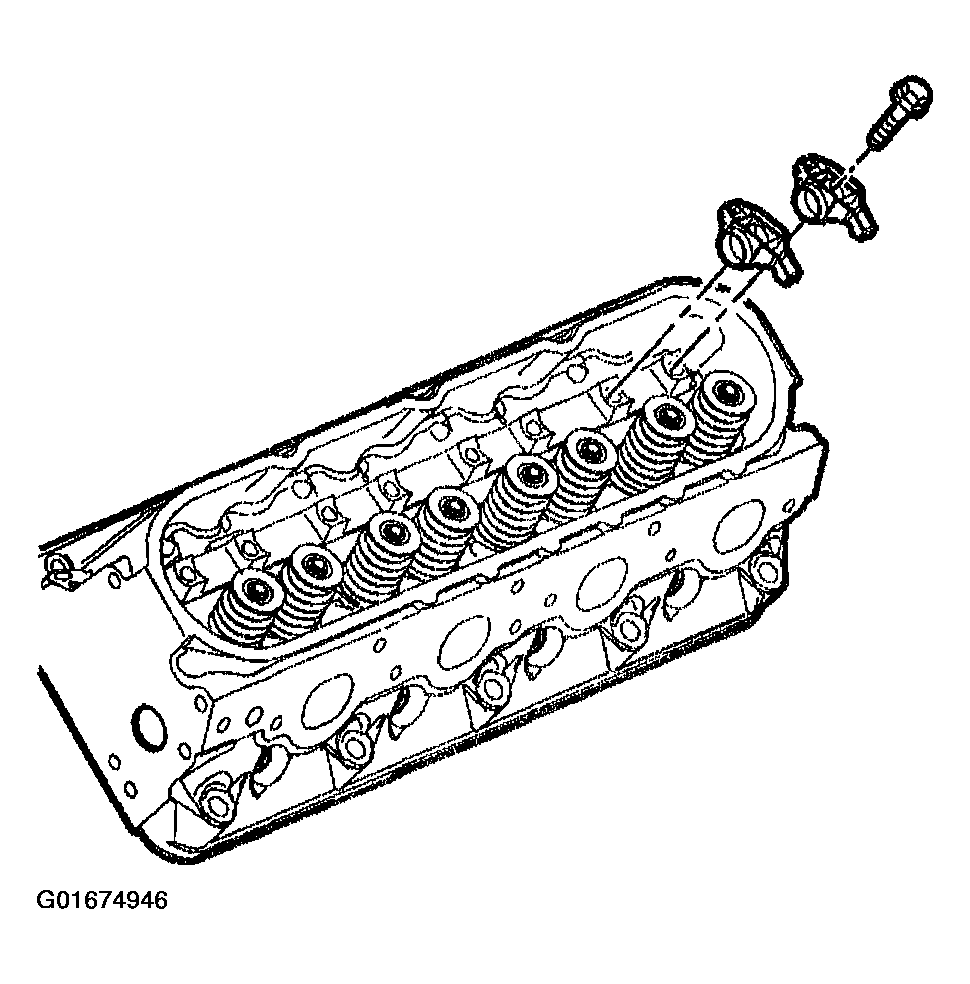

    Fig 3: Valve Rocker Arms & Bolts
    G01674946Courtesy of GENERAL MOTORS CORP.
  6. Rotate the crankshaft until number one piston is at top dead center of compression stroke.

    In this position, cylinder number one rocker arms will be off lobe lift, and the crankshaft sprocket key will be at the 1:30 position. If viewing from the rear of the engine, the additional crankshaft pilot hole, non-threaded, will be in the 10:30 position.

    The engine firing order is 1, 8, 7, 2, 6, 5, 4, 3.

    Cylinders 1, 3, 5 and 7 are left bank.

    Cylinders 2, 4, 6, and 8 are right bank.

    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  7. With the engine in the number one firing position, tighten the following valve rocker arm bolts:

    Tighten

    • Tighten exhaust valve rocker arm bolts 1, 2, 7, and 8 to 30 N.m (22 lb ft).
    • Tighten intake valve rocker arm bolts 1, 3, 4, and 5 to 30 N.m (22 lb ft).

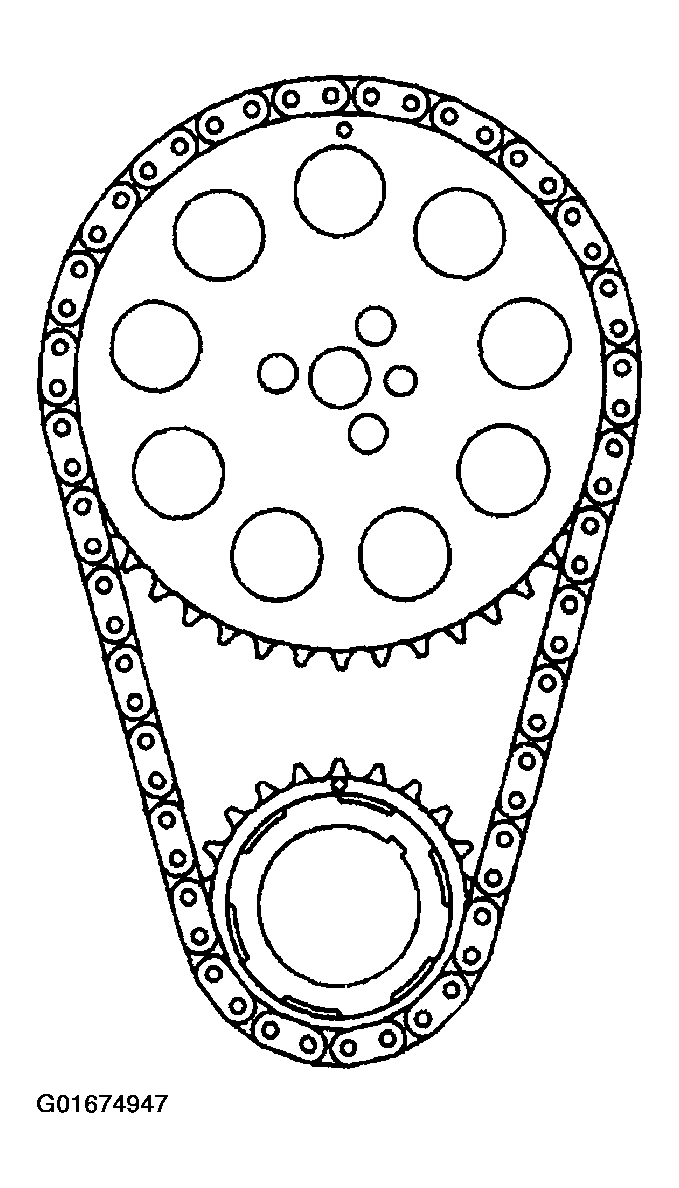

    Fig 4: Crankshaft & Camshaft Sprockets
    G01674947Courtesy of GENERAL MOTORS CORP.
  8. Rotate the crankshaft 360 degrees.
  9. Tighten the following valve rocker arm bolts:

    Tighten

    • Tighten exhaust valve rocker arm bolts 3, 4, 5, and 6 to 30 N.m (22 lb ft).
    • Tighten intake valve rocker arm bolts 2, 6, 7, and 8 to 30 N.m (22 lb ft).
