Valve Lifters and Guides Cleaning and Inspection

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Components that are to be reused must be marked, sorted or organized for assembly.

Mark, sort, or organize the components for assembly. Refer to Separating Parts .
Clean the components in cleaning solvent.
CAUTION: Refer to SAFETY GLASSES CAUTION in Cautions and Notices.
Dry the components with compressed air.
Inspect the valve lifters for the following:
- Bent or broken clip (1)
- Worn pushrod socket (2)
- Scuffed or worn sides (3)
  If the valve lifter shows wear, inspect the engine block lifter bores for wear or damage.

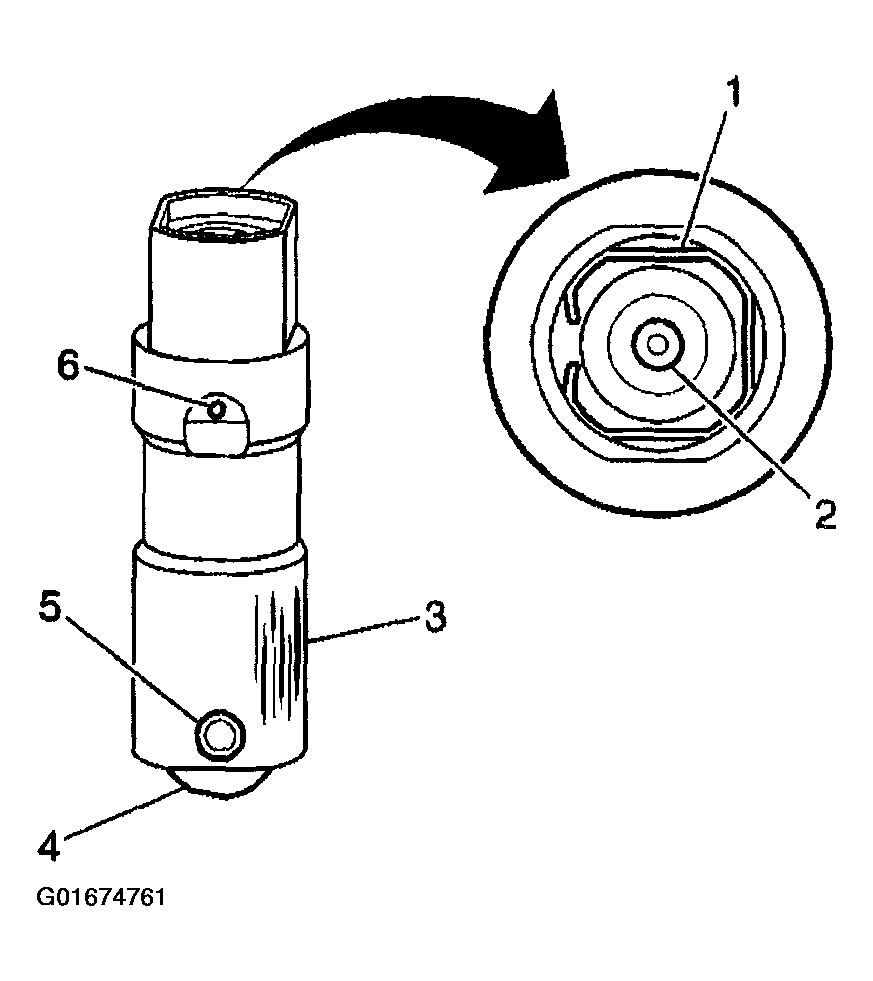

  Fig 1: Valve Lifters Inspection Areas
  Courtesy of GENERAL MOTORS CORP.
- Flat spots on the roller (4)
- Loose or damaged pin (5)
- Plugged oil hole (6)
- Worn or damaged roller bearing
  The roller should rotate freely with no binding or roughness.
Inspect the valve lifter guides for the following:
- For cracks or damage
- Excessive wear in the lifter mounting bores
Fig 2: Valve Lifter Guide Inspection Areas
Courtesy of GENERAL MOTORS CORP.
