Oil Pump, Pump Screen and Deflector Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pump screen bolt (4) and nuts (2).
  2. Remove the oil pump screen (1) with O-ring seal (3).
  3. Remove the O-ring seal from the pump screen.
  4. Discard the O-ring seal.

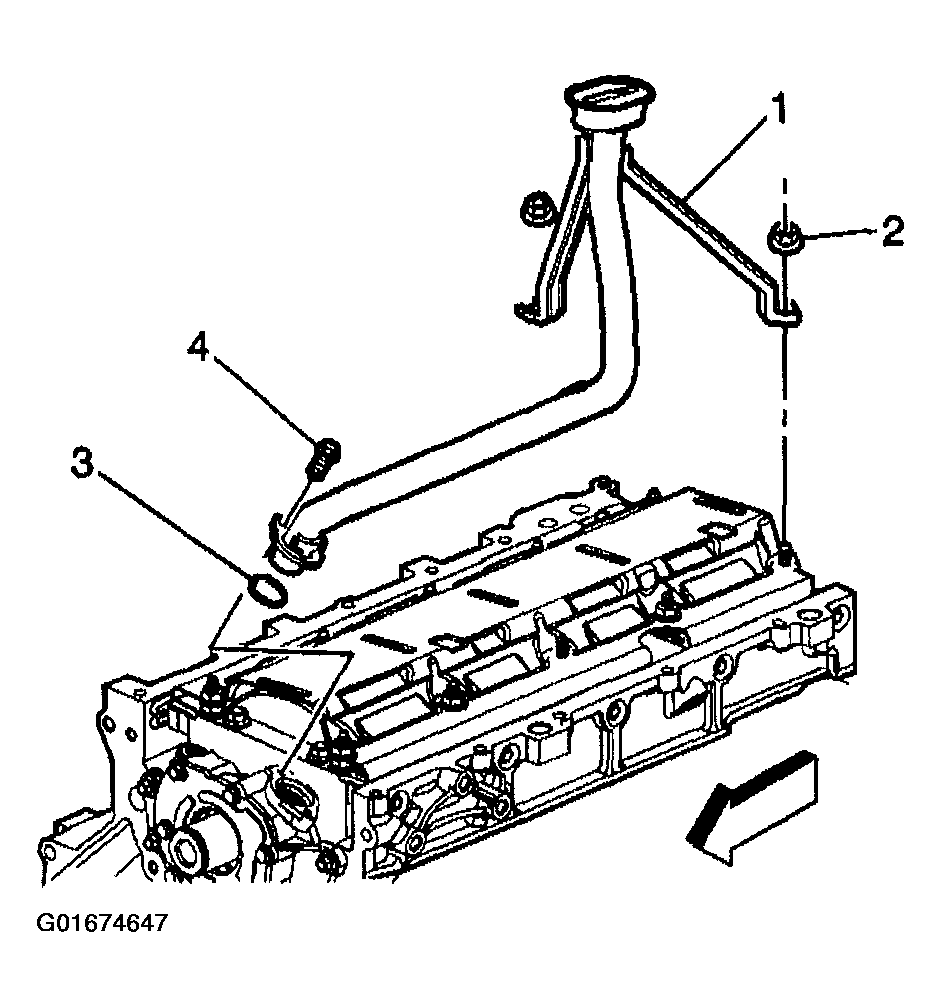

    Fig 1: Oil Pump Screen, Bolt, Nuts & O-Ring Seal
    G01674647Courtesy of GENERAL MOTORS CORP.
  5. Remove the remaining crankshaft oil deflector nuts.
  6. Remove the crankshaft oil deflector.

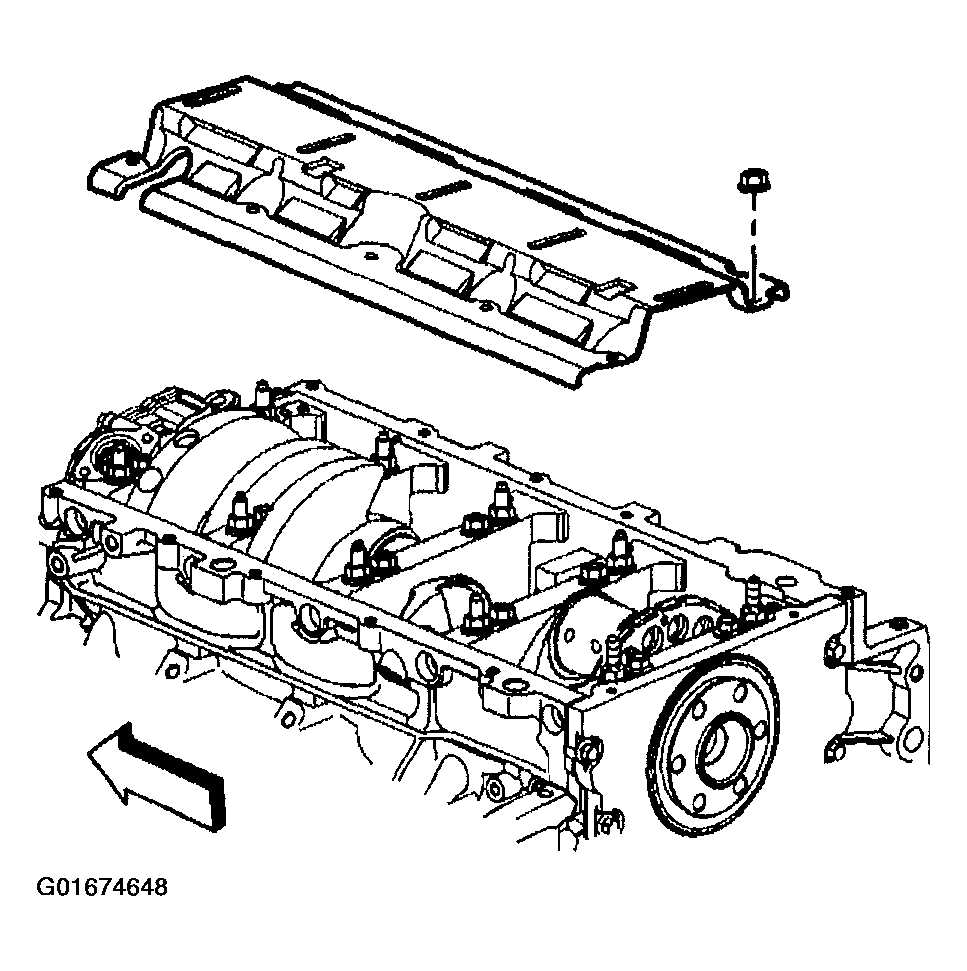

    Fig 2: Crankshaft Oil Deflector & Nuts
    G01674648Courtesy of GENERAL MOTORS CORP.
  7. Remove the oil pump bolts.
    IMPORTANT: Do not allow dirt or debris to enter the oil pump assembly, cap ends as necessary.
  8. Remove the oil pump.

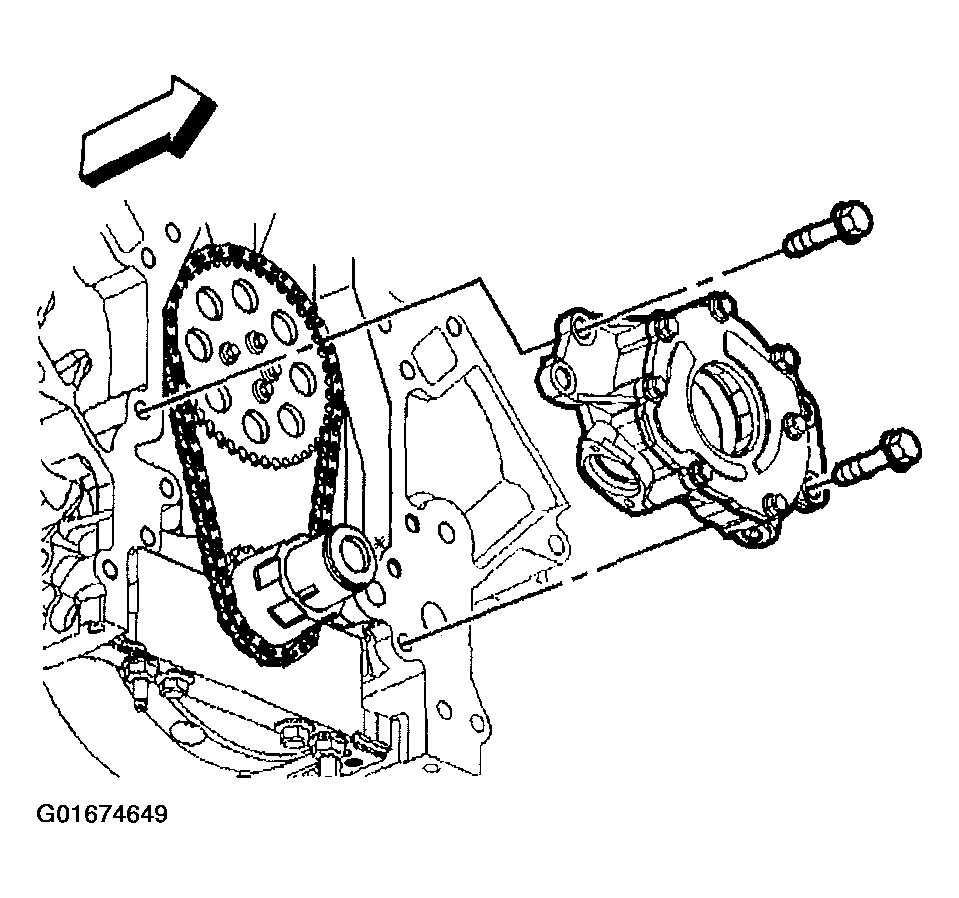

    Fig 3: Oil Pump & Bolts
    G01674649Courtesy of GENERAL MOTORS CORP.
