Oil Level Indicator and Tube Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator from the tube.
  2. Remove the oil level indicator tube bolt.
  3. Remove the oil level indicator tube from the engine block.
    IMPORTANT: Inspect the O-ring seal for cuts or damage. The O-ring seal may be reused if not cut or damaged.
  4. Remove the O-ring seal from the tube, if required.

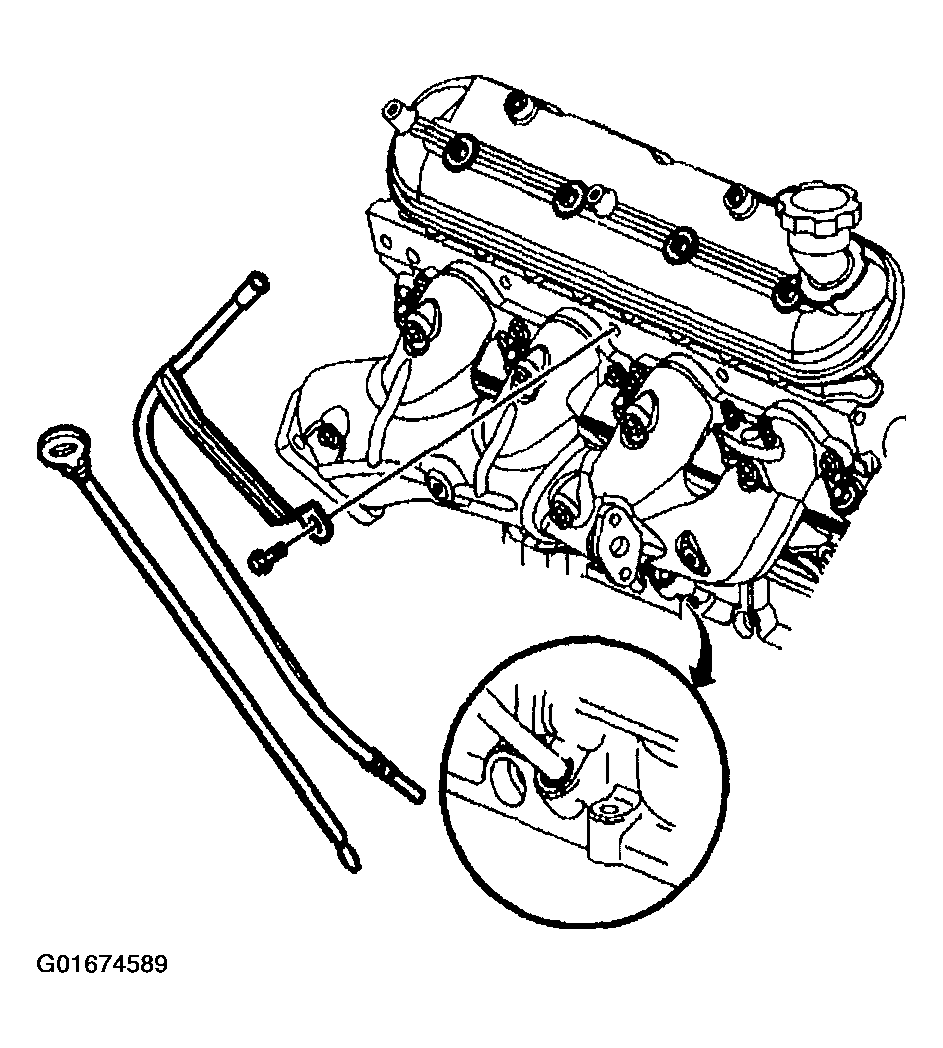

    Fig 1: Oil Level Indicator & Tube
    G01674589Courtesy of GENERAL MOTORS CORP.
