Intake Manifold Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The intake manifold, throttle body, fuel injection rail, and fuel injectors may be removed as an assembly. If not servicing the individual components, remove the manifold as a complete assembly.

DO NOT reuse the intake manifold-to-cylinder head gaskets.

Remove the Positive Crankcase Ventilation (PCV) hose (1) and valve (2).

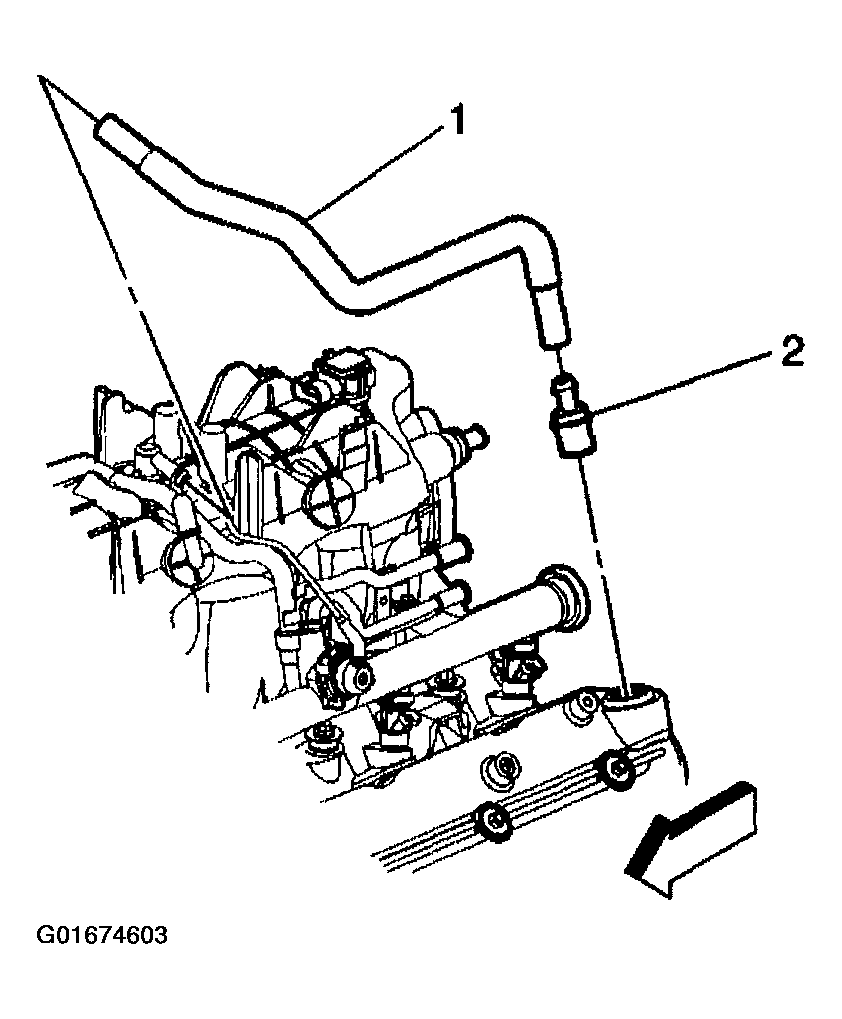

Fig 1: PCV Hose & Valve
Courtesy of GENERAL MOTORS CORP.
Remove the Manifold Absolute Pressure (MAP) sensor (1), if required.
Remove the engine coolant air bleed clamp and hose from the throttle body.

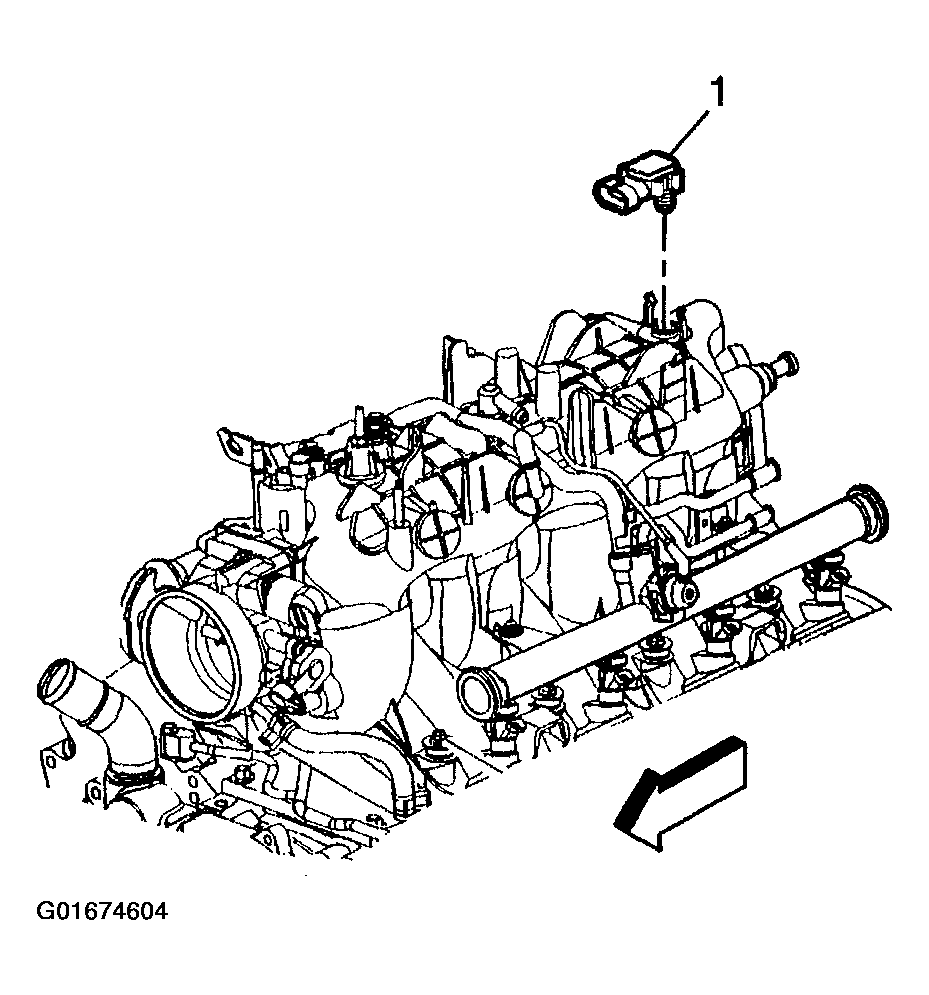

Fig 2: MAP Sensor
Courtesy of GENERAL MOTORS CORP.
Remove the accelerator control cable bracket (2) and bolts (1), if required.

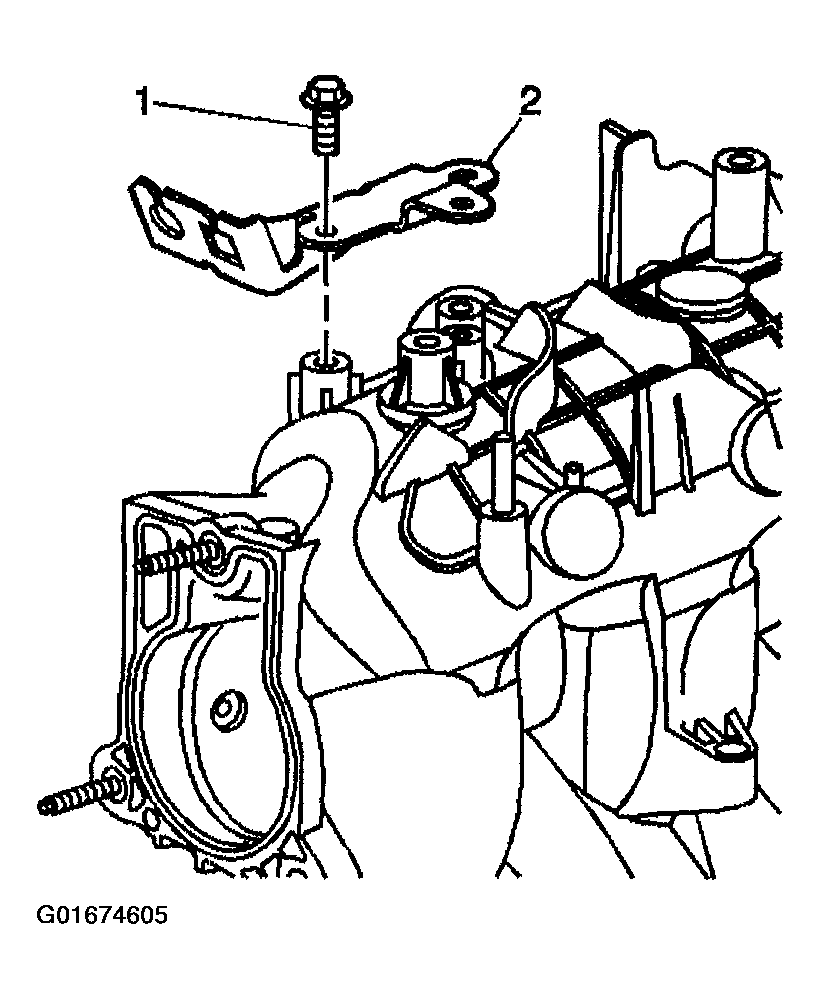

Fig 3: Accelerator Control Cable Bracket & Bolts
Courtesy of GENERAL MOTORS CORP.
Remove the Evaporative Emission (EVAP) solenoid (3), bolt (2), and isolator (1).

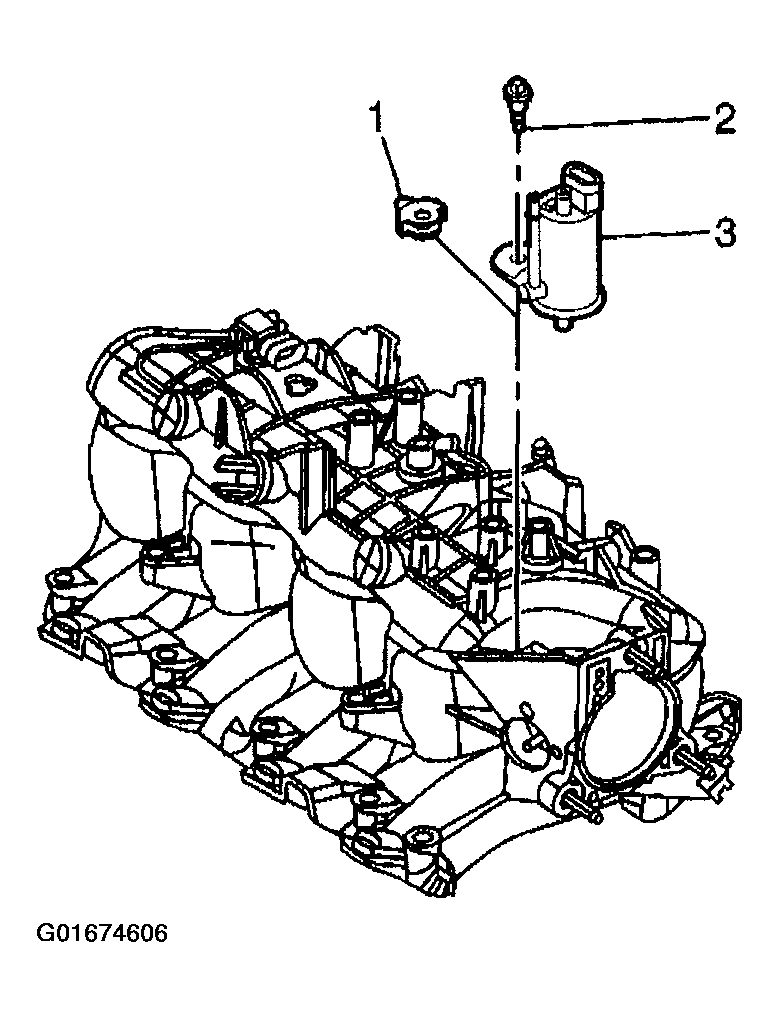

Fig 4: EVAP Solenoid, Isolator & Bolt
Courtesy of GENERAL MOTORS CORP.
Remove the intake manifold bolts.
Remove the intake manifold with gaskets.

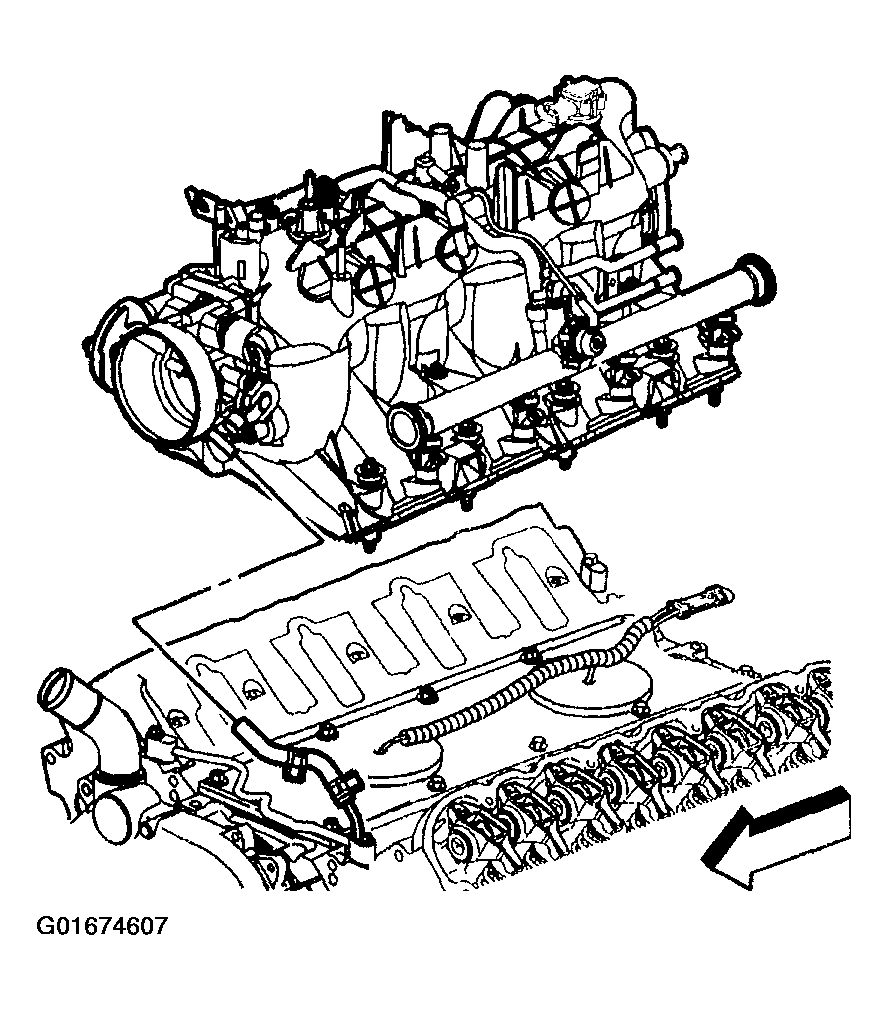

Fig 5: Intake Manifold
Courtesy of GENERAL MOTORS CORP.
Separate the intake manifold-to-cylinder head gaskets (1) from the manifold.
Discard the intake manifold gaskets.

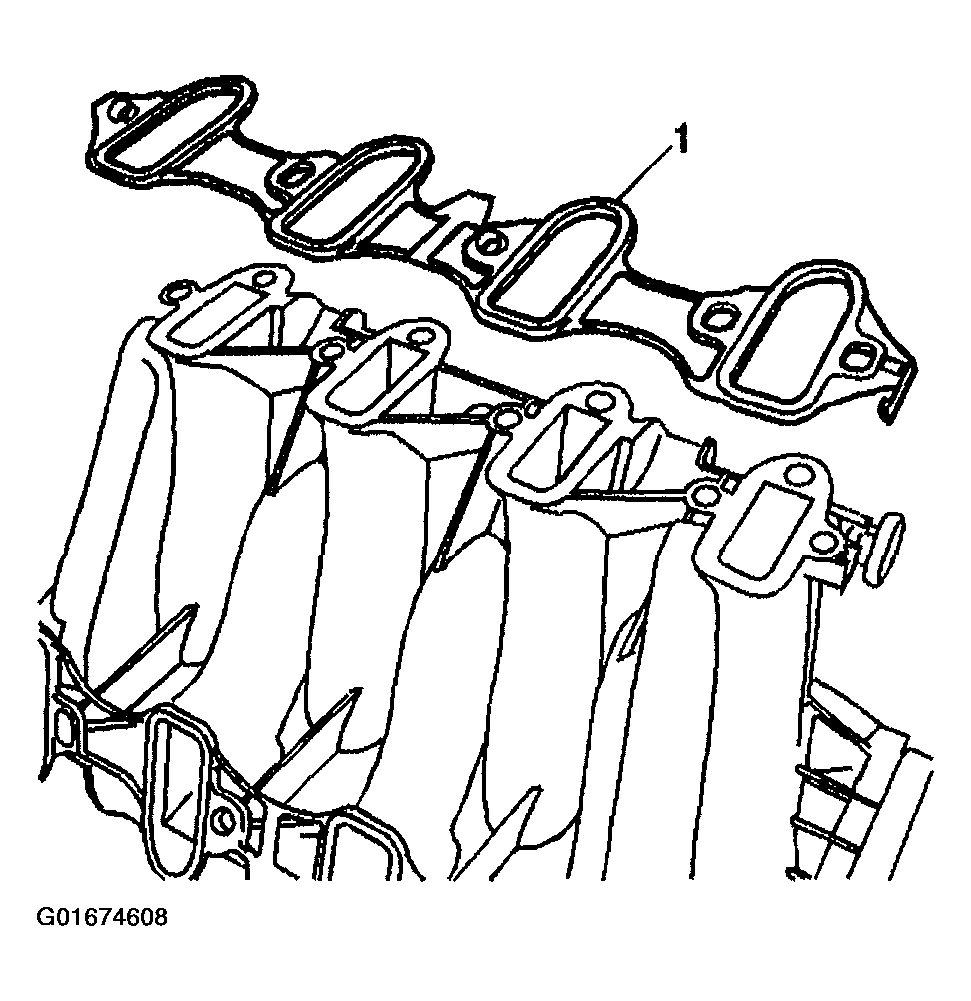

Fig 6: Intake Manifold-To-Cylinder Head Gasket
Courtesy of GENERAL MOTORS CORP.
