Exhaust Manifold Removal - Left

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the spark plug wires from the spark plugs.

    Do not remove the spark plug wires from the ignition coils unless required.

  2. Remove the exhaust manifold, bolts, and gasket.
  3. Discard the gasket.

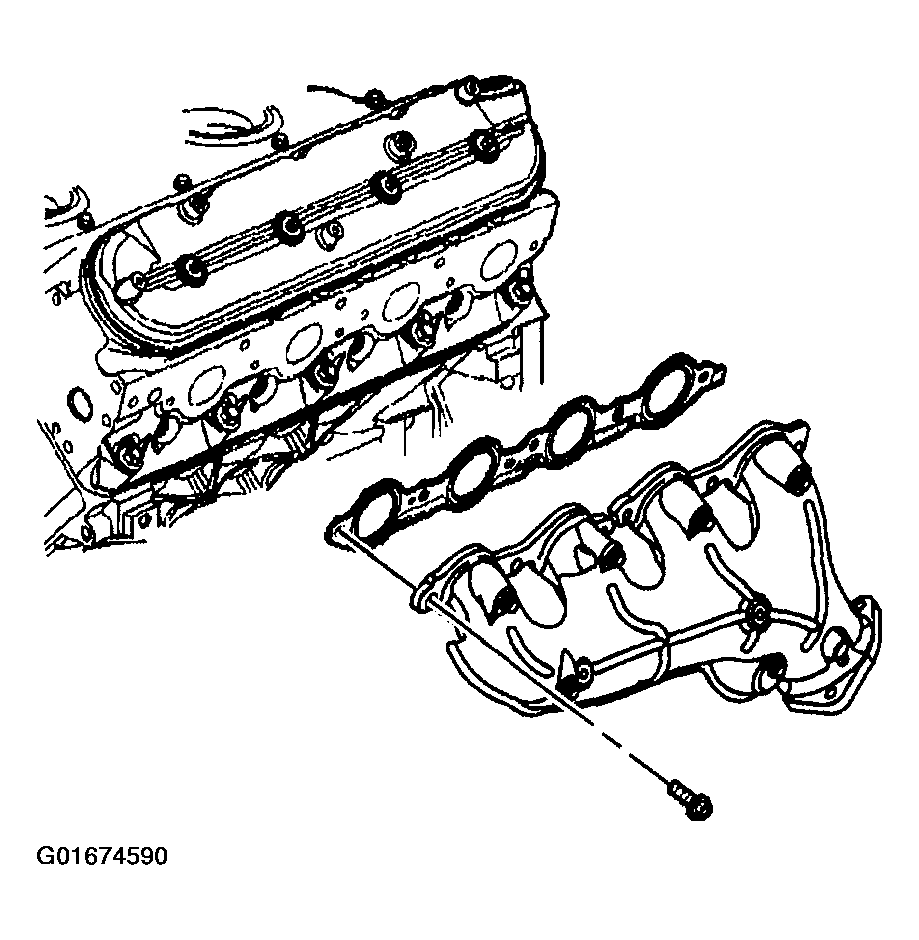

    Fig 1: Left Exhaust Manifold & Gasket
    G01674590Courtesy of GENERAL MOTORS CORP.
  4. Remove the heat shield (2) and bolts (3) from the manifold (1), if required.

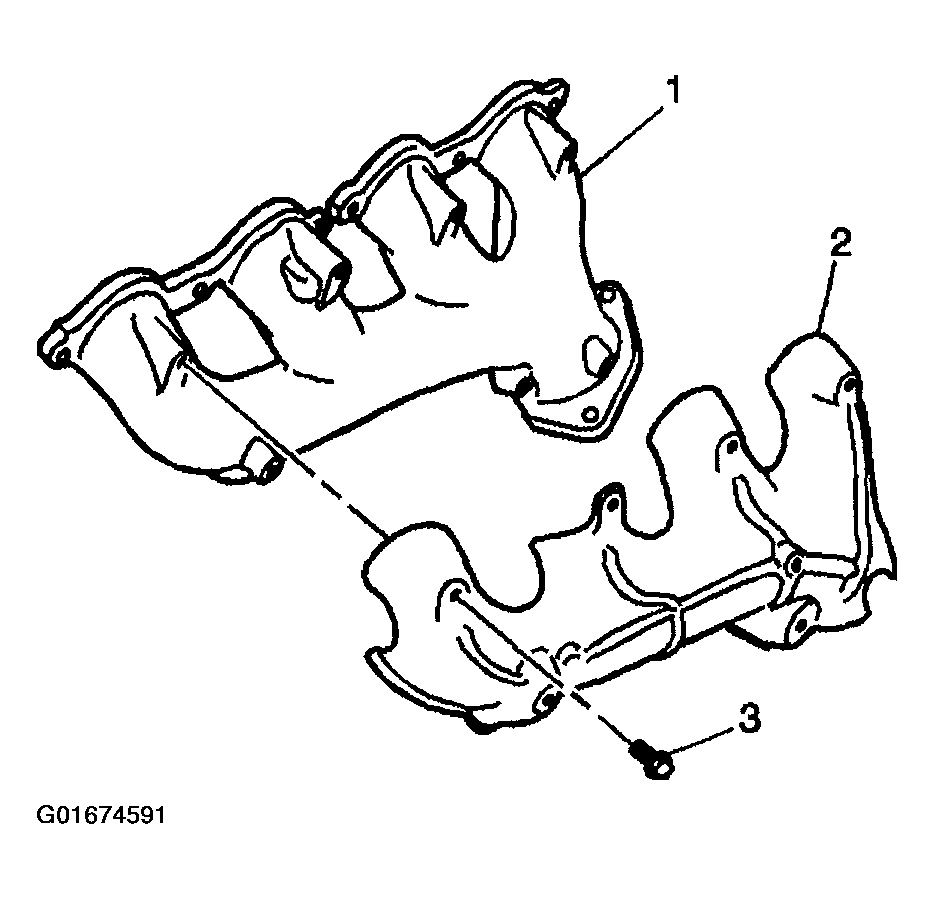

    Fig 2: Left Exhaust Manifold, Heat Shield & Bolt
    G01674591Courtesy of GENERAL MOTORS CORP.
