Exhaust Manifold Installation - Left

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important:

Tighten the exhaust manifold bolts as specified in the service procedure. Improperly installed and/or leaking exhaust manifold gaskets may affect vehicle emissions and/or On-Board Diagnostic (OBD) II system performance.
The cylinder head exhaust manifold bolt hole threads must be clean and free of debris or threadlocking material.
IMPORTANT: Do not apply sealant to the first three threads of the bolt.

Apply a 5 mm (0.2 in) wide band of threadlock GM P/N United States 12345493, GM P/N Canada 10953488, or equivalent, to the threads of the exhaust manifold bolts. Refer to Sealers, Adhesives, and Lubricants .
Install the exhaust manifold and NEW exhaust manifold gasket.

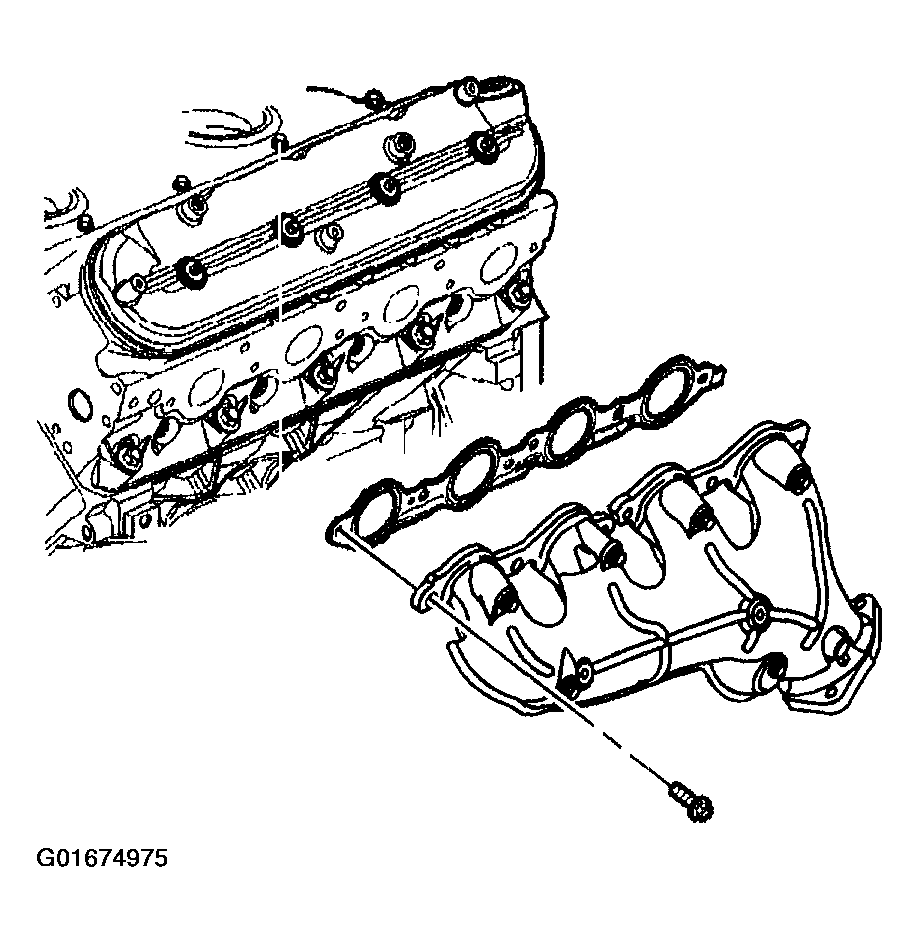

Fig 1: Left Exhaust Manifold, Gasket & Bolts
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the exhaust manifold bolts.
Tighten
1. 3.1. Tighten the exhaust manifold bolts a first pass to 15 N.m (11 lb ft). Tighten the exhaust manifold bolts beginning with the center two bolts. Alternate from side-to-side, and work toward the outside bolts.
2. 3.2. Tighten the exhaust manifold bolts a final pass to 25 N.m (18 lb ft). Tighten the exhaust manifold bolts beginning with the center two bolts. Alternate from side-to-side, and work toward the outside bolts.
Using a flat punch, bend over the exposed edge of the exhaust manifold gasket at the rear of the left cylinder head.
Install the heat shield (2) and bolts (3).
Tighten

Tighten the heat shield bolts to 9 N.m (80 lb in).

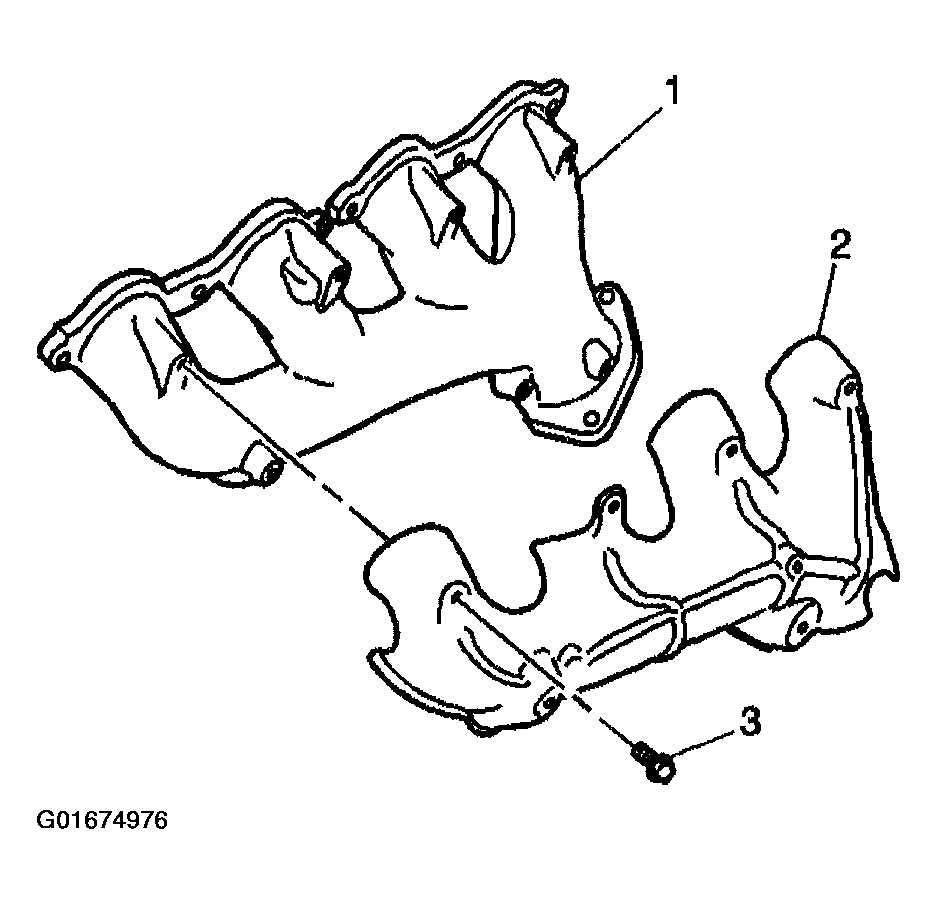

Fig 2: Left Exhaust Manifold, Heatshield & Bolt
Courtesy of GENERAL MOTORS CORP.
