Engine Valley Cover Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: All gasket surfaces should be free of oil or other foreign material during assembly.

Install NEW knock sensor oil seals (1) into the valley cover (2).
Lubricate the seal surfaces with clean engine oil.

Fig 1: Knock Sensor Oil Seal & Valley Cover
Courtesy of GENERAL MOTORS CORP.
Install the valley cover and NEW gasket.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the valley cover bolts.
Tighten

Tighten the valley cover bolts to 25 N.m (18 lb ft).

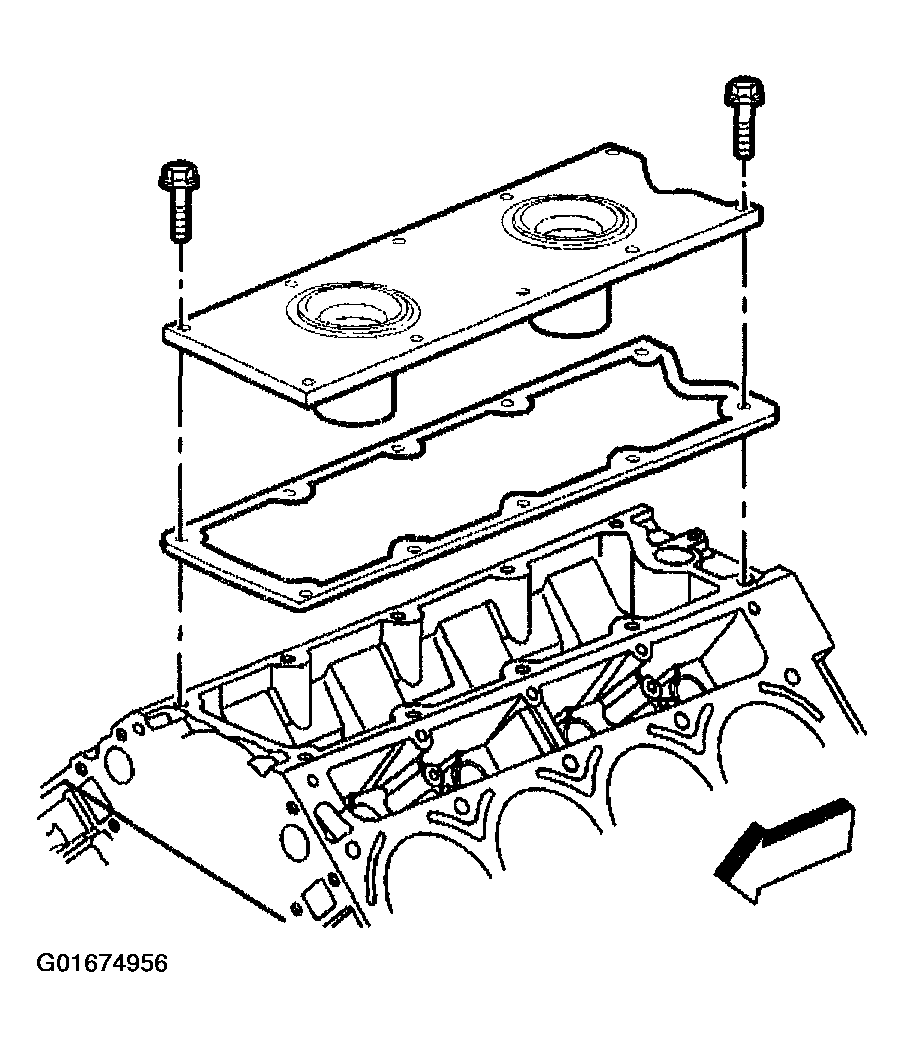

Fig 2: Engine Valley Cover & Bolts
Courtesy of GENERAL MOTORS CORP.
Install the knock sensors.
Tighten

Tighten the knock sensors to 20 N.m (15 lb ft).

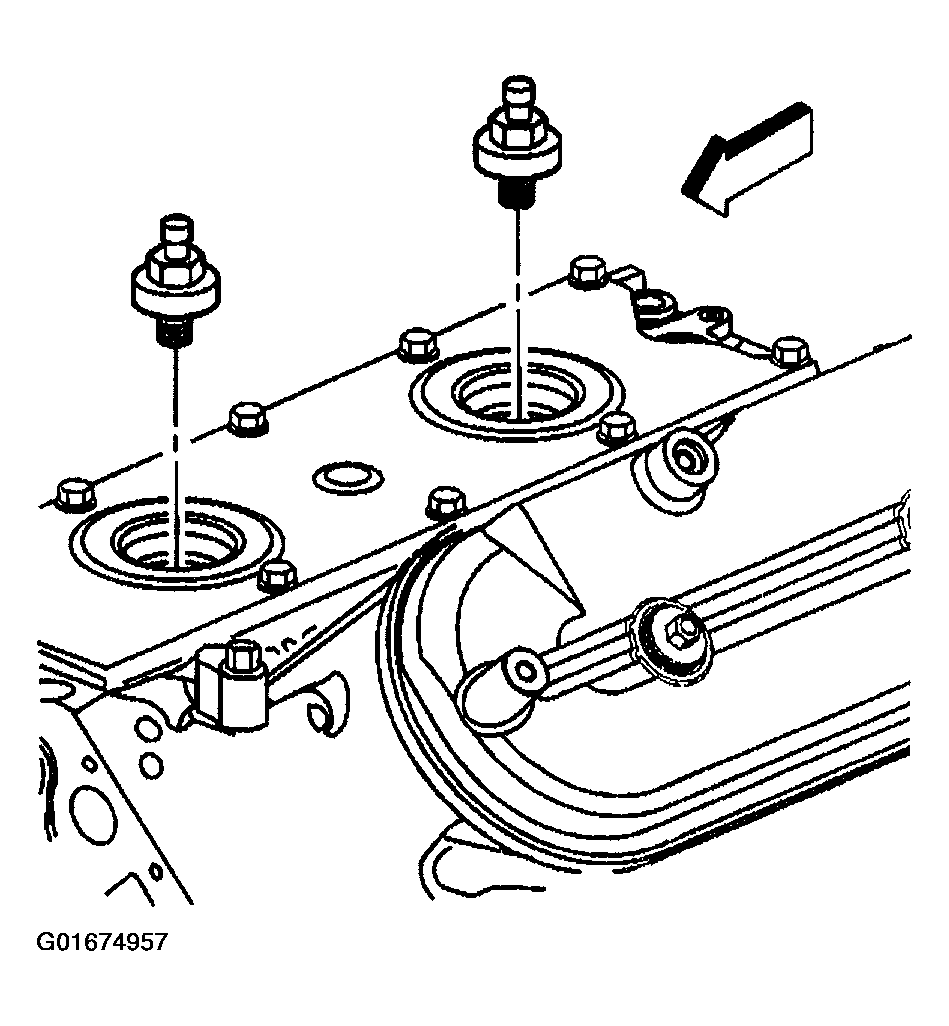

Fig 3: Knock Sensors
Courtesy of GENERAL MOTORS CORP.
Install the knock sensor wire harness.

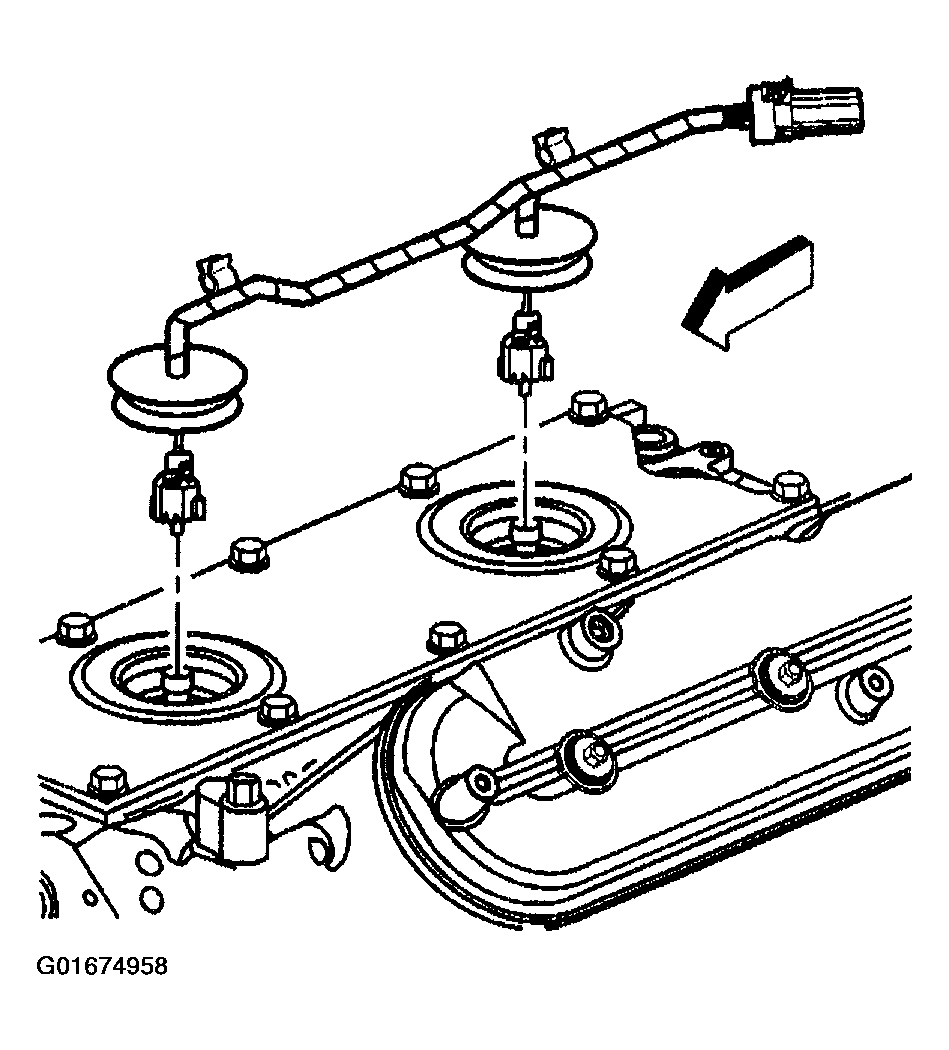

Fig 4: Knock Sensor Wire Harness
Courtesy of GENERAL MOTORS CORP.
