Engine Rear Cover Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear cover bolts.
  2. Remove the rear cover and gasket.
  3. Discard the rear cover gasket.

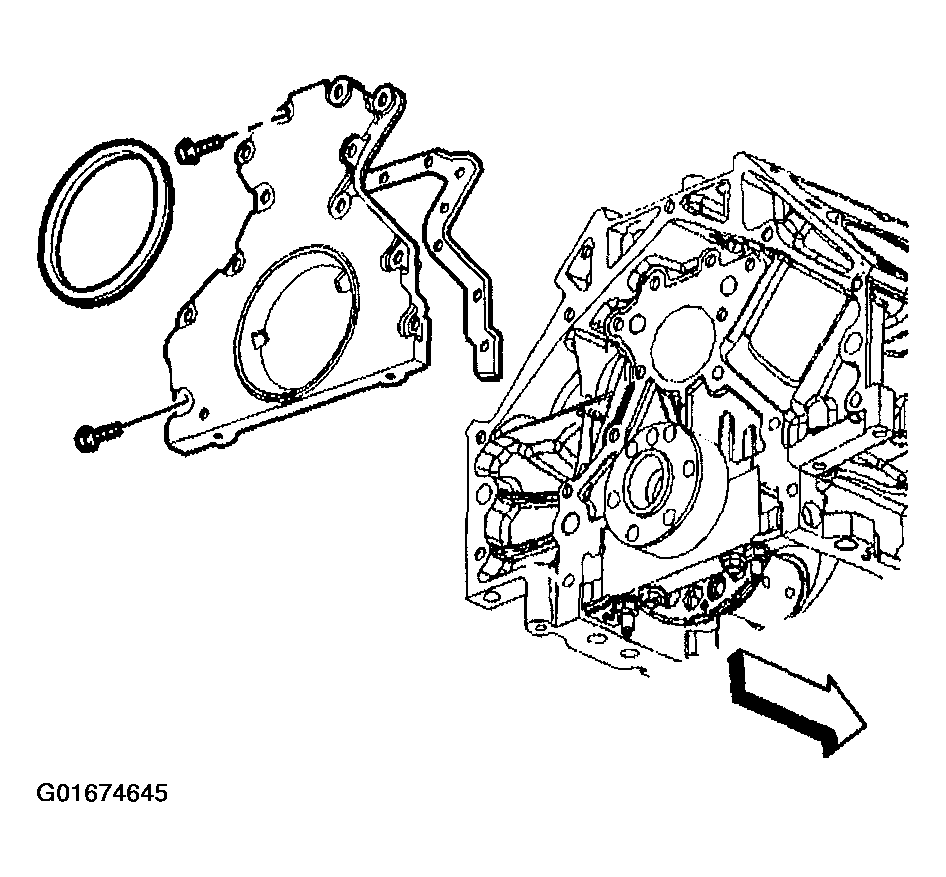

    Fig 1: Rear Cover, Gasket & Bolts
    G01674645Courtesy of GENERAL MOTORS CORP.
  4. Remove the crankshaft rear oil seal (1) from the cover.

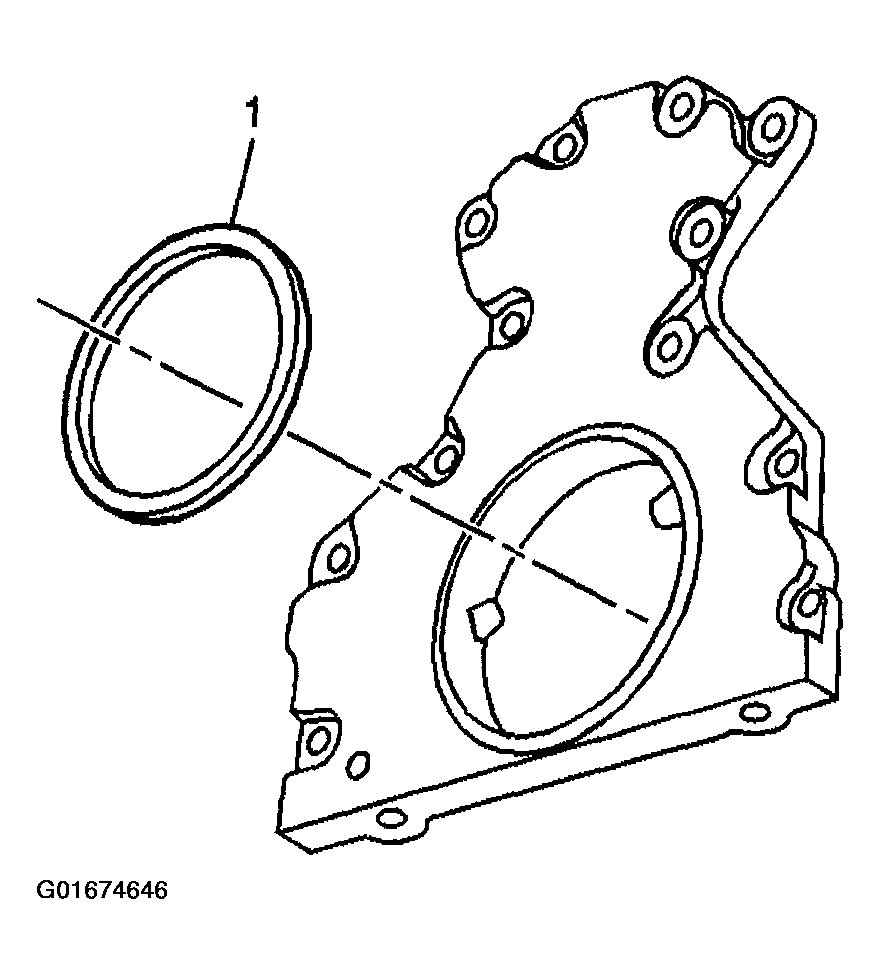

    Fig 2: Crankshaft Rear Oil Seal
    G01674646Courtesy of GENERAL MOTORS CORP.
