Engine Front Cover Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 41480 Front/Rear Cover Alignment - Oil Pan Surface
J 41476 Front/Rear Cover Alignment - Crankshaft Oil Seal Area
Important:
Do not reuse the crankshaft oil seal or the engine front cover gasket.
Do not apply any type sealant to the front cover gasket, unless specified.
The special tools in this procedure are used to properly align the engine front cover at the oil pan surface and to center the crankshaft front oil seal.
- All gasket surfaces should be free of oil or other foreign material during assembly.
  The crankshaft front oil seal MUST be centered in relation to the crankshaft.
- The oil pan sealing surface at the front cover and engine block MUST be aligned within specifications.
- An improperly aligned front cover may cause premature front oil seal wear and/or engine assembly oil leaks.

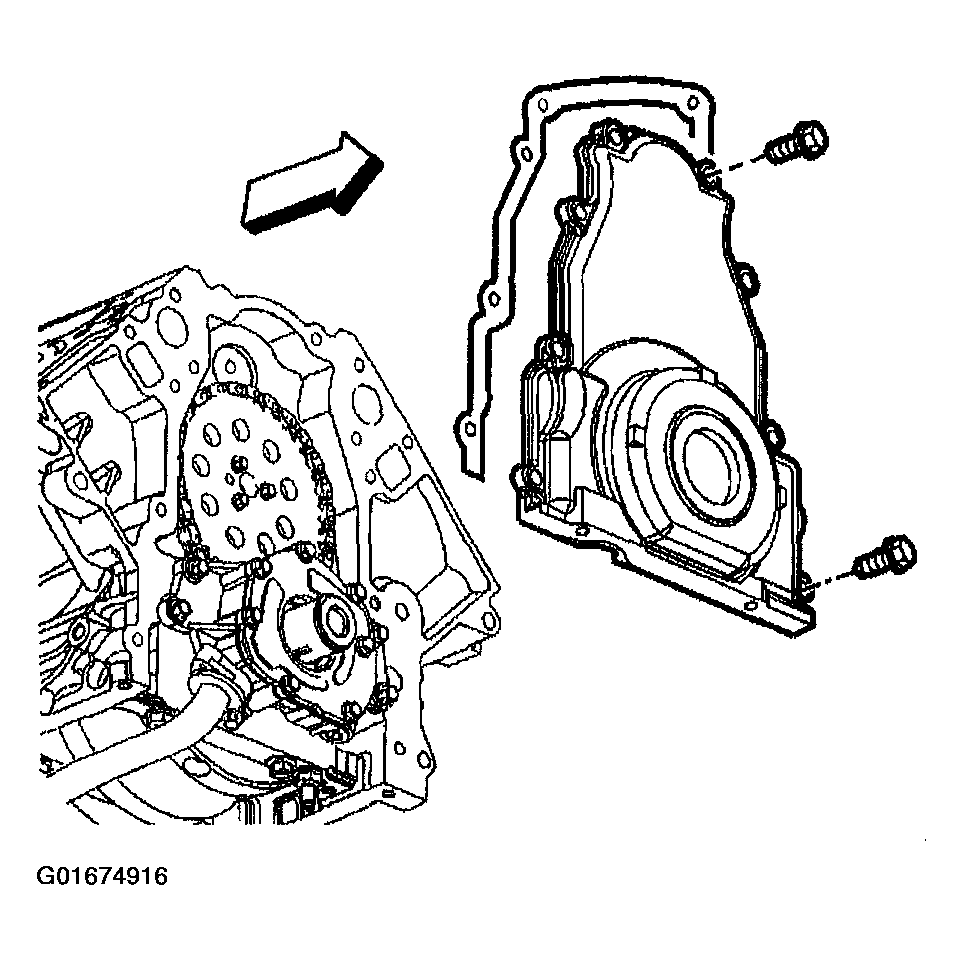

Fig 1: Engine Front Cover, Gasket & Bolts
Courtesy of GENERAL MOTORS CORP.

Install the front cover gasket, cover, and bolts onto the engine.
Tighten the cover bolts finger tight. Do not overtighten.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

IMPORTANT: Start the tool-to-front cover bolts. Do not tighten the bolts at this time.
Install the J 41480 .
Tighten

Tighten the tool-to-engine block bolts to 25 N.m (18 lb ft).

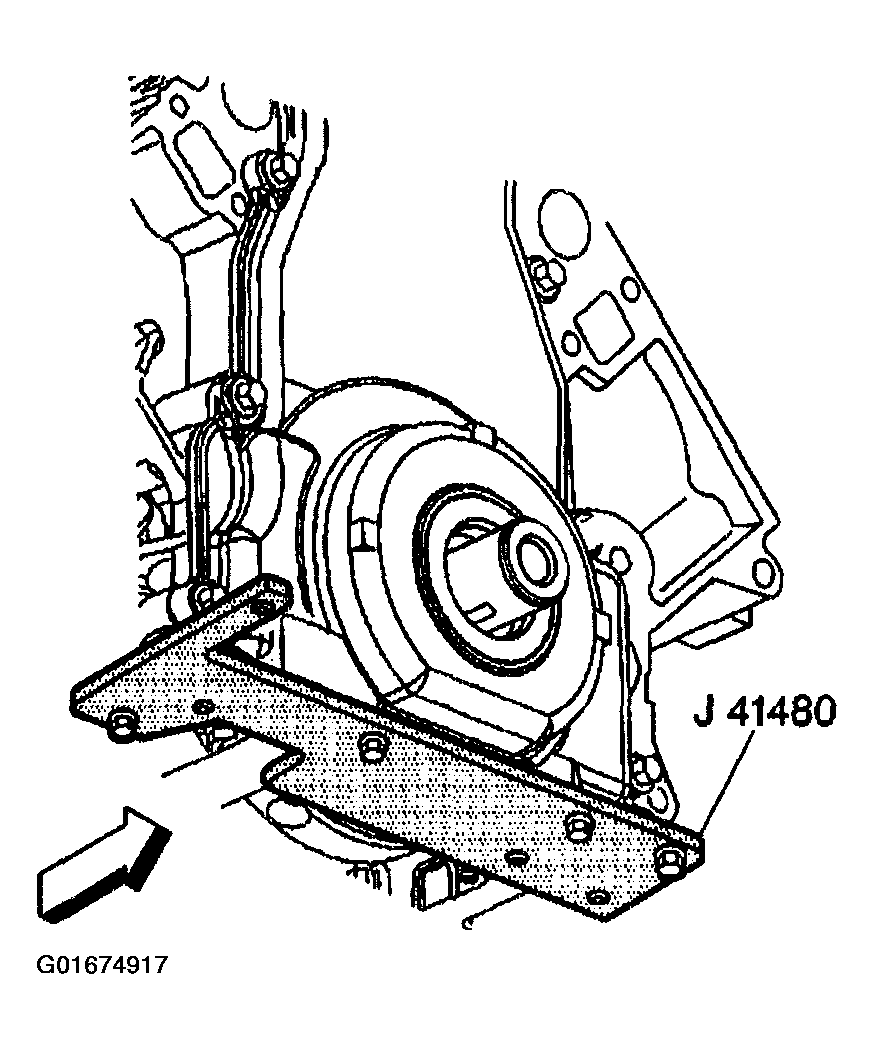

Fig 2: J 41480
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Align the tapered legs of the tool with the machined alignment surfaces on the front cover.
Install the J 41476 .
Install the crankshaft balancer bolt.
Tighten
1. 5.1. Tighten the crankshaft balancer bolt by hand until snug. Do not overtighten.
2. 5.2. Tighten the J 41480 .
3. 5.3. Tighten the engine front cover bolts to 25 N.m (18 lb ft).
Remove the tools.

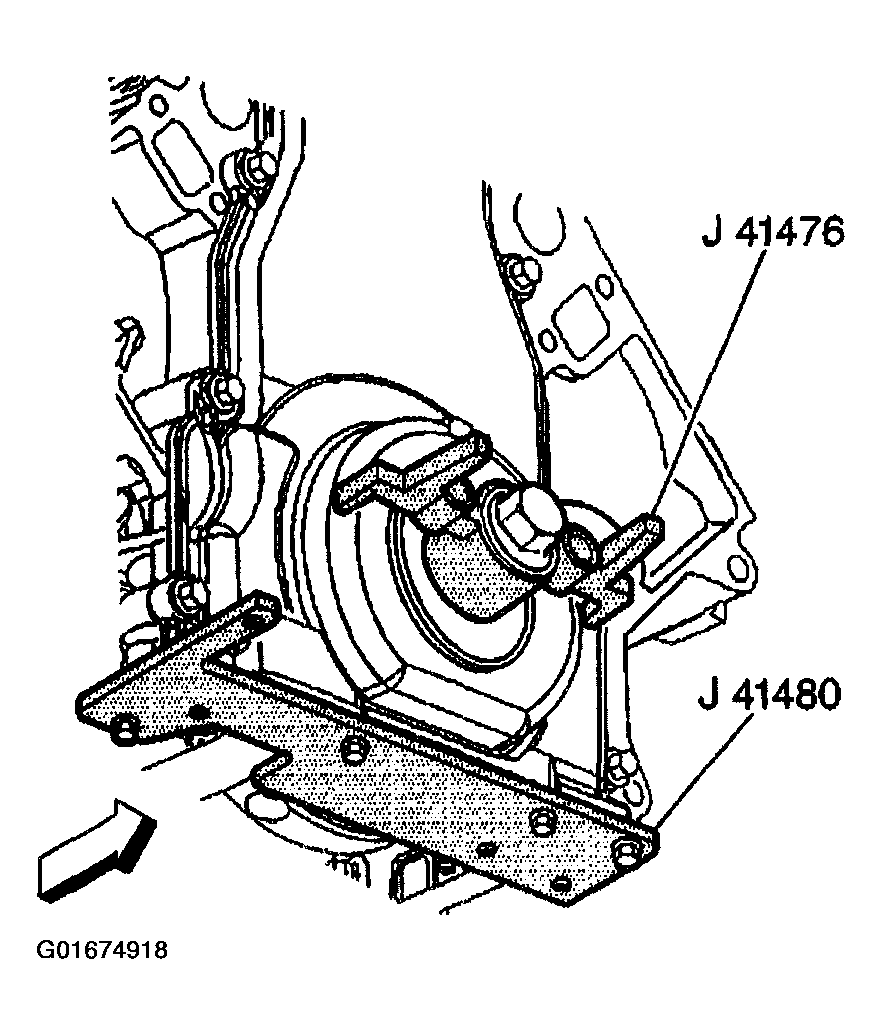

Fig 3: J 41480 & J 41476
Courtesy of GENERAL MOTORS CORP.
Measure the oil pan surface flatness, front cover-to-engine block.
1. 7.1. Place a straight edge across the engine block and front cover oil pan sealing surfaces.
  Avoid contact with the portion of the gasket that protrudes into the oil pan surface.
2. 7.2. Insert a feeler gage between the front cover and the straight edge tool. The cover must be flush with the oil pan surface or no more than 0.5 mm (0.02 in) below flush.
If the front cover-to-engine block oil pan surface alignment is not within specifications, repeat the cover alignment procedure.
If the correct front cover-to-engine block alignment cannot be obtained, replace the front cover.

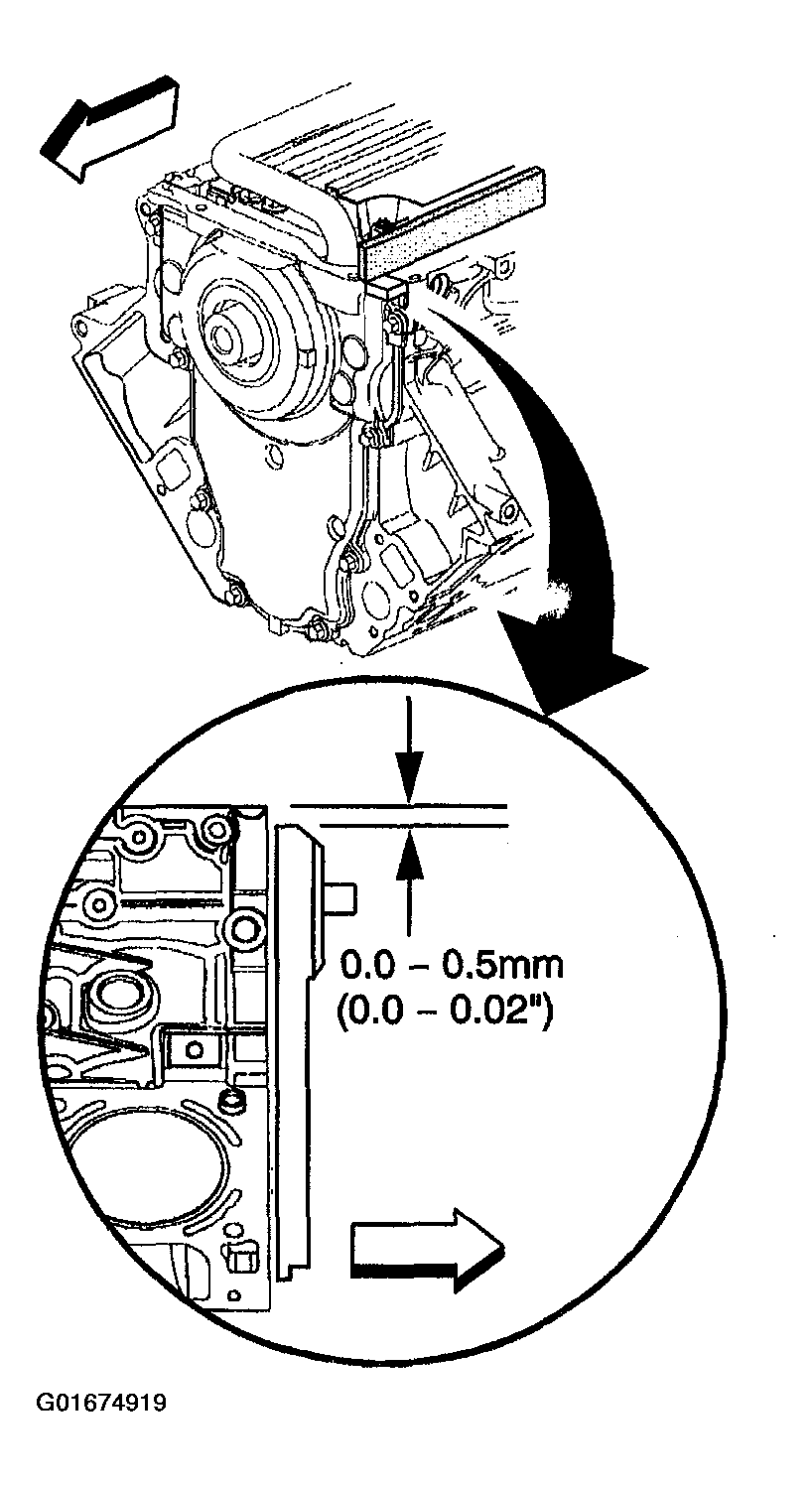

Fig 4: Front Cover-To-Engine Block Alignment
Courtesy of GENERAL MOTORS CORP.
