Engine Flywheel Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: The flywheel does not use a locating pin for alignment and will not initially seat against the crankshaft flange or spacer, if applicable, but will be pulled onto the crankshaft by the engine flywheel bolts. This procedure requires a three stage tightening process.
  1. Remove the engine flywheel bolts.
  2. Remove the automatic transmission engine flywheel, if applicable.

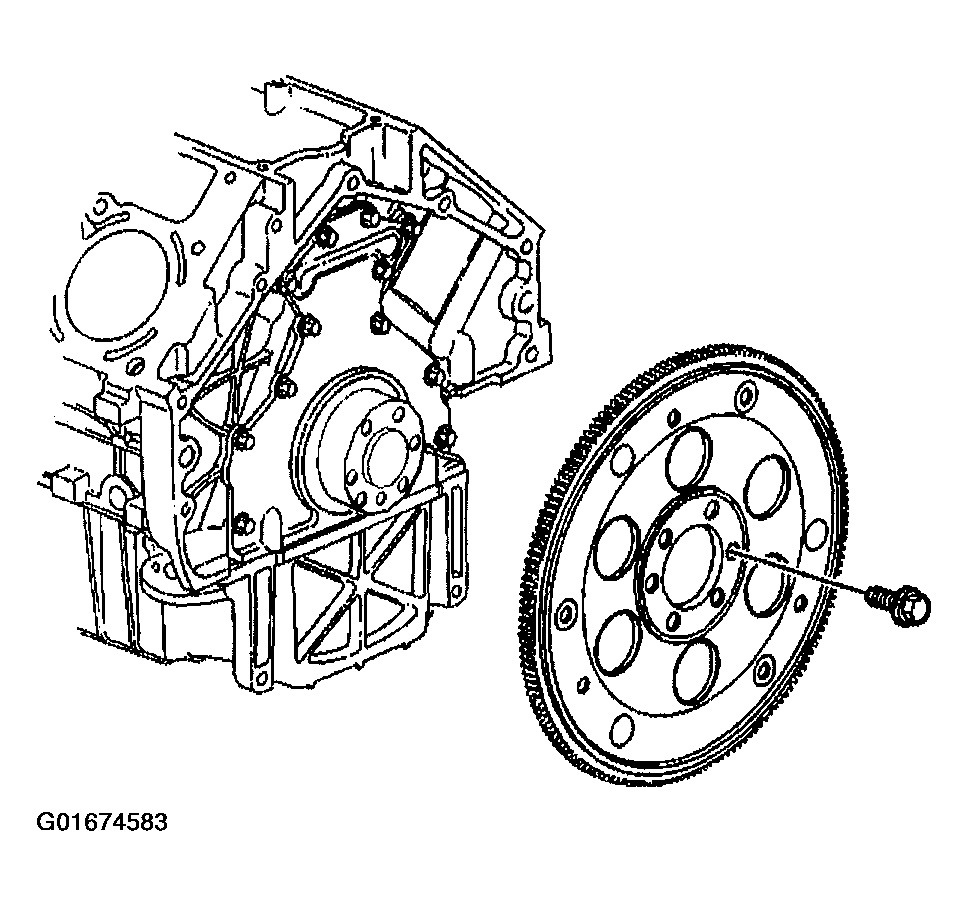

    Fig 1: Engine Flywheel (Automatic Transmission)
    G01674583Courtesy of GENERAL MOTORS CORP.
  3. Remove the manual transmission engine flywheel, if applicable.

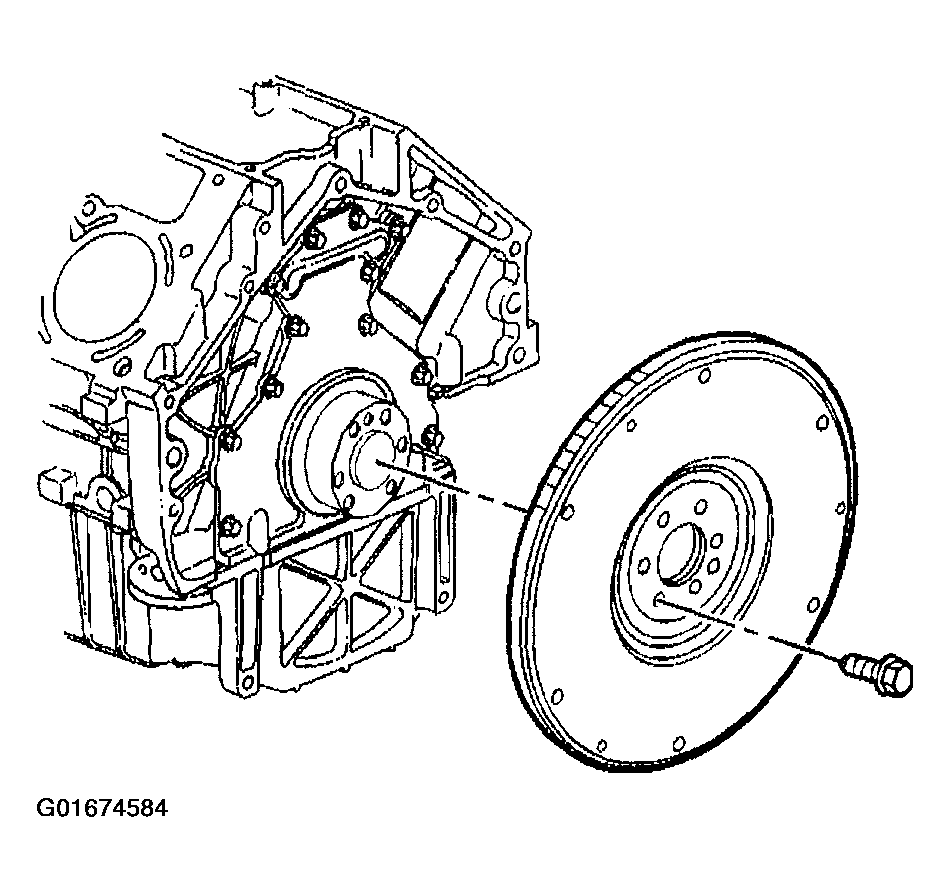

    Fig 2: Engine Flywheel (Manual Transmission)
    G01674584Courtesy of GENERAL MOTORS CORP.
  4. Install two M11x1.5 mm bolts (1) into the threaded holes of the spacer, if applicable.
  5. Rotate the bolts clockwise to remove the spacer.

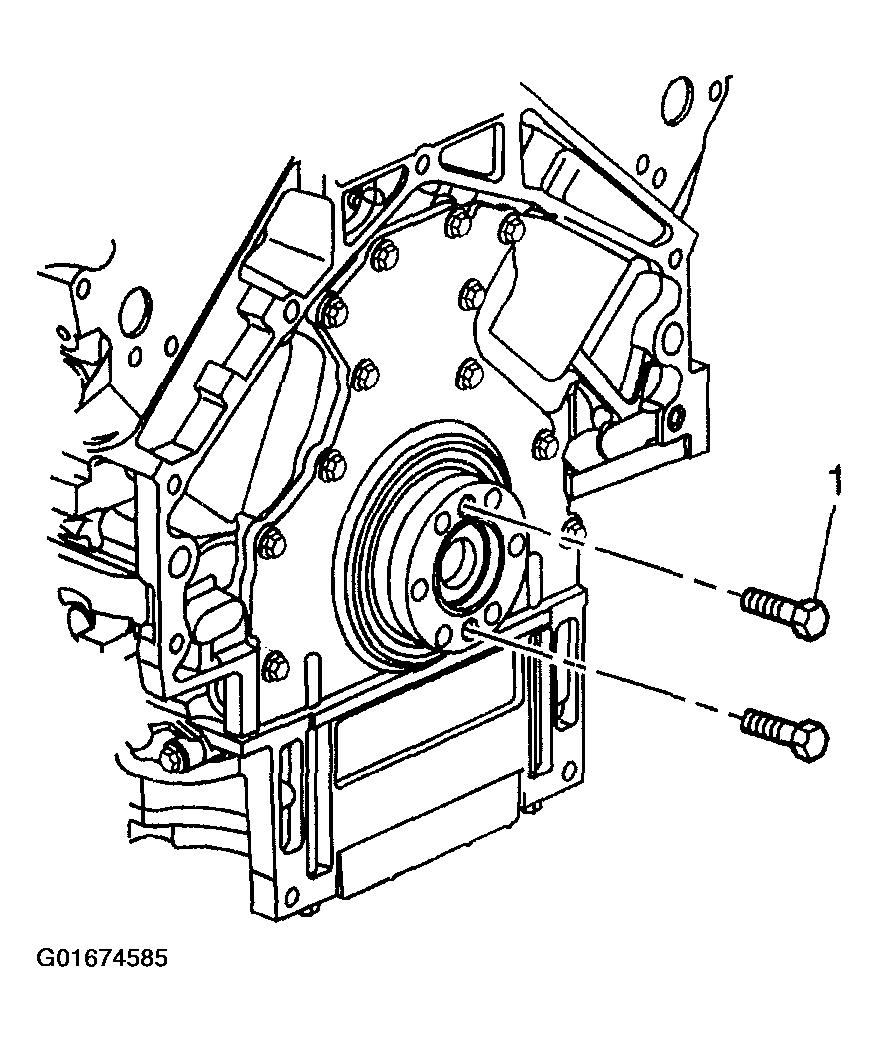

    Fig 3: Installing Bolts Into Spacer Threaded Holes
    G01674585Courtesy of GENERAL MOTORS CORP.
  6. Remove the spacer from the rear of the crankshaft, if applicable.

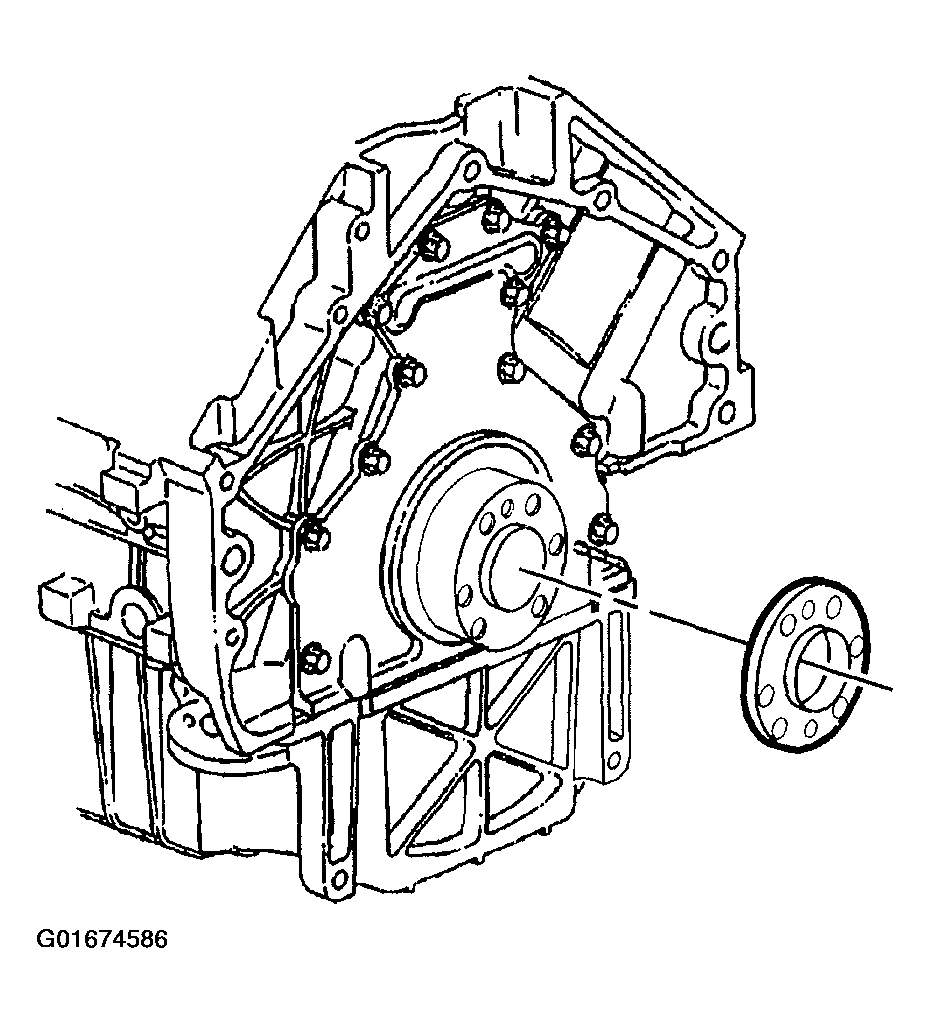

    Fig 4: Crankshaft Spacer
    G01674586Courtesy of GENERAL MOTORS CORP.
