Camshaft Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshaft sensor bolt and the sensor.

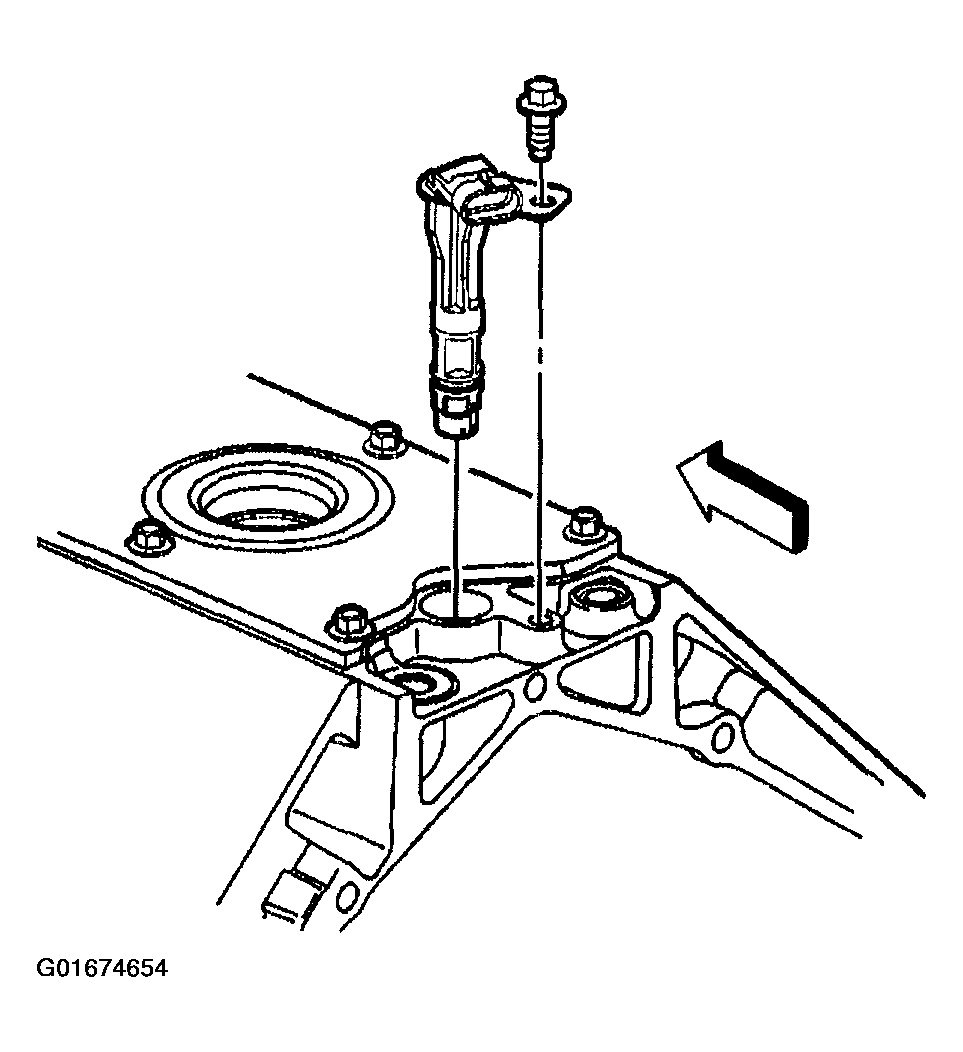

    Fig 1: Camshaft Sensor & Bolt
    G01674654Courtesy of GENERAL MOTORS CORP.
  2. Remove the camshaft retainer bolts and the retainer.
    Fig 2: Camshaft Retainer Bolts & Retainer
    G01674655Courtesy of GENERAL MOTORS CORP.
    NOTE: All camshaft journals are the same diameter, so care must be used in removing or installing the camshaft to avoid damage to the camshaft bearings.
  3. Remove the camshaft.
    1. 3.1. Install the 3 M8-1.25 x 100 mm bolts in the camshaft front bolt holes.
    2. 3.2. Using the bolts as a handle, carefully rotate and pull the camshaft out of the engine block.
    3. 3.3. Remove the bolts from the front of the camshaft.

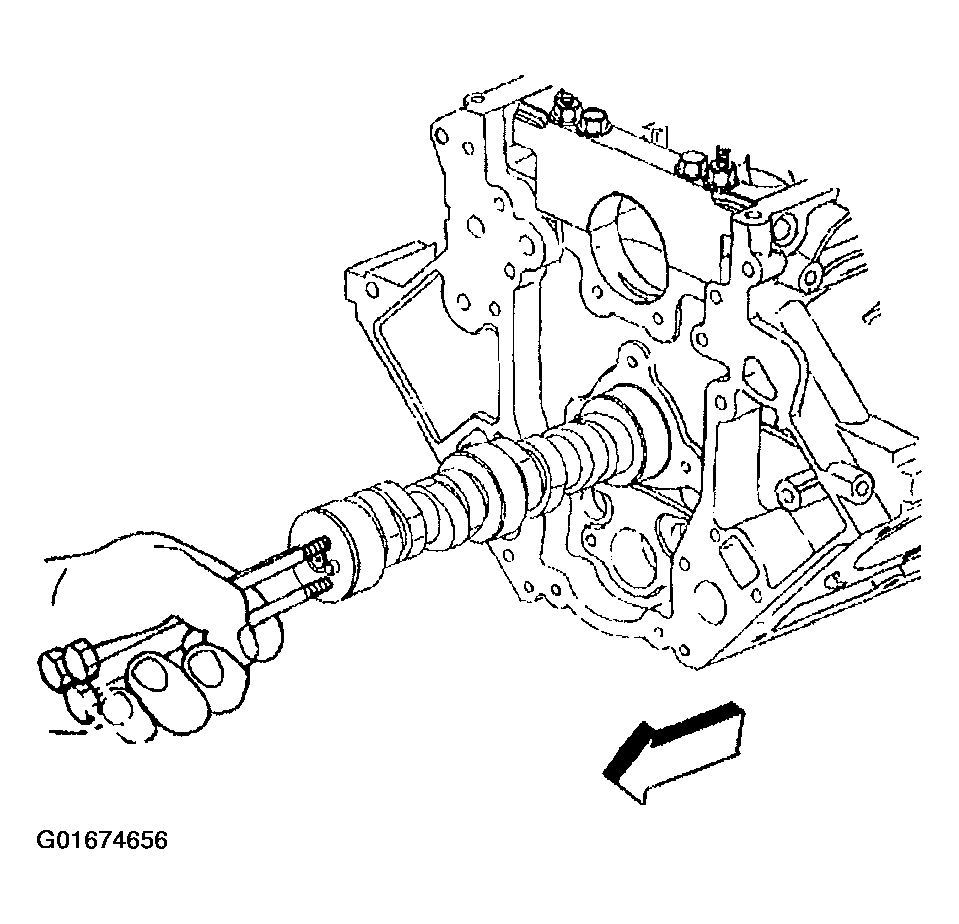

    Fig 3: Removing Camshaft Using Bolts
    G01674656Courtesy of GENERAL MOTORS CORP.
