Disassembled Views: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

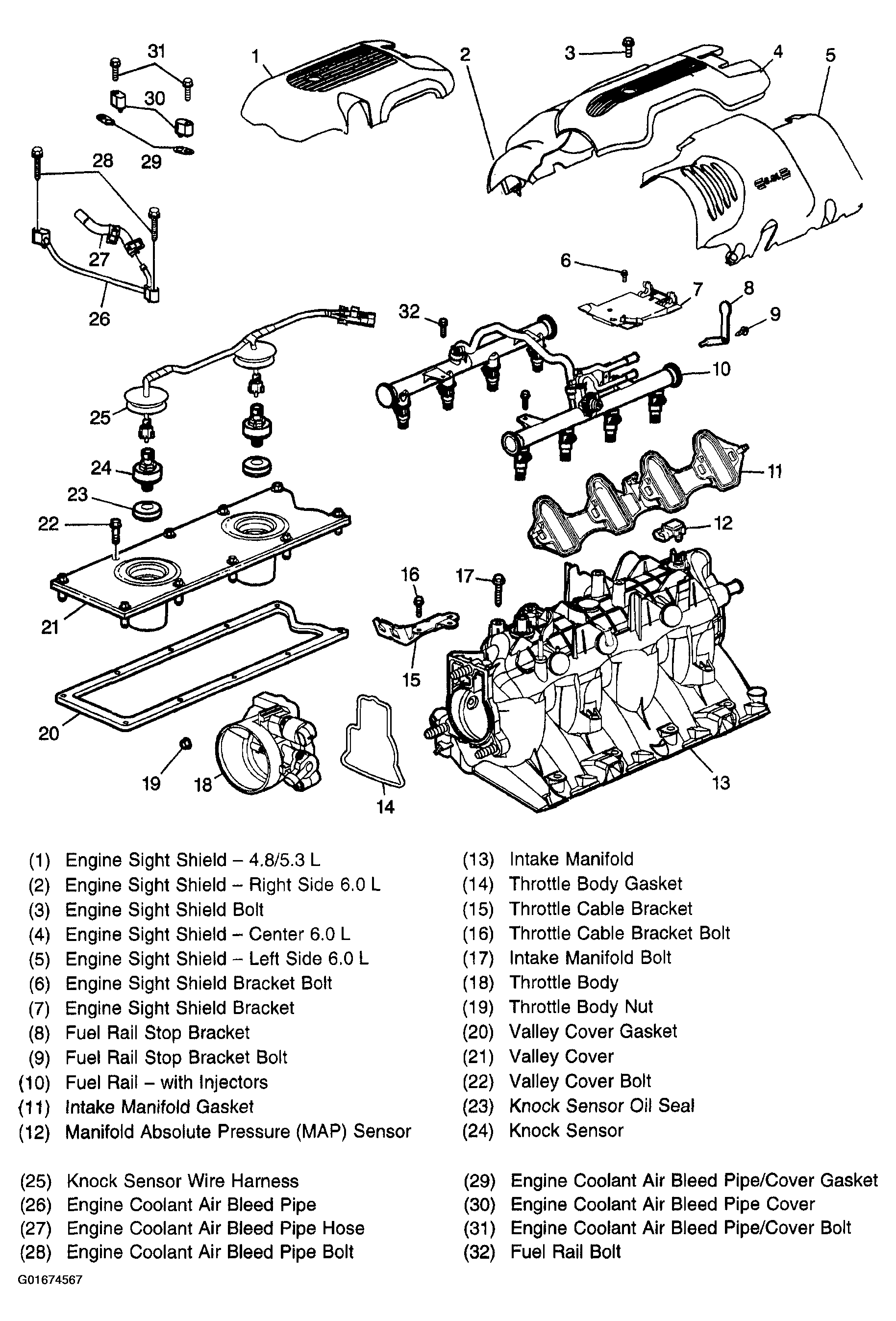

Fig 1: Intake Manifold/Upper Engine Disassembled View
G01674567Courtesy of GENERAL MOTORS CORP.

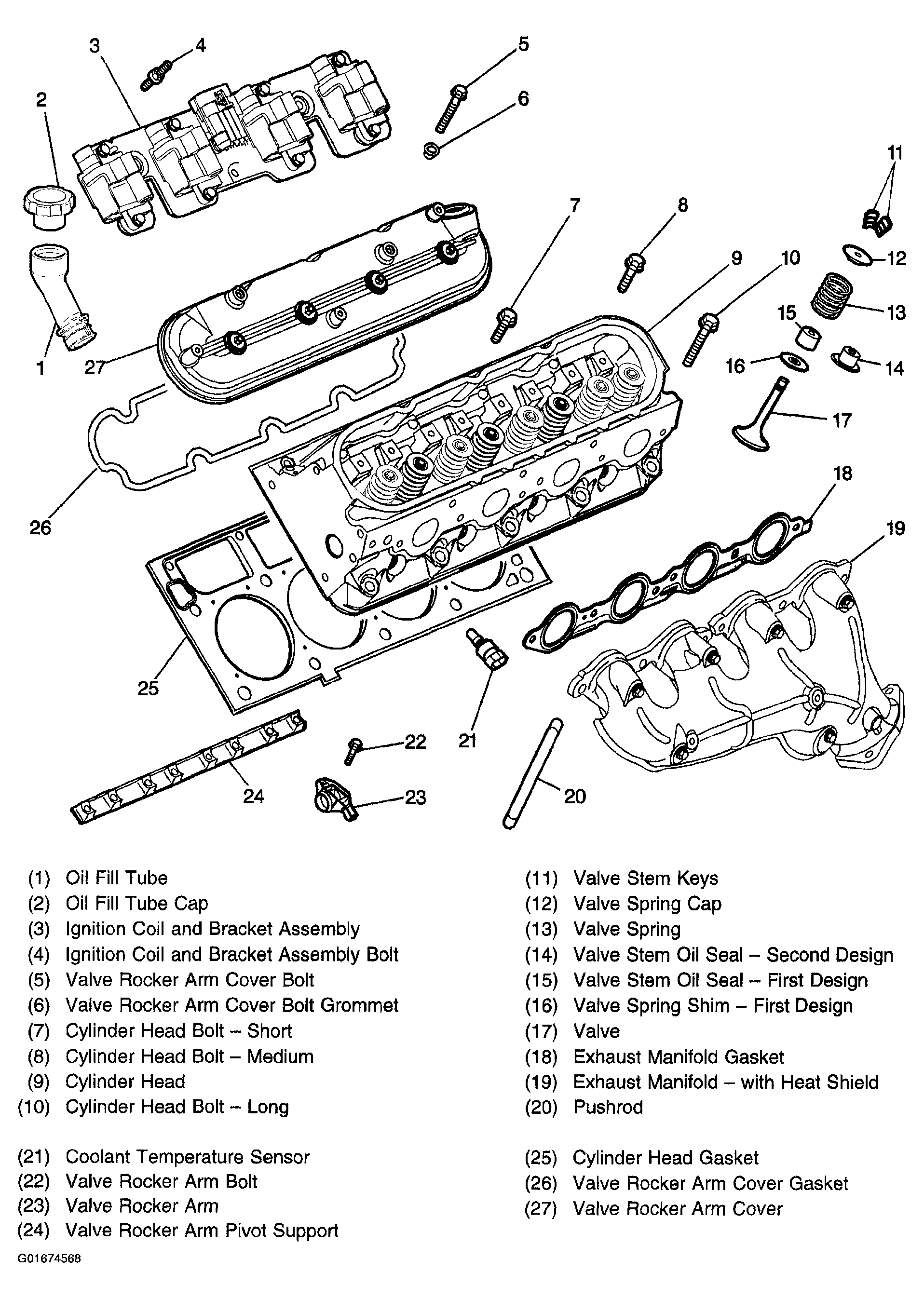

Fig 2: Cylinder Head/Upper Engine Disassembled View
G01674568Courtesy of GENERAL MOTORS CORP.

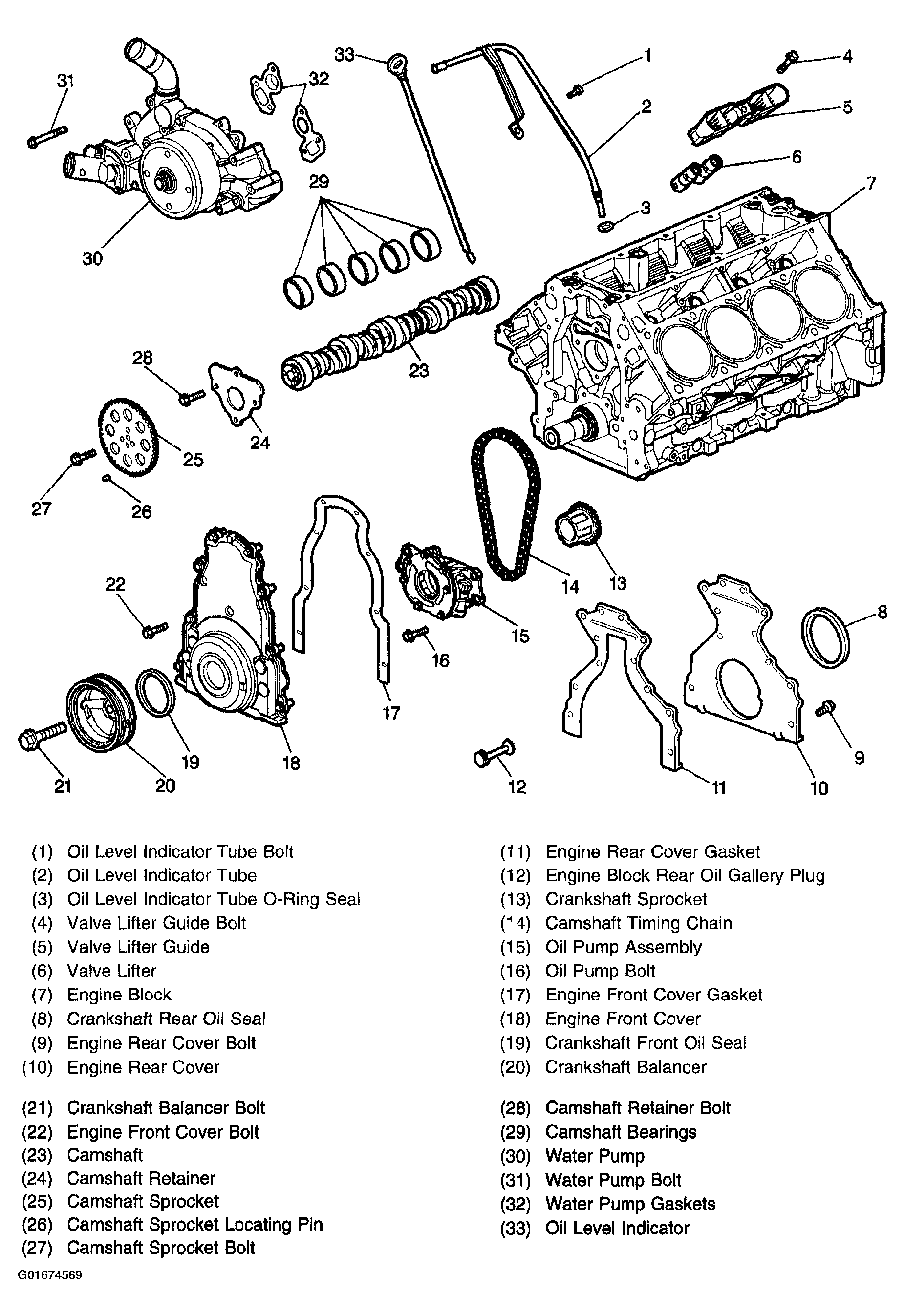

Fig 3: Lower Front of Engine Disassembled View
G01674569Courtesy of GENERAL MOTORS CORP.

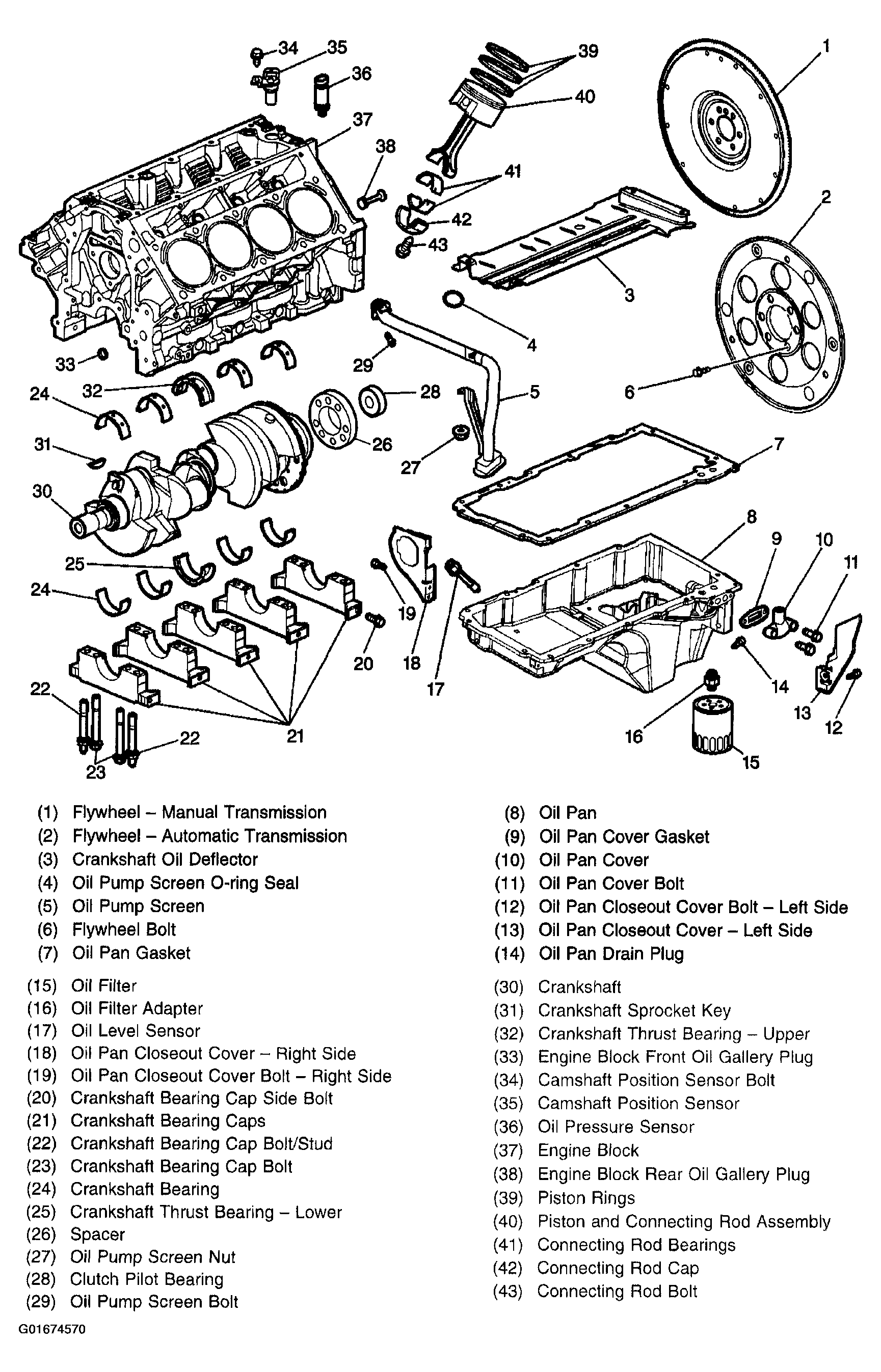

Fig 4: Lower Engine Assembly Disassembled View
G01674570Courtesy of GENERAL MOTORS CORP.

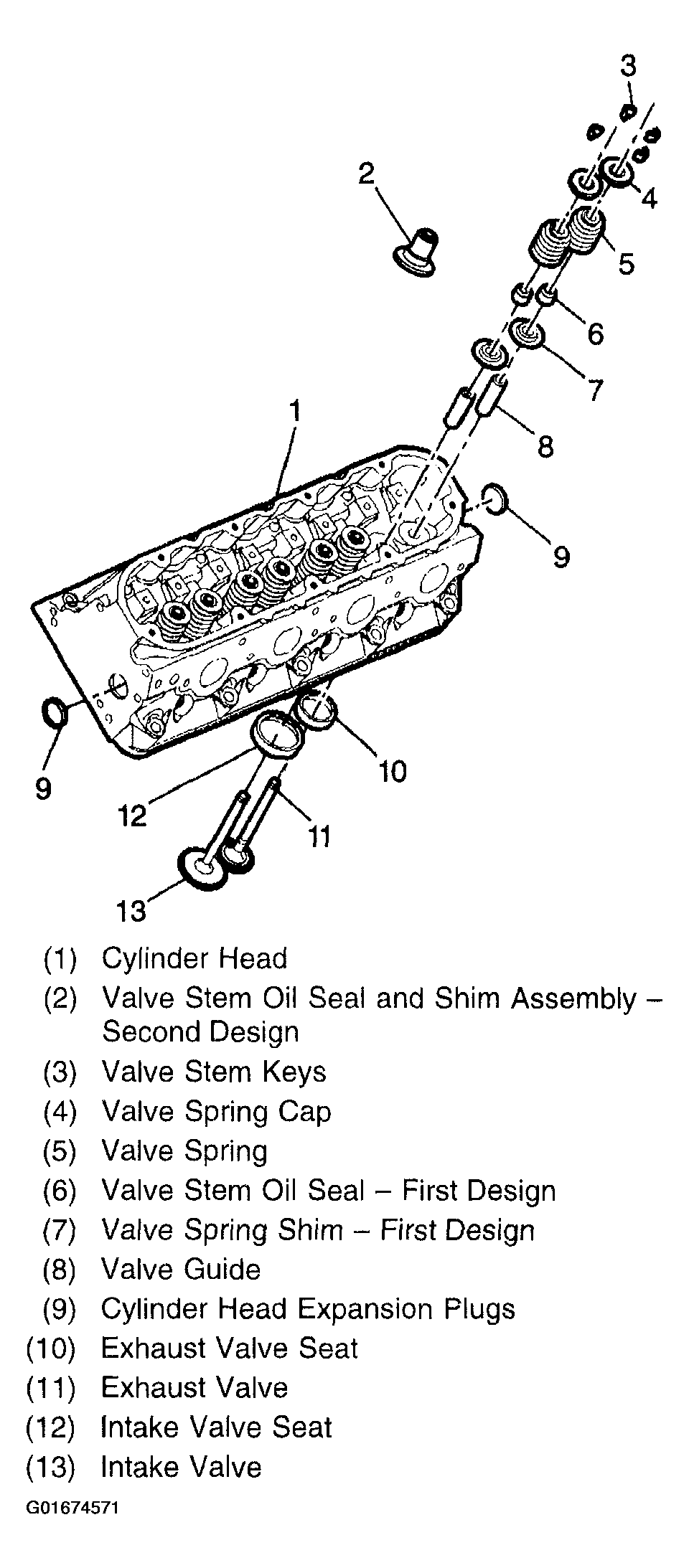

Fig 5: Cylinder Head Assembly Disassembled View - Aluminum
G01674571Courtesy of GENERAL MOTORS CORP.

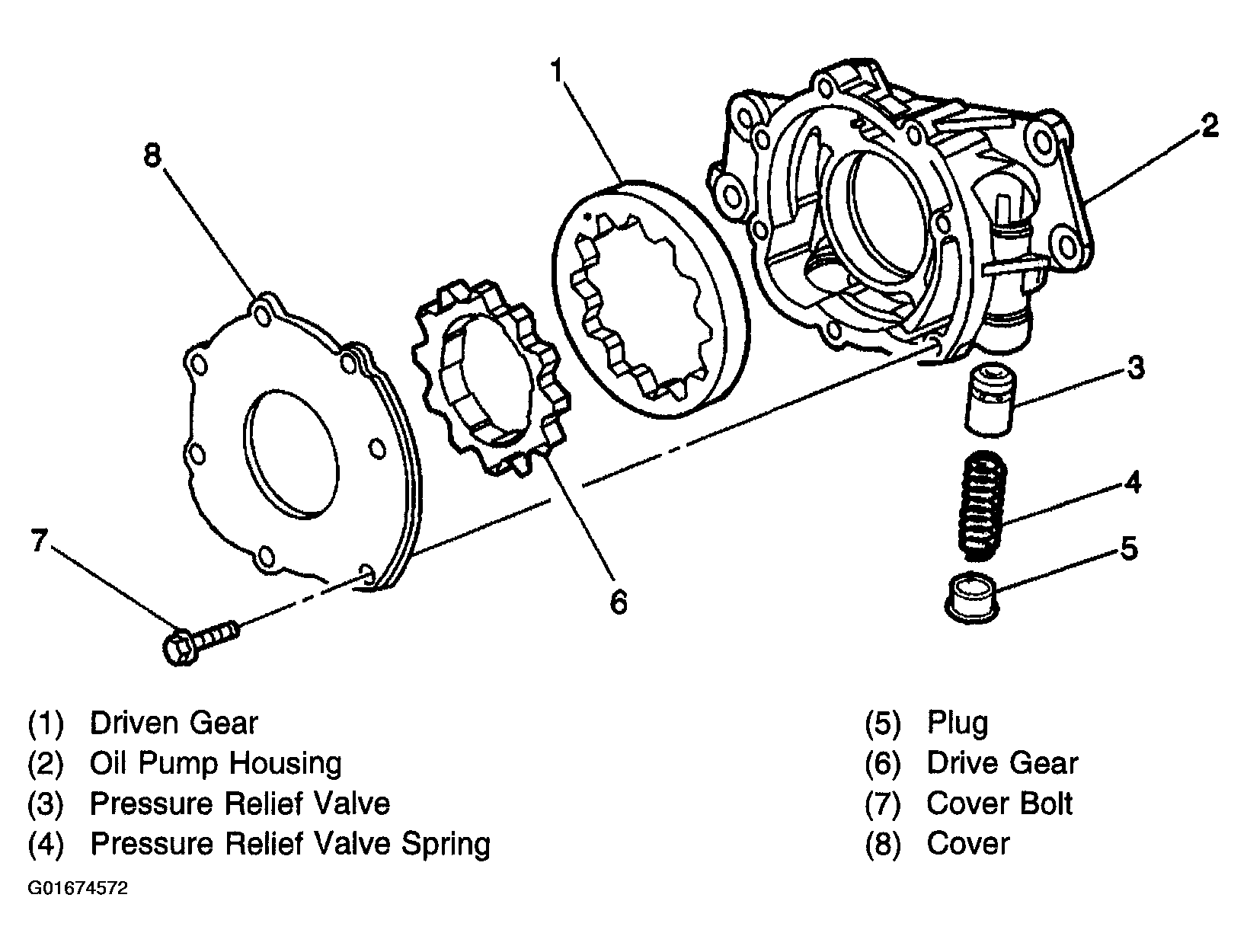

Fig 6: Oil Pump Assembly Disassembled View
G01674572Courtesy of GENERAL MOTORS CORP.
