Engine Identification

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

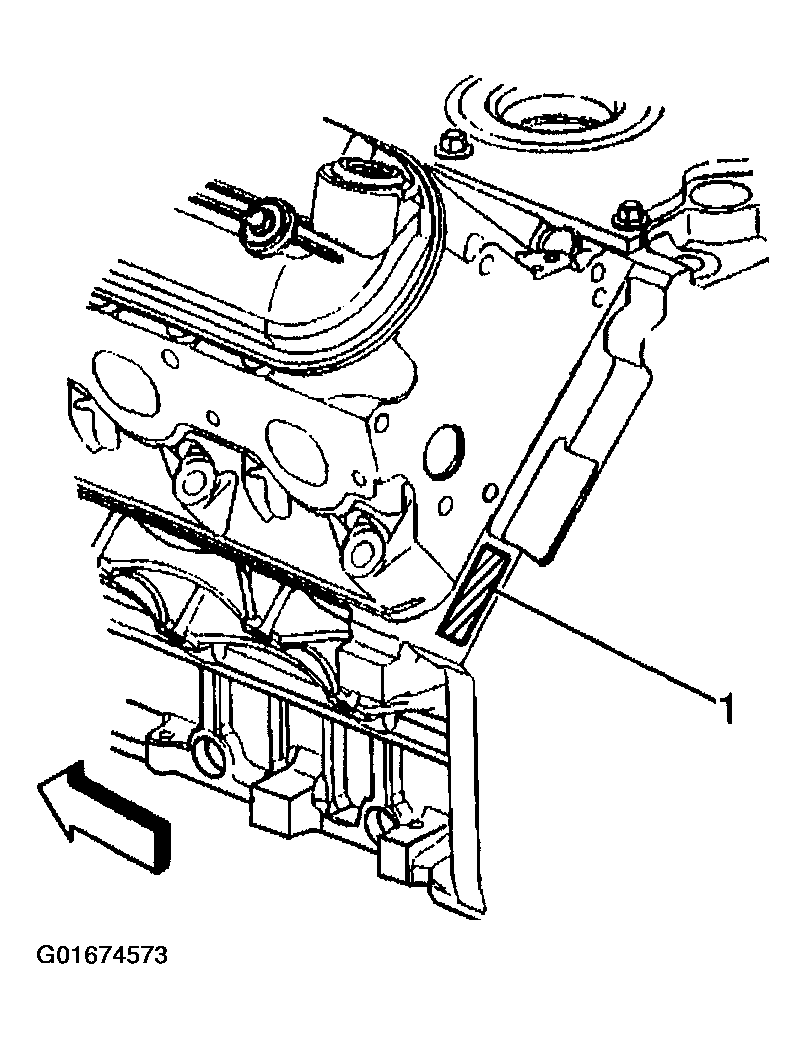

Fig 1: Locating Engine Identification Label On Cylinder Head
G01674573Courtesy of GENERAL MOTORS CORP.

The engine identification numbers and bar-coded label (1) for the 4.8/5.3/6.0 liter engines are located at the left rear of the engine block. A second bar-coded label may be located on the right side of the oil pan.
