Diagnostic Procedures

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

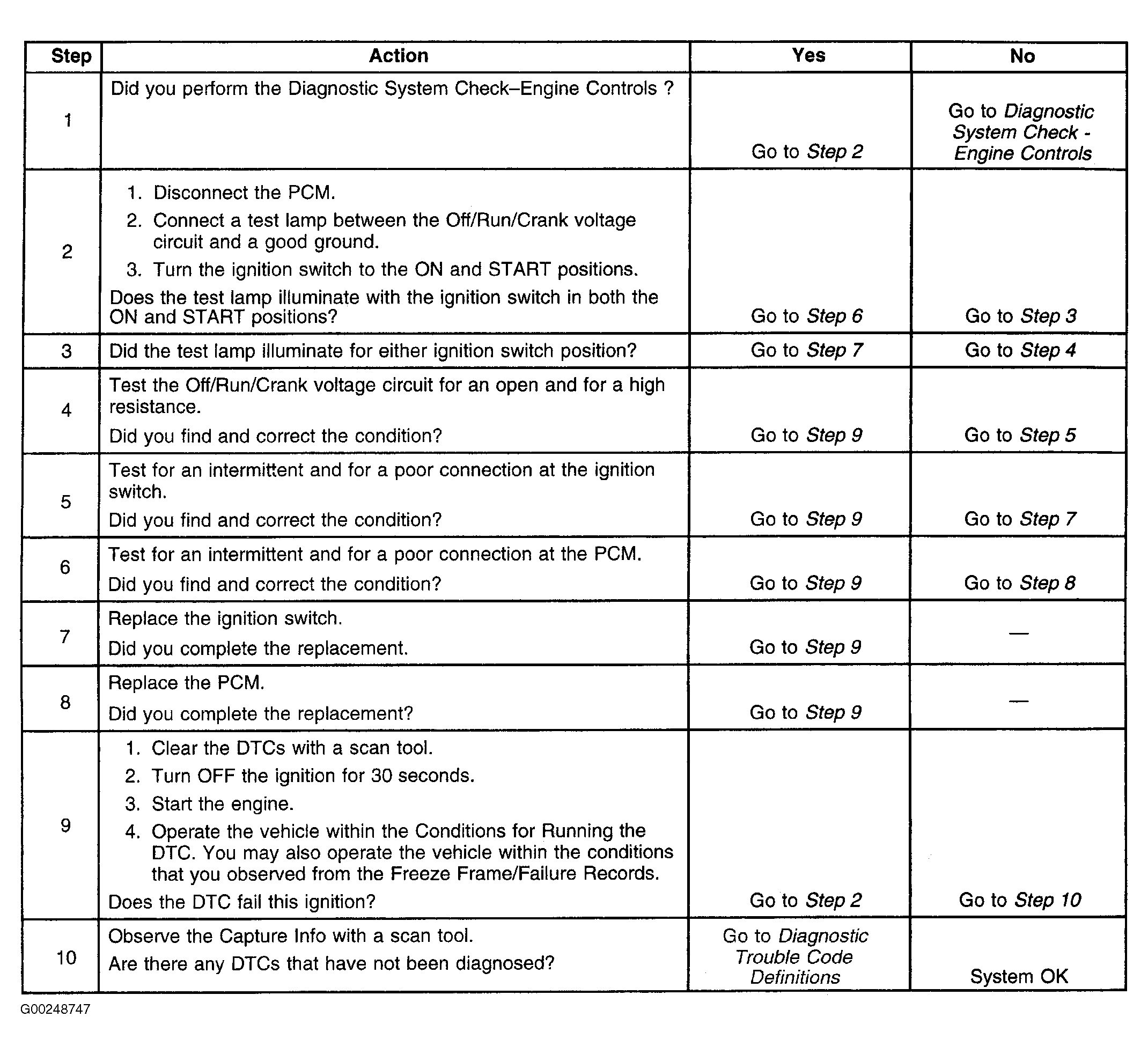

Fig 1: DTC P1633: Improper Ignition 0 Input
G00248747Courtesy of GENERAL MOTORS CORP.
