Diagnostic Procedures

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

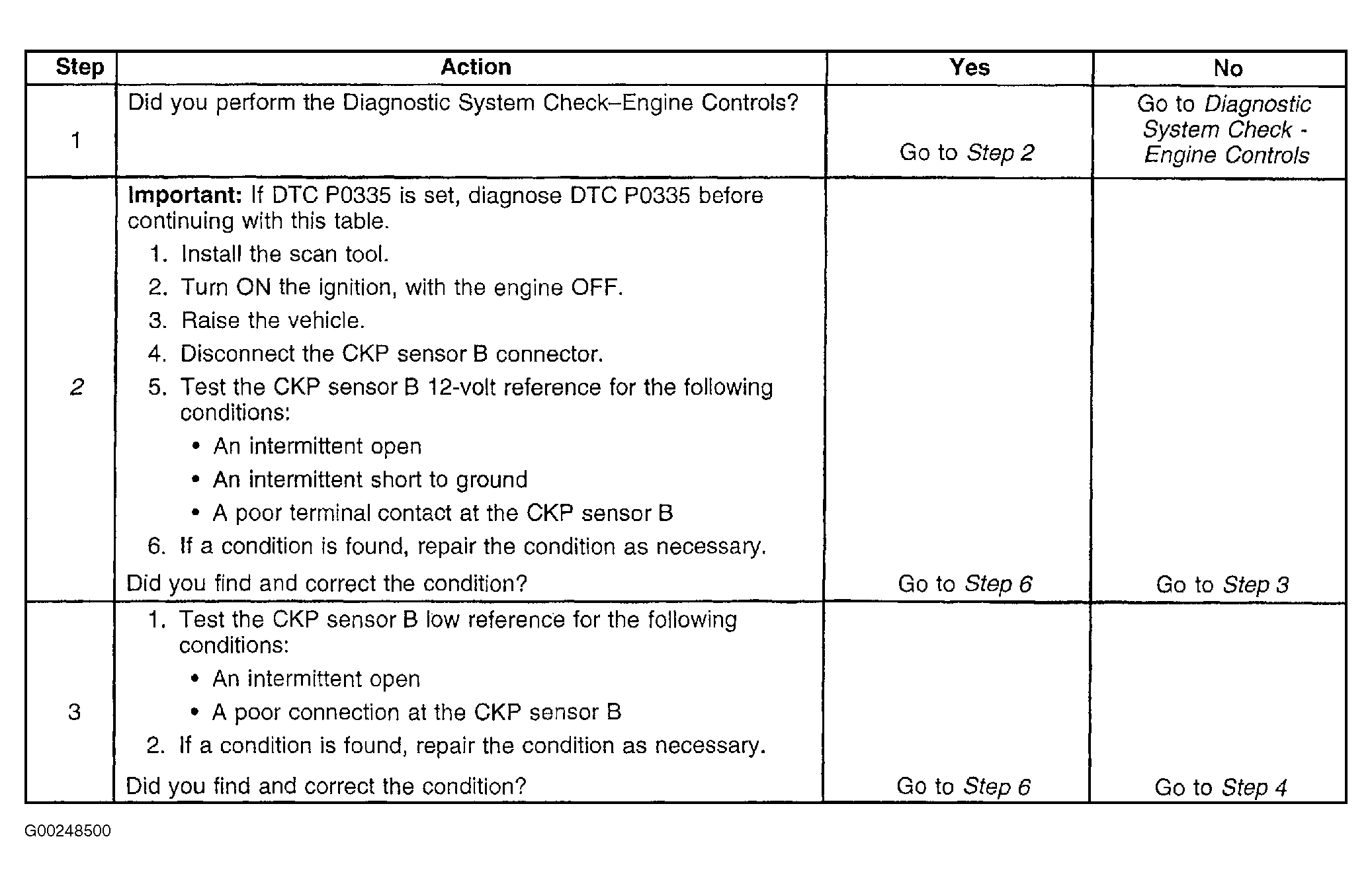

Fig 1: DTC P0386: Crankshaft Position Sensor "B" Circuit Performance (Steps 1-3)

Courtesy of GENERAL MOTORS CORP.

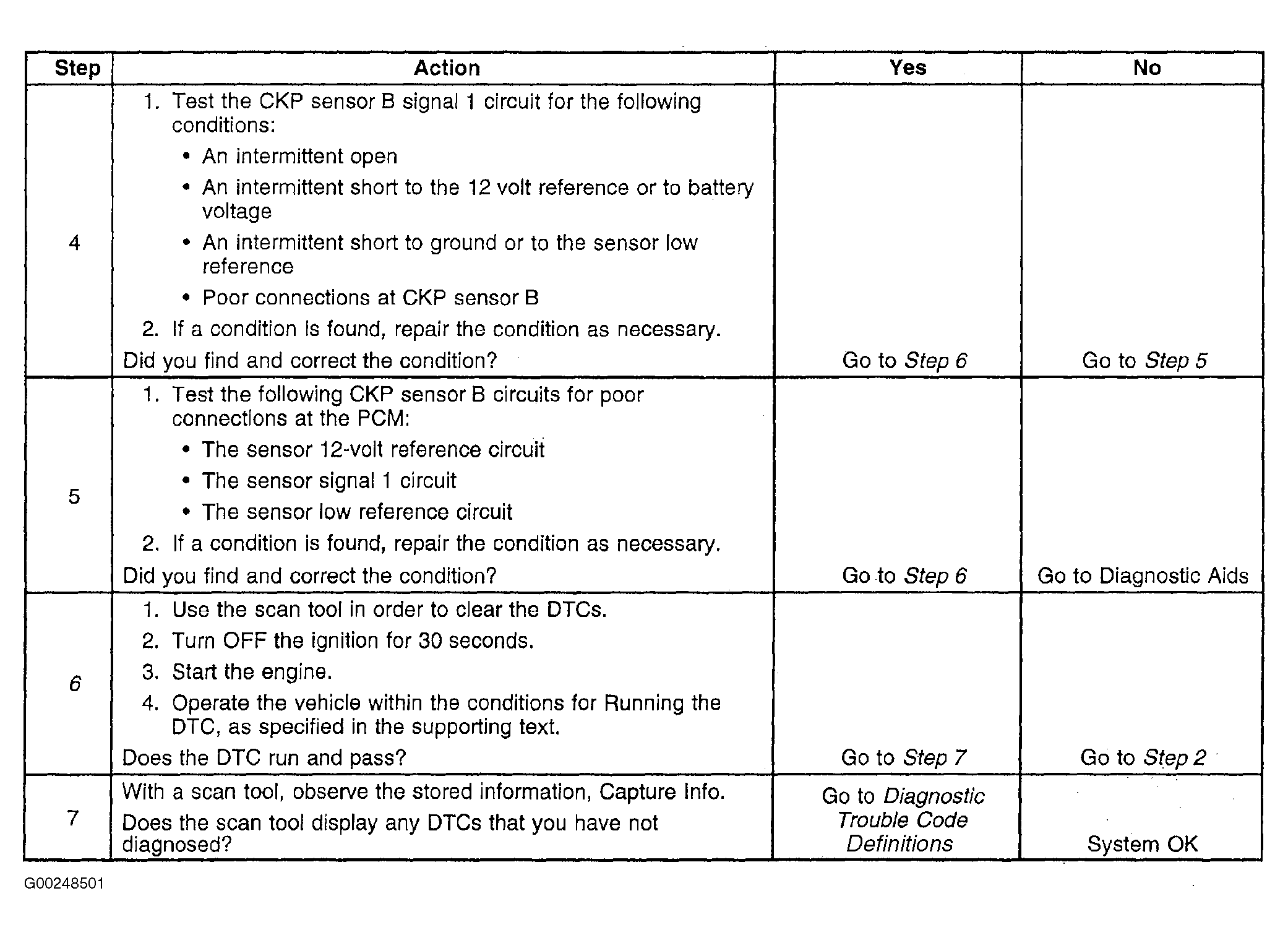

Fig 2: DTC P0386: Crankshaft Position Sensor "B" Circuit Performance (Steps 4-7)

Courtesy of GENERAL MOTORS CORP.
