Diagnostic Procedures

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

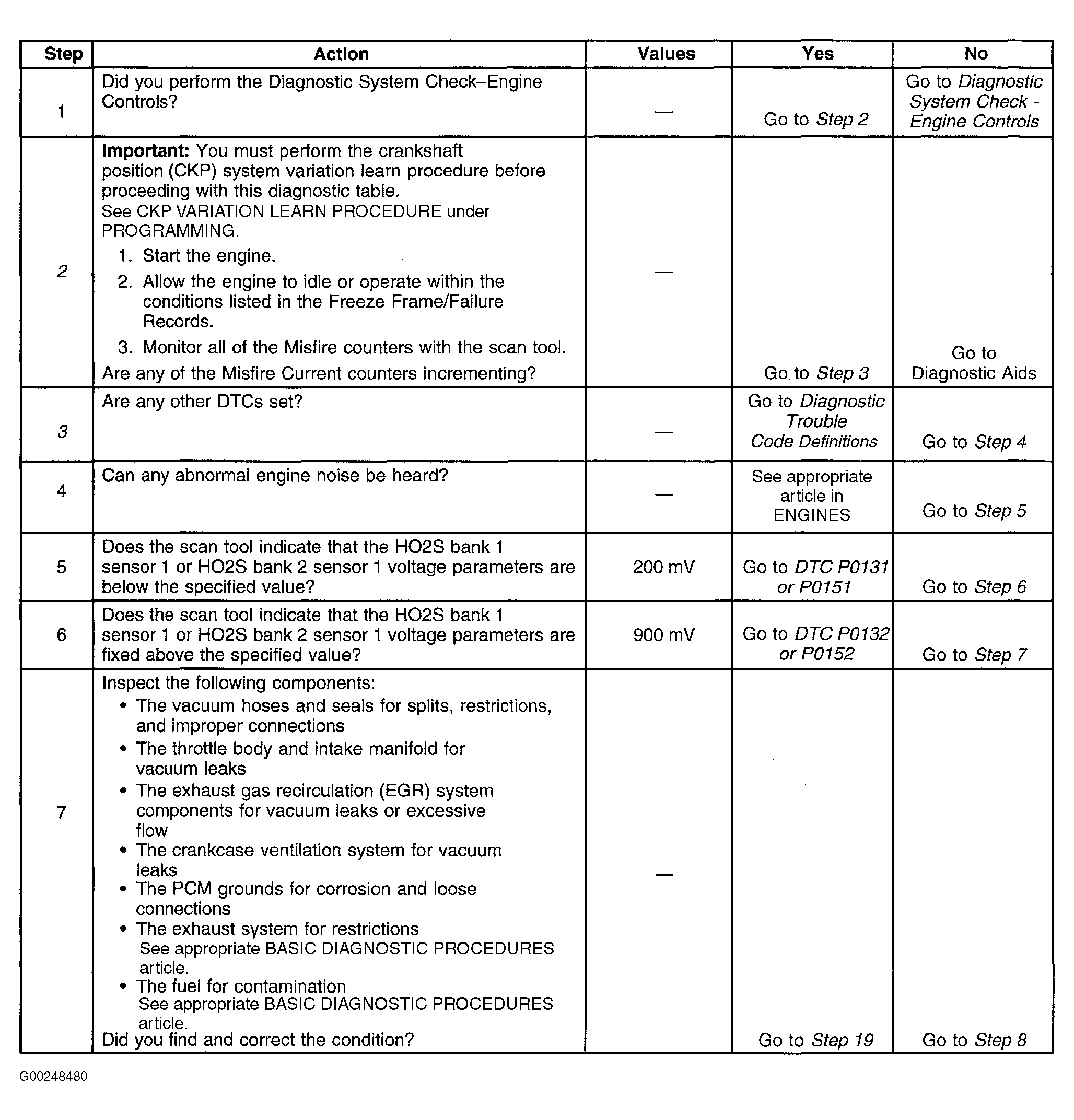

Fig 1: DTC P0300: Engine Misfire Detected (Steps 1-7)

Courtesy of GENERAL MOTORS CORP.

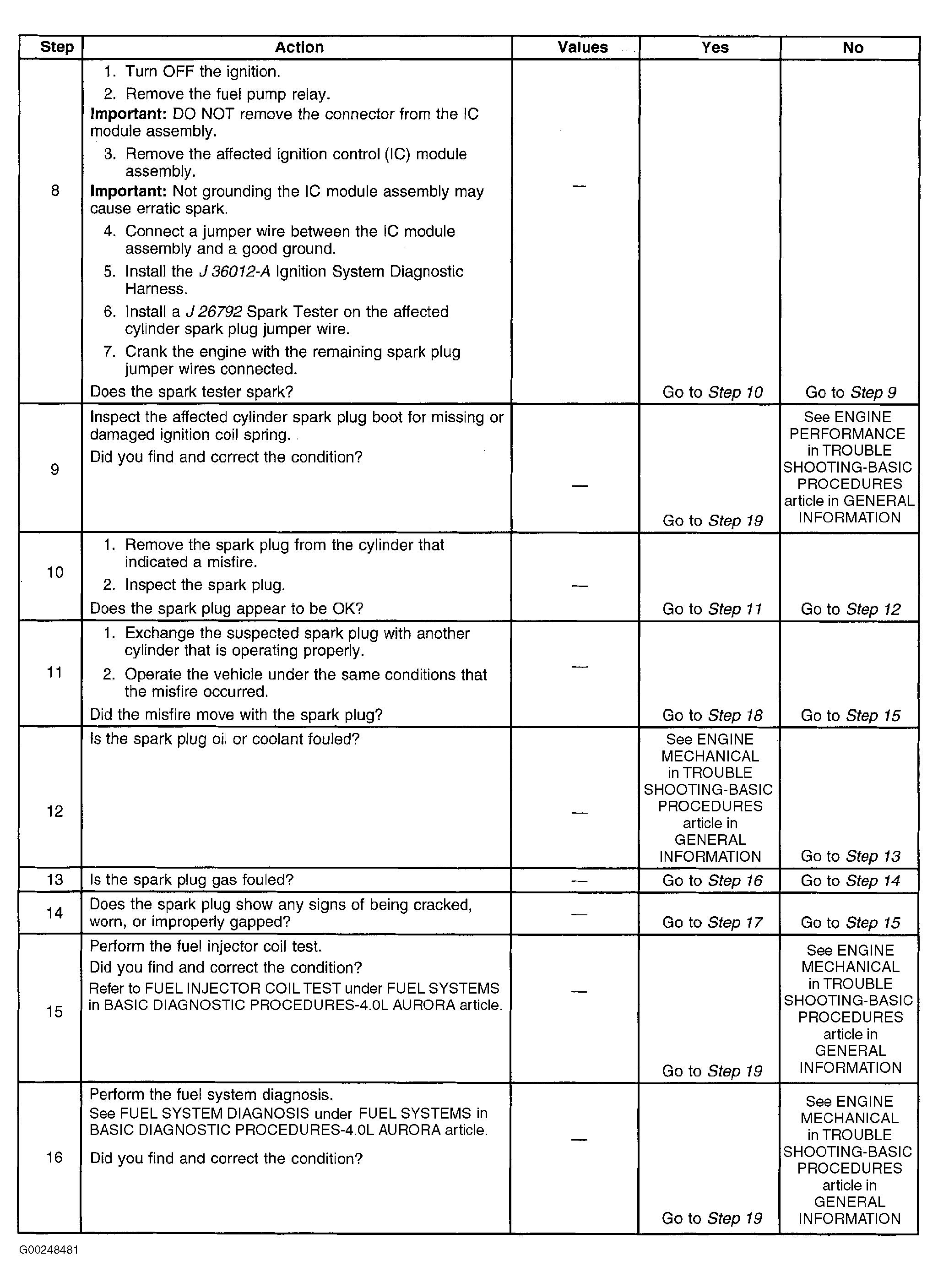

Fig 2: DTC P0300: Engine Misfire Detected (Steps 8-16)

Courtesy of GENERAL MOTORS CORP.

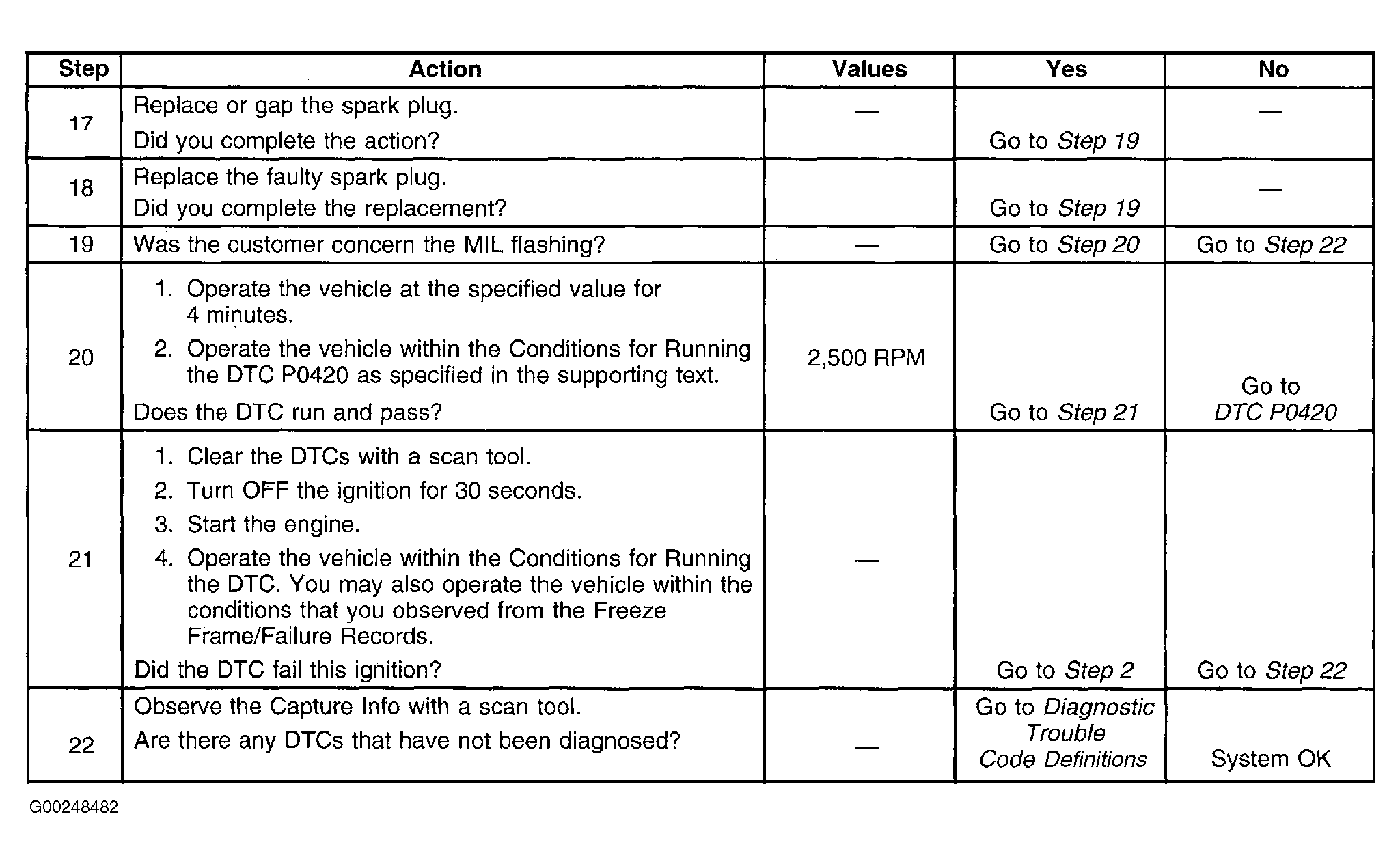

Fig 3: DTC P0300: Engine Misfire Detected (Steps 17-22)

Courtesy of GENERAL MOTORS CORP.
