Diagnostic Procedures

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

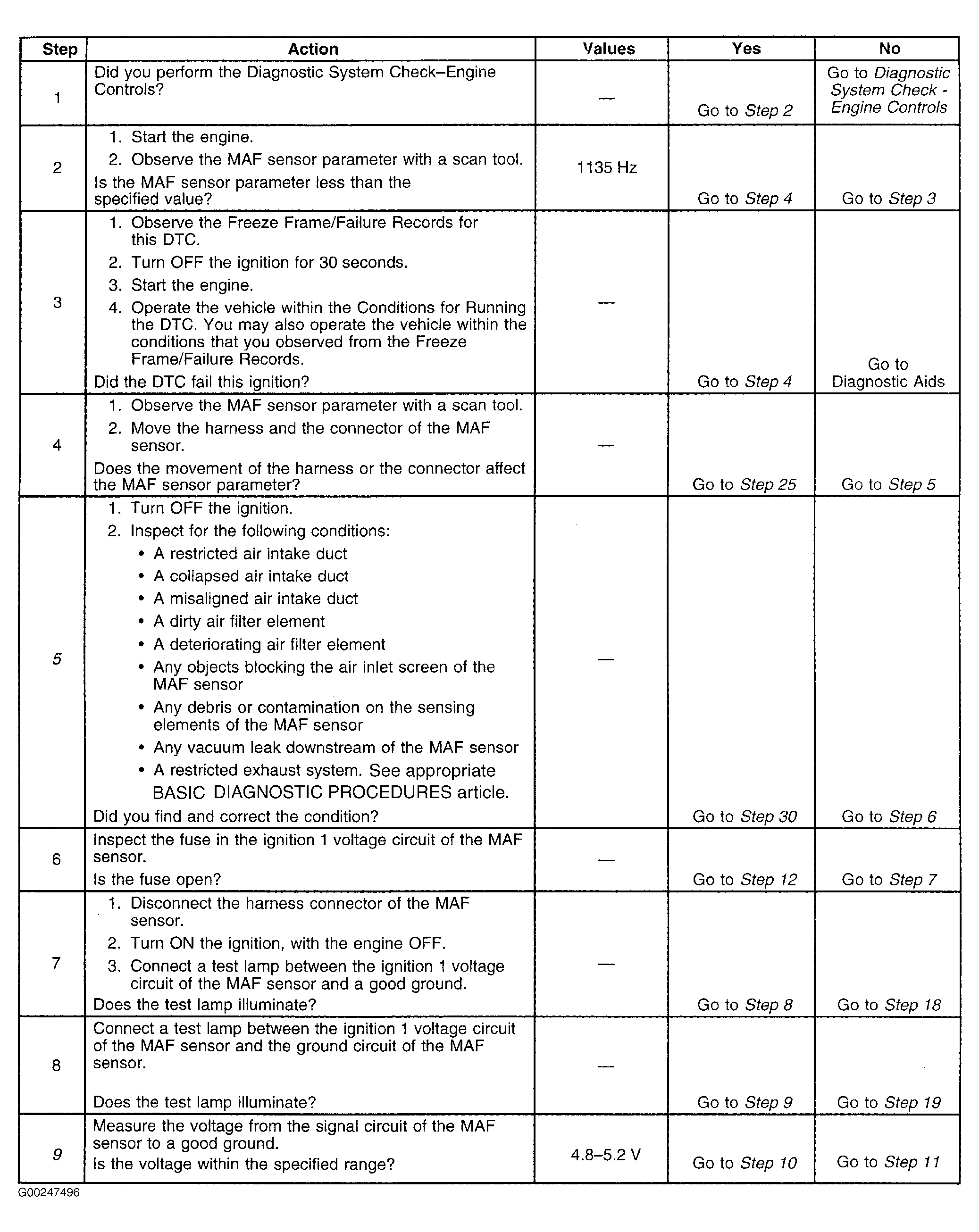

Fig 1: DTC P0102: Mass Airflow Sensor Circuit Low Frequency (Steps 1-9)
G00247496Courtesy of GENERAL MOTORS CORP.

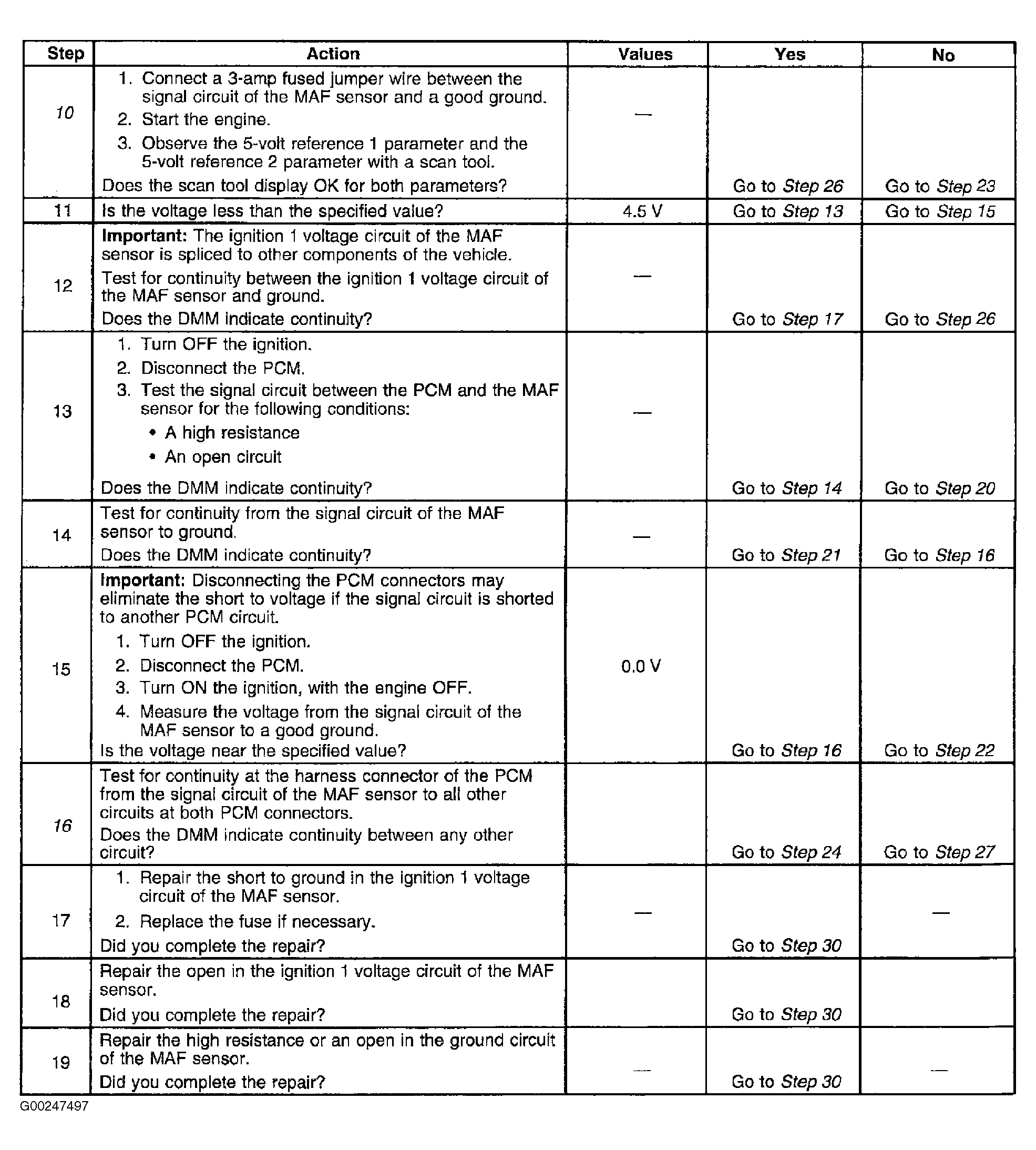

Fig 2: DTC P0102: Mass Airflow Sensor Circuit Low Frequency (Steps 10-19)
G00247497Courtesy of GENERAL MOTORS CORP.

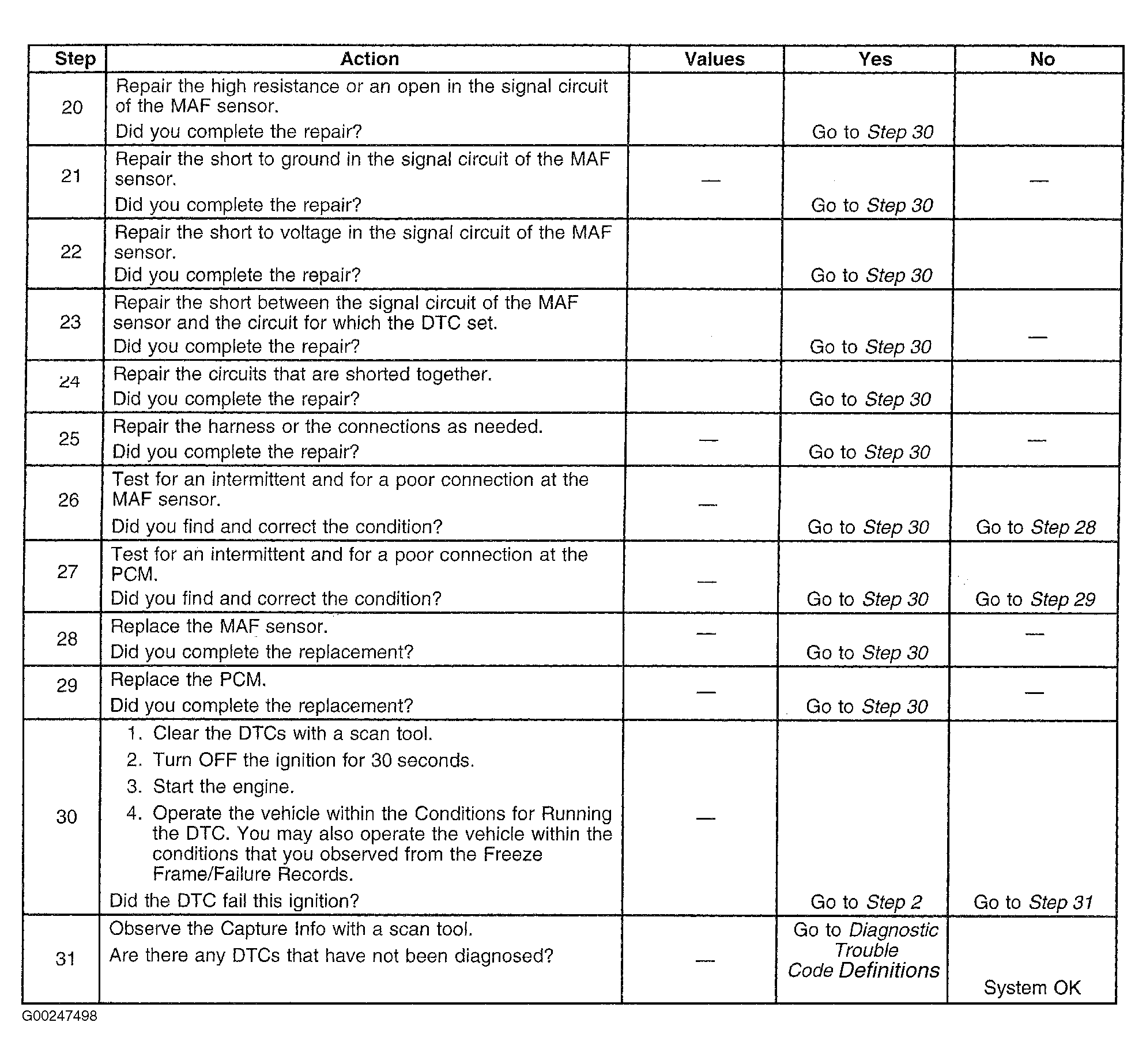

Fig 3: DTC P0102: Mass Airflow Sensor Circuit Low Frequency (Steps 20-31)
G00247498Courtesy of GENERAL MOTORS CORP.
