Diagnostic Procedures

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Pontiac Grand Prix, 2003 Pontiac Bonneville, 2003 Chevrolet Monte Carlo, 2003 Chevrolet Impala, and 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

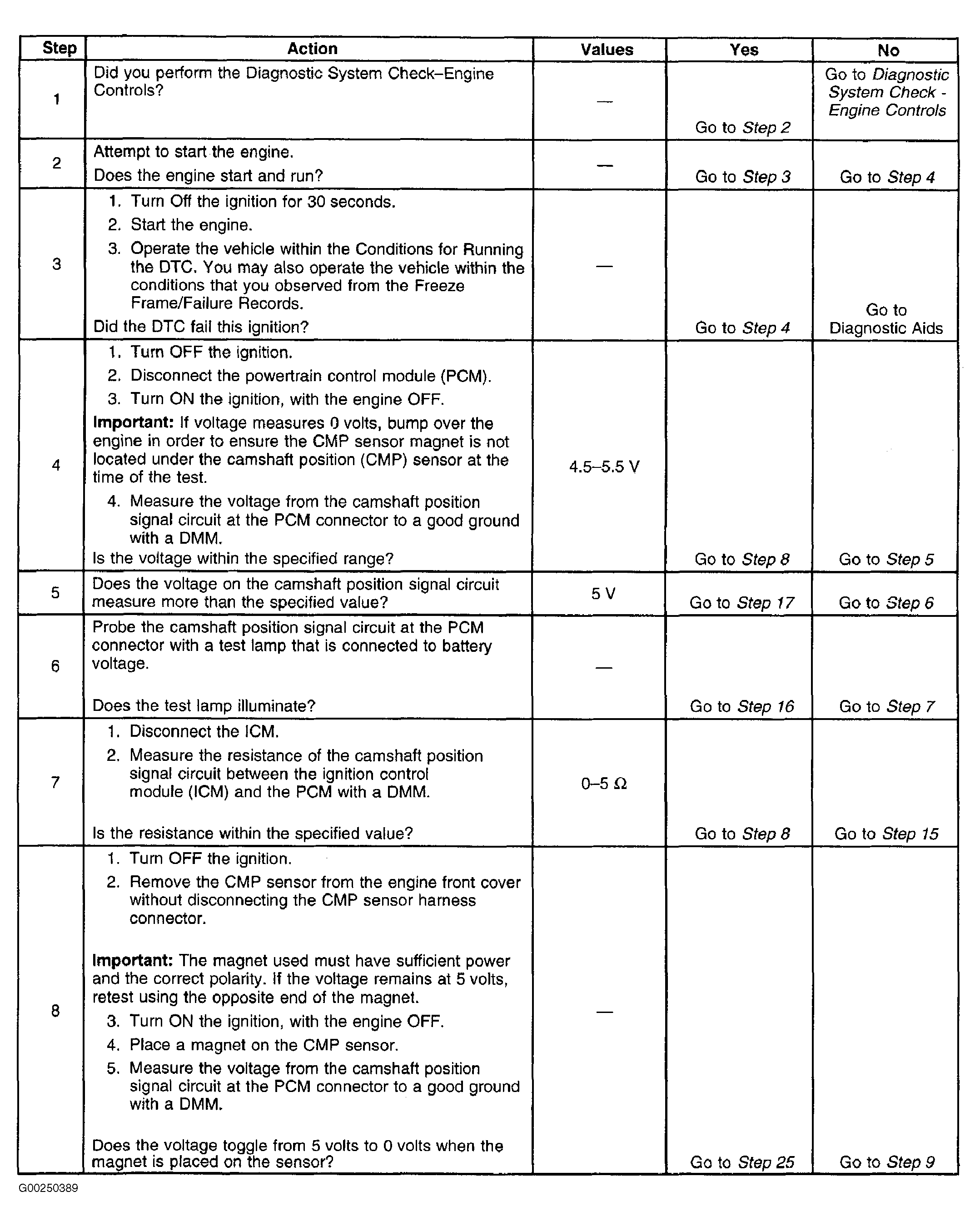

Fig 1: DTC P0341: Camshaft Position Sensor Performance (Steps 1-8)

Courtesy of GENERAL MOTORS CORP.

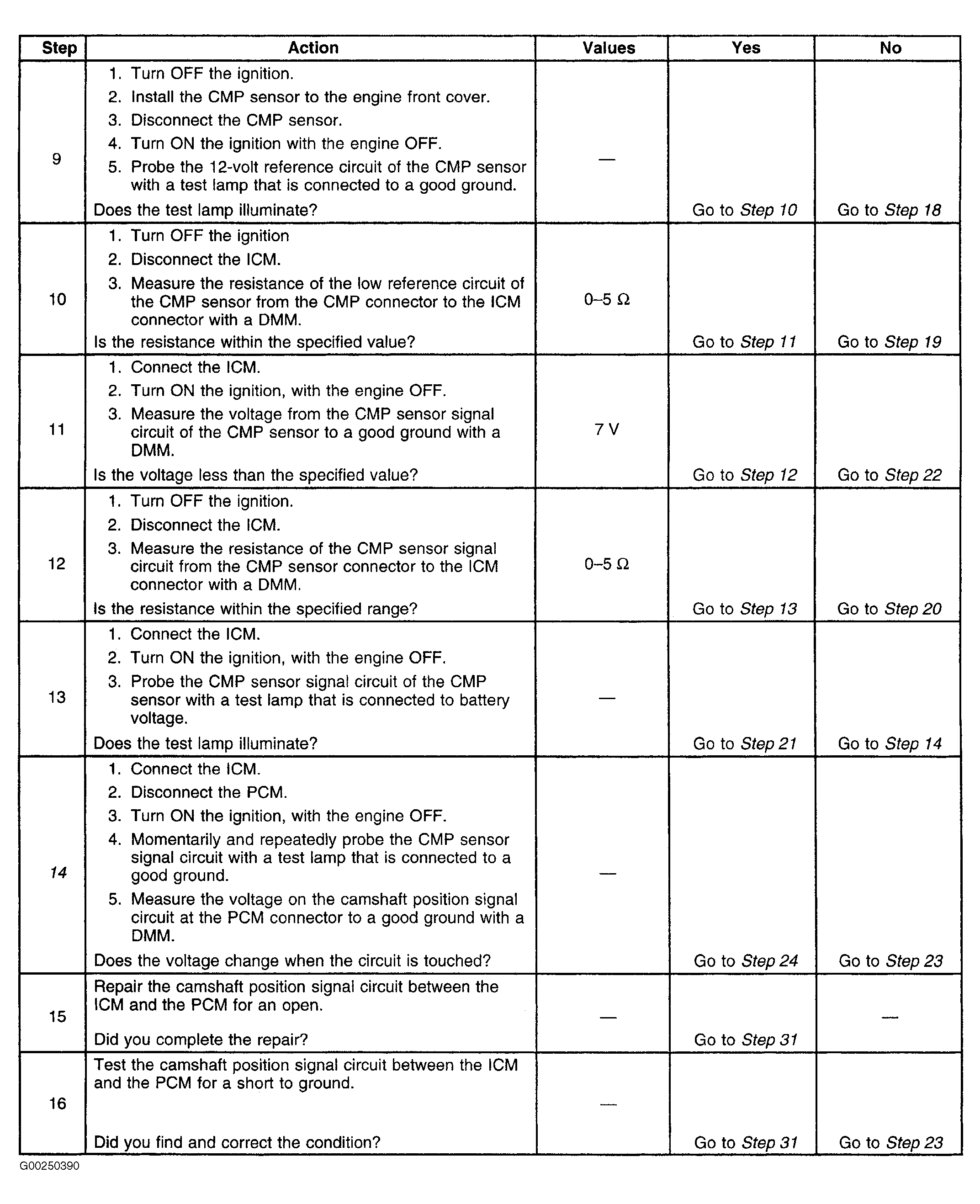

Fig 2: DTC P0341: Camshaft Position Sensor Performance (Steps 9-16)

Courtesy of GENERAL MOTORS CORP.

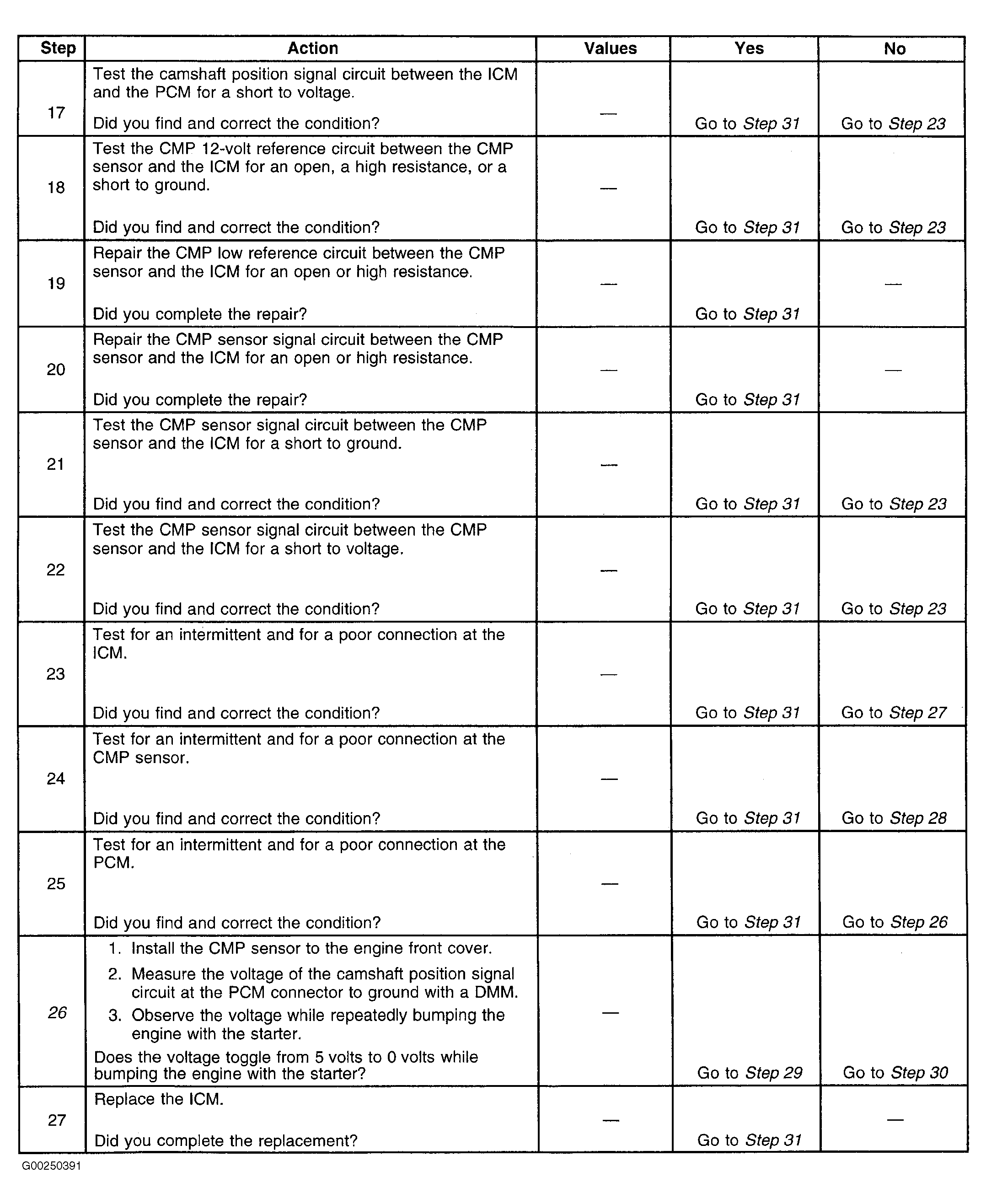

Fig 3: DTC P0341: Camshaft Position Sensor Performance (Steps 17-27)

Courtesy of GENERAL MOTORS CORP.

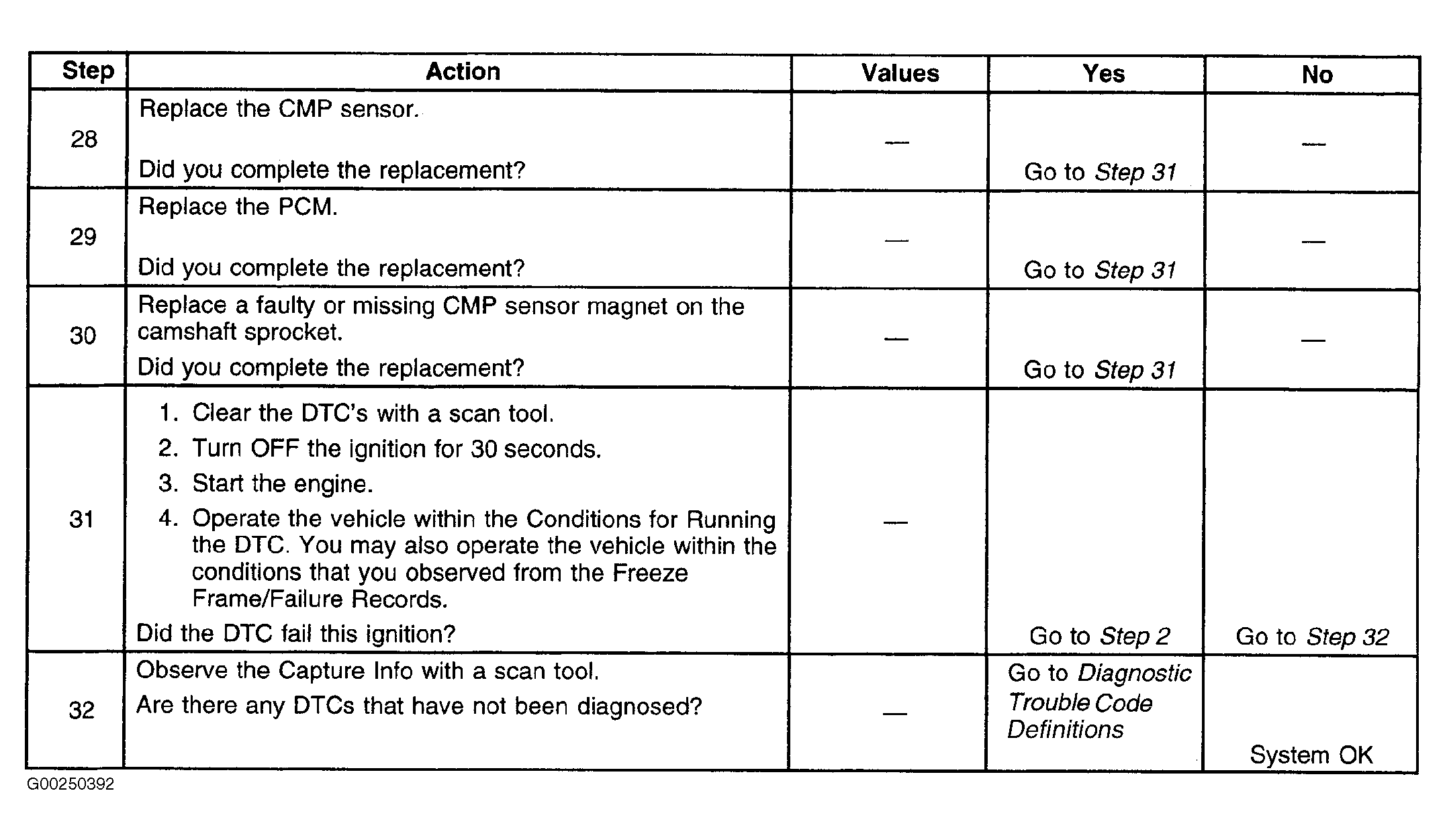

Fig 4: DTC P0341: Camshaft Position Sensor Performance (Steps 28-32)

Courtesy of GENERAL MOTORS CORP.
