Diagnostic Procedures

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Pontiac Grand Prix, 2003 Pontiac Bonneville, 2003 Chevrolet Monte Carlo, 2003 Chevrolet Impala, and 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If any DTCs are set, other than P0171, diagnose those DTCs before continuing. See DIAGNOSTIC TROUBLE CODE DEFINITIONS .

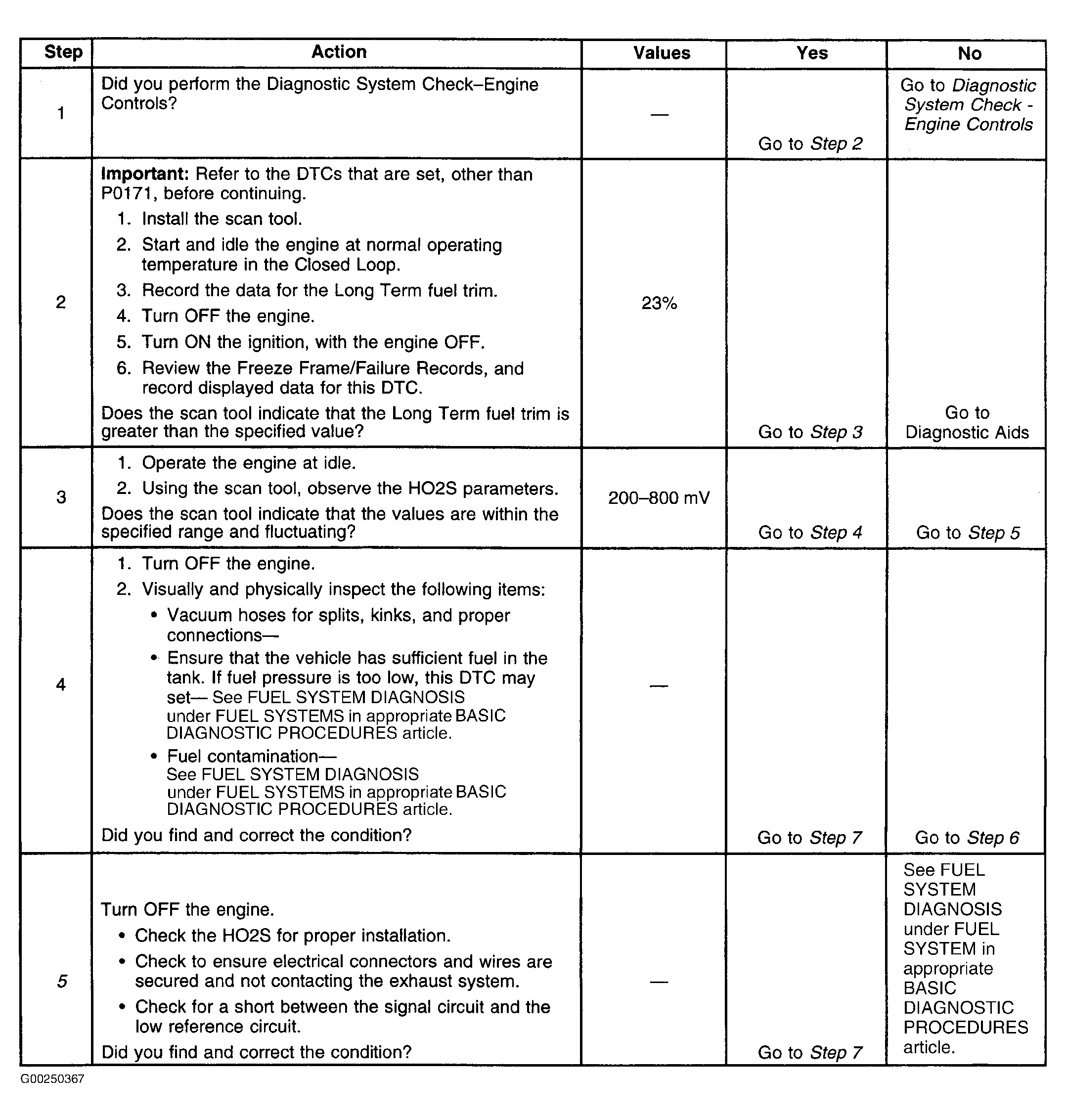

Fig 1: DTC P0171: Fuel Trim System Lean (Steps 1-5)

Courtesy of GENERAL MOTORS CORP.

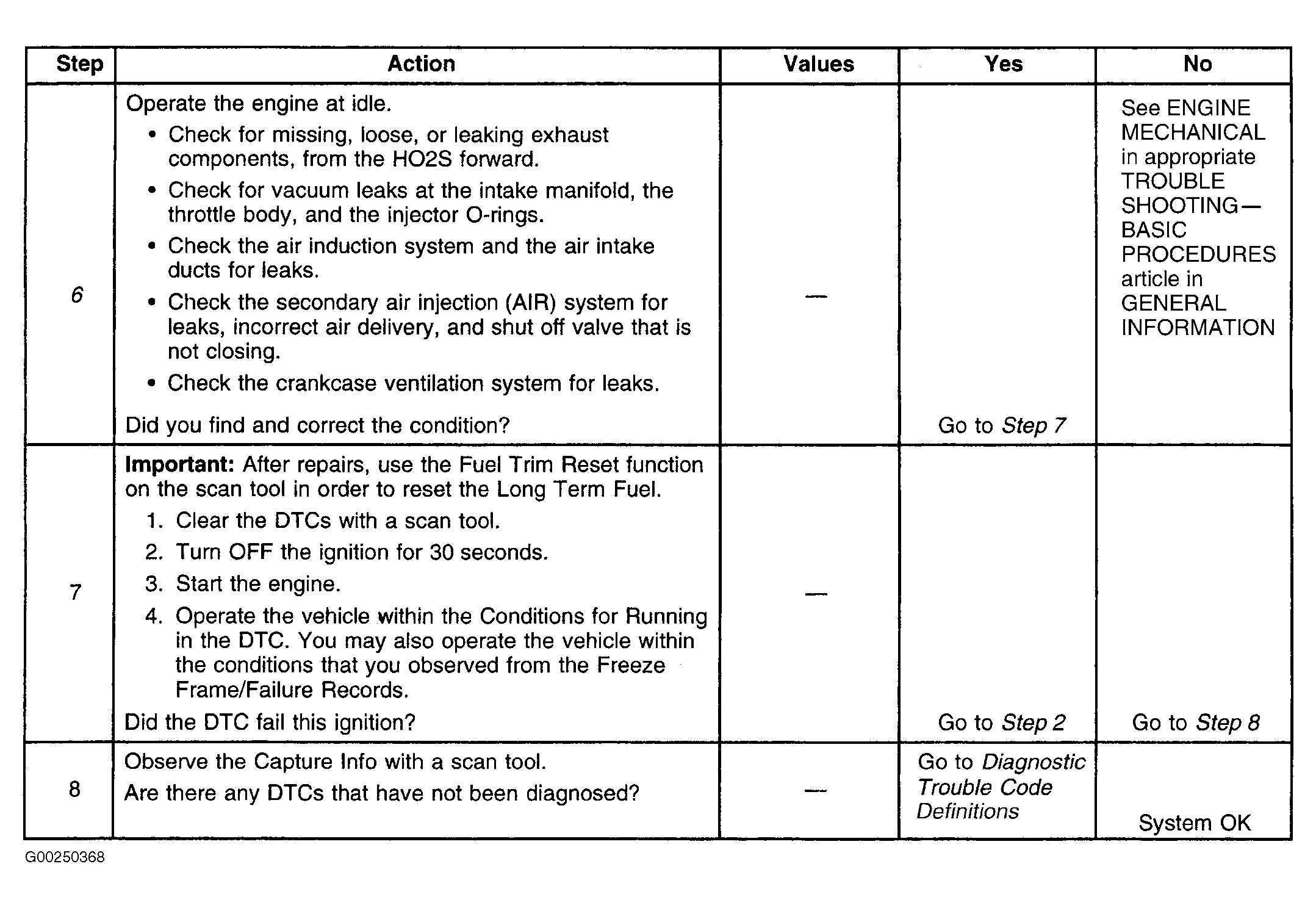

Fig 2: DTC P0171: Fuel Trim System Lean (Steps 6-8)

Courtesy of GENERAL MOTORS CORP.
