Park Avenue

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Pontiac Grand Prix, 2003 Pontiac Bonneville, 2003 Chevrolet Monte Carlo, 2003 Chevrolet Impala, and 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Camshaft Position Sensor Connector Terminals
G00251189Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Crankshaft Position Sensor Connector Terminals
G00251190Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying Engine Coolant Temperature Sensor Connector Terminals
G00251191Courtesy of GENERAL MOTORS CORP.

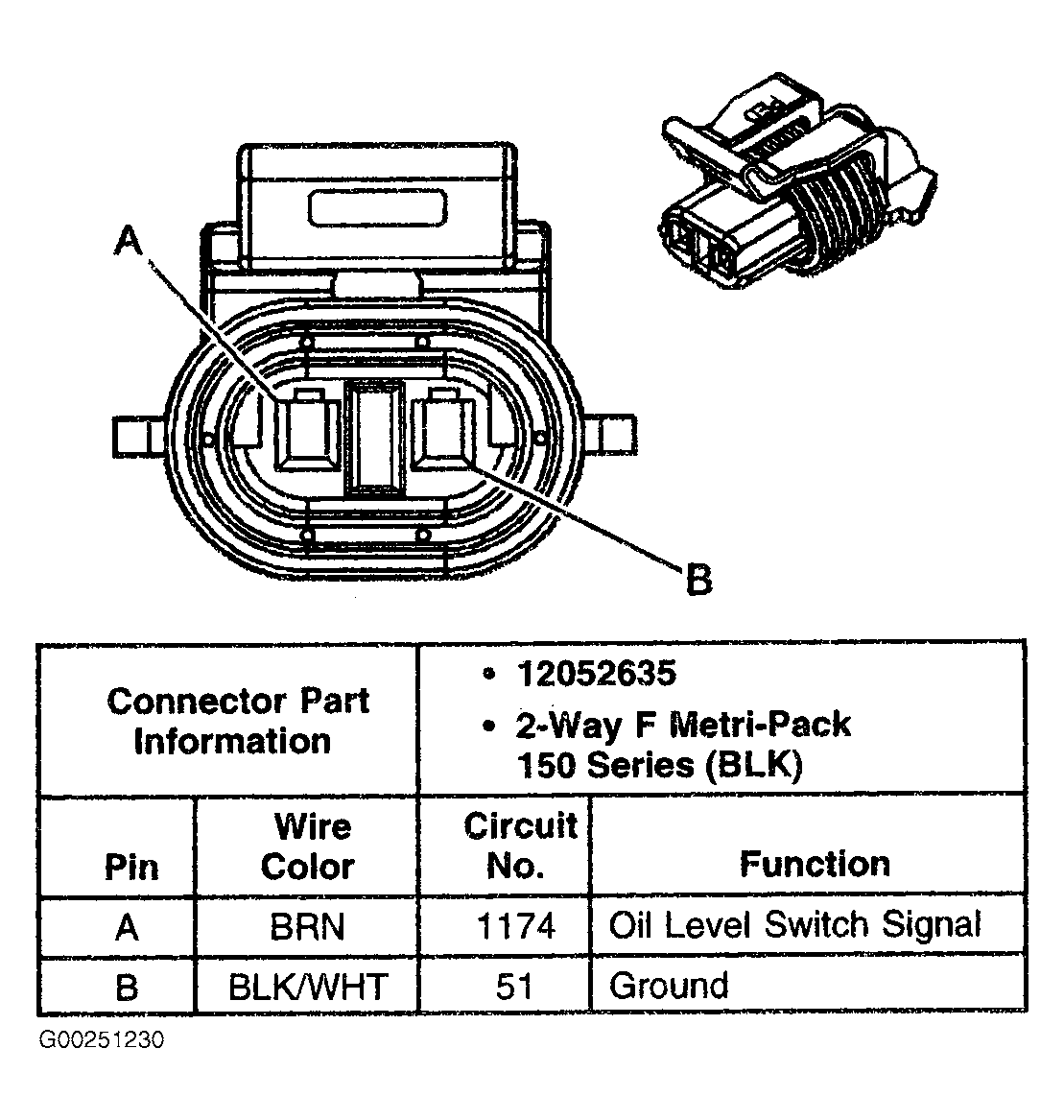

Fig 4: Identifying Engine Oil Level Switch Connector Terminals
G00251230Courtesy of GENERAL MOTORS CORP.

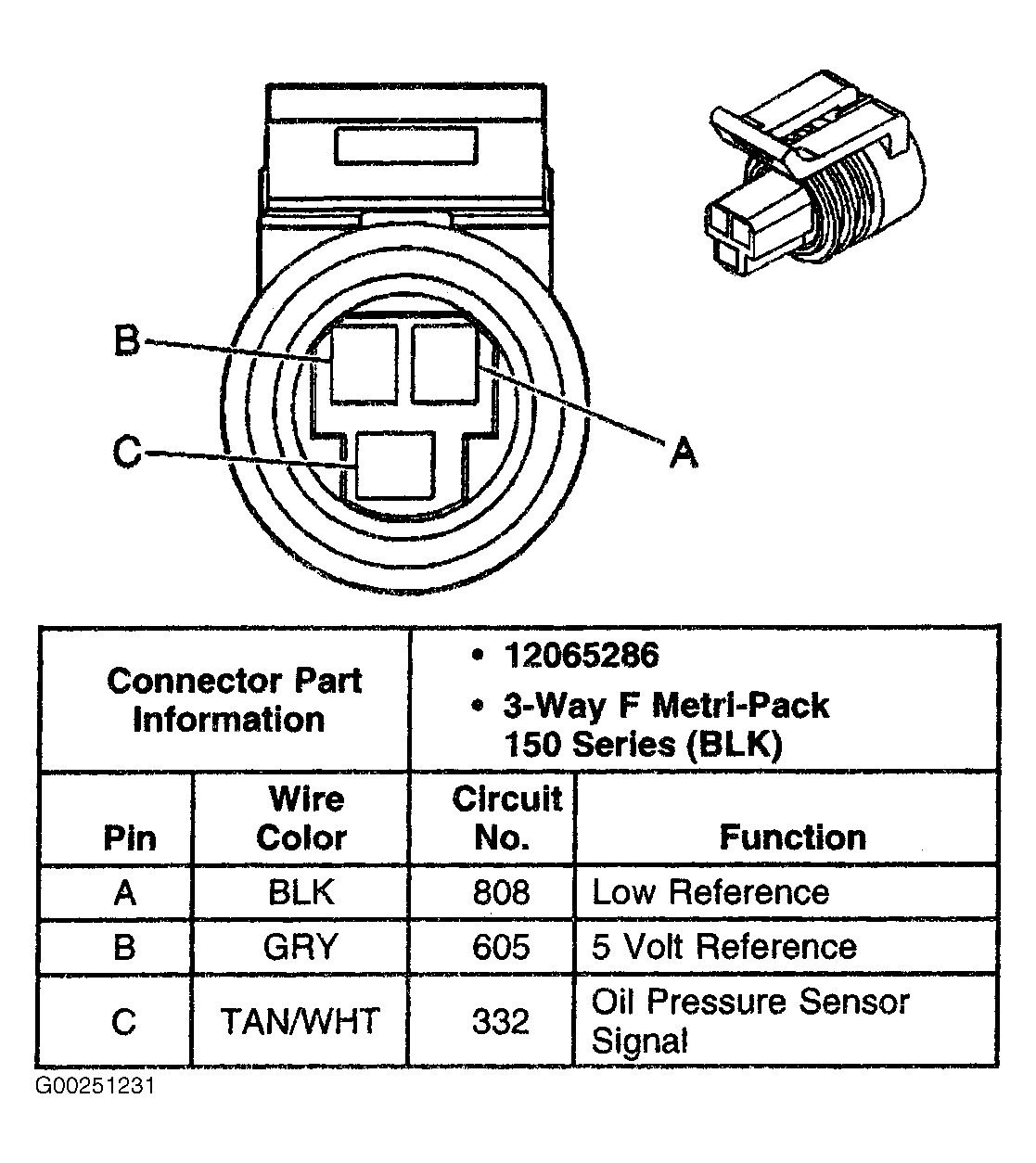

Fig 5: Identifying Engine Oil Pressure Sensor Connector Terminals
G00251231Courtesy of GENERAL MOTORS CORP.
Fig 6: Identifying Evaporative Emissions Canister Purge Solenoid Connector Terminals
G00251232Courtesy of GENERAL MOTORS CORP.

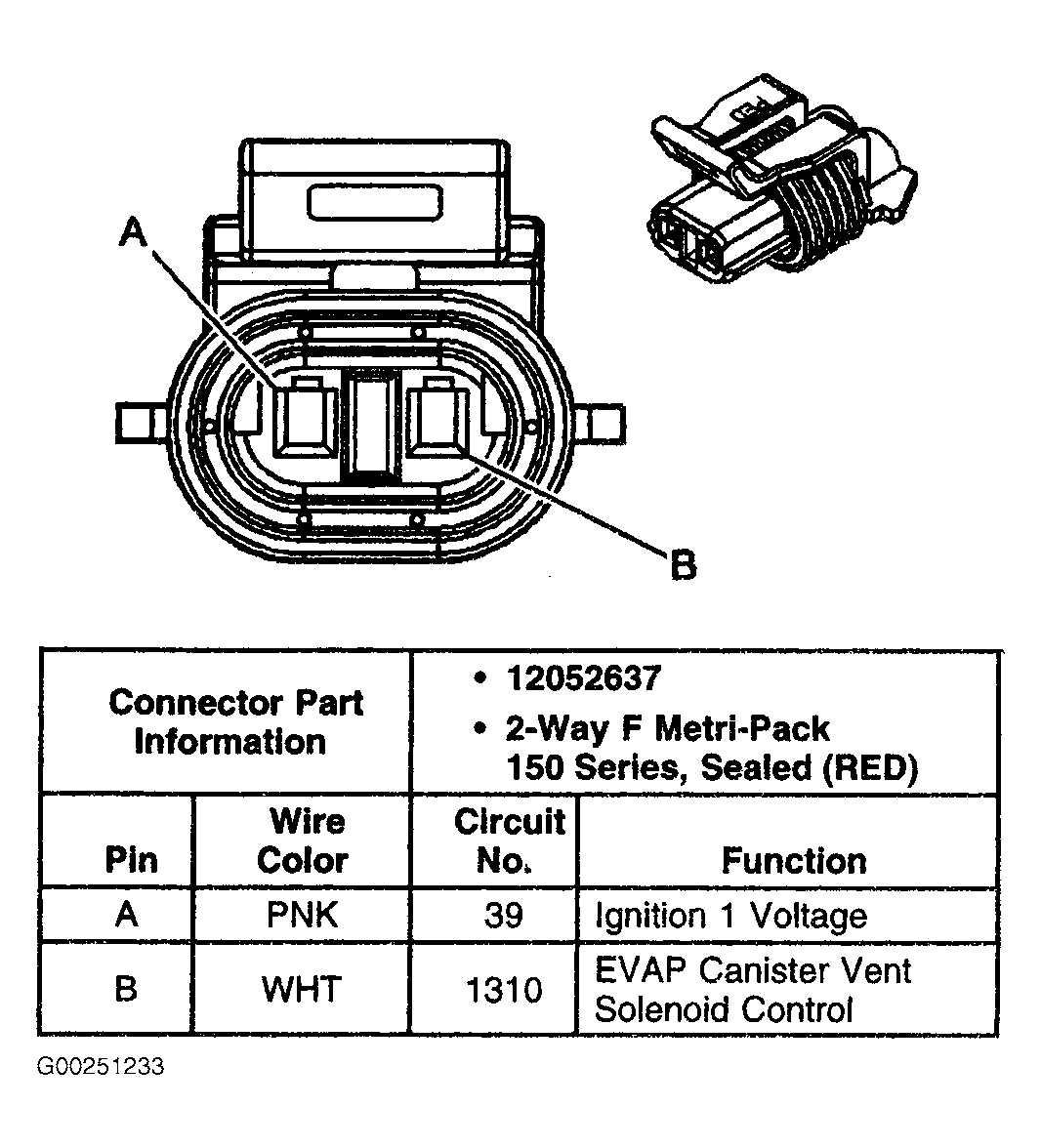

Fig 7: Identifying Evaporative Emissions Canister Vent Solenoid Connector Terminals
G00251233Courtesy of GENERAL MOTORS CORP.
Fig 8: Identifying Exhaust Gas Recirculation Valve Connector Terminals
G00251194Courtesy of GENERAL MOTORS CORP.

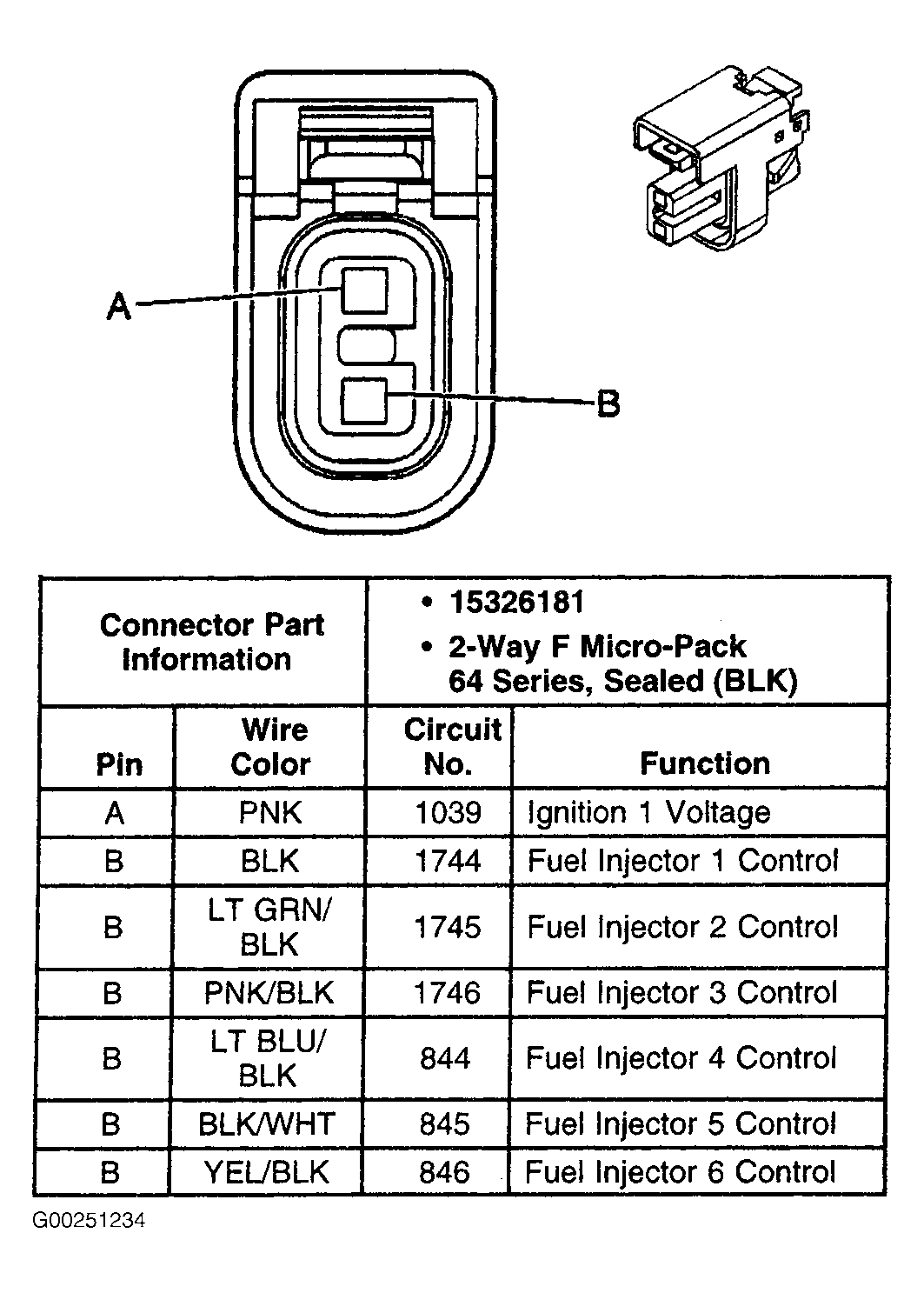

Fig 9: Identifying Fuel Injectors (W/O Supercharger) Connector Terminals
G00251234Courtesy of GENERAL MOTORS CORP.

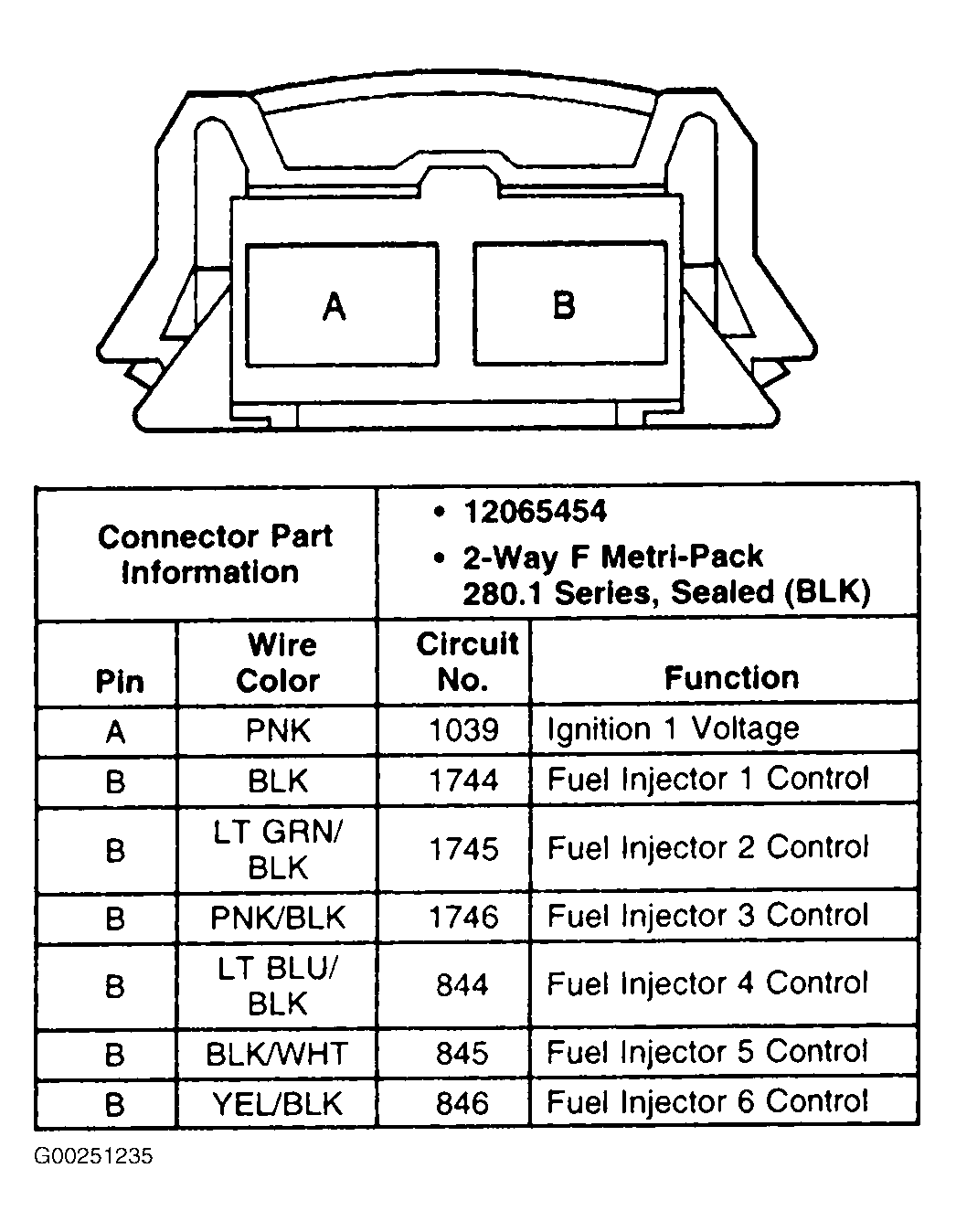

Fig 10: Identifying Fuel Injectors (W/Supercharger) Connector Terminals
G00251235Courtesy of GENERAL MOTORS CORP.

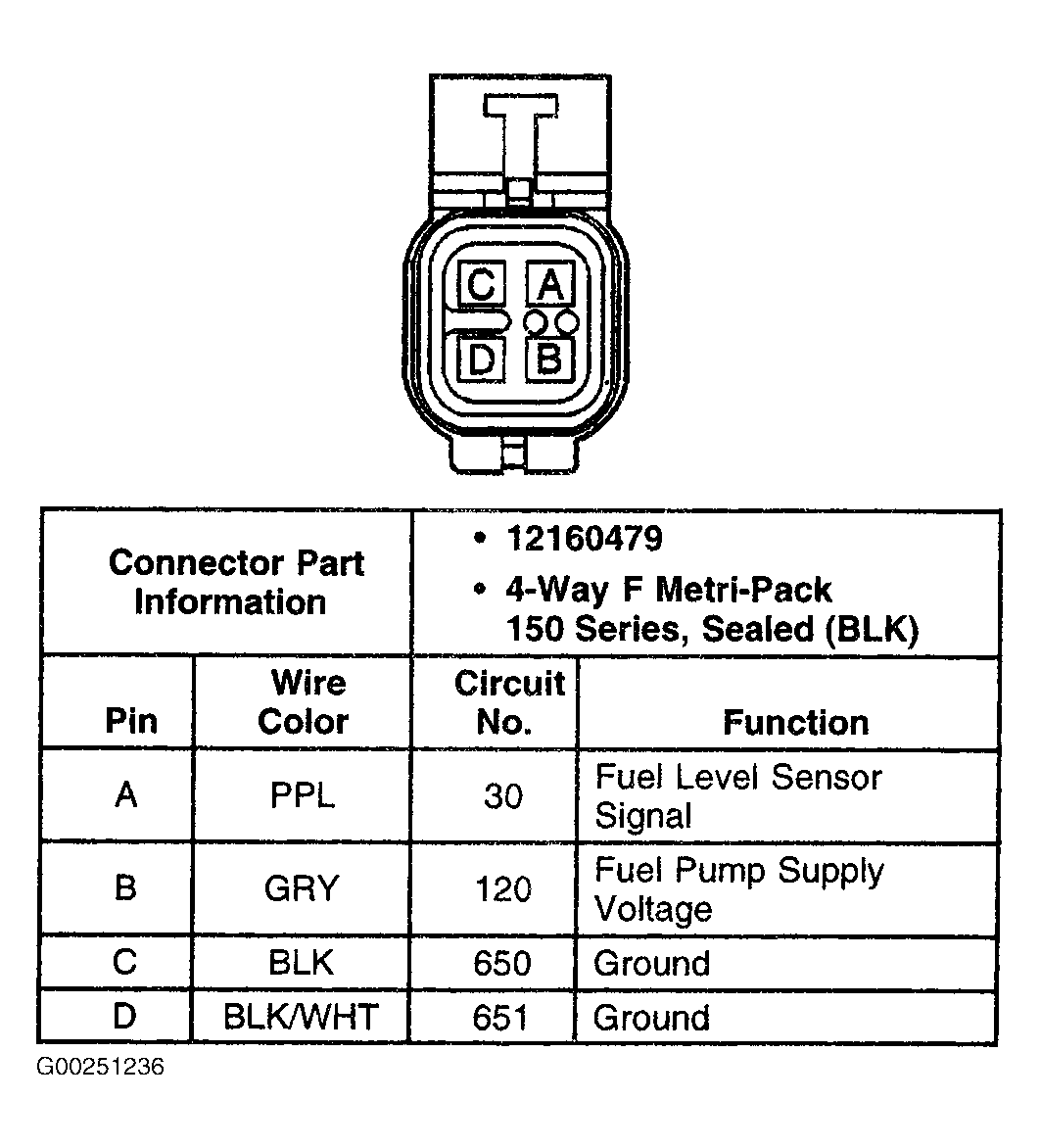

Fig 11: Identifying Fuel Pump & Sender Assembly Connector Terminals
G00251236Courtesy of GENERAL MOTORS CORP.

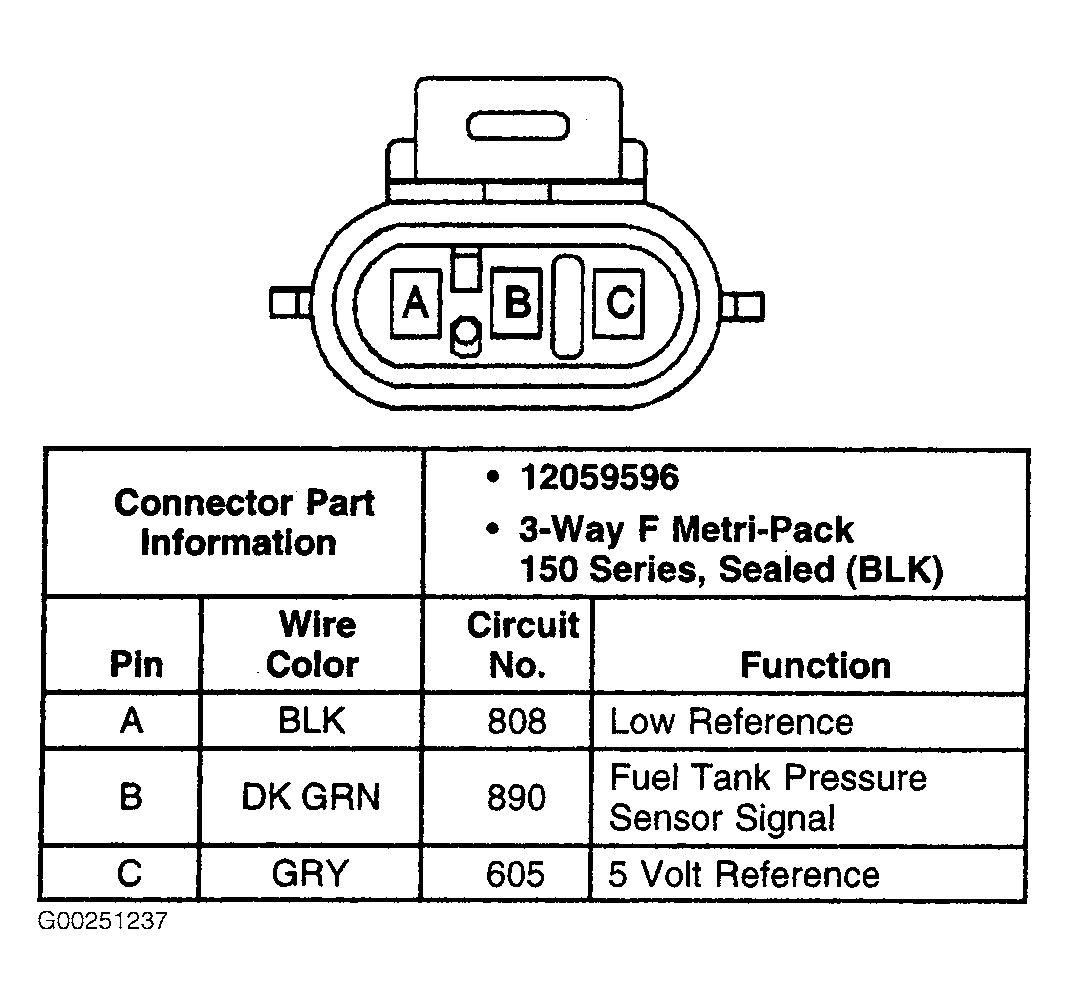

Fig 12: Identifying Fuel Tank Pressure Sensor Connector Terminals
G00251237Courtesy of GENERAL MOTORS CORP.

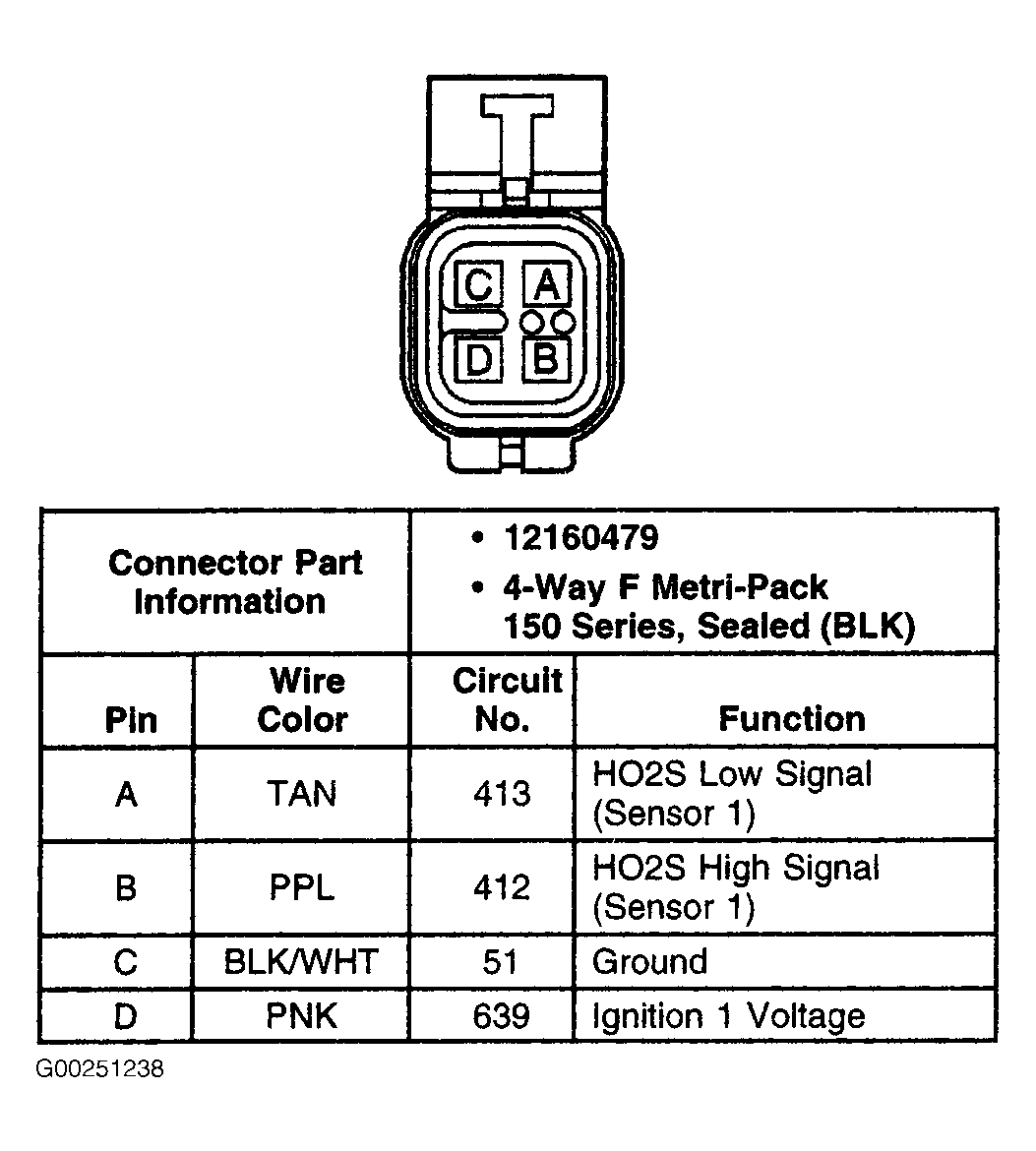

Fig 13: Identifying HO2S Sensor 1 Connector Terminals
G00251238Courtesy of GENERAL MOTORS CORP.

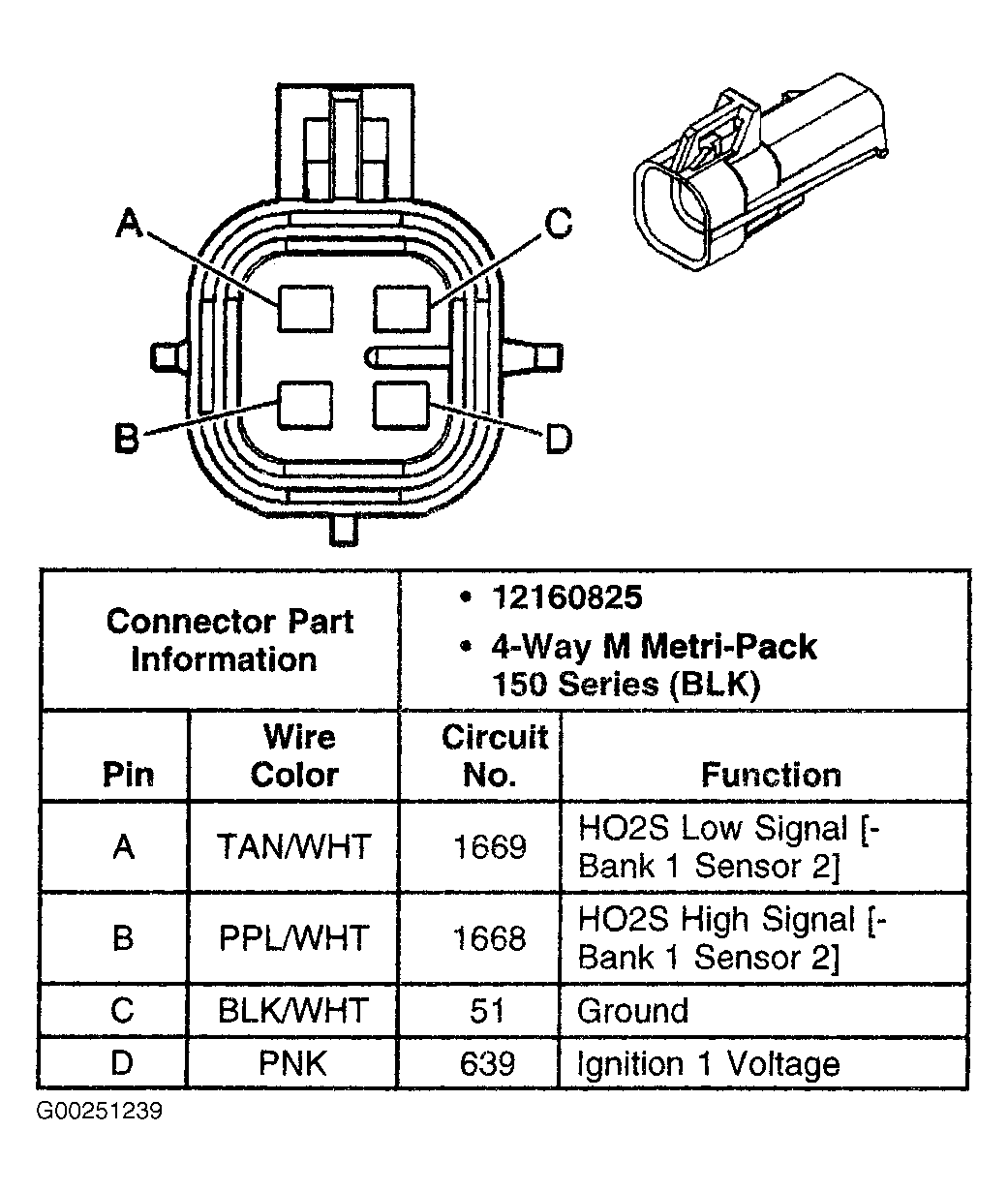

Fig 14: Identifying HO2S Sensor 2 Connector Terminals
G00251239Courtesy of GENERAL MOTORS CORP.

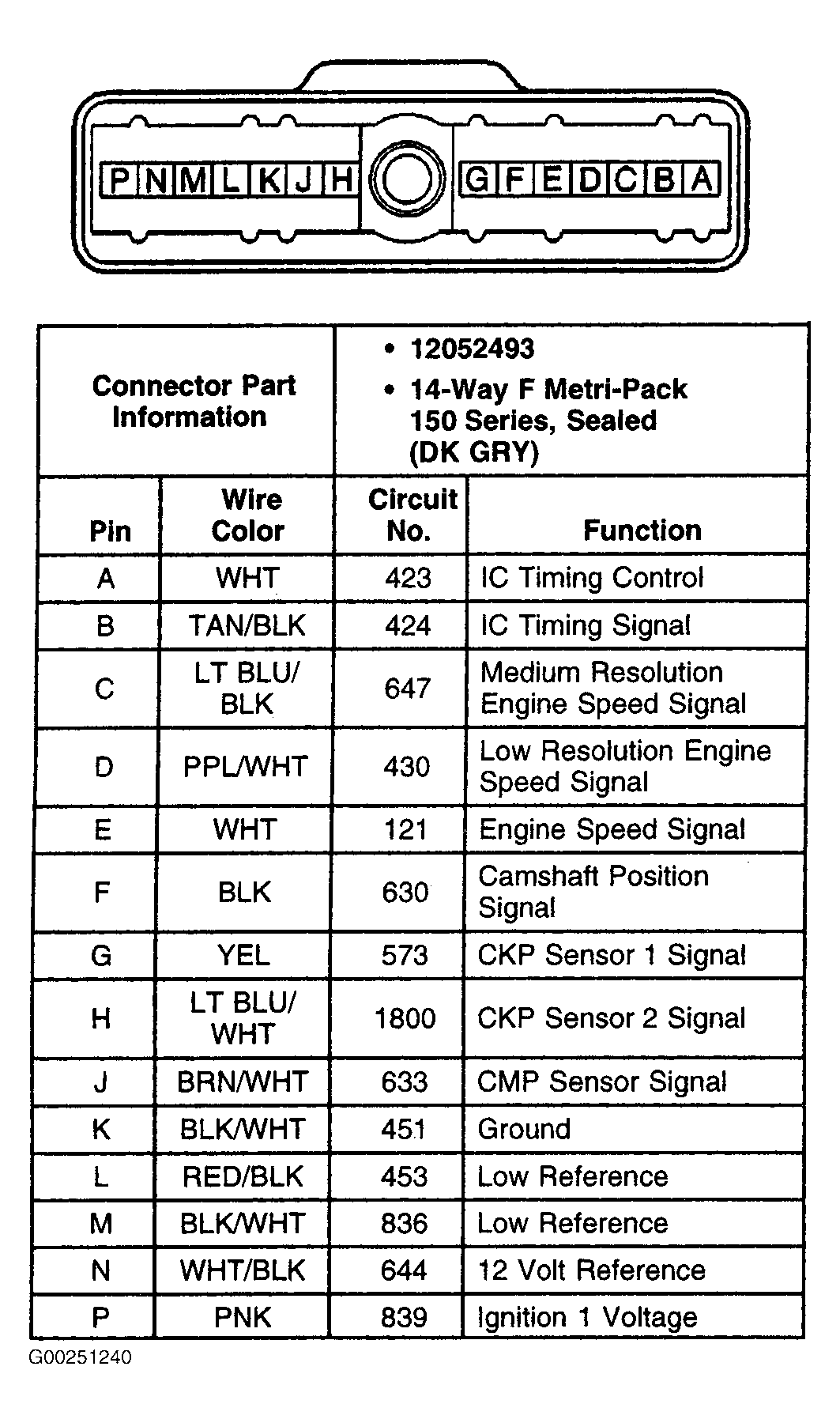

Fig 15: Identifying Ignition Control Module Connector Terminals
G00251240Courtesy of GENERAL MOTORS CORP.
Fig 16: Identifying Idle Air Control Valve Connector Terminals
G00251211Courtesy of GENERAL MOTORS CORP.
Fig 17: Identifying Intake Air Temperature Sensor Connector Terminals
G00251213Courtesy of GENERAL MOTORS CORP.
Fig 18: Identifying Knock Sensor Bank 1 Connector Terminals
G00251214Courtesy of GENERAL MOTORS CORP.
Fig 19: Identifying Knock Sensor Bank 2 Connector Terminals
G00251215Courtesy of GENERAL MOTORS CORP.
Fig 20: Identifying Manifold Absolute Pressure Sensor Connector Terminals (W/O Supercharger)
G00251241Courtesy of GENERAL MOTORS CORP.

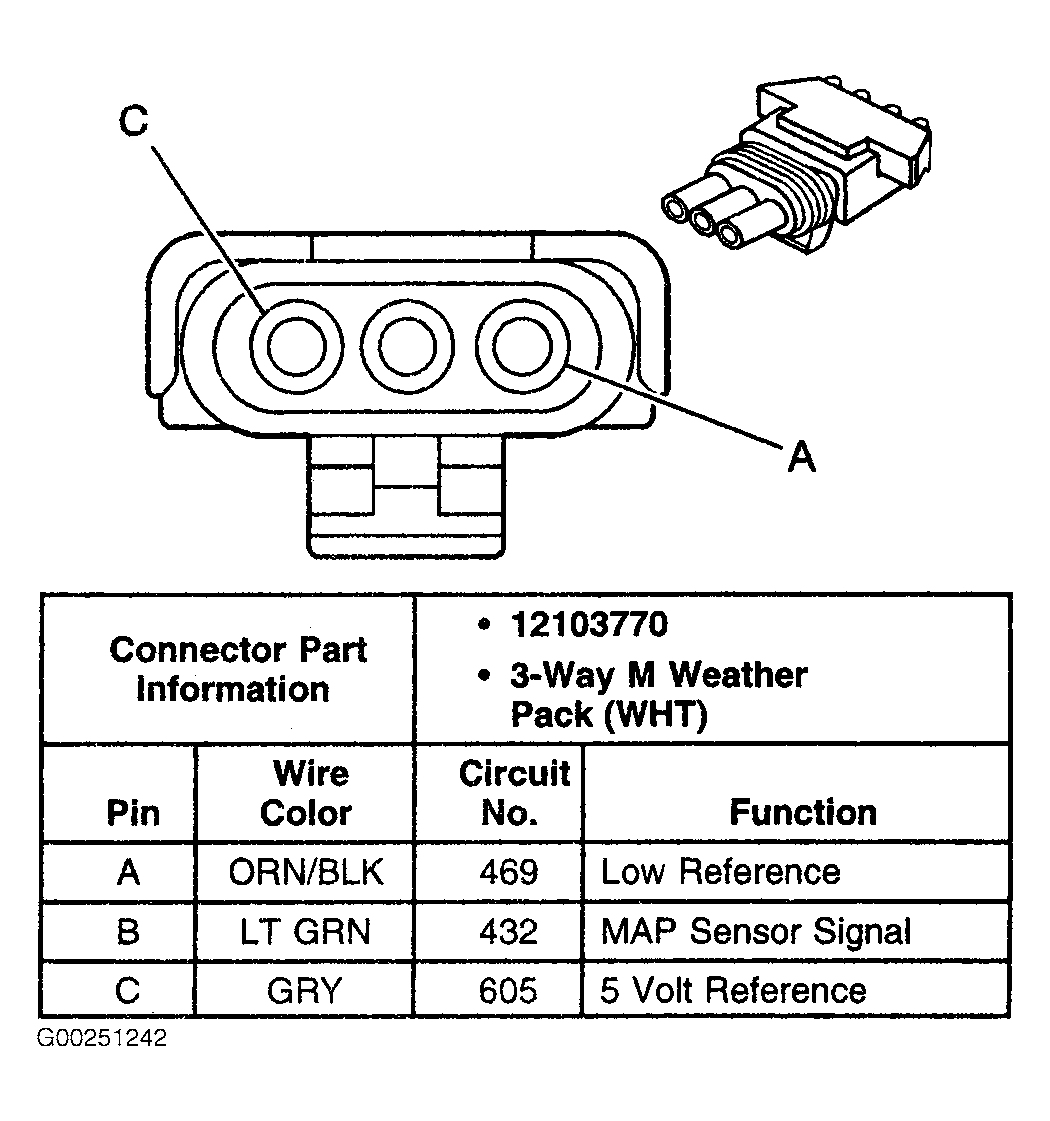

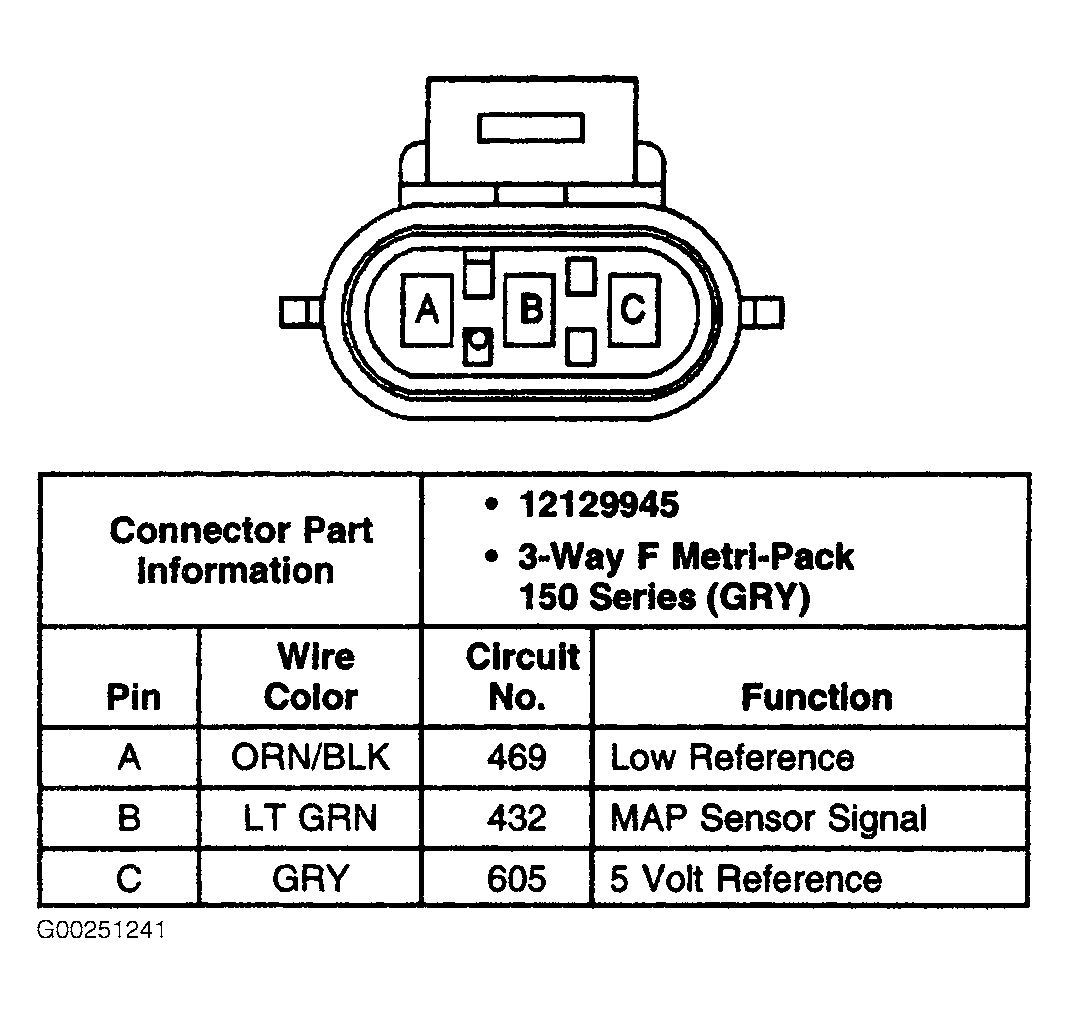

Fig 21: Identifying Manifold Absolute Pressure Sensor Connector Terminals (W/Supercharger)
G00251242Courtesy of GENERAL MOTORS CORP.

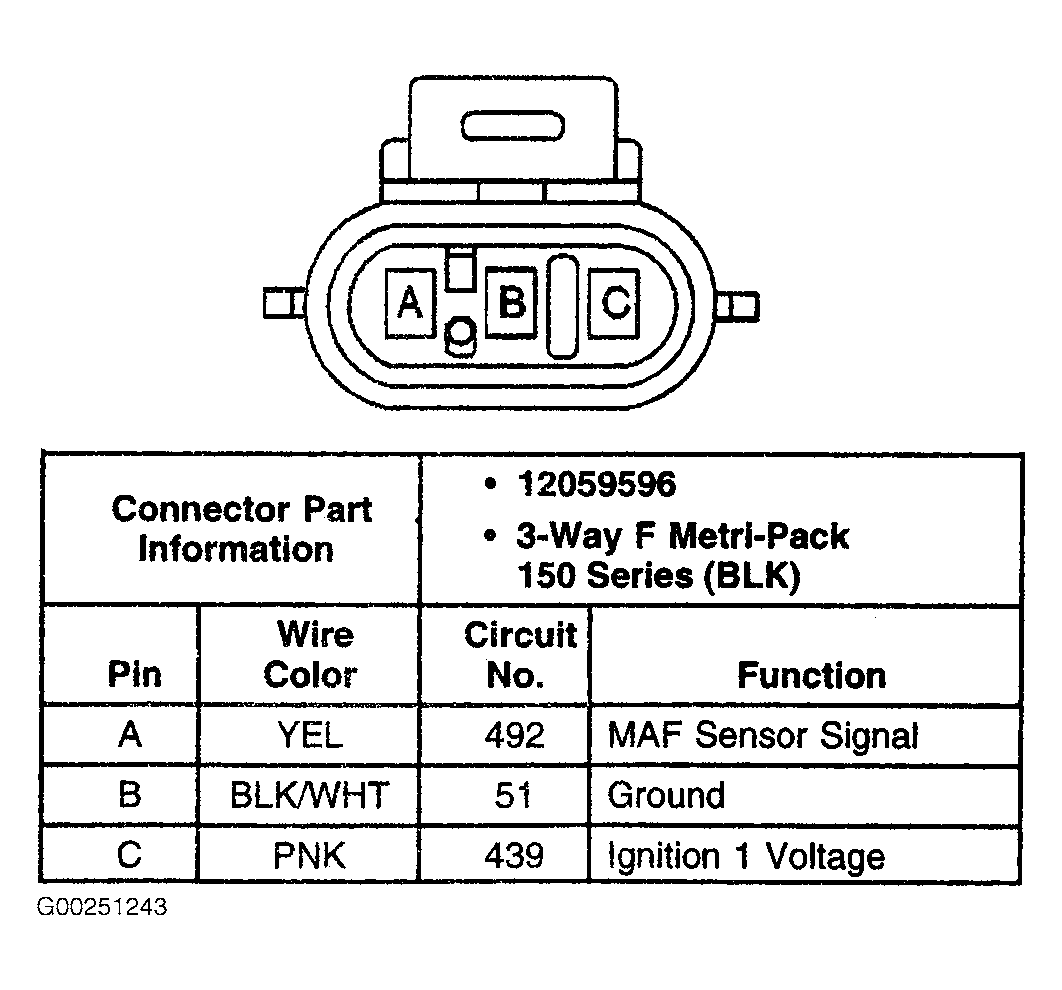

Fig 22: Identifying Mass Airflow Sensor Connector Terminals
G00251243Courtesy of GENERAL MOTORS CORP.

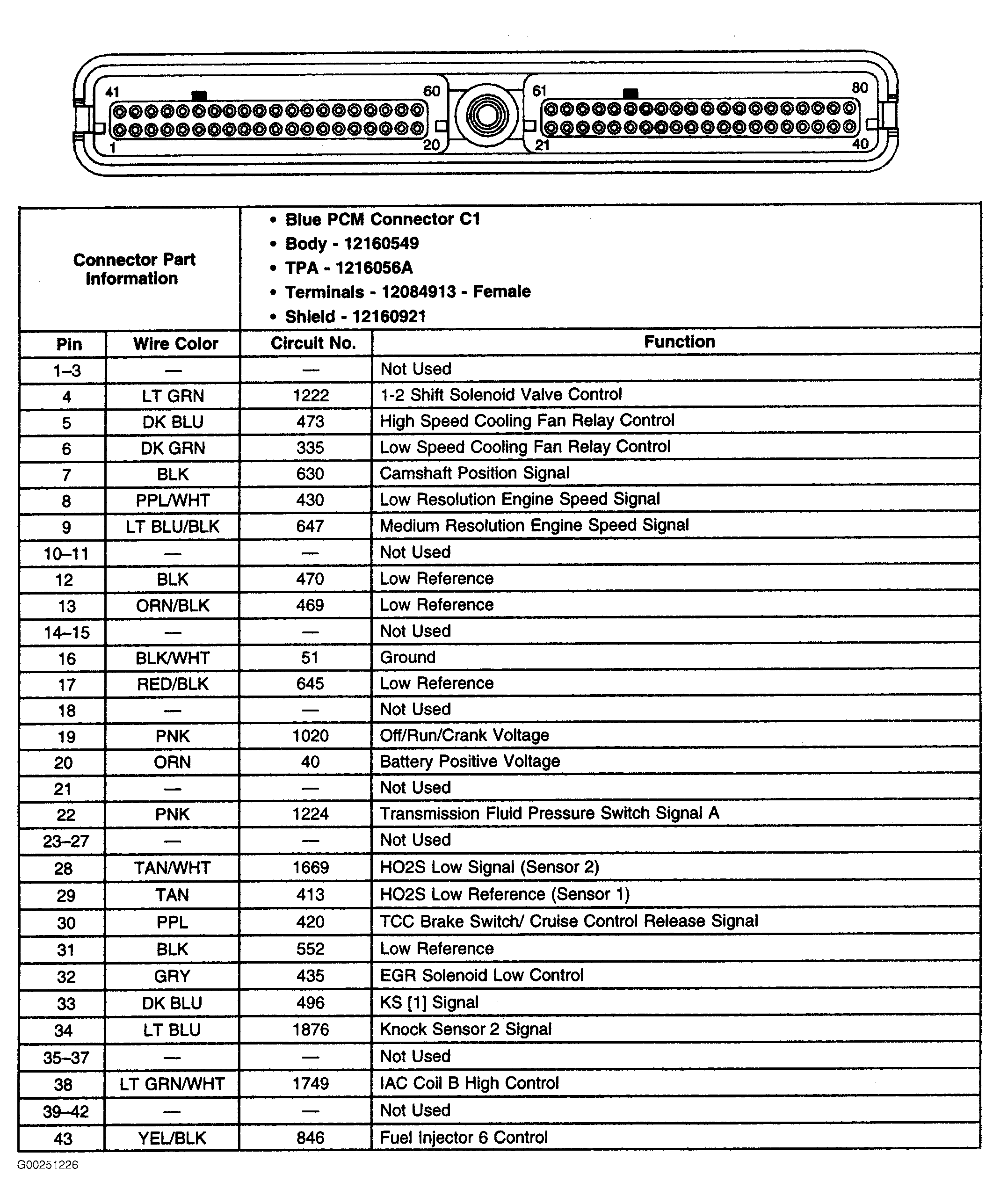

Fig 23: Identifying PCM C1 Connector Terminals (1 Of 2)
G00251226Courtesy of GENERAL MOTORS CORP.

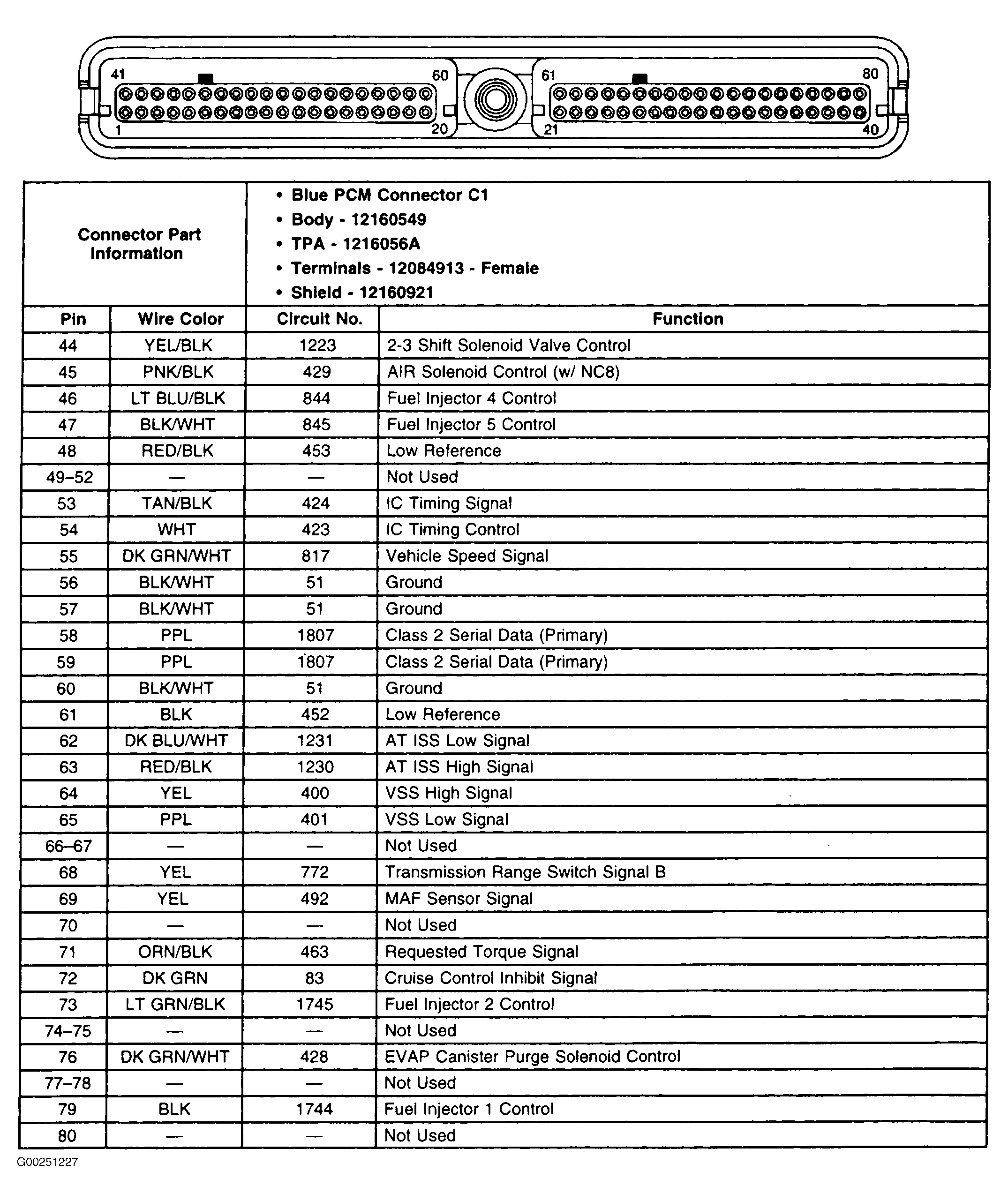

Fig 24: Identifying PCM C1 Connector Terminals (2 Of 2)
G00251227Courtesy of GENERAL MOTORS CORP.

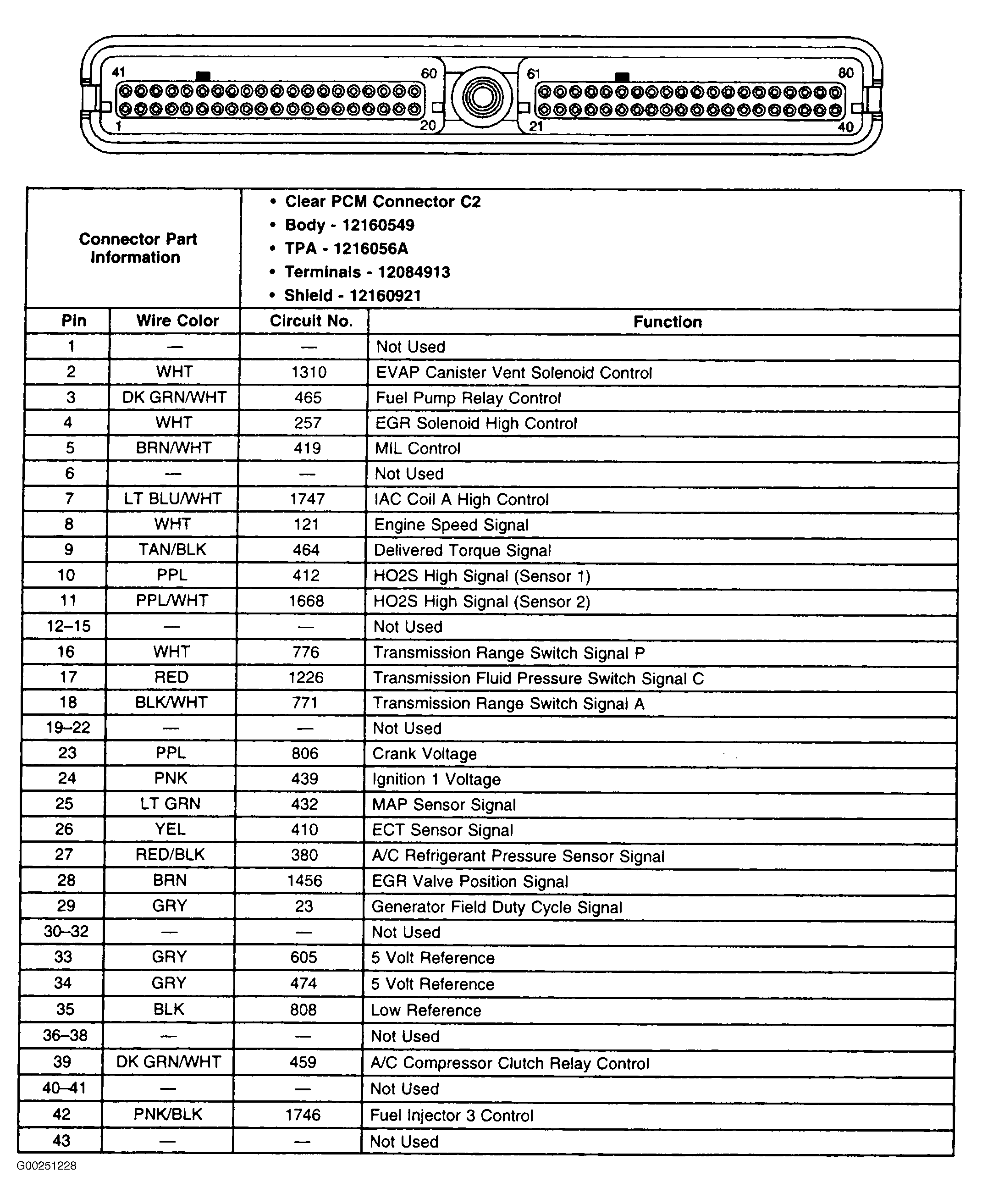

Fig 25: Identifying PCM C2 Connector Terminals (1 Of 2)
G00251228Courtesy of GENERAL MOTORS CORP.

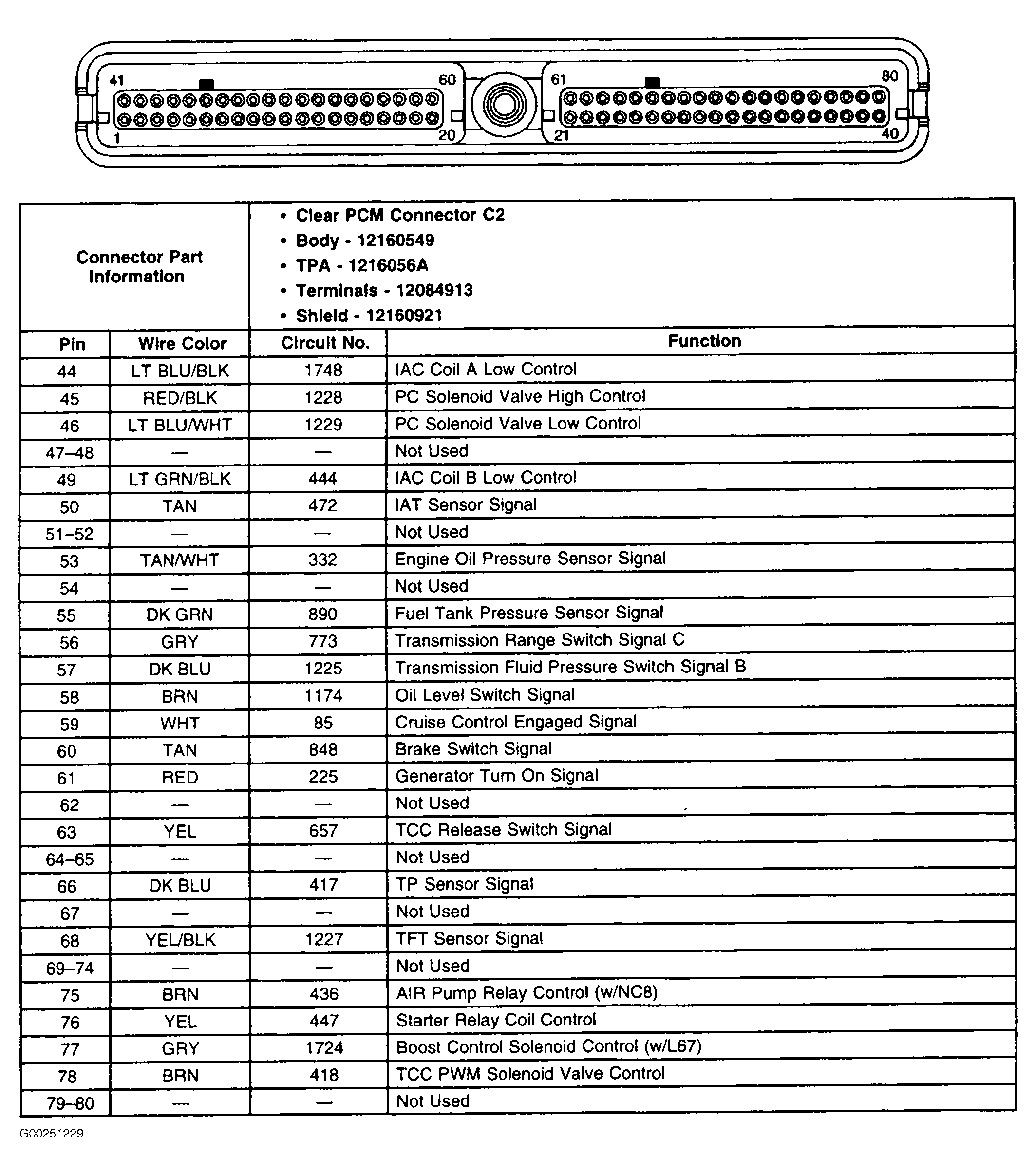

Fig 26: Identifying PCM C2 Connector Terminals (2 Of 2)
G00251229Courtesy of GENERAL MOTORS CORP.

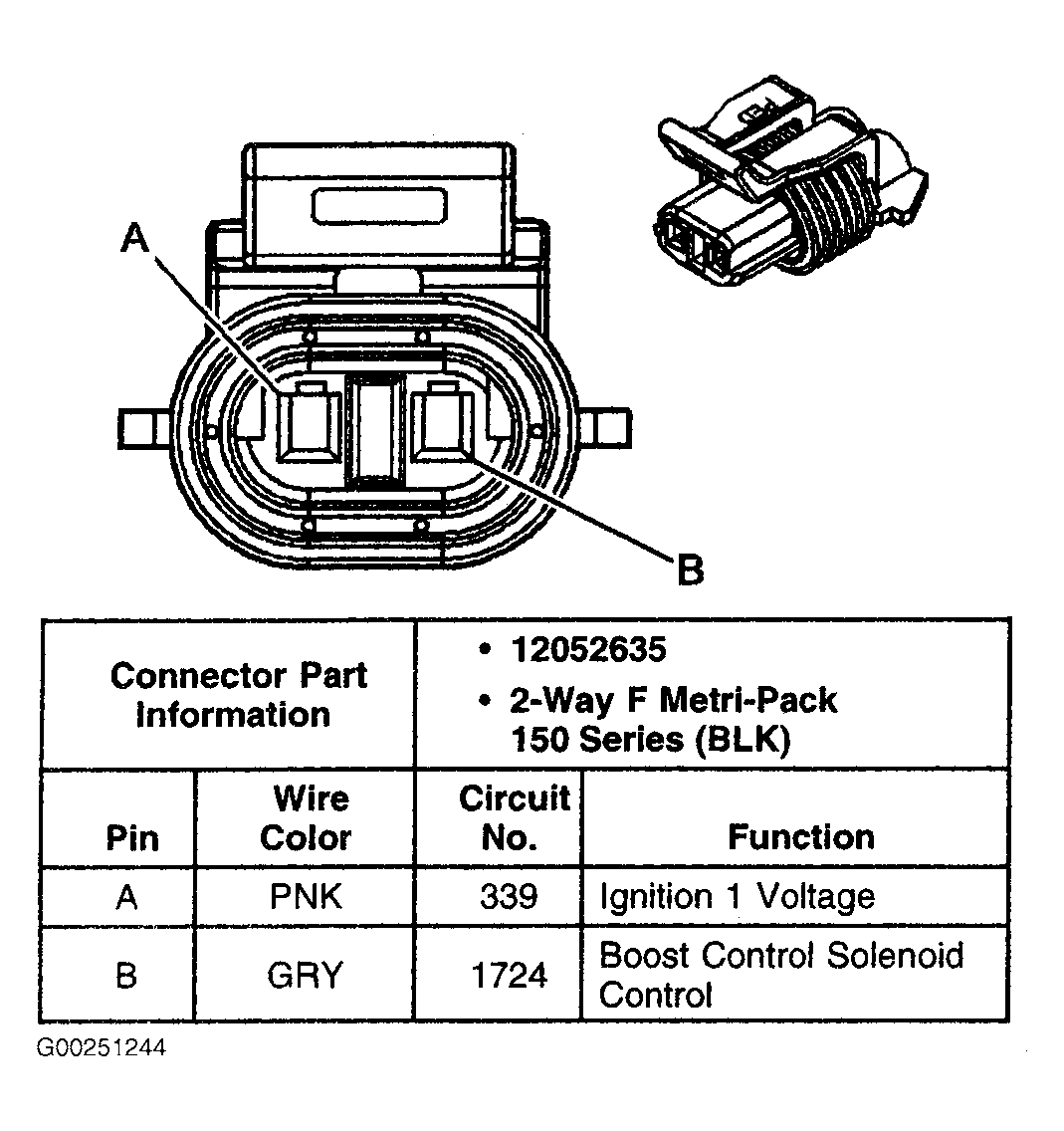

Fig 27: Identifying Supercharger Boost Control Solenoid Connector Terminals
G00251244Courtesy of GENERAL MOTORS CORP.

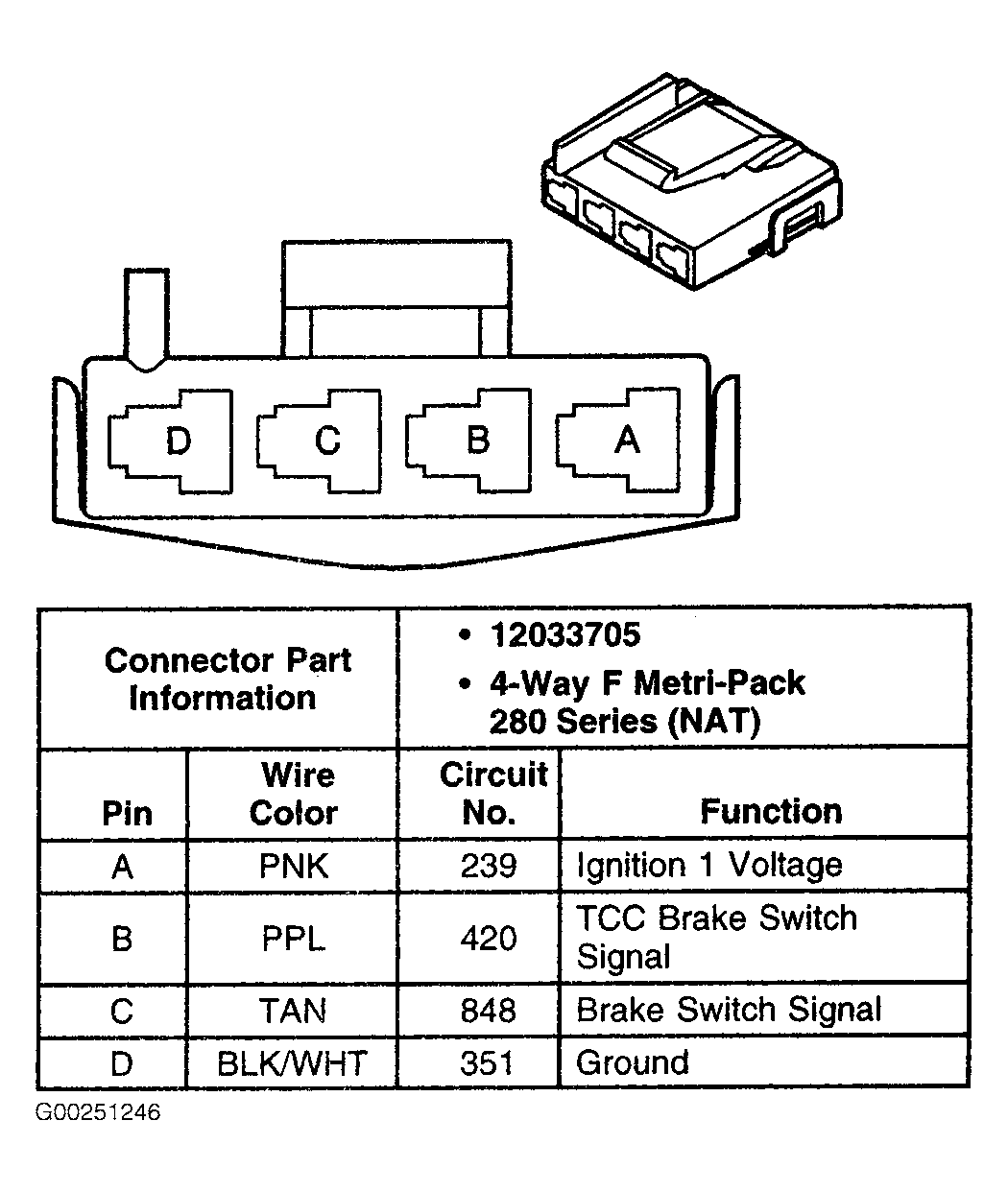

Fig 28: Identifying TCC/Cruise Release Switch Connector Terminals
G00251246Courtesy of GENERAL MOTORS CORP.

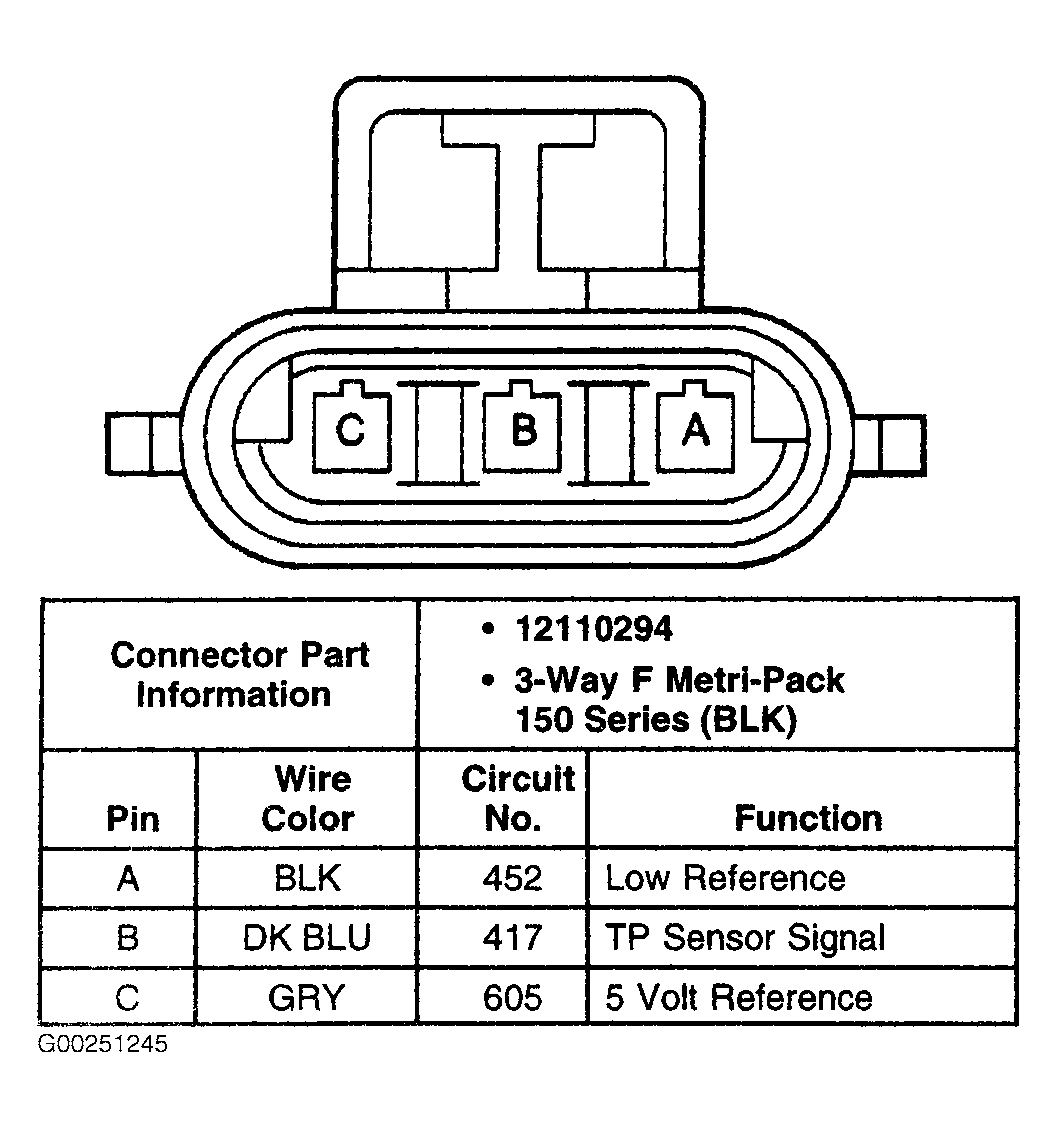

Fig 29: Identifying Throttle Position Sensor Connector Terminals
G00251245Courtesy of GENERAL MOTORS CORP.

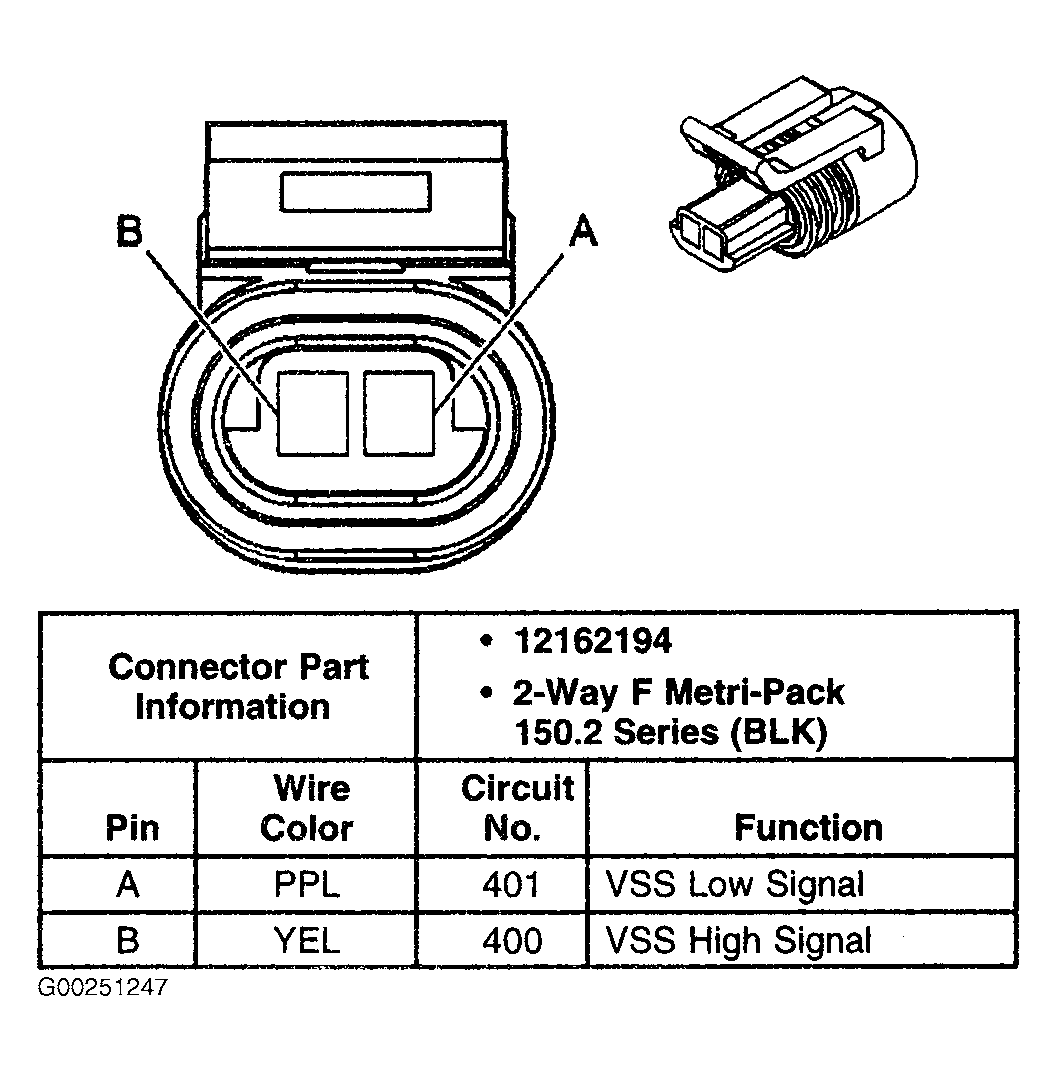

Fig 30: Identifying Vehicle Speed Sensor Connector Terminals
G00251247Courtesy of GENERAL MOTORS CORP.
