Park Avenue

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Pontiac Grand Prix, 2003 Pontiac Bonneville, 2003 Chevrolet Monte Carlo, 2003 Chevrolet Impala, and 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Locating Camshaft Position Sensor

G00251132

Courtesy of GENERAL MOTORS CORP.

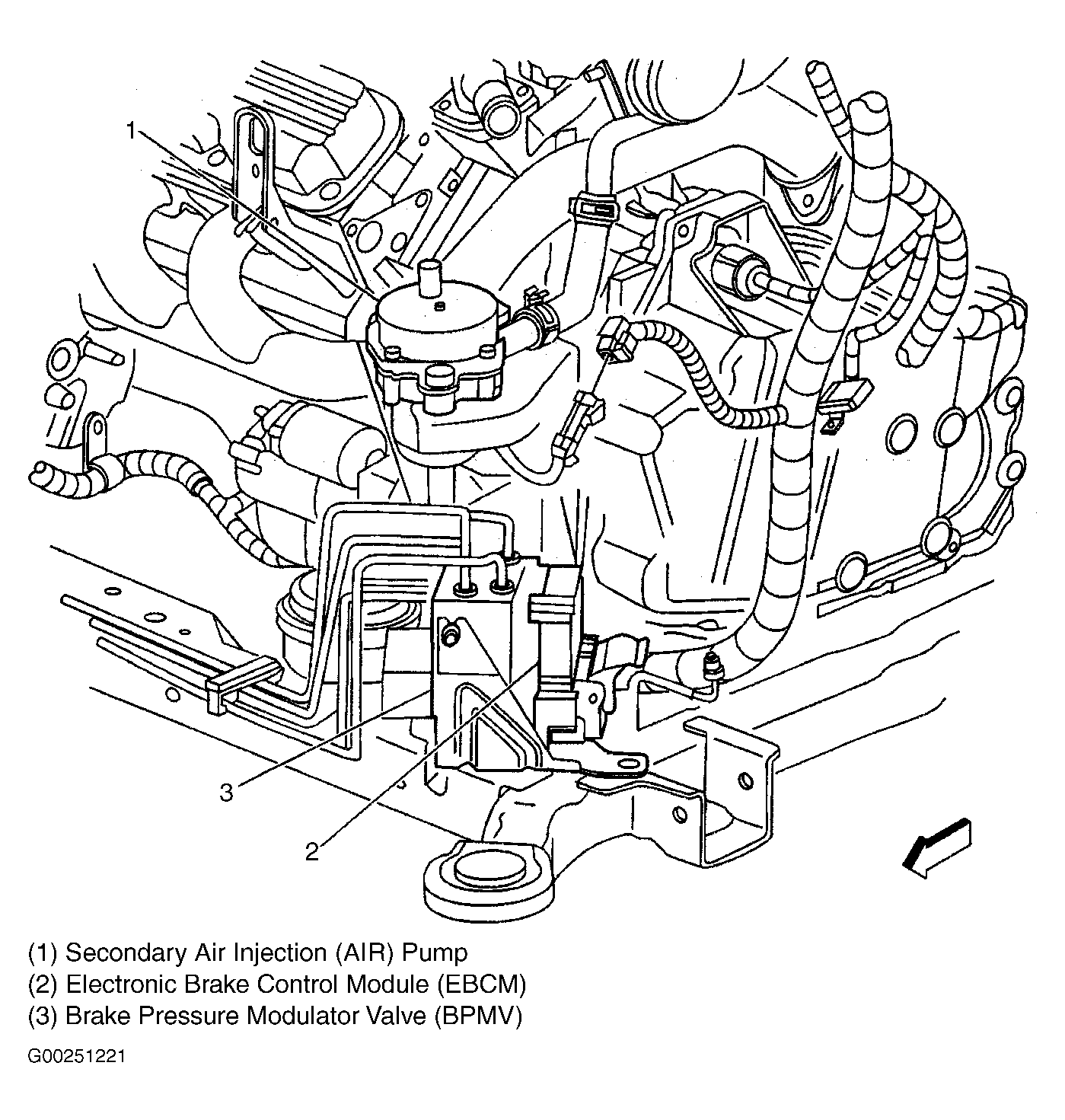

Fig 2: Identifying Electronic Brake Control Module & Brake Pressure Modulator Valve

G00251221

Courtesy of GENERAL MOTORS CORP.

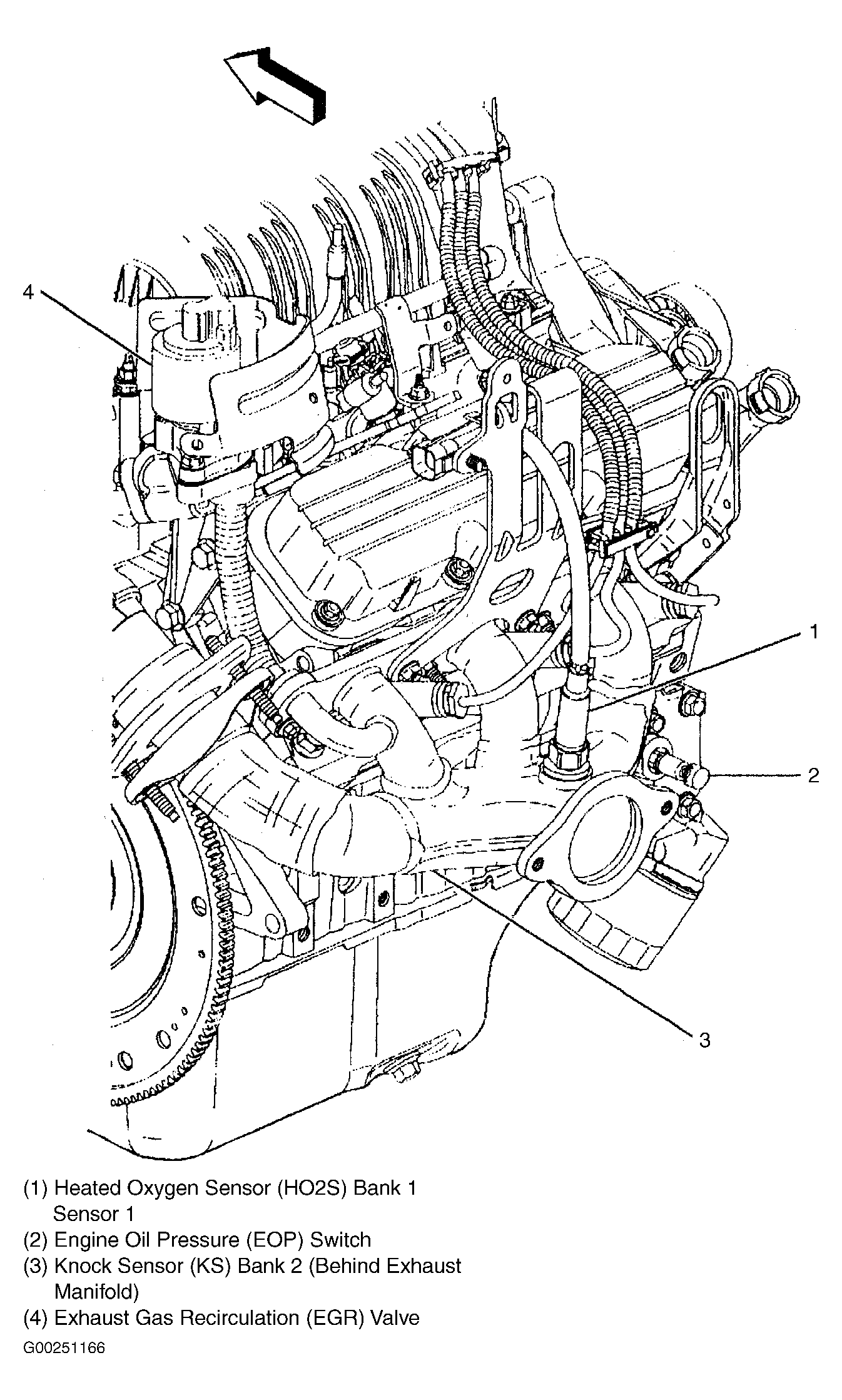

Fig 3: Locating Engine Components (Rear View W/O Supercharger)

G00251166

Courtesy of GENERAL MOTORS CORP.

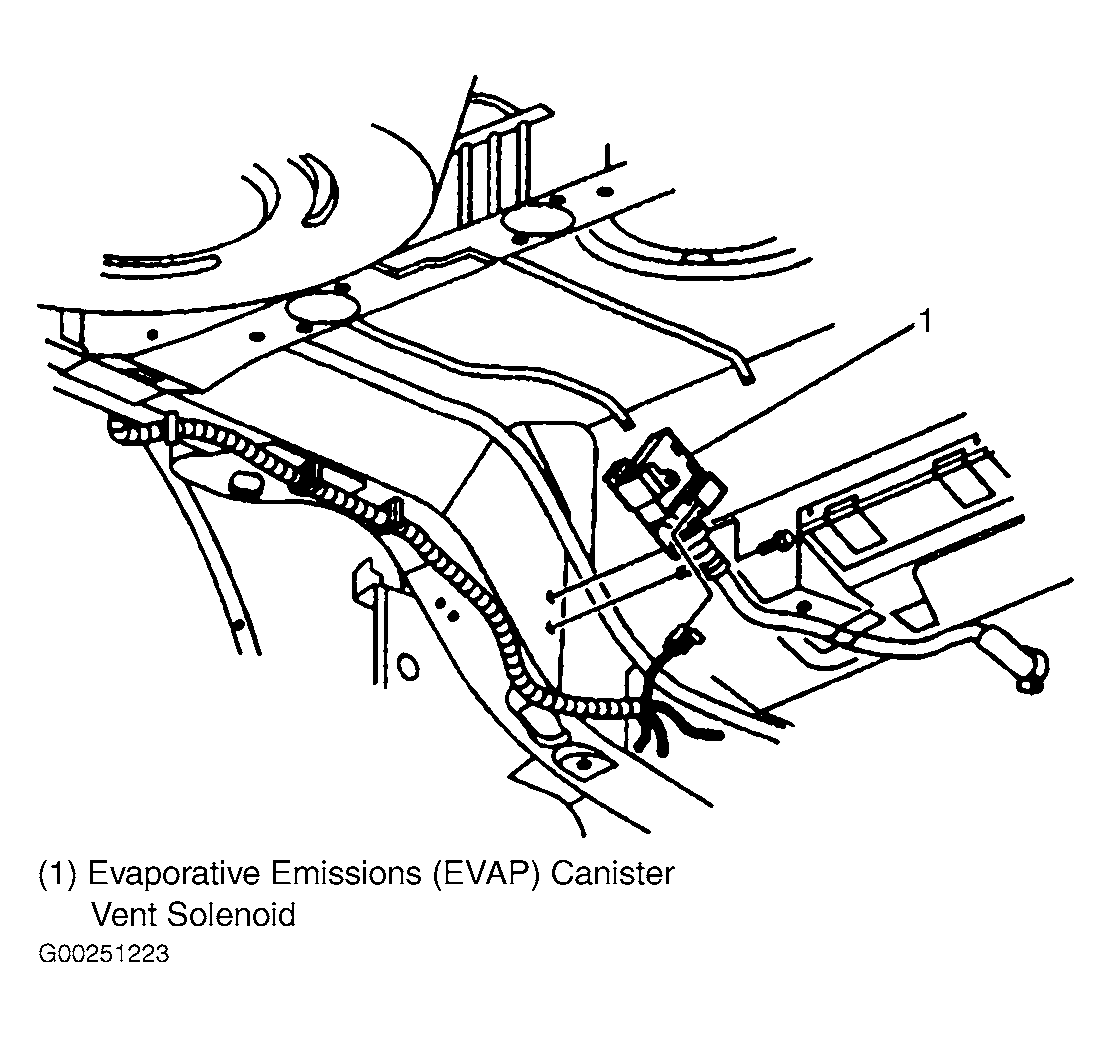

Fig 4: Locating Evaporative Emissions Canister Vent

G00251223

Courtesy of GENERAL MOTORS CORP.

Fig 5: Locating Fog/Headlight Connectors

G00250709

Courtesy of GENERAL MOTORS CORP.

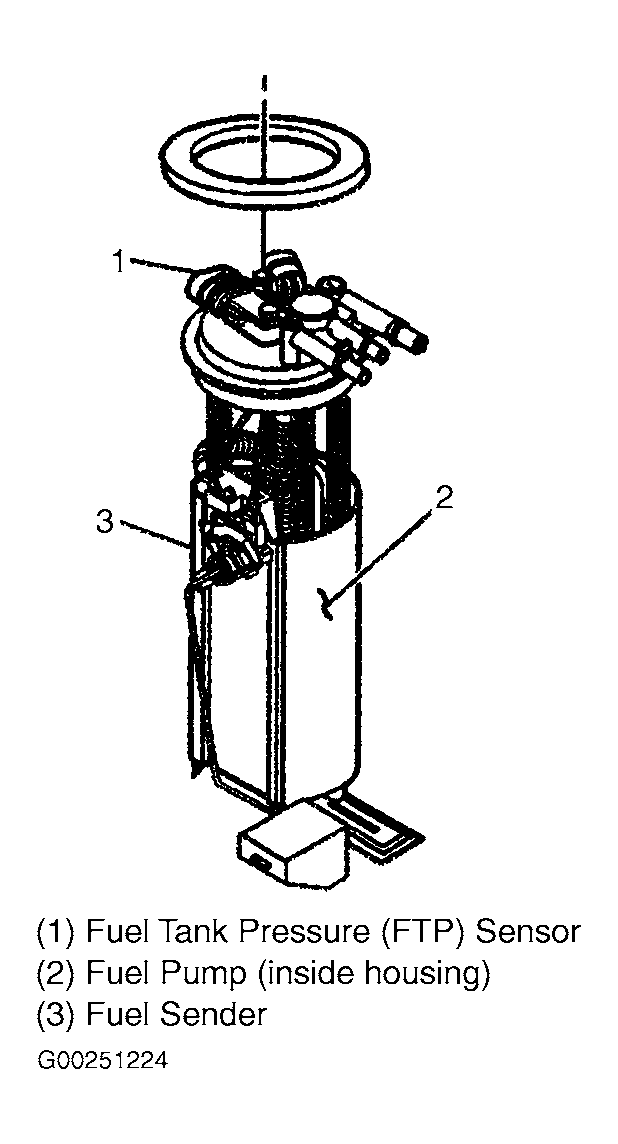

Fig 6: Locating Fuel Pump & Sender Assembly

G00251224

Courtesy of GENERAL MOTORS CORP.

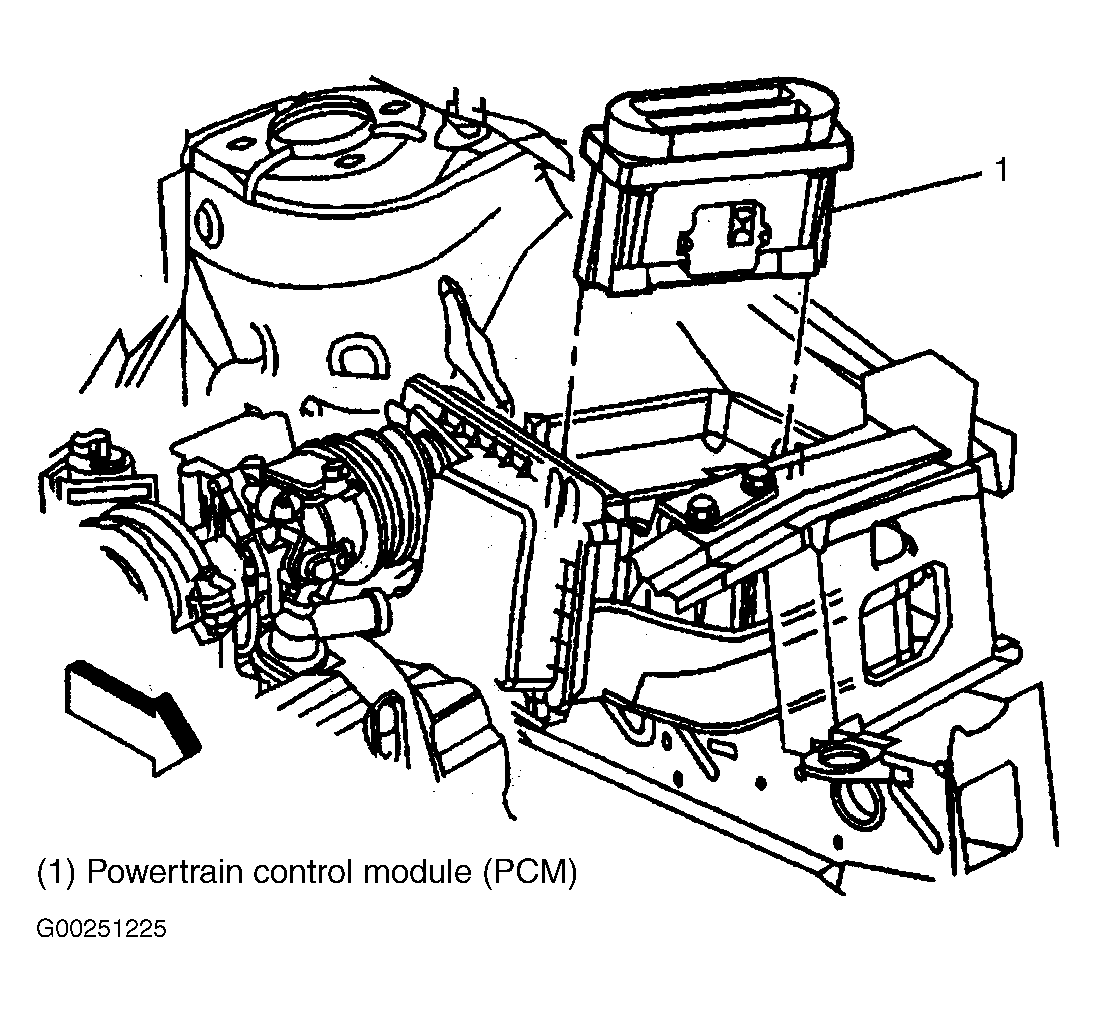

Fig 7: Locating PCM

G00251225

Courtesy of GENERAL MOTORS CORP.

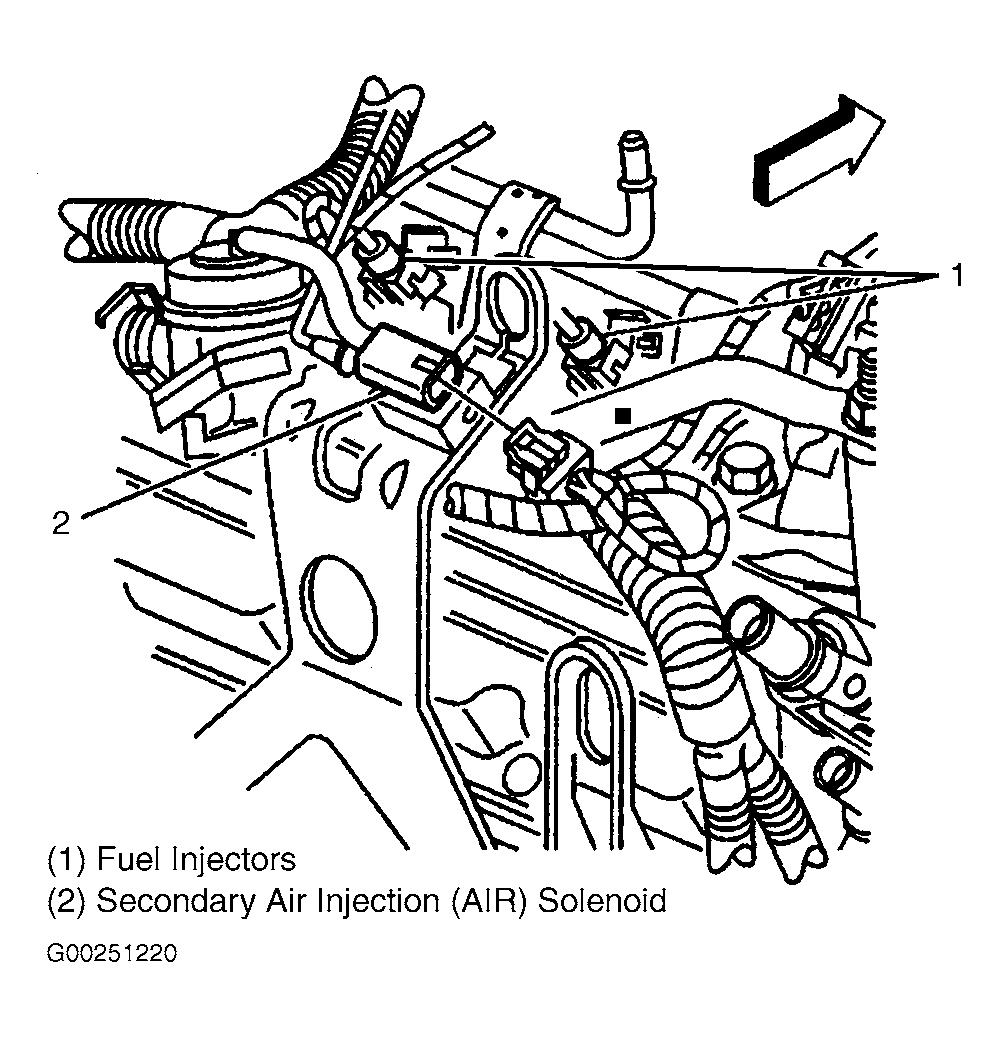

Fig 8: Locating Secondary Air Injection Solenoid & Fuel Injectors

G00251220

Courtesy of GENERAL MOTORS CORP.

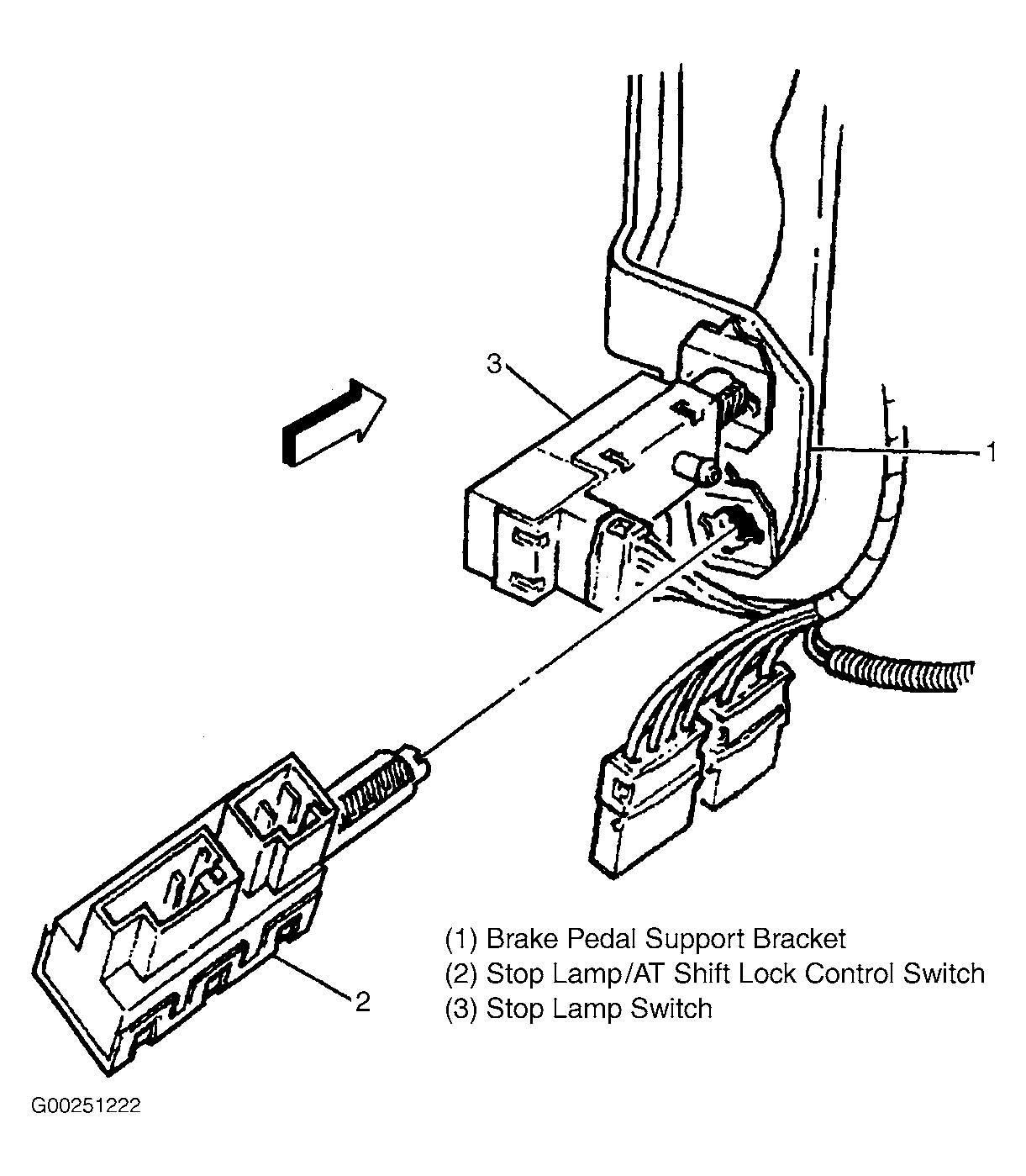

Fig 9: Locating Stop Light/AT Shift Lock Control Switch & Stop Light Switch

G00251222

Courtesy of GENERAL MOTORS CORP.
