Fuel Tank Pressure Sensor
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Pontiac Grand Prix, 2003 Pontiac Bonneville, 2003 Chevrolet Monte Carlo, 2003 Chevrolet Impala, and 2003 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

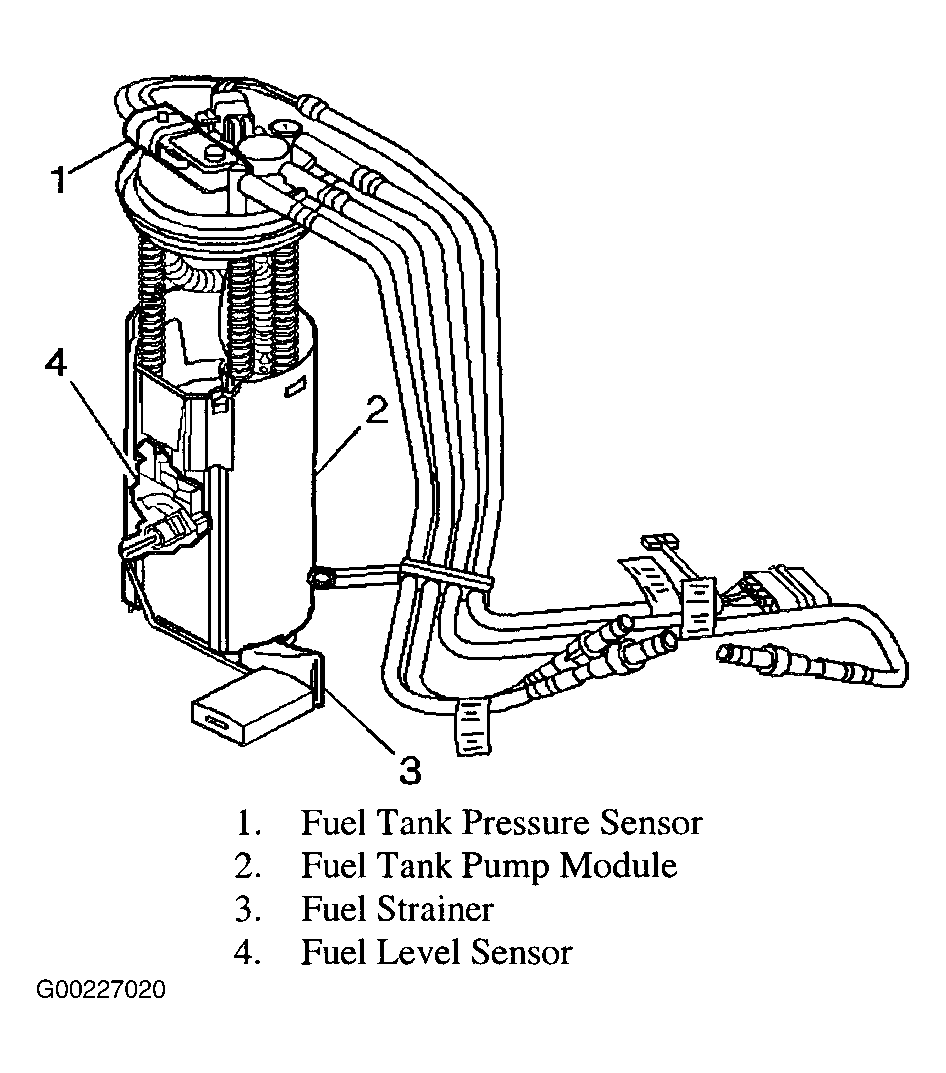

The Fuel Tank Pressure (FTP) sensor is located on top of the fuel sender assembly. See Figure. FTP sensor measures the difference between the pressure or vacuum in the fuel tank and outside air pressure. The Powertrain Control Module (PCM) provides a 5-volt reference and a ground to the FTP sensor. The FTP sensor provides a signal voltage back to the PCM that can vary between 0.1-4.9 volts. As FTP increases, FTP sensor voltage decreases, high pressure = low voltage. As FTP decreases, FTP voltage increases, low pressure or vacuum = high voltage.
