Steering Wheel and Column Component Views
WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

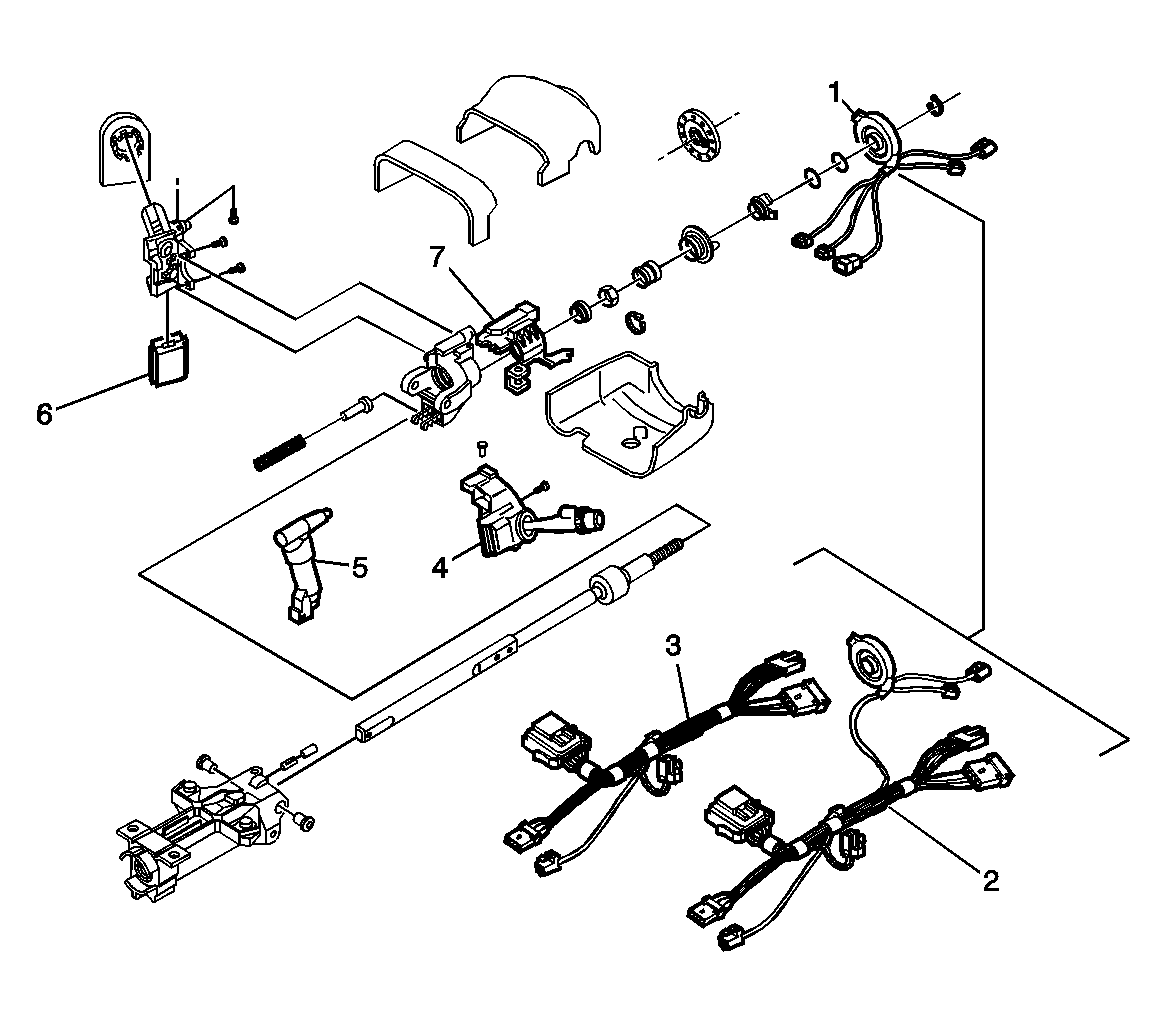

| Callout |
Component Name |
| 1 |
Inflatable Restraint Steering Wheel Module Coil |
| 2 |
Coil Wire Harness Assembly (Export) |
| 3 |
Coil Wire Harness Assembly |
| 4 |
Multifunction Switch |
| 5 |
Theft Deterrent Control Module Electric Park Lock |
| 6 |
Ignition and Key Alarm Switch Assembly |
| 7 |
Hazard Signal Switch Housing |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Ignition Switch |
| 2 |
Passlock Sensor |
| 3 |
Ignition Key Alarm Switch |
| 4 |
Ignition Lock Cylinder Control Actuator |
| 5 |
Steering Column |
