Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right (rear) camshafts. Camshaft Cover Replacement - Right .
  2. Remove the camshaft followers from the cylinder head. Keep the followers in the order they were removed.
  3. Clean and inspect the valve rocker arms. Refer to VALVE ROCKER ARMS CLEANING AND INSPECTION in Engine Mechanical-3.5L Unit Repair.
  4. Store the camshaft and followers in a clean, secure location.

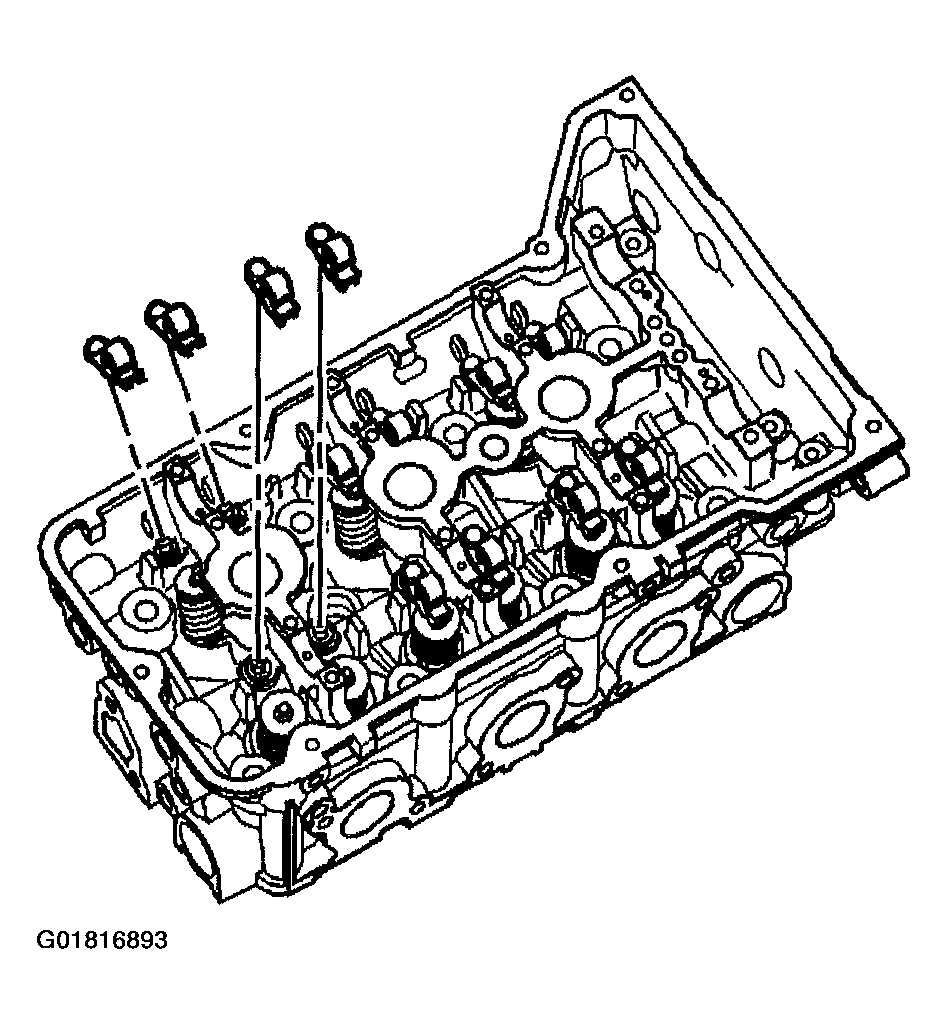

    Fig 1: Removing Camshaft Followers
    G01816893Courtesy of GENERAL MOTORS CORP.
