Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fill the stationary hydraulic lash adjuster (SHLA) with clean engine oil and lubricate the all outer surfaces. Take precautions to prevent scratching the head area (1) of the adjuster.

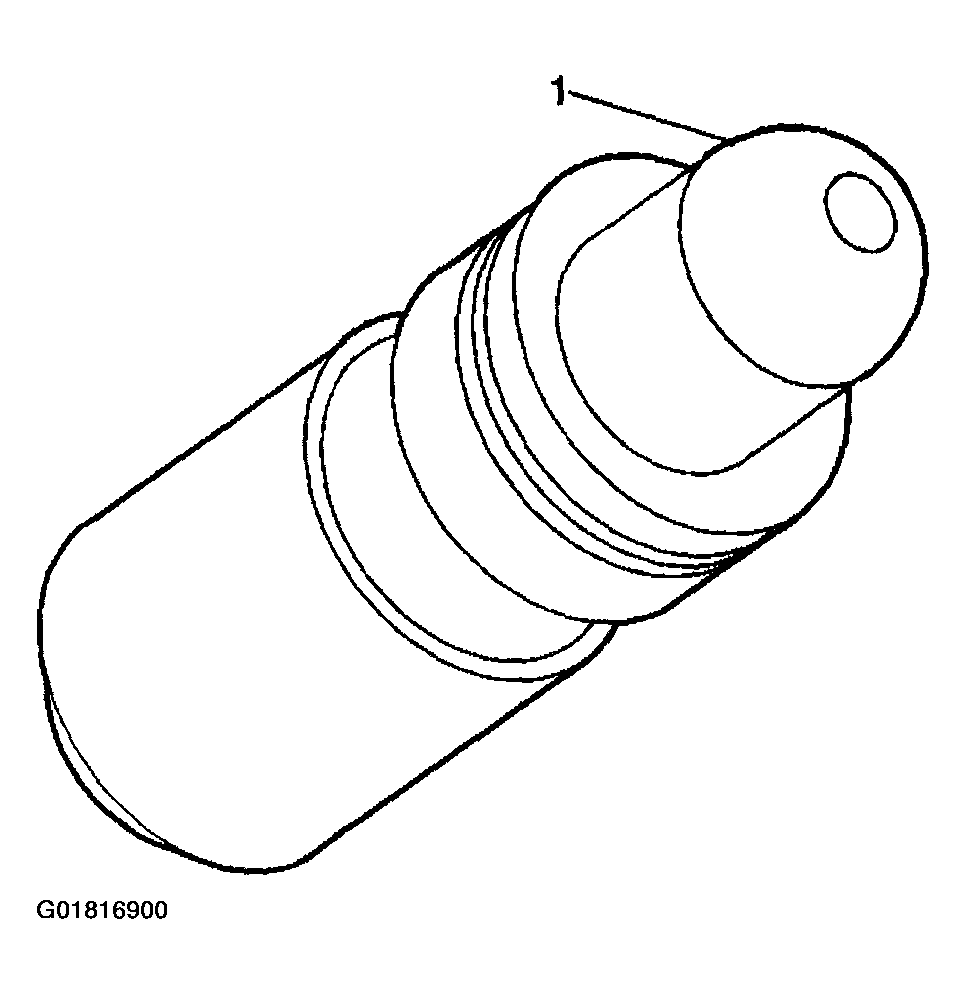

    Fig 1: Identifying Stationary Hydraulic Lash Adjuster Head
    G01816900Courtesy of GENERAL MOTORS CORP.
  2. Lubricate the lash adjuster bore in the cylinder head with clean engine oil.
  3. Install the lash adjuster in the cylinder head.

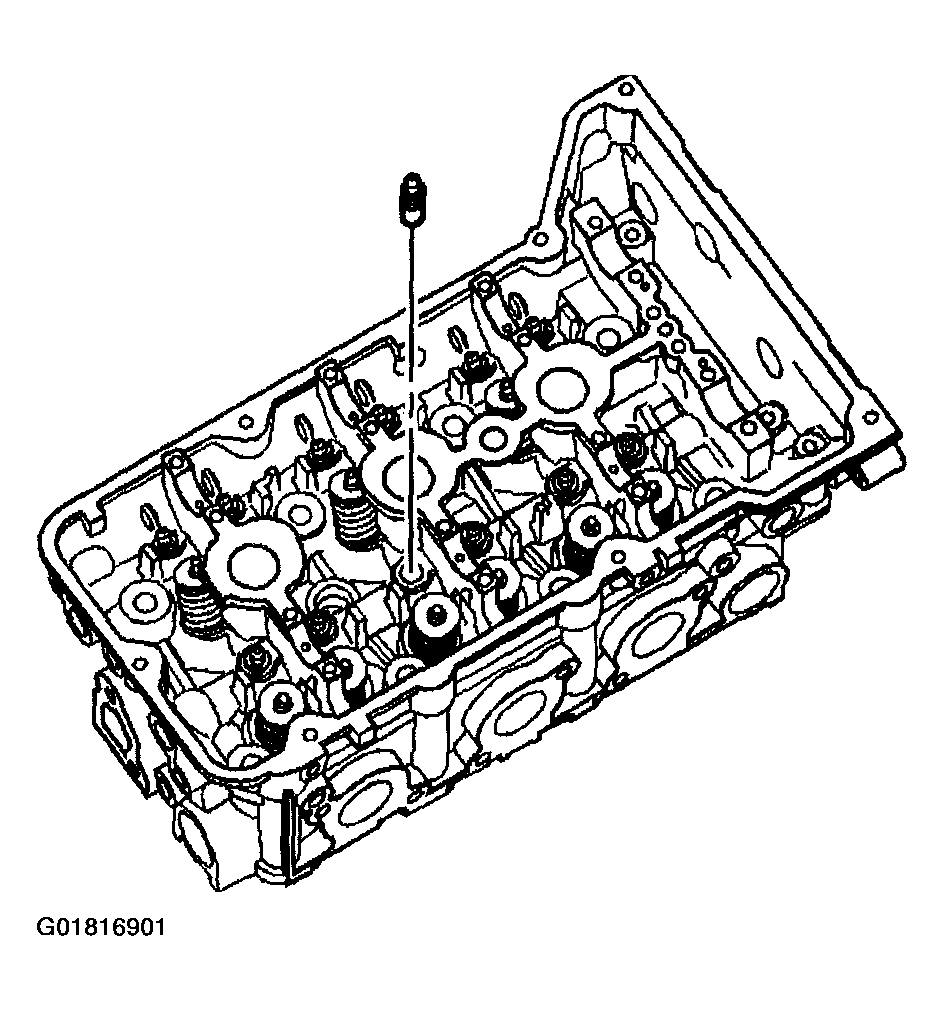

    Fig 2: Install The Lash Adjuster
    G01816901Courtesy of GENERAL MOTORS CORP.
  4. Install the right (rear) valve rocker arm(s). Refer to Valve Rocker Arm Replacement- Right .
