Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil filter cap and drain the engine oil. Refer to Engine Oil and Oil Filter Replacement .
  2. Disconnect the electrical connector from engine oil level switch.
  3. Remove the transaxle brace.

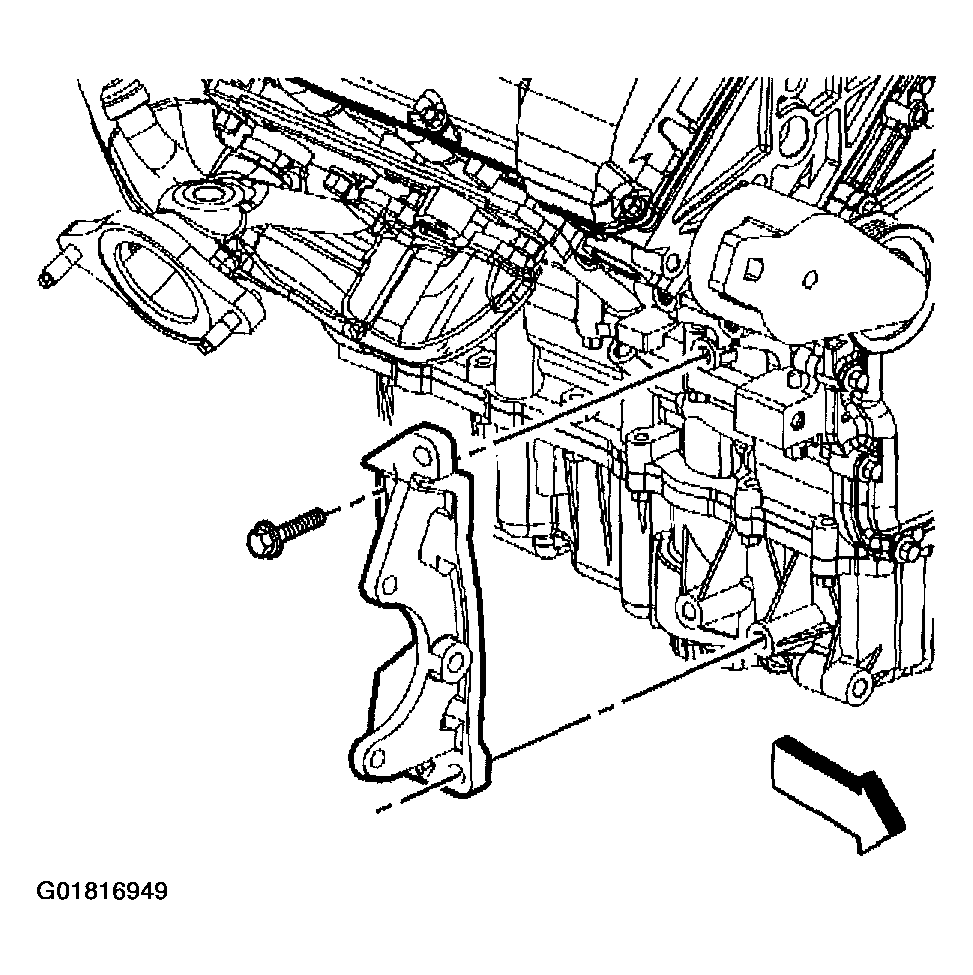

    Fig 1: Removing Transaxle Brace
    G01816949Courtesy of GENERAL MOTORS CORP.
  4. Remove the oil pan retaining bolts.
  5. Remove the oil pan (2) from the lower crankcase.

    Important:  DO NOT damage the sealing surface.

  6. Remove the oil pan gasket. Scrape any remaining gasket material from the pan rail surfaces.

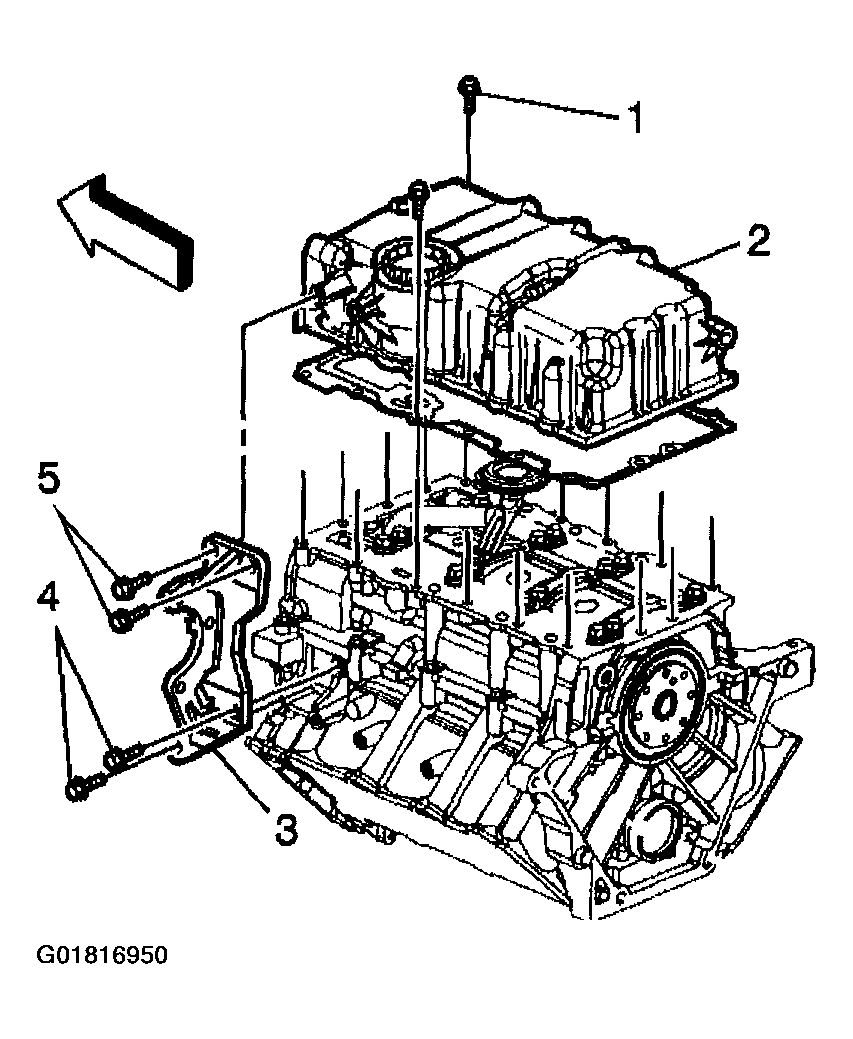

    Fig 2: Removing Oil Pan
    G01816950Courtesy of GENERAL MOTORS CORP.
  7. Remove the engine oil level switch from the oil pan.
  8. Clean and inspect the oil pan. Refer to OIL PAN CLEANING AND INSPECTION in Engine Mechanical-3.5L Unit Repair.

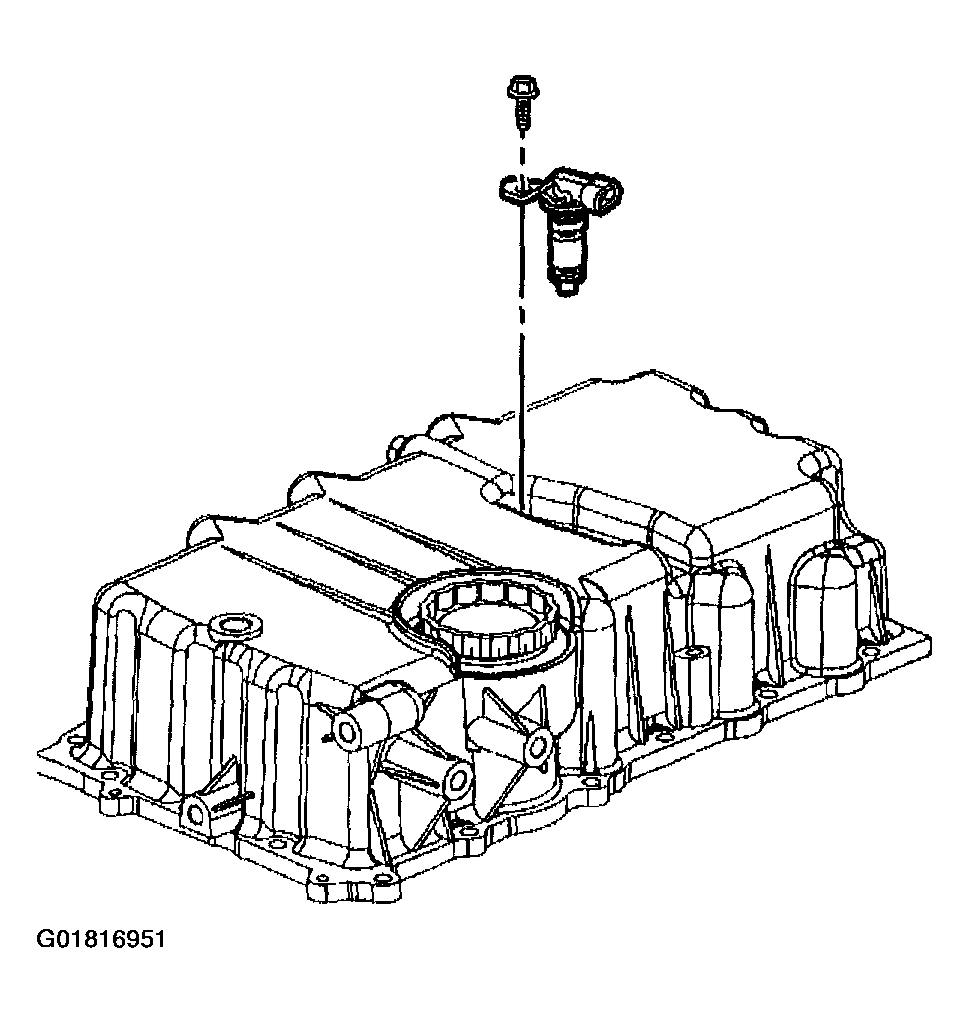

    Fig 3: Removing Engine Oil Level Switch From Oil Pan
    G01816951Courtesy of GENERAL MOTORS CORP.
