Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the oil level indicator tube.
  2. Install a NEW oil level indicator tube seal.
  3. Install the oil level indicator tube into the engine block.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the bolt to the oil level indicator tube bracket.

    Tighten

    Tighten the oil level indicator tube bracket bolt to 9 N.m (80 lb in).

  5. Install the oil level indicator.

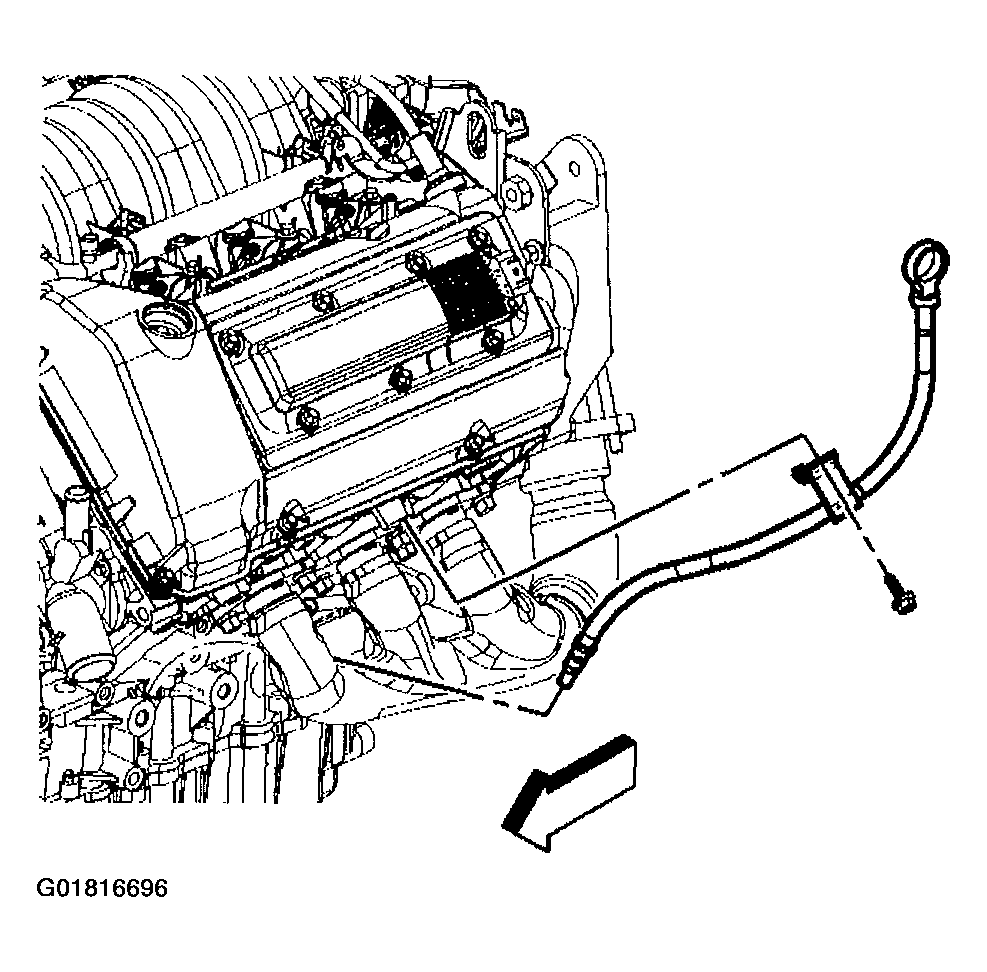

    Fig 1: Installing Oil Level Indicator Tube
    G01816696Courtesy of GENERAL MOTORS CORP.
