Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 2 fuel injector sight shield nuts at the front of the fuel injector sight shield.
  2. Lift the fuel injector sight shield up at the front and slide out of the engine bracket.

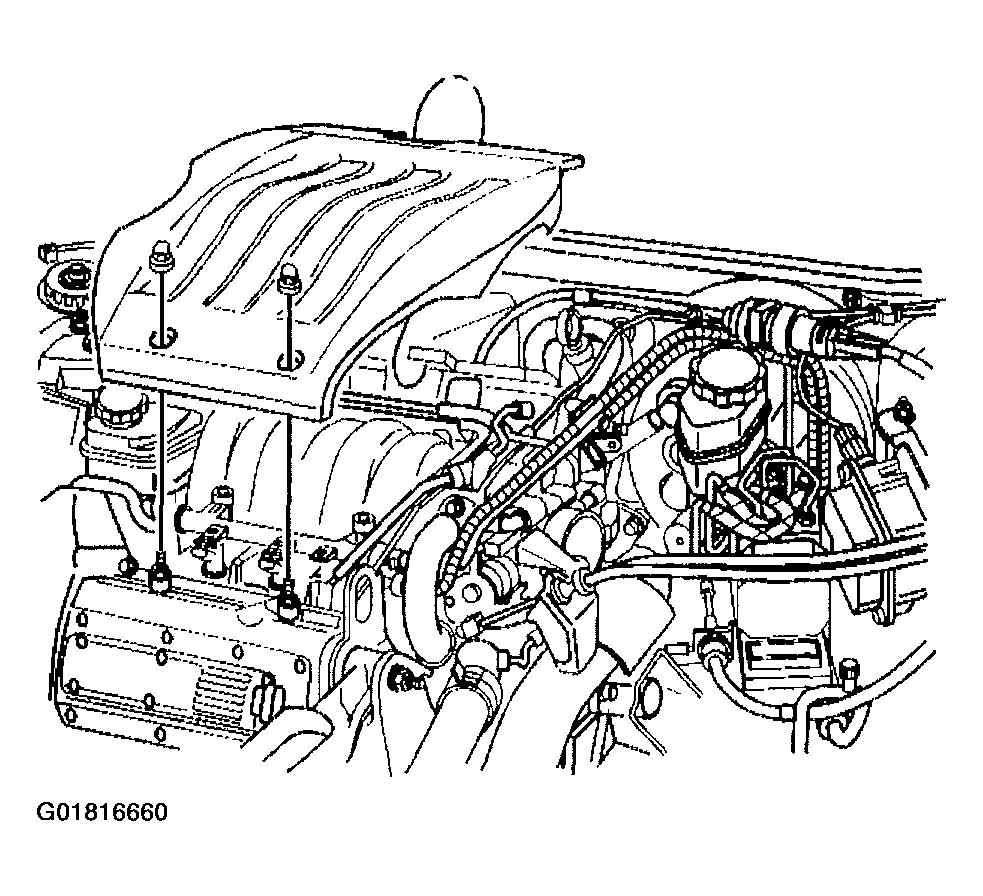

    Fig 1: Removing Fuel Injector Sight Shield
    G01816660Courtesy of GENERAL MOTORS CORP.
