Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert the tab of the fuel injector sight shield under the engine bracket.
  2. Lower the fuel injector sight shield.
  3. Align the holes in the fuel injector sight shield with the studs.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the 2 fuel injector sight shield nuts onto the studs.

    Tighten

    Tighten the fuel injector sight shield nuts to 3 N.m (27 lb in).

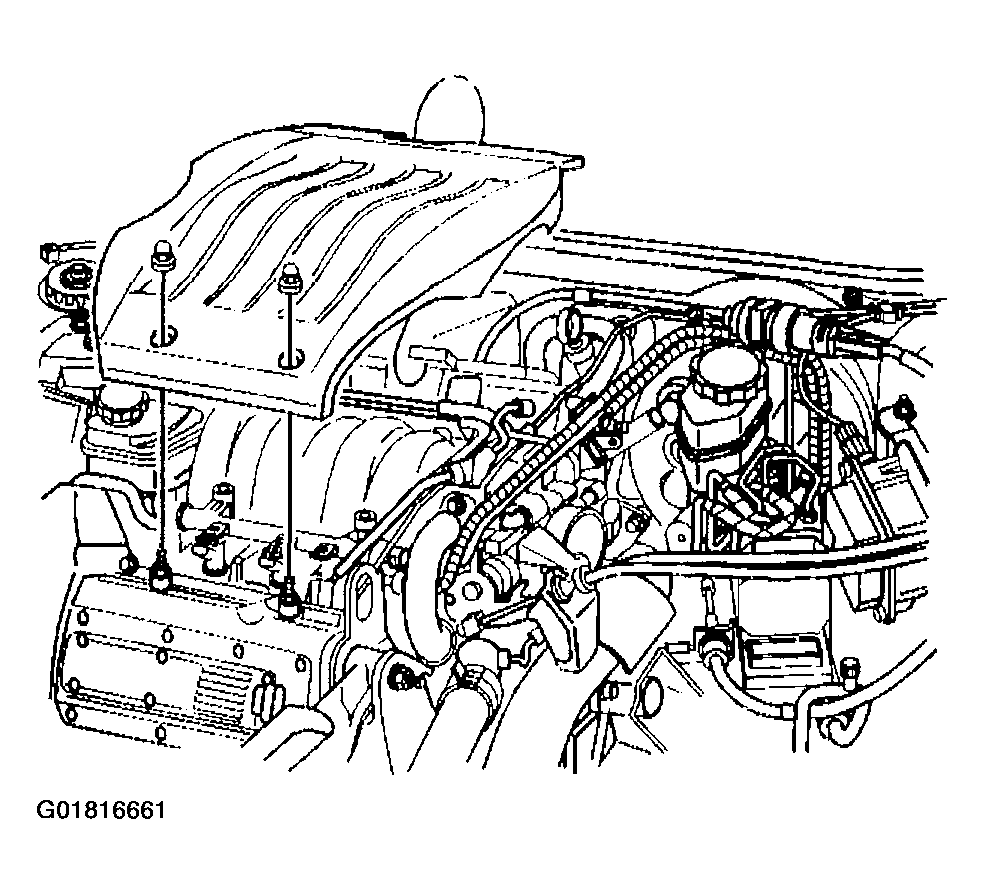

    Fig 1: Installing Fuel Injector Sight Shield
    G01816661Courtesy of GENERAL MOTORS CORP.
