Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the J 28467-B.
  2. Remove the J 42478.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the 2 rearward strut bolts to the right and left strut towers.

    Tighten

    Tighten the strut tower bolts to 45 N.m (33 lb ft).

  4. Install the air inlet grill. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.

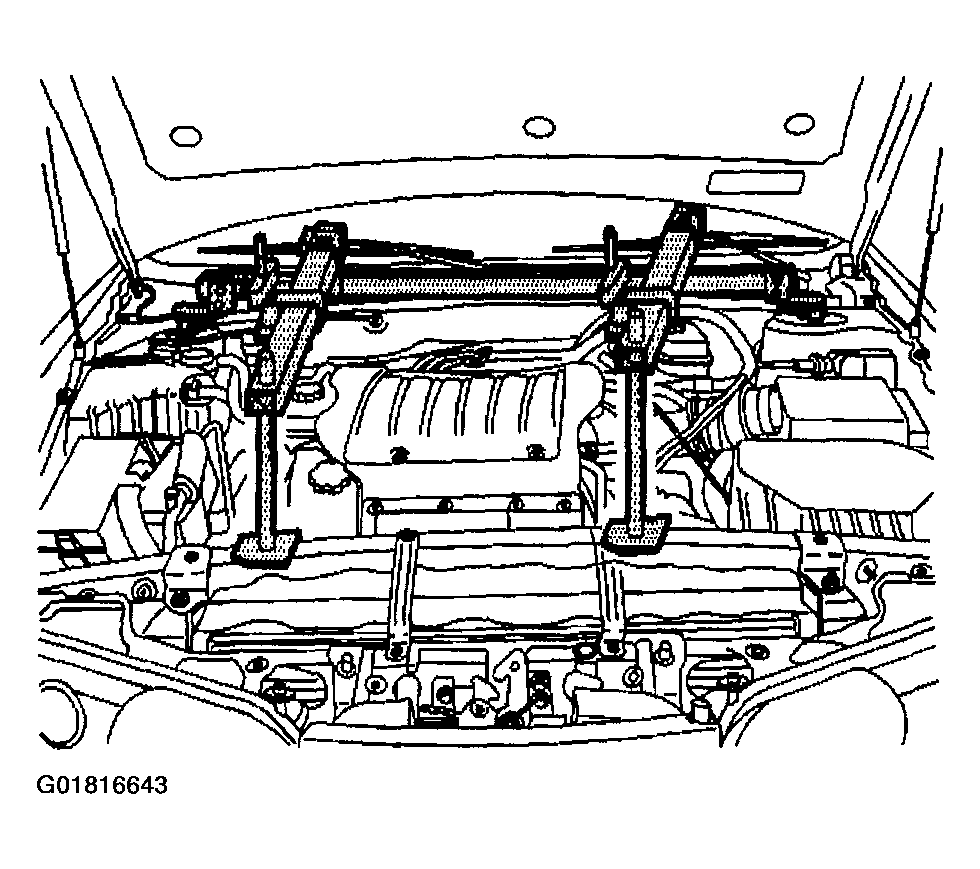

    Fig 1: Removing Universal Engine Support Fixture & Adapters
    G01816643Courtesy of GENERAL MOTORS CORP.
