Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Disconnect the electrical connector from the engine oil pressure switch.
  3. Remove the engine oil pressure switch from the engine block.

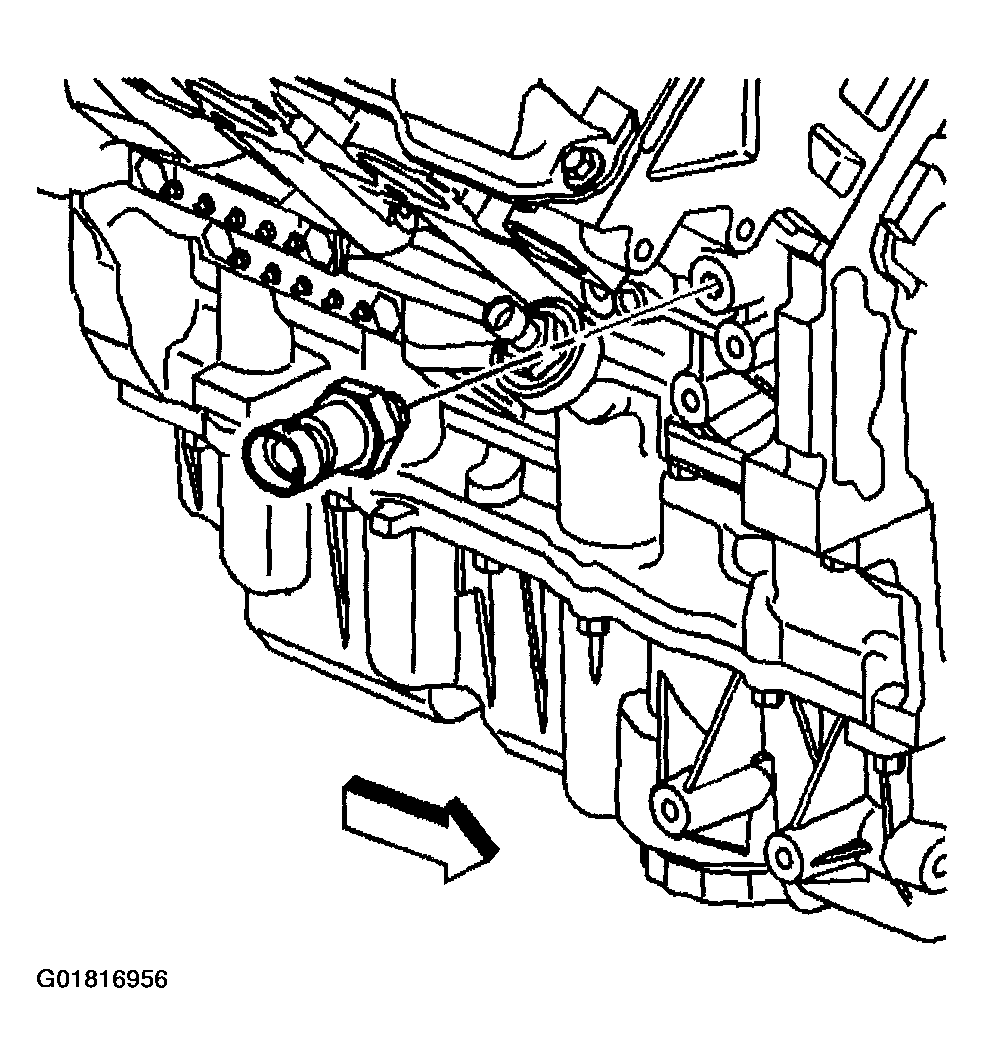

    Fig 1: Removing Engine Oil Pressure Switch
    G01816956Courtesy of GENERAL MOTORS CORP.
