Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine oil level switch into the oil pan.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.

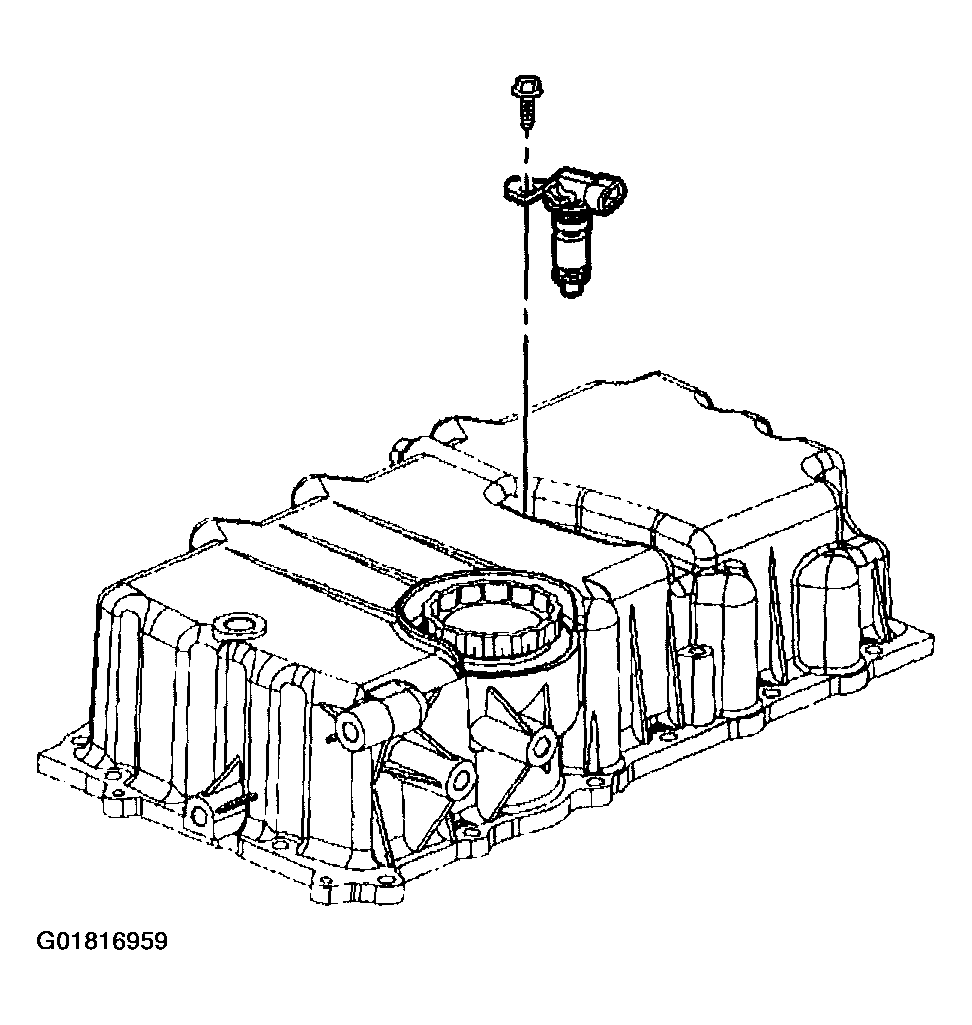

    2. Fig 1: Installing Engine Oil Level Switch
    G01816959Courtesy of GENERAL MOTORS CORP.
  2. Install the engine oil level switch bolt.

    Tighten

    Tighten the engine oil level switch bolt to 9 N.m (80 lb in).

  3. Connect the electrical connector to engine oil level switch.
  4. Fill the engine oil. Refer to Engine Oil and Oil Filter Replacement .
  5. Inspect for oil leaks after engine start up.
