Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the right engine mount (3) to the body rail.
  2. Install the right engine mount attaching bolt (4) and nut (1) to the frame rail.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the 2 nuts (2) securing the right engine mount to the body rail.

    Tighten

    Tighten the right engine mount to body rail nuts (1, 2) to 70 N.m (52 lb ft).

  4. Raise the engine into position.

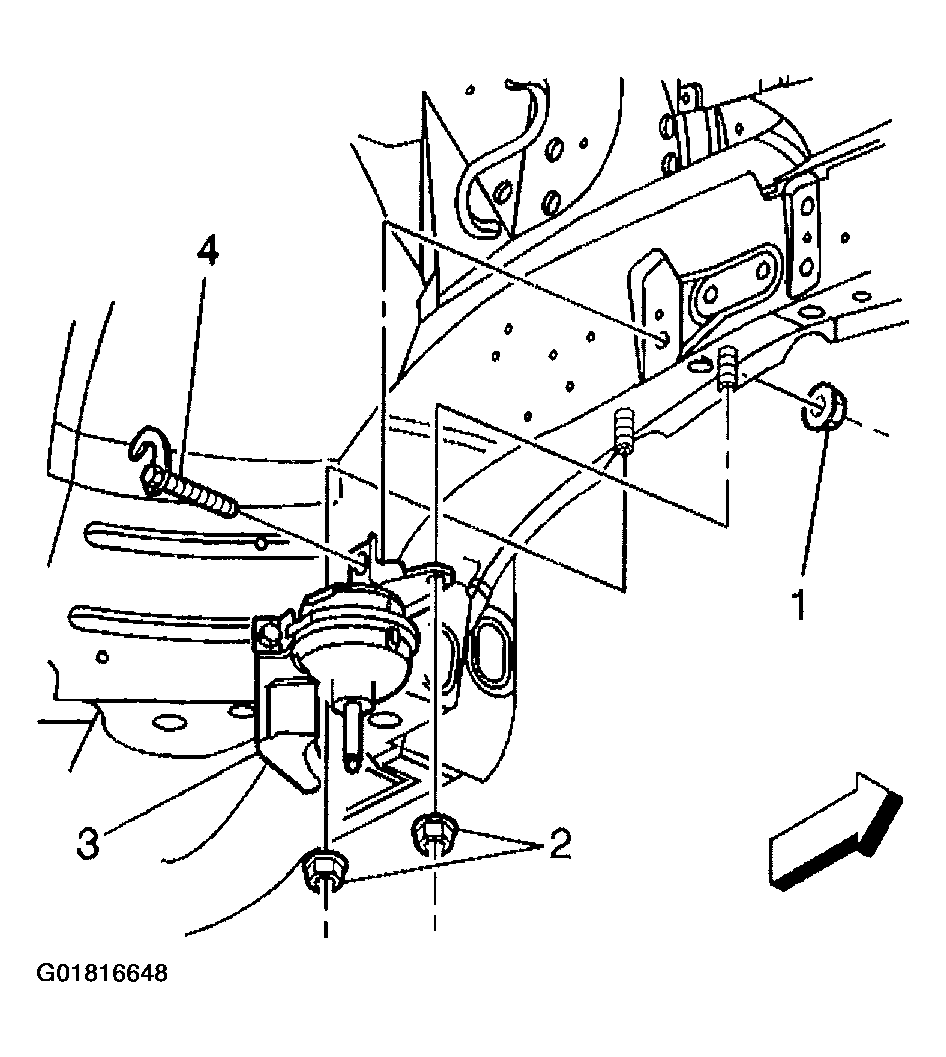

    Fig 1: Installing Right Engine Mount
    G01816648Courtesy of GENERAL MOTORS CORP.
  5. Install the nut securing the right engine mount to the right engine mount bracket.

    Tighten

    Tighten the right engine mount nut to 80 N.m (59 lb ft).

  6. Remove the engine support jack.
  7. Install the right front wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  8. Lower the vehicle.

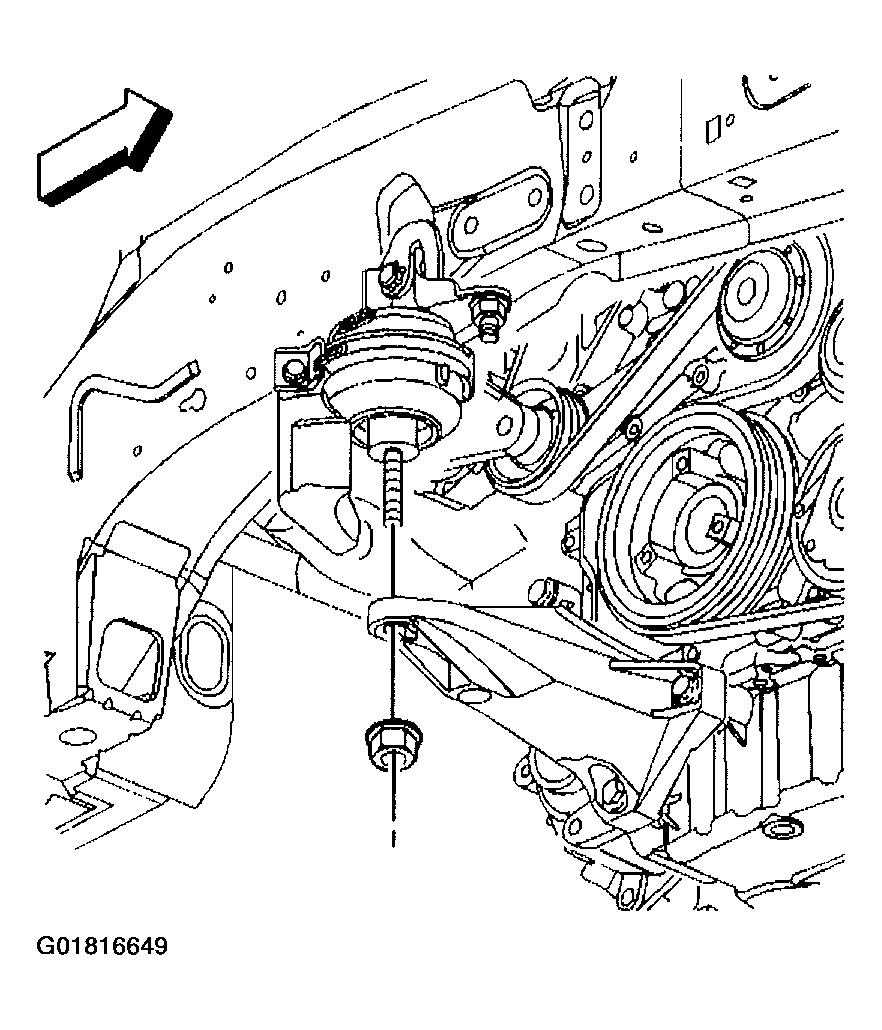

    Fig 2: Installing Right Engine Mount To Right Engine Mount Bracket Nut
    G01816649Courtesy of GENERAL MOTORS CORP.
