Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front engine mount bracket. Refer to Engine Mount Bracket Replacement - Front .
  2. Raise and support the vehicle.
  3. Remove the nut securing the front engine mount to the engine frame.
  4. Lower the vehicle.
  5. Remove the front engine mount from the vehicle.

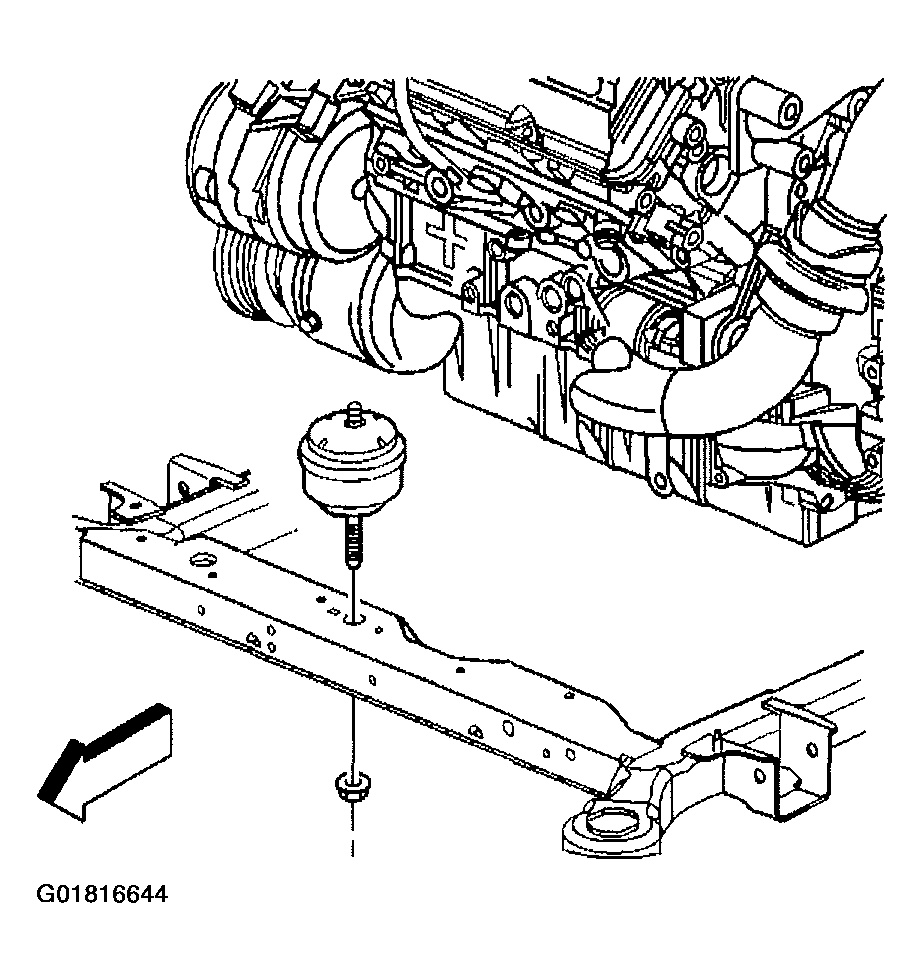

    Fig 1: Removing Front Engine Mount
    G01816644Courtesy of GENERAL MOTORS CORP.
