Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert the front engine mount stud (long) through the hole in the engine frame.
  2. Raise and support the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the nut securing the front engine mount to the engine frame.

    Tighten

    Tighten the front engine mount nut to 70 N.m (52 lb ft).

  4. Lower the vehicle.
  5. Install the front engine mount bracket. Refer to Engine Mount Bracket Replacement - Front .

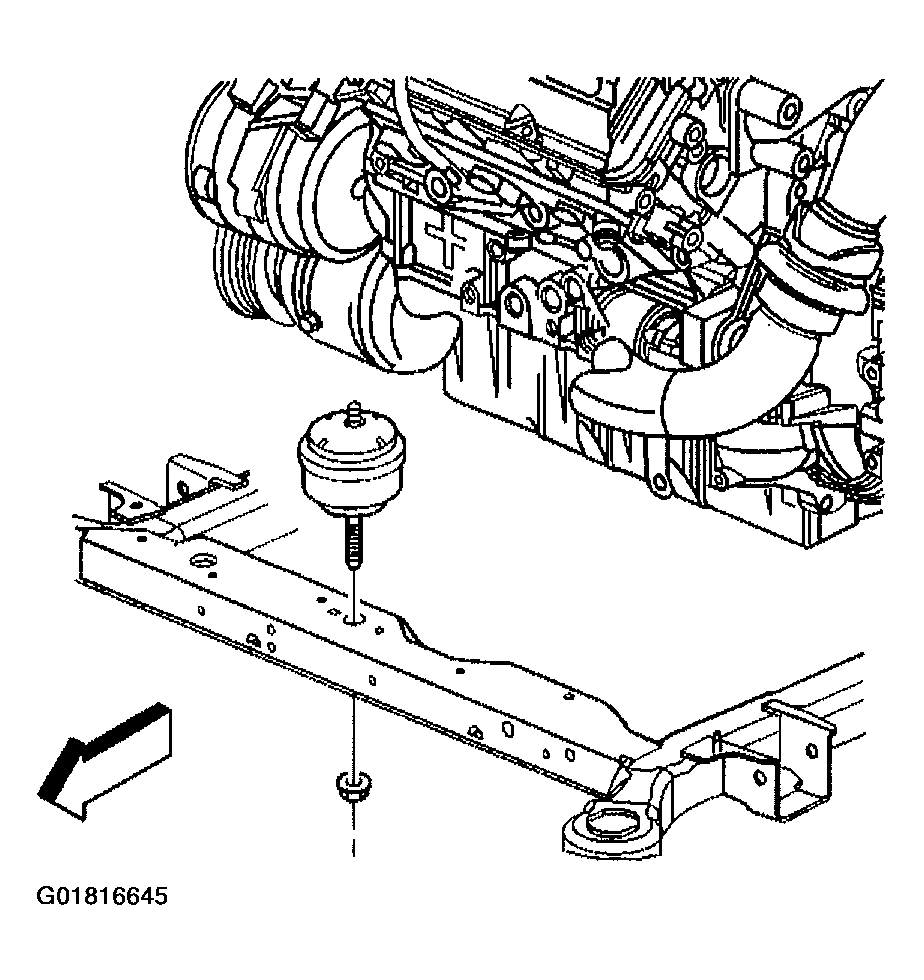

    Fig 1: Installing Front Engine Mount
    G01816645Courtesy of GENERAL MOTORS CORP.
