Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the right front wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Support the engine assembly with a suitable jack.
  4. Remove the nut securing the right engine mount to the right engine mount bracket.
  5. Lower the jack allowing the engine to lower slightly.

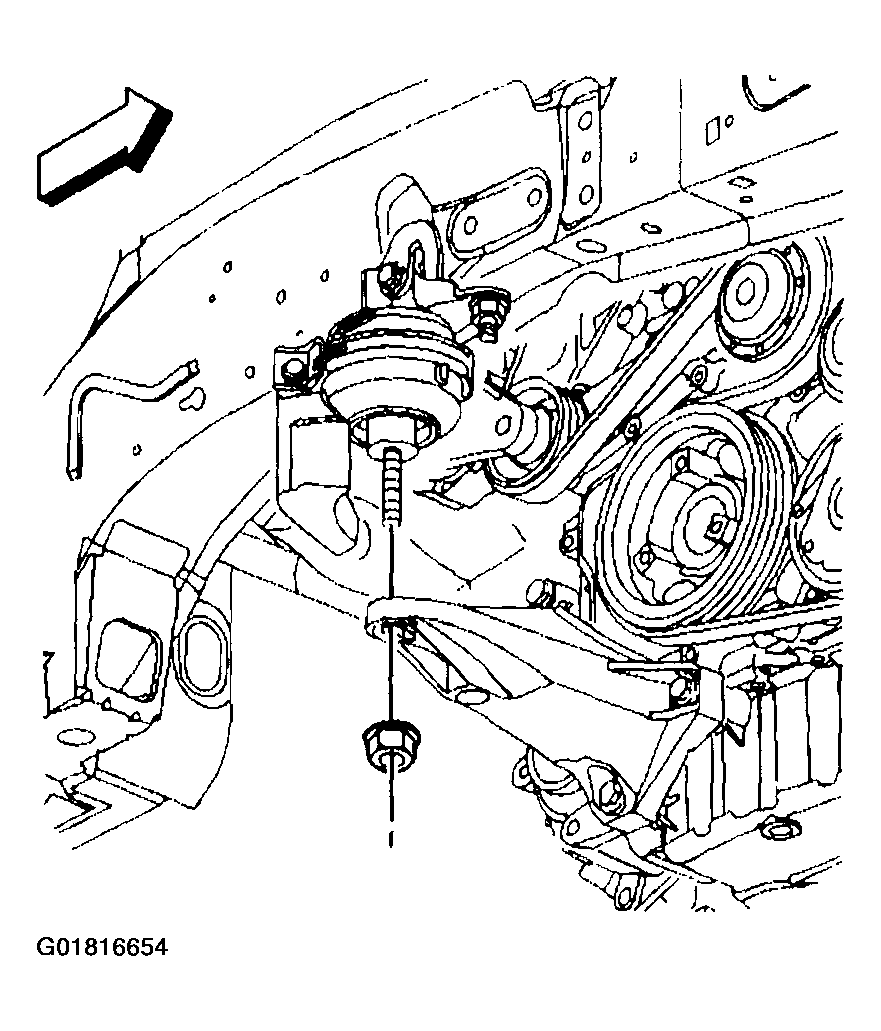

    Fig 1: Removing Front Engine Mount To Right Engine Mount Bracket Nut
    G01816654Courtesy of GENERAL MOTORS CORP.
  6. Remove the 3 bolts securing the right engine mount bracket to the engine.
  7. Remove the right engine mount bracket.

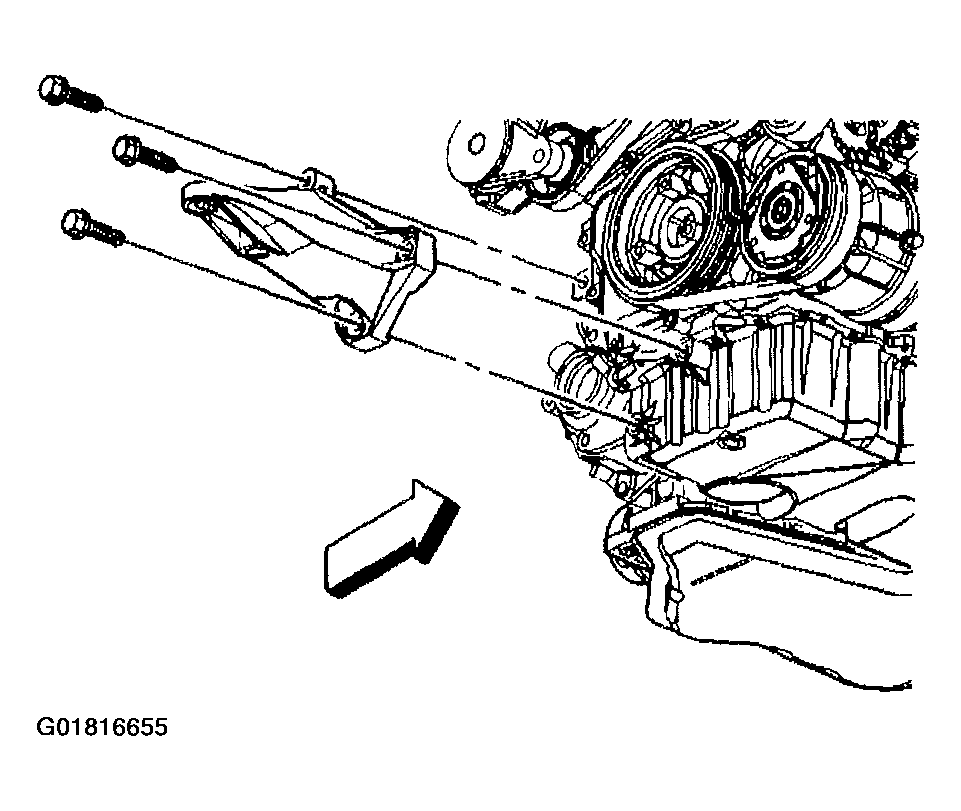

    Fig 2: Removing Right Engine Mount Bracket
    G01816655Courtesy of GENERAL MOTORS CORP.
