Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Position the right engine mount bracket to the engine.
CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
Install the bolts securing the right engine mount bracket to the engine.
Tighten

Tighten the right engine mount bracket bolts to 60 N.m (44 lb ft).
Raise the engine into position.

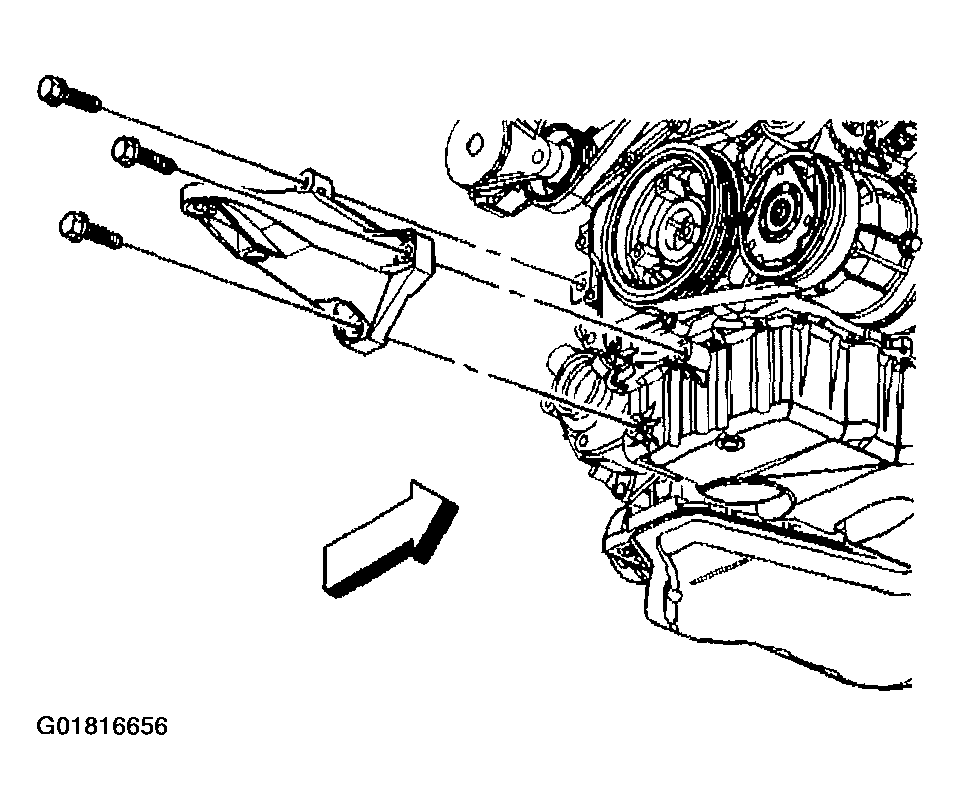

Fig 1: Installing Right Engine Mount Bracket
Courtesy of GENERAL MOTORS CORP.
Install the nut securing the right engine mount to the right engine mount bracket.
Tighten

Tighten the right engine mount nut to 80 N.m (59 lb ft).
Remove the engine support jack.
Install the right front wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
Lower the vehicle.

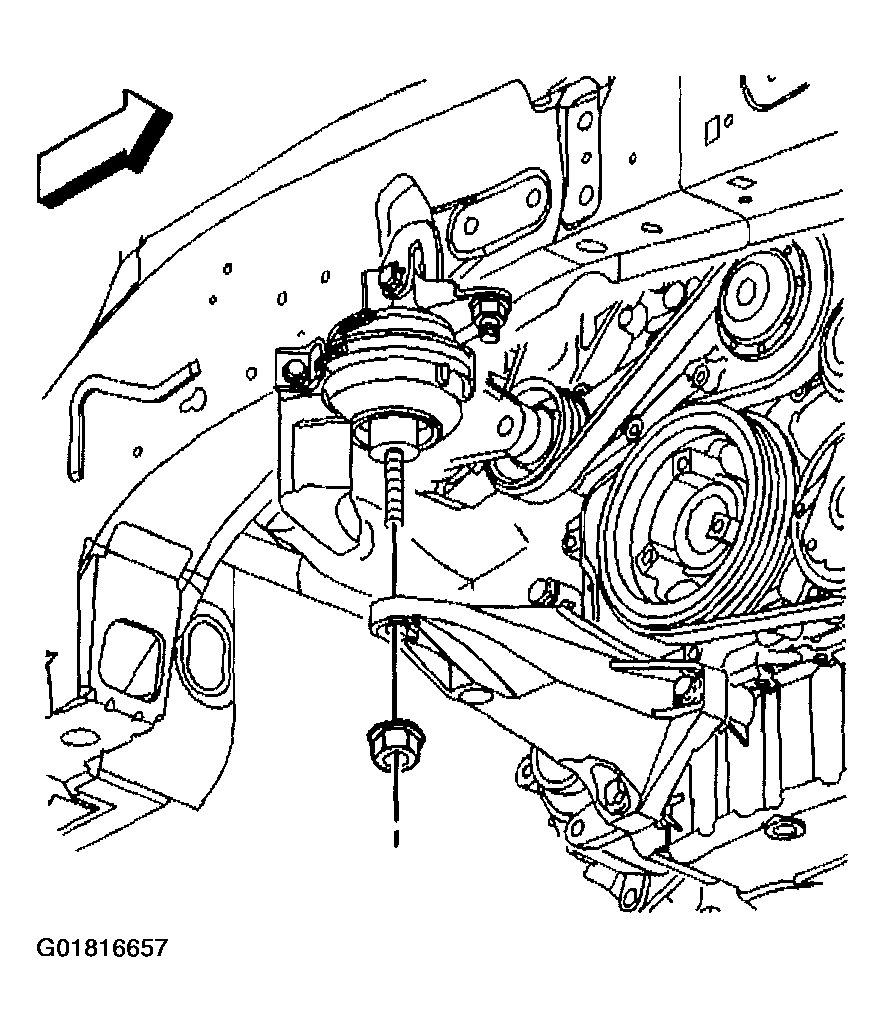

Fig 2: Installing Front Engine Mount To Right Engine Mount Bracket Nut
Courtesy of GENERAL MOTORS CORP.
