Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left exhaust manifold. Refer to EXHAUST MANIFOLD REPLACEMENT - LEFT (LX5) or EXHAUST MANIFOLD REPLACEMENT - LEFT (L47) in Engine Exhaust.
  2. Install the engine support fixture. Refer to Engine Support Fixture .
  3. Remove the nut (1) securing the front engine mount to the front engine mount bracket.

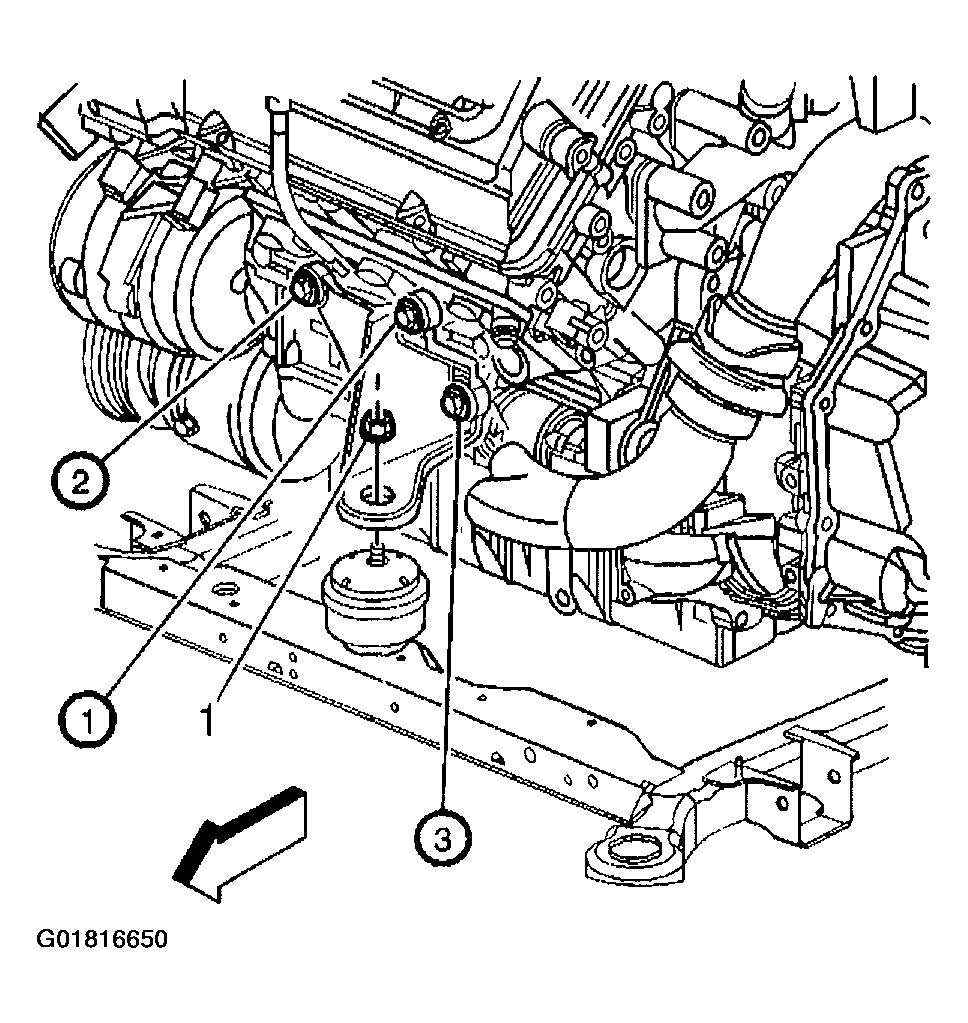

    Fig 1: Removing Front Engine Mount To Front Engine Mount Bracket Nut
    G01816650Courtesy of GENERAL MOTORS CORP.
  4. Remove the 3 bolts securing the front engine mount bracket to the engine.
  5. Remove the front engine mount bracket from the vehicle.

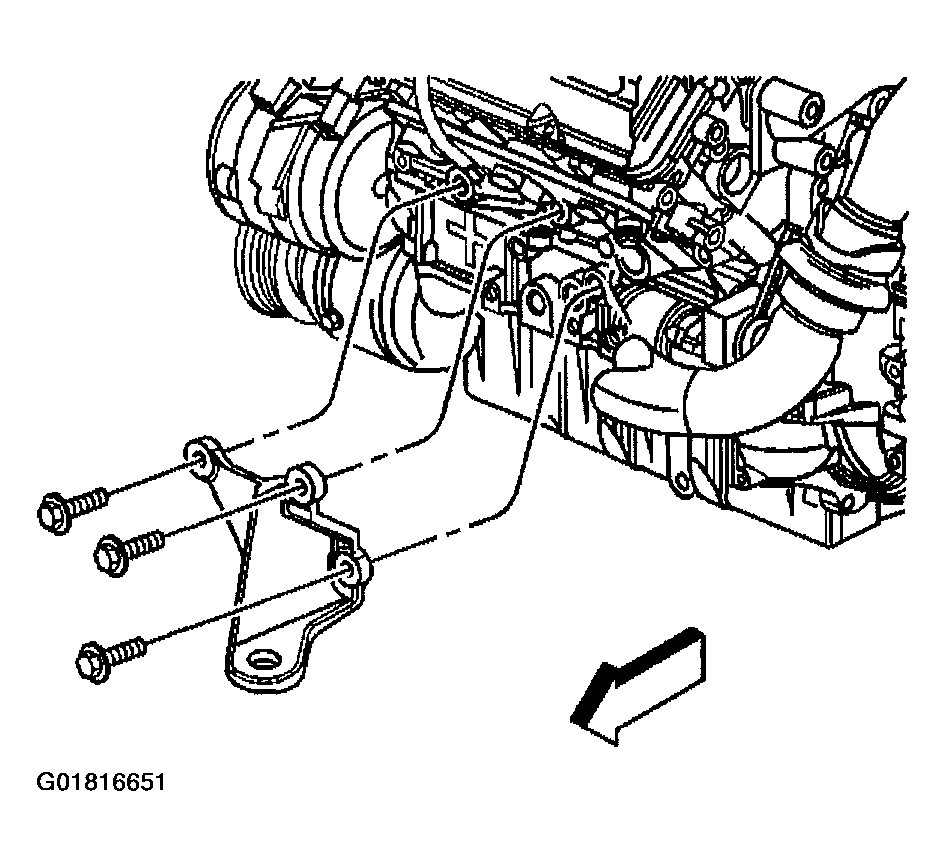

    Fig 2: Removing Front Engine Mount Bracket Bolts
    G01816651Courtesy of GENERAL MOTORS CORP.
