Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply sealant, GM P/N 12346004 or equivalent, to engine flywheel retaining bolts.
  2. Place the engine flywheel in position on the crankshaft.
  3. Slip one bolt into the engine flywheel washer.
  4. Install the washer and a bolt in a location at the top of the engine flywheel rotation allowing the engine flywheel to hang in position. Install a bolt at the bottom of the engine flywheel rotation allowing the engine flywheel to hang in position.

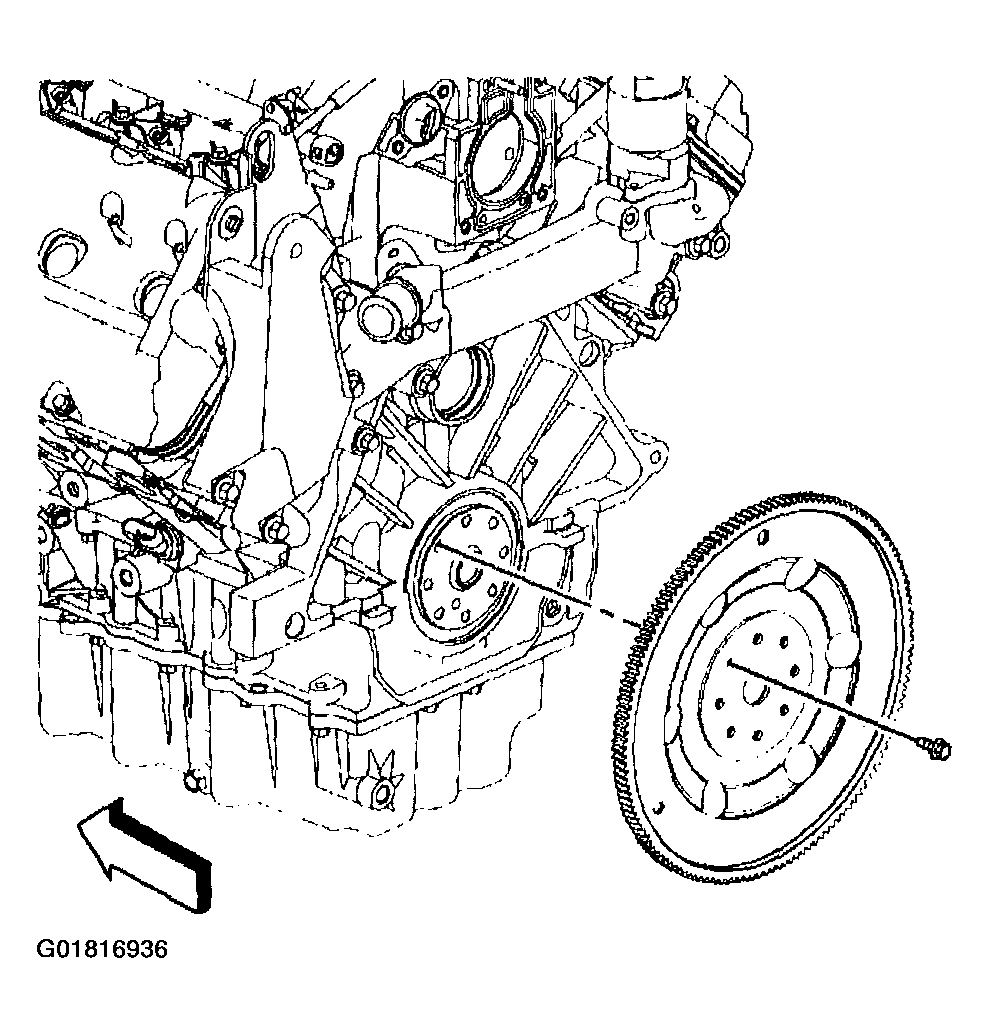

    Fig 1: Installing Engine Flywheel
    G01816936Courtesy of GENERAL MOTORS CORP.
  5. Install the J 43442  in order to prevent flywheel rotation.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  6. Install the remaining engine flywheel bolts.

    Tighten

    Tighten the engine flywheel retaining bolts to 15 N.m + 50 degrees (11 Ib. ft + 50 degrees) using the J 36660-A  .

  7. Remove the J 43442.
  8. Install the transmission. Refer to TRANSAXLE (4T65-E) in Automatic Transaxle - 4T65-E.

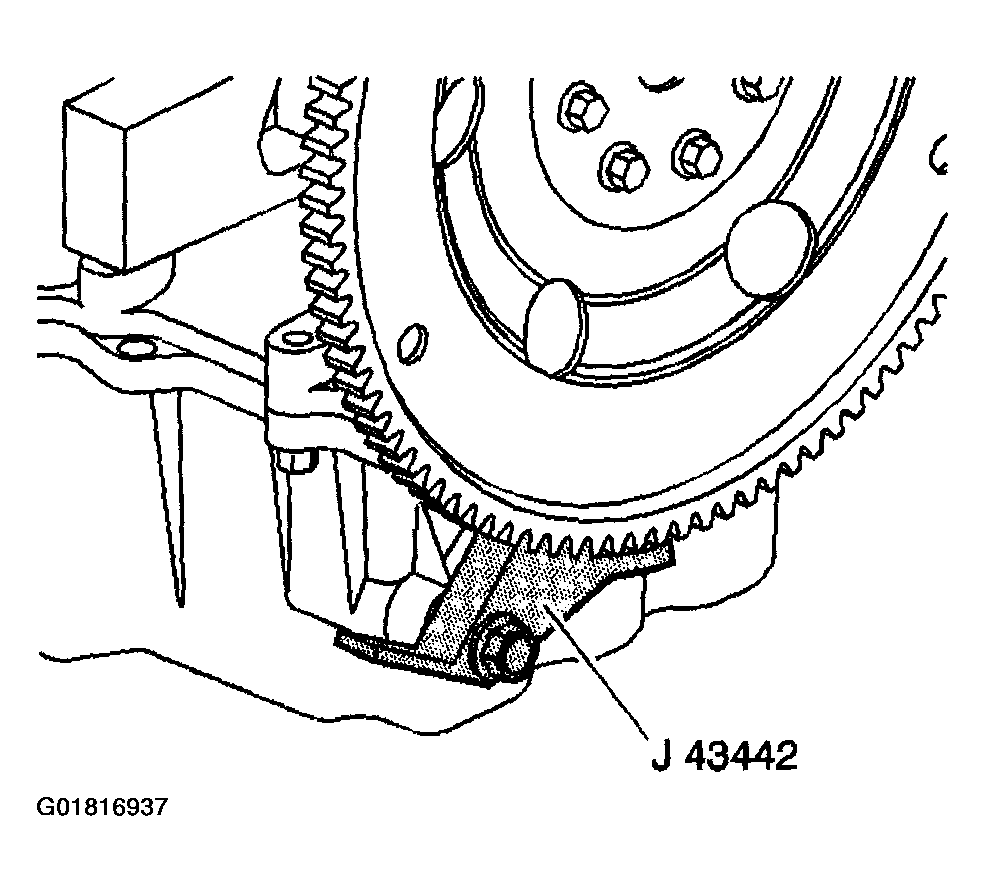

    Fig 2: Identifying J 43442
    G01816937Courtesy of GENERAL MOTORS CORP.
