Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt tension by lifting or rotating the drive belt tensioner off of the drive belt, using a 3/8-inch or 1/2-inch breaker bar.
  2. Remove the drive belt.
  3. Inspect all the components and pulleys driven by the drive belt.

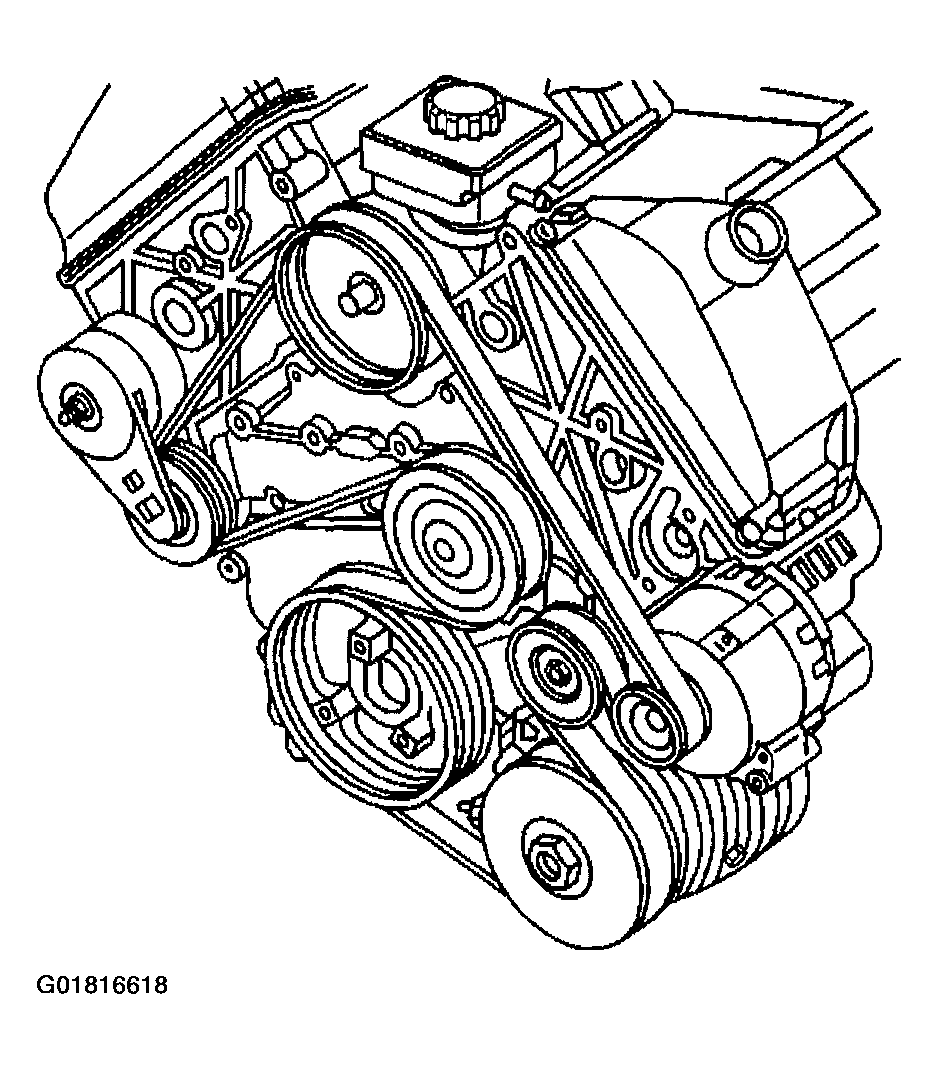

    Fig 1: Identifying Drive Belt Routing
    G01816618Courtesy of GENERAL MOTORS CORP.
