Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the balance shaft cover gasket in position on the cylinder block. Make sure any remaining gasket material is removed from the cylinder block and cover.
  2. Lower the balance shaft cover into the engine valley.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the balance shaft cover bolts.

    Tighten

    Tighten the balance shaft cover bolts to 12 N.m (106 lb in).

  4. Install the intake manifold. Refer to Intake Manifold Replacement .

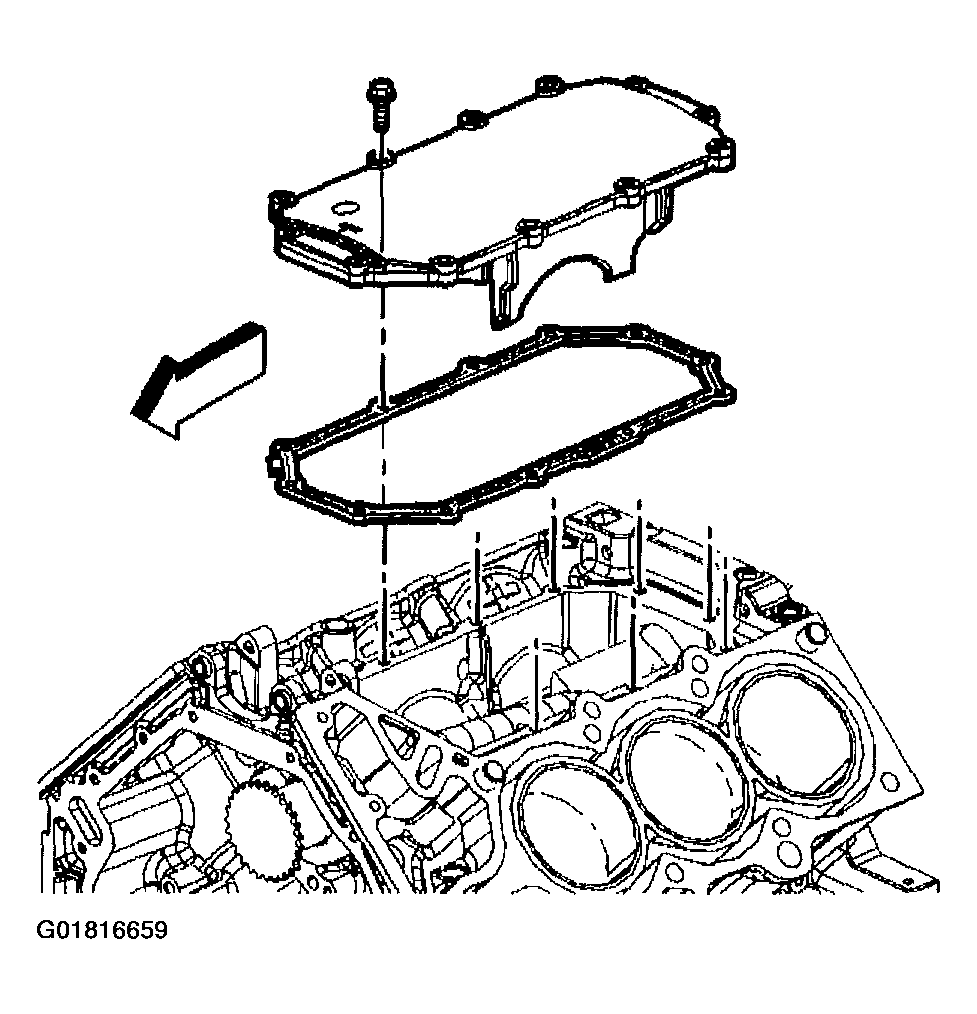

    Fig 1: Installing Balance Shaft Opening Cover
    G01816659Courtesy of GENERAL MOTORS CORP.
