Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the engine shield. Refer to Engine Protection Shield Replacement in Frame and Underbody.
  3. Remove the electrical connector from the oil pressure switch.
  4. Remove the oil pressure switch.

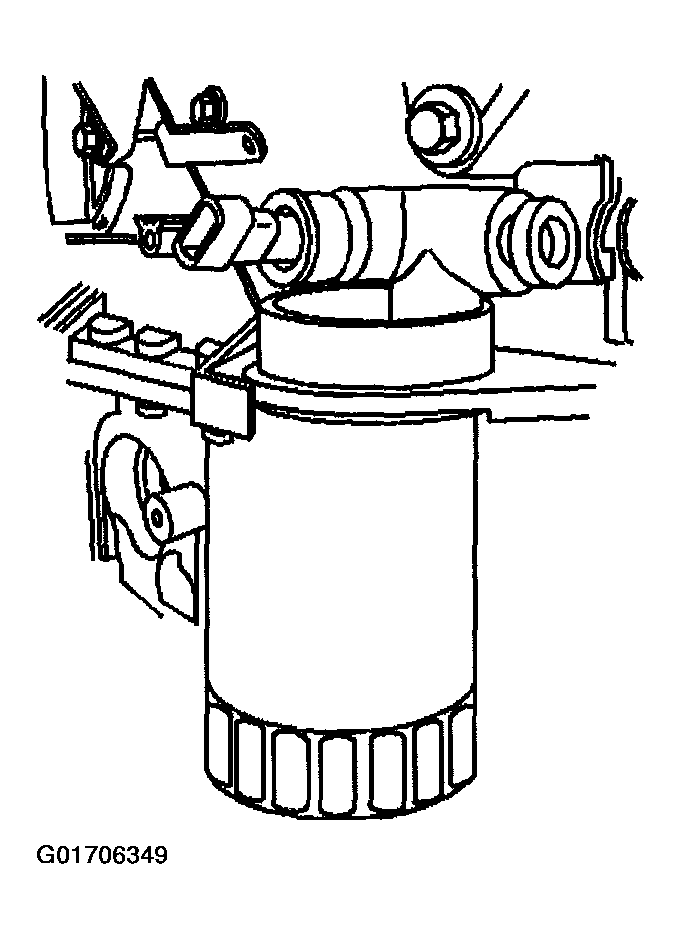

    5. Fig 1: Removing Oil Pressure Switch
    G01706349Courtesy of GENERAL MOTORS CORP.
